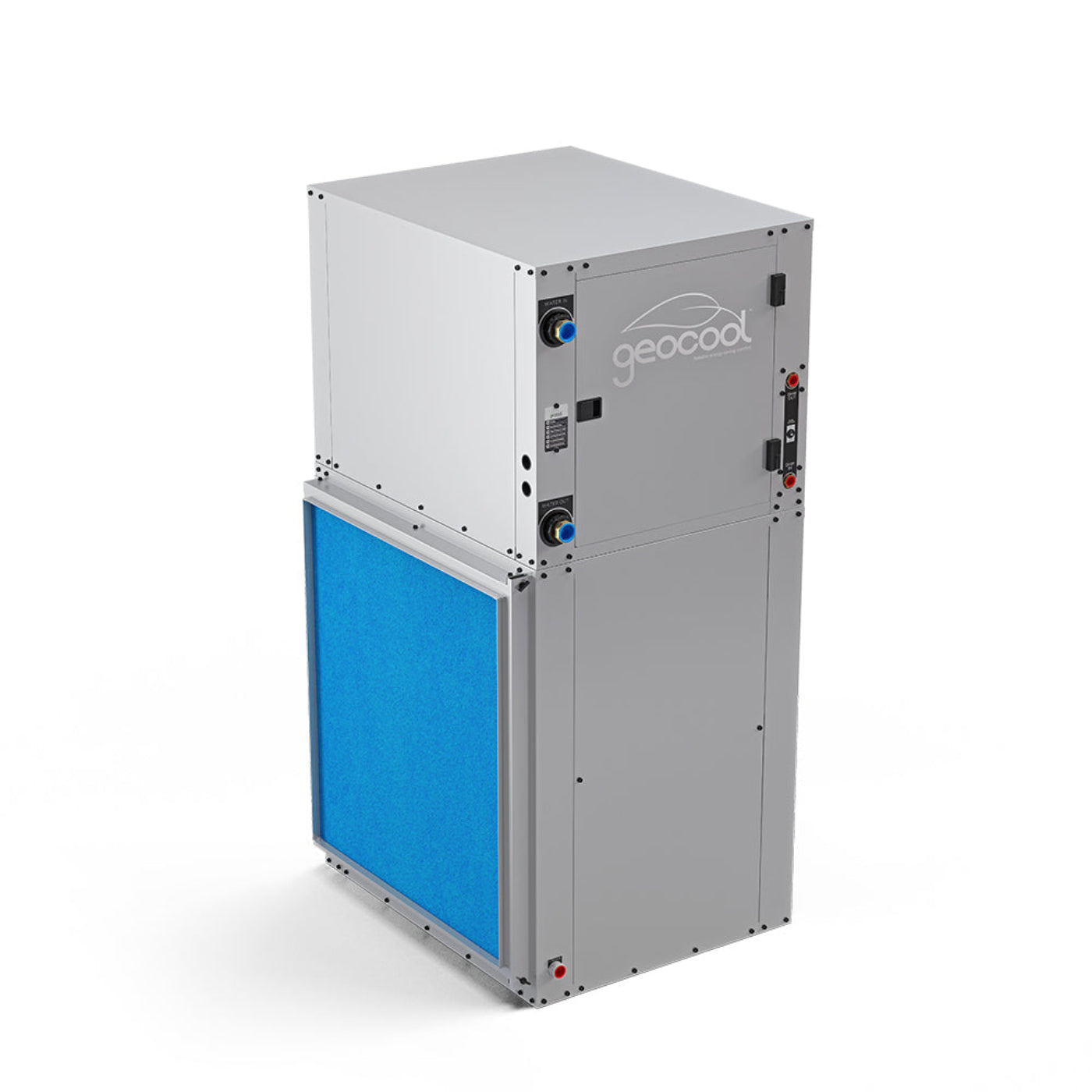

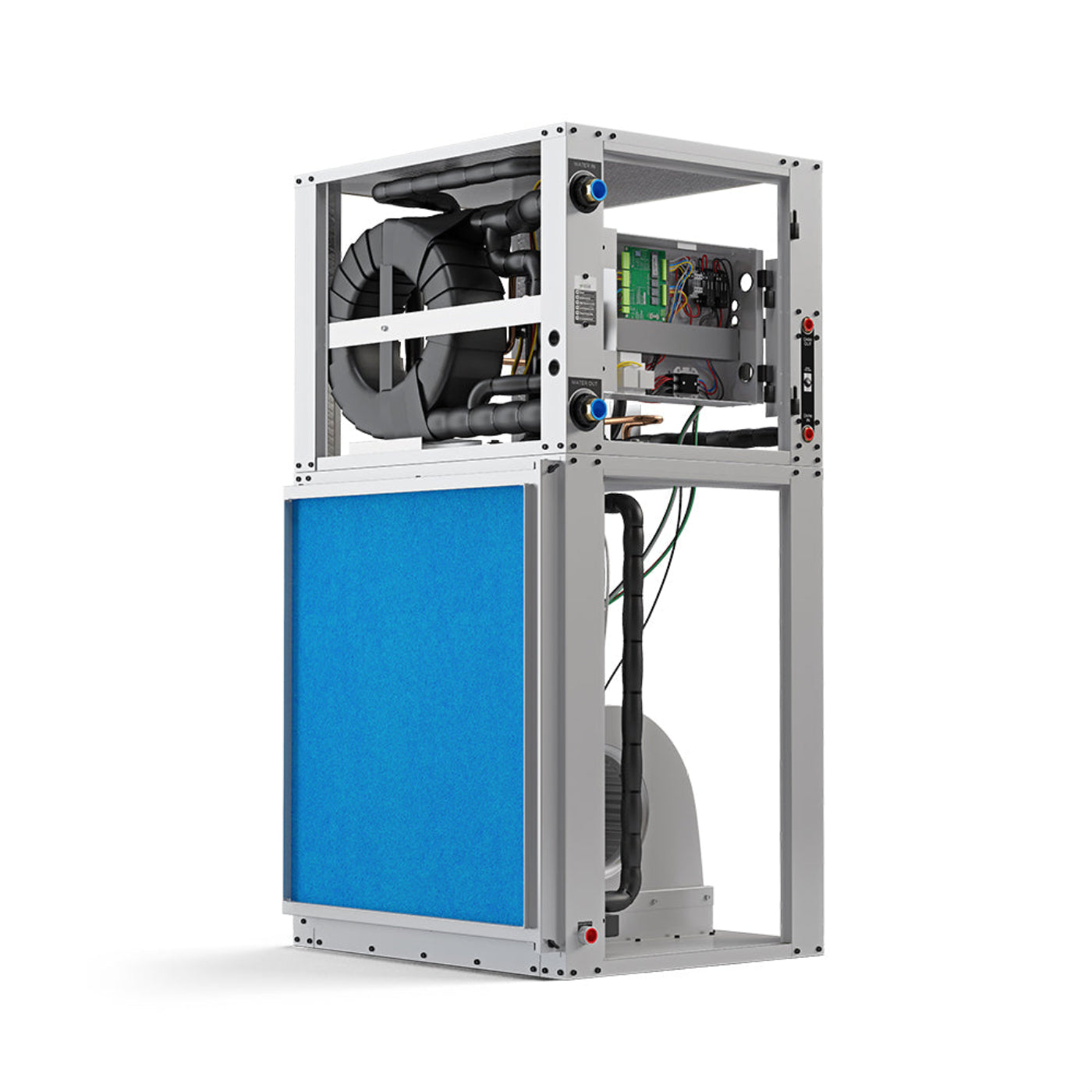

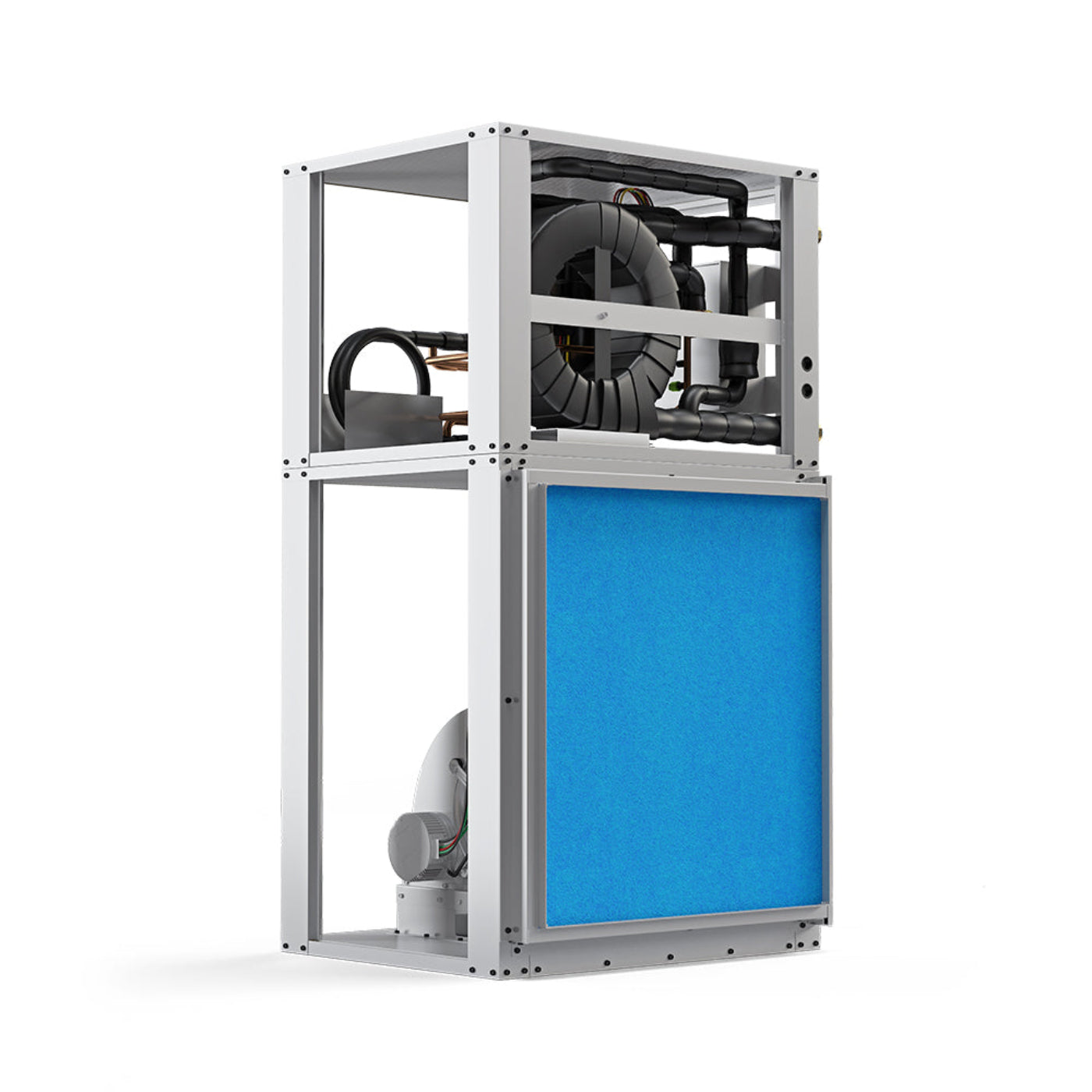

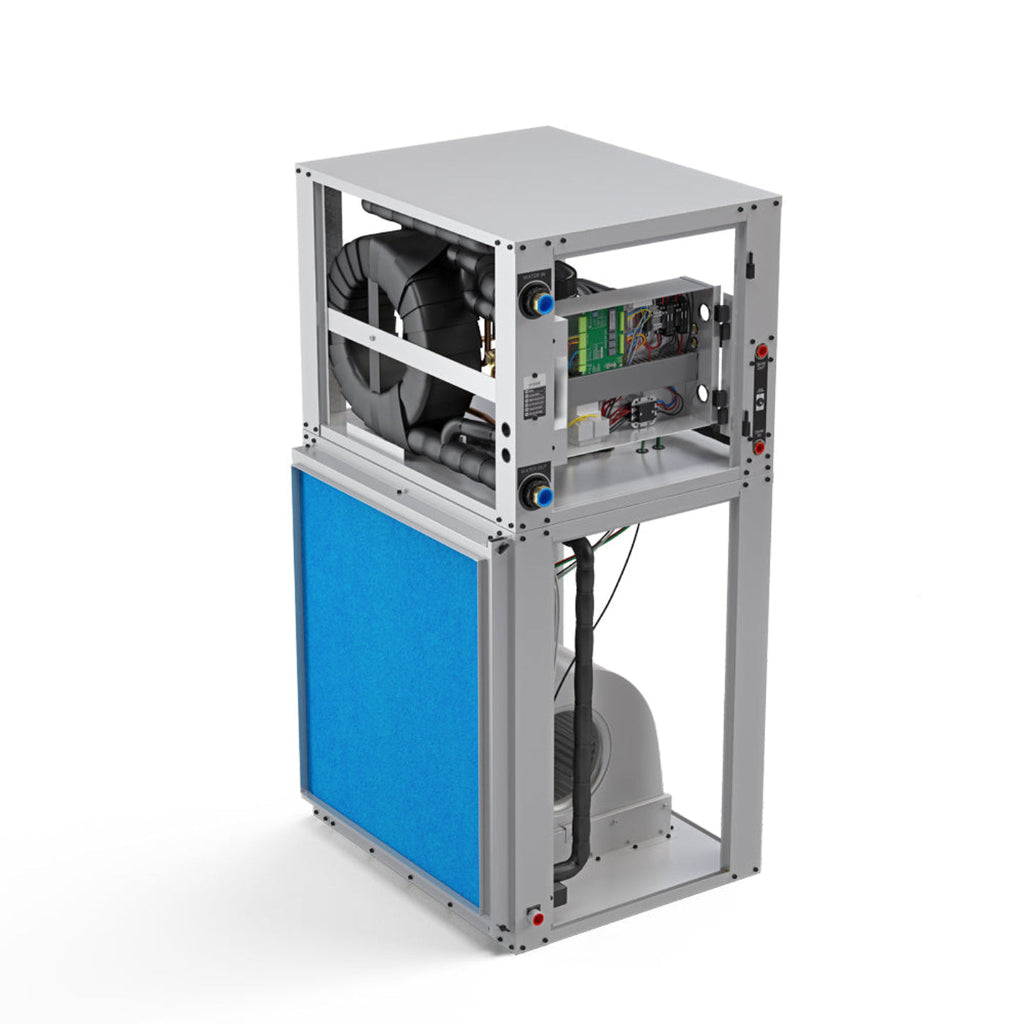

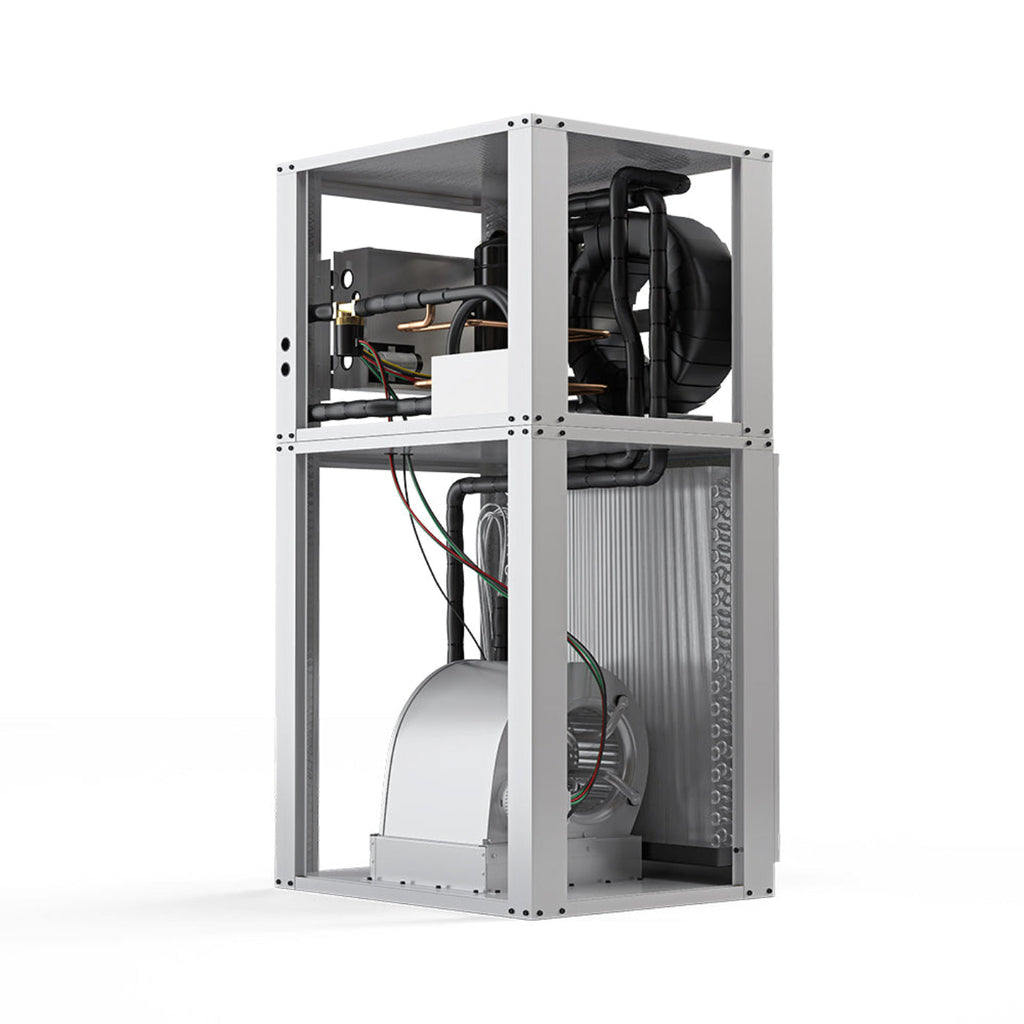

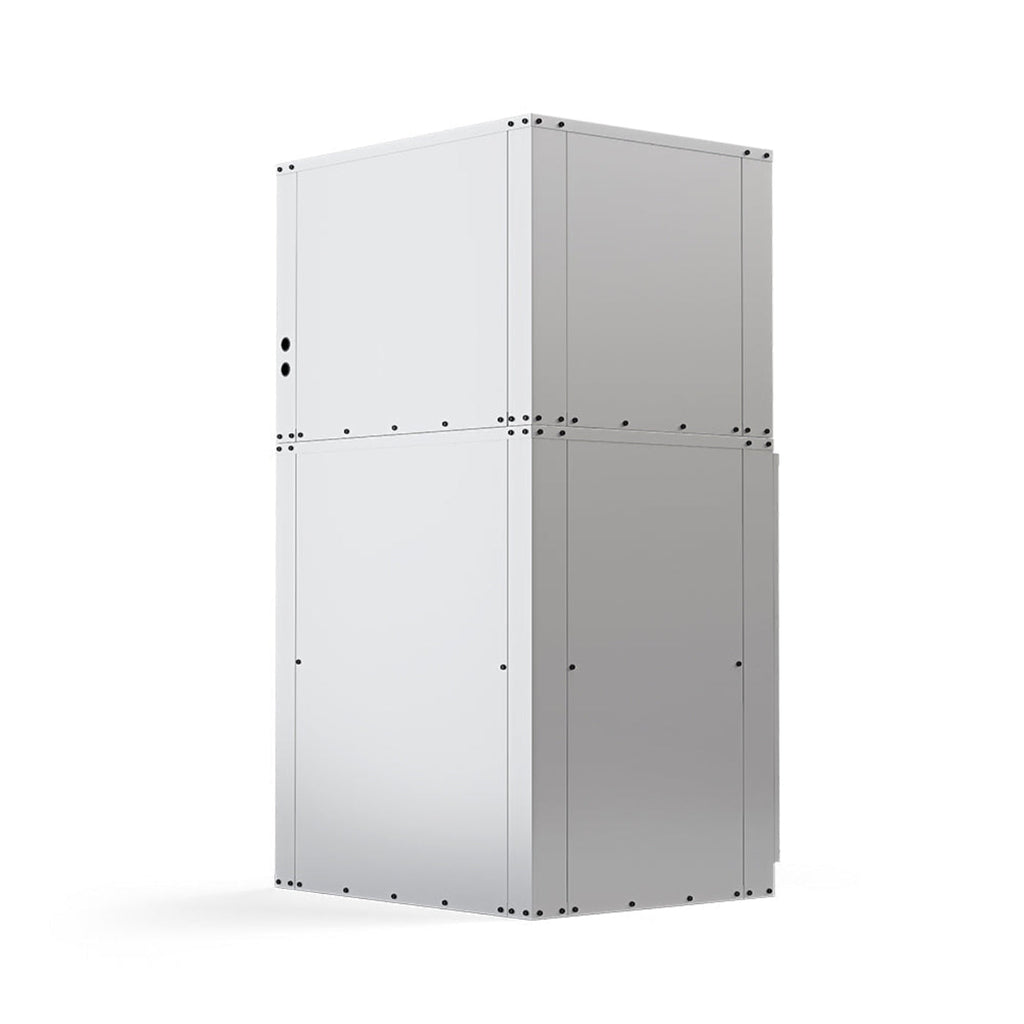

    MRCOOL 24K BTU Downflow Two-Stage Heat Pump - Left Return,  - GCHPD024TGTANXL

    24K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return

    Features
    • Qualifies for federal tax credit, and other incentives
    • Highest energy efficiency in its class
    • Safety high and low pressure switches
    • Quiet operation
    • Full featured sinusoidal eon motor control technology
    • Insulated sloped stainless steel drain pan
    • Advanced unit control board with diagnostic LEDs
    • Double O-ring water connections
    • Easy service access
    • Optional domestic water pre-heating
    • Made in the USA
      Specifications
      Product Dimensions
      25.75"W x 32"D x
      56"H
      Product Weight 325 lbs
      EER Ground Water (FULL) 27.40 / Ground Loop (FULL) 17.95
      EER Part Load Ground Water (PART) 36.50 / Ground Loop (PART) 25.93
      COP 47 Ground Water (FULL) 5.40 / Ground Loop 4.20 (FULL)
      COP 47
      Part Load
      Ground Water (PART) 5.50 / Ground Loop 4.70 (PART)
      HSPF Ground Water Fluid Flow Rate | COOLING: (PART) 7 - 8 (FULL) / HEATING: (PART) 7 - 8 (FULL)
      AFUE Ground Loop Fluid Flow Rate | COOLING: (PART) 7 - 8 (FULL) / HEATING: (PART) 7 - 8 (FULL)
      CFM COOLING (PART) 850 - 1000 (FULL) / HEATING (PART) 800 - 950 (FULL)
      Tonnage 2
      Cooling Capacity Ground Water (PART) 23000 - 29000 (FULL) / Ground Loop (PART) 21900 - 27000 (FULL)
      Heating Capacity Ground Water (PART) 19000 - 25700 (FULL) / Ground Loop (PART) 16500 - 18500 (FULL)
      Voltage 230V/
      60Hz/34A
      Phase 1
      Cycle 60
      Stage Two-Stage
      Max Fuse Breaker 34.0 (W/O Desupe
      Min Circuit Ampacity 21.9
      Configuration Left Return Downflow
      Color Gray
      Max Coverage Area 1000
      Refrigerant Type R-410A
      Compressor Motor Type Scroll
      Blower Motor Type Axial Flux (No Shaft) BLA
      Blower Motor HP 3/4
      Filter Type Replaceable
      Contains Electronics
      Chemicals
      Aerosol
      Compressed Gas
      Proposition 65 Warning Yes
      What our Experts Think
      • Two‑stage efficiency & comfort: Two‑stage operation delivers smoother temperature control and improved dehumidification compared to single-stage systems.

      • Optimal sizing: 24,000 BTU (2‑ton) capacity is ideal for homes or spaces up to ~1,000 sq ft with balanced heating and cooling.

      • Downflow, left‑return design: Perfect for installations requiring vertical airflow with ductwork entering from the left.

      • Reliable performance: Scroll compressor and quality blower motor ensure quiet, consistent operation with easy service access.

      • Maintenance‑friendly: Replaceable filters simplify upkeep and help maintain indoor air quality.


      Q&A

      Q: What is the MRCOOL GCHPD024TGTANXL?
      A: A 24,000 BTU (2 ton) downflow, two-stage heat pump designed for efficient, year-round heating and cooling in ducted HVAC systems.

      Q: What configuration does it use?
      A: Downflow orientation with a left return, ideal for vertical HVAC installations.

      Q: How does it perform?
      A: Features a two-stage scroll compressor and axial flux blower for quiet, efficient operation in medium-sized homes.

      Q: What refrigerant and power does it require?
      A: Uses R‑410A refrigerant and operates on 230 V single-phase power.

      Q: Is it energy efficient?
      A: Yes, designed to meet ENERGY STAR® standards for energy savings.


      Maintenance Tips
      • Replace or clean air filters every 1–3 months

      • Keep outdoor condenser unit clear of debris, leaves, and dirt

      • Inspect refrigerant lines and connections for leaks or damage

      • Ensure condensate drain lines are unobstructed

      • Check thermostat settings and batteries regularly

      • Schedule annual professional inspection for coils, refrigerant, and electrical components
