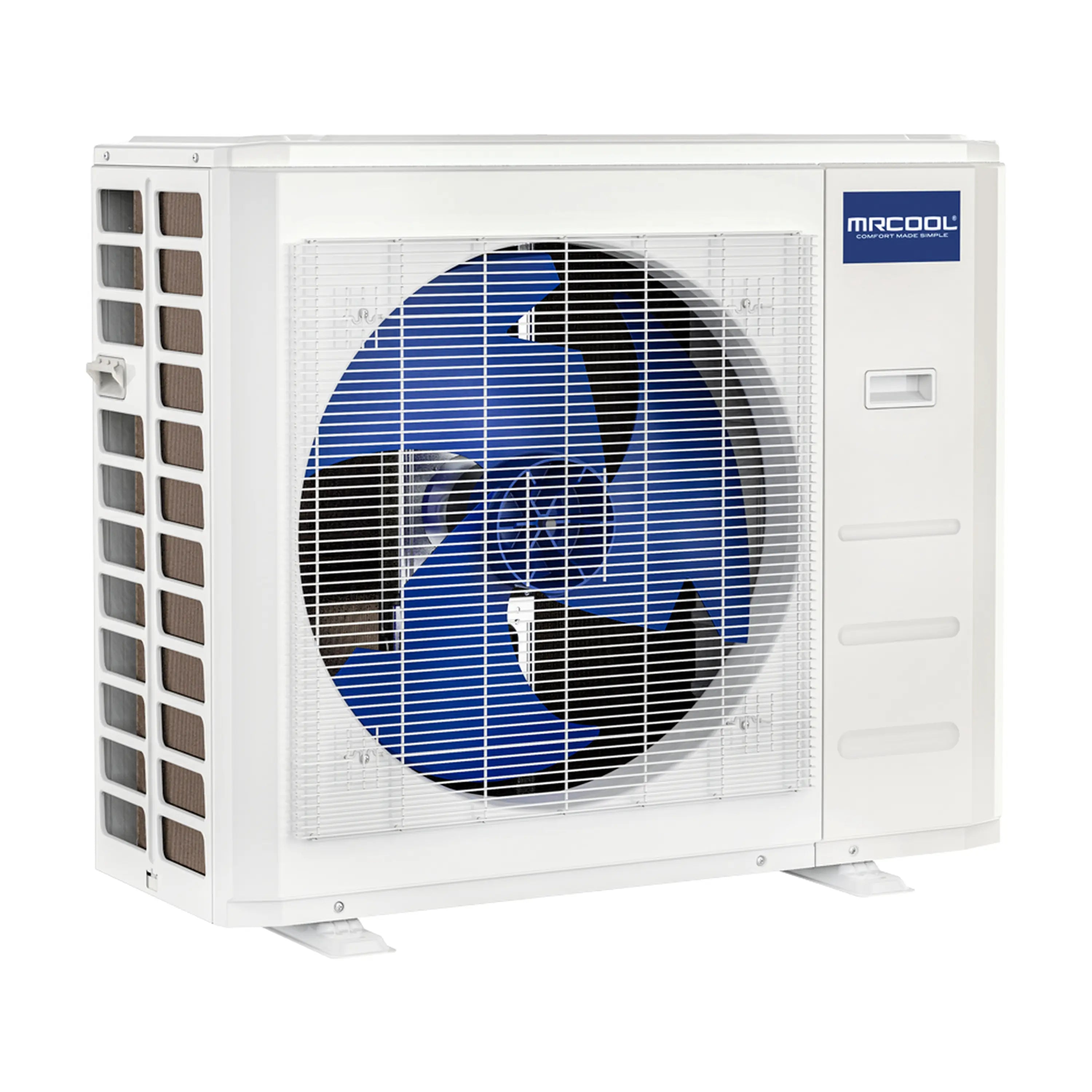

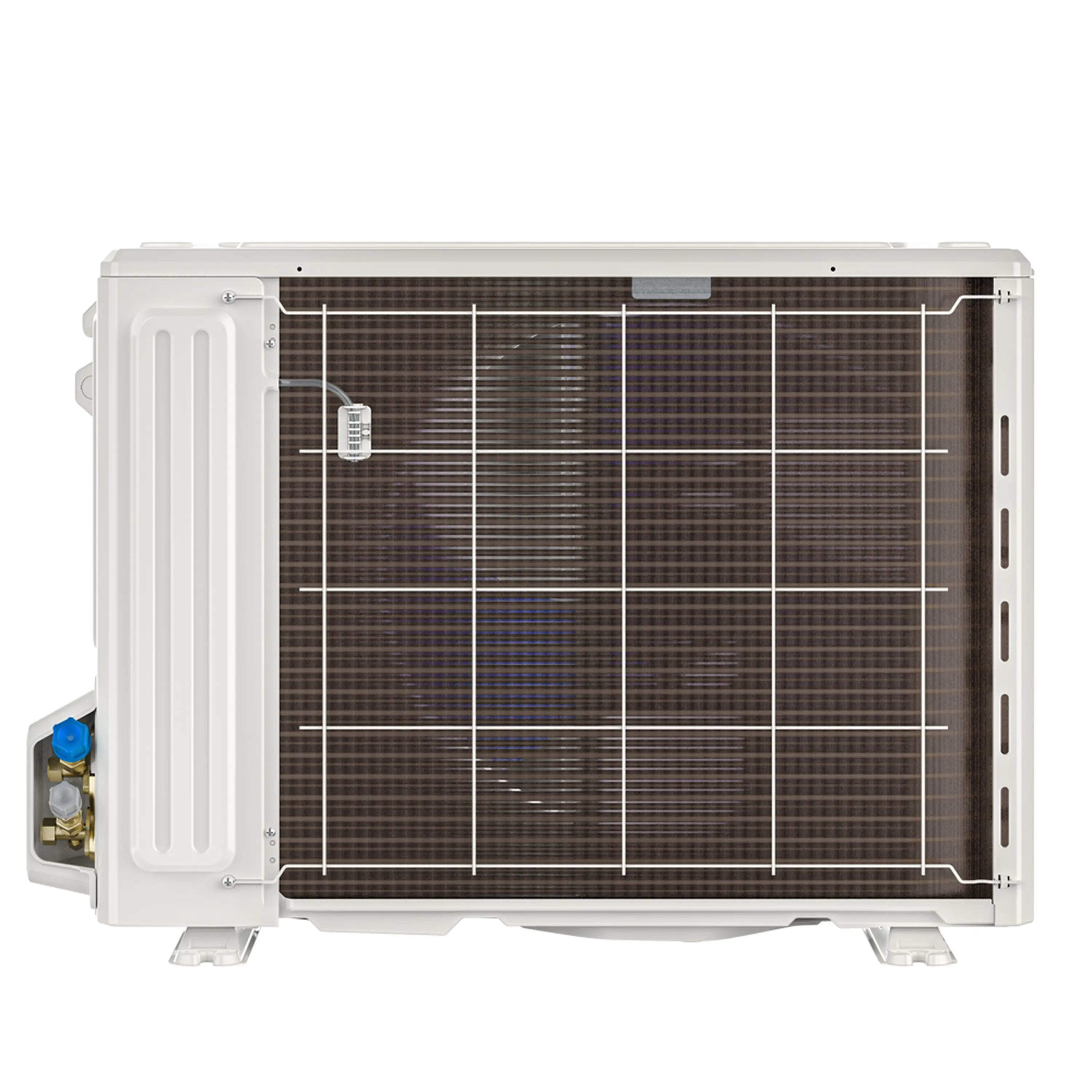

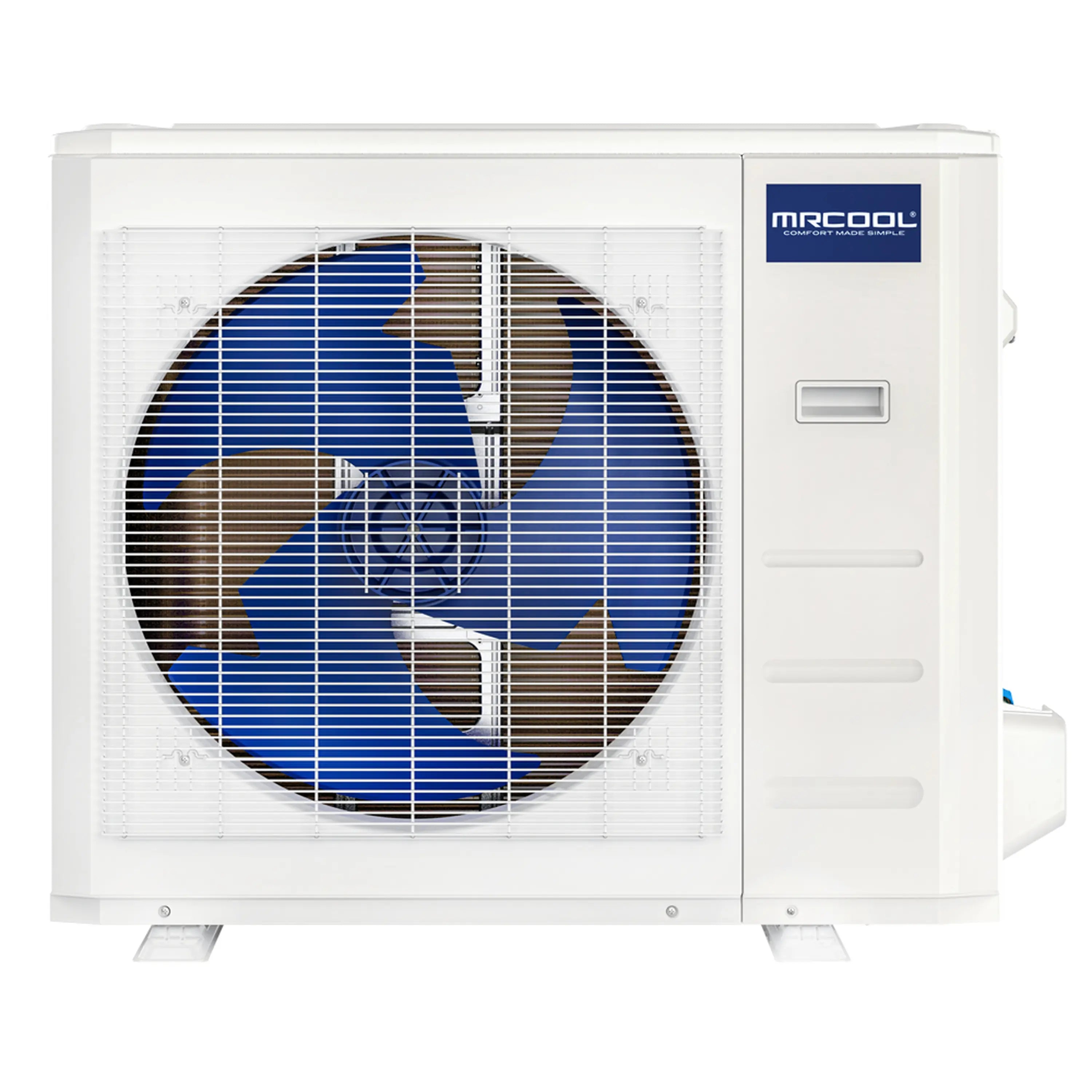

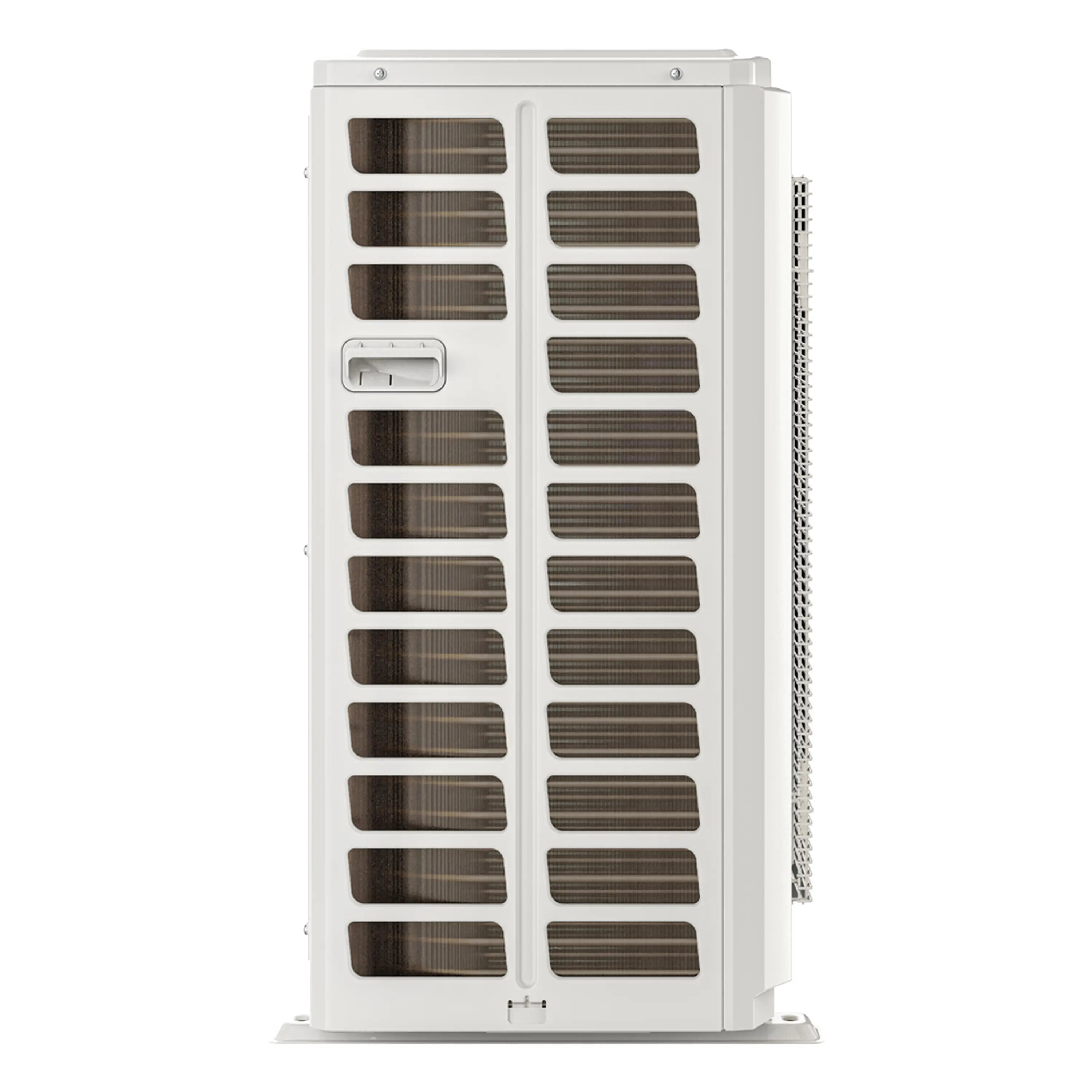

MRCOOL Hyper Heat 2nd Gen 30K BTU, 2.5 Ton, 16.8 SEER2 Central Ducted Condenser - CENTRAL-30-HP-C-230B00-O
Elevate your home into a haven of comfort with the 30K MRCOOL® Hyper Heat Central Ducted Condenser, crafted to excel in harsh winters and sweltering summers. This advanced unit combines robust performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 16.8 and an HSPF2-4 rating of up to 10, it provides dependable operation while helping to reduce your home's energy costs. The included MRCOOL® Smart thermostat ensures effortless temperature control for your convenience.
The 30K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 30K MRCOOL® VersaPro® Central Ducted Air Handler. Designed with flexibility in mind, the air handler supports multiple installation configurations and offers the option to add a heat kit for enhanced versatility. The system utilizes R-454B refrigerant, reflecting a forward-thinking approach to environmental sustainability. The outdoor heat pump is designed for durability and features a sturdy painted galvanized steel exterior. The air handler has a compact design that simplifies maintenance and includes a slide-out blower and a self-diagnostic panel.
For ultimate peace of mind, the 30K MRCOOL® Hyper Heat Central Ducted Condenser is backed by a 10-year warranty covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, offering hassle-free protection. Upgrade your home's climate control with this reliable, energy-efficient system today!
Specifications
Dimensions |
16.14" D x 31.89" H x 37.24" W |
SEER2 |
16.8 |
EER2 |
11.7 |
HSPF-4 |
10 |
HSPF-5 |
8.3 |
CFM |
3001.8 |
Tonnage |
2.5 |
Cooling Capacity (BTU) |
30000 |
Heating Capacity (BTU) |
34000 |
Voltage (V) |
208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker (A) |
30 |
Min Circuit Ampacity (A) |
29.5 |
Color |
gray |
Refrigerant Type |
R454B |
Refrigerant Volume (OZ) |
105.82 |
Decibel Rating (DBA) |
60.5 |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Base Labor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
164.02 |
Gross Depth (In) |
19.68 |
Gross Height (In) |
34.84 |
Gross Width (In) |
42.91 |
Gross Weight (Lbs) |
174.6 |
What our Experts Think
-
Efficient Comfort for Medium Spaces – 30,000 BTU (2.5 Ton) condenser delivers reliable heating and cooling for small-to-medium homes.
-
High SEER2 Rating – 16.8 SEER2 ensures energy-efficient operation and lower utility costs.
-
Heat Pump Technology – Provides year-round climate control when paired with compatible air handlers.
-
Durable & Quiet – Built for long-lasting performance and minimal operating noise.
-
Flexible Compatibility – Designed to work seamlessly with MRCOOL Hyper Heat 2nd Gen ducted air handlers and optional heat kits.
Q&A
Q: What is included in this MRCOOL Hyper Heat 2nd Gen condenser?
A: This product is a 30,000 BTU (2.5 ton) central ducted heat pump condenser, designed to pair with compatible MRCOOL ducted air handlers.
Q: How energy efficient is the system?
A: With a 16.8 SEER2 rating, it provides efficient heating and cooling while helping reduce energy costs.
Q: Can it provide both heating and cooling?
A: Yes, when paired with a compatible air handler, it delivers year-round heating and cooling.
Q: What size area can it cover?
A: Ideal for small to medium homes or commercial spaces up to approximately 1,200–1,500 sq. ft., depending on insulation and climate.
Q: Is it compatible with existing ductwork?
A: Yes, it is designed for use with standard central ducted systems and MRCOOL-compatible air handlers.
Q: Who should choose this condenser?
A: Homeowners or small businesses seeking a compact, energy-efficient central HVAC condenser for moderate-sized spaces.
Maintenance Tips
-
Air Filter Care: Replace or clean indoor filters every 1–3 months to maintain airflow and efficiency.
-
Outdoor Unit Maintenance: Keep condenser free of leaves, dirt, and debris for optimal operation.
-
Ductwork Inspection: Seal leaks and clean ducts to ensure uniform air distribution.
-
Condensate Drain: Check and clear drain lines regularly to prevent water damage.
-
Coil Cleaning: Schedule annual cleaning of condenser coils to maintain peak performance.
-
Professional Service: Arrange yearly maintenance to maintain 16.8 SEER2 efficiency and extend system lifespan.
