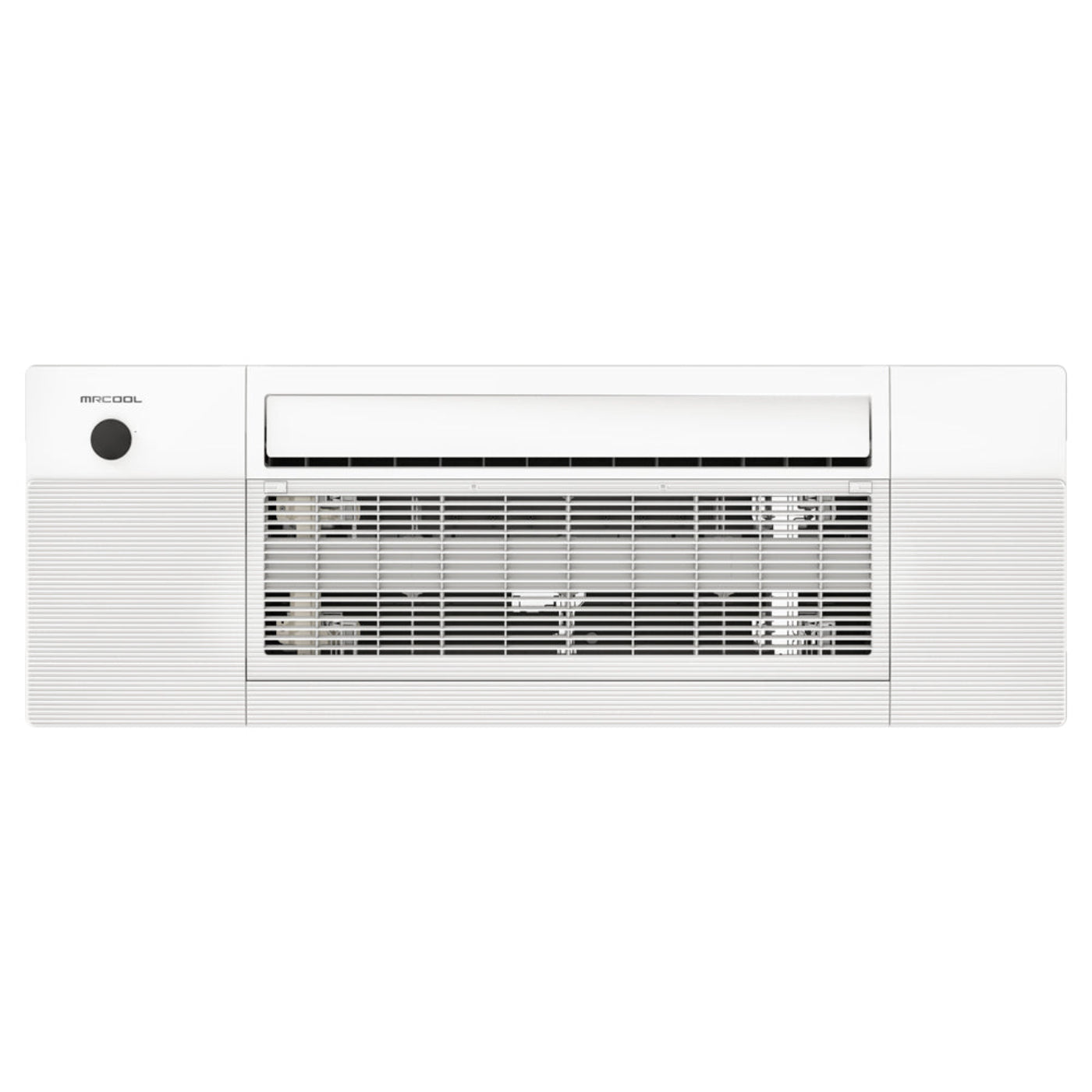

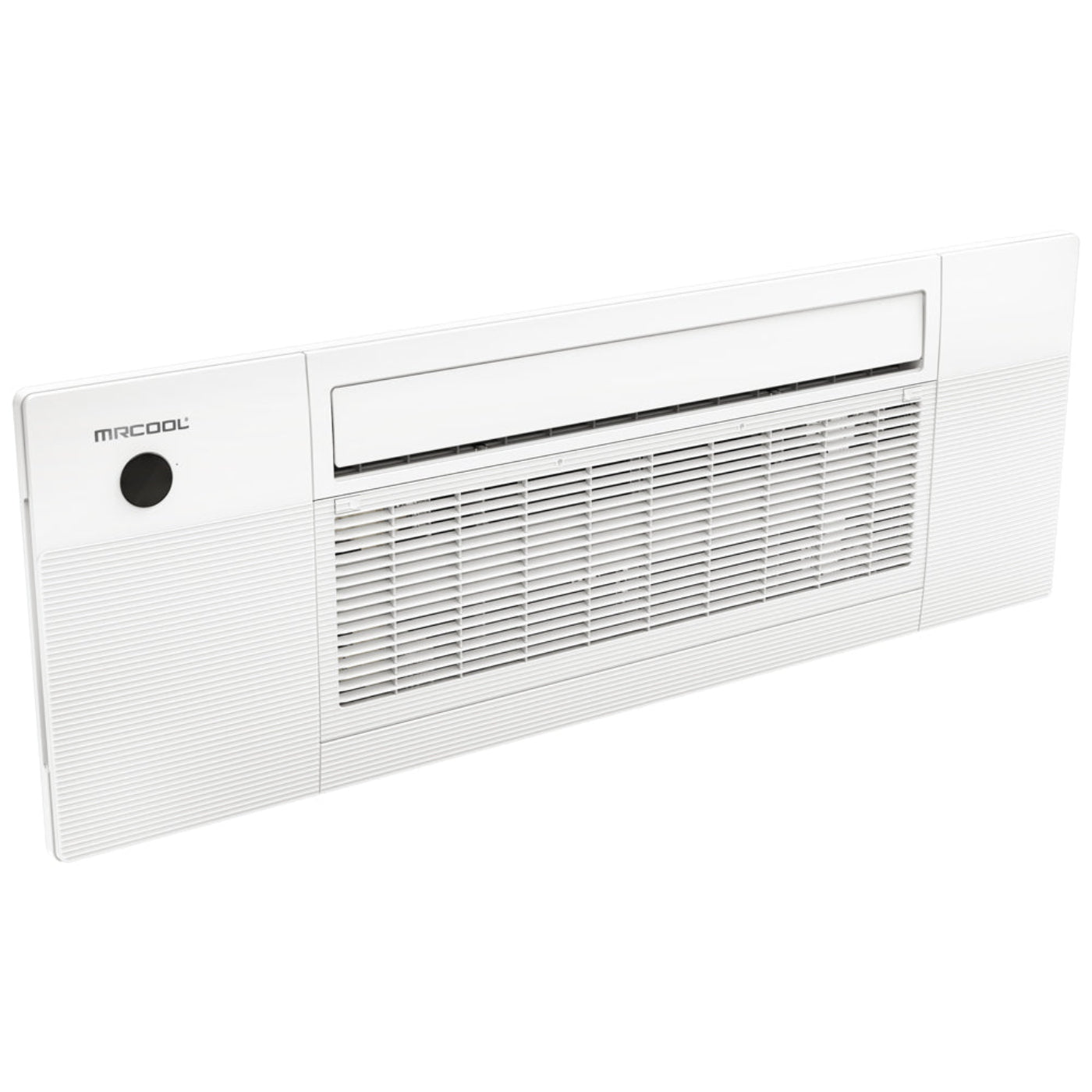

MRCOOL DIY 5th Gen 9,000 BTU Multi-Zone Mini Split Ceiling Cassette Air Handler 230V, - DIYCASSETTE09HP-230C25-O
The 5th Generation MRCOOL DIY Series OuttaSight 9K BTU 230V One-Way Ceiling Cassette is a compact yet powerful climate control solution designed for rooms up to 350 sq. ft. Engineered for simple DIY installation, it eliminates the need for specialized tools while offering a sleek, flush-mounted design that integrates seamlessly into new builds or retrofit projects. Paired with the pre-charged MRCOOL DIY Quick Connect line set, this system provides efficient cooling and heating with eco-friendly refrigerant, quiet performance, and versatile smart control options. Backed by industry-leading warranties, it delivers reliable, year-round comfort with ease.
Features
-
DIY Installation: Designed for hassle-free setup with no need for specialized tools or professional installation.
-

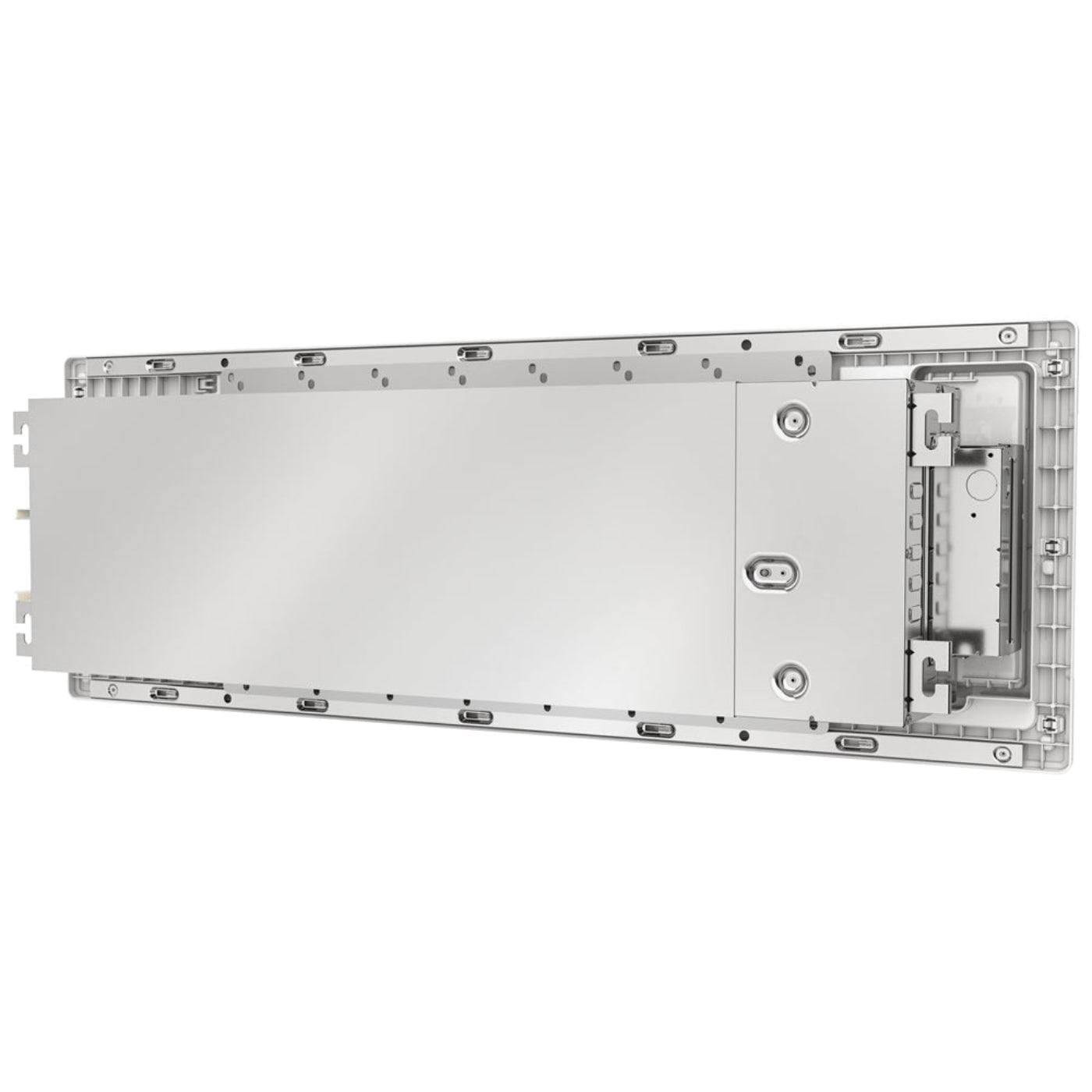

Compact Design: Fits neatly between 16” ceiling joists, including pre-manufactured I-joists, for a flush-mounted appearance.
-
Flexible Application: Ideal for both new construction and retrofit projects, eliminating the need for ductwork or wall space.
-

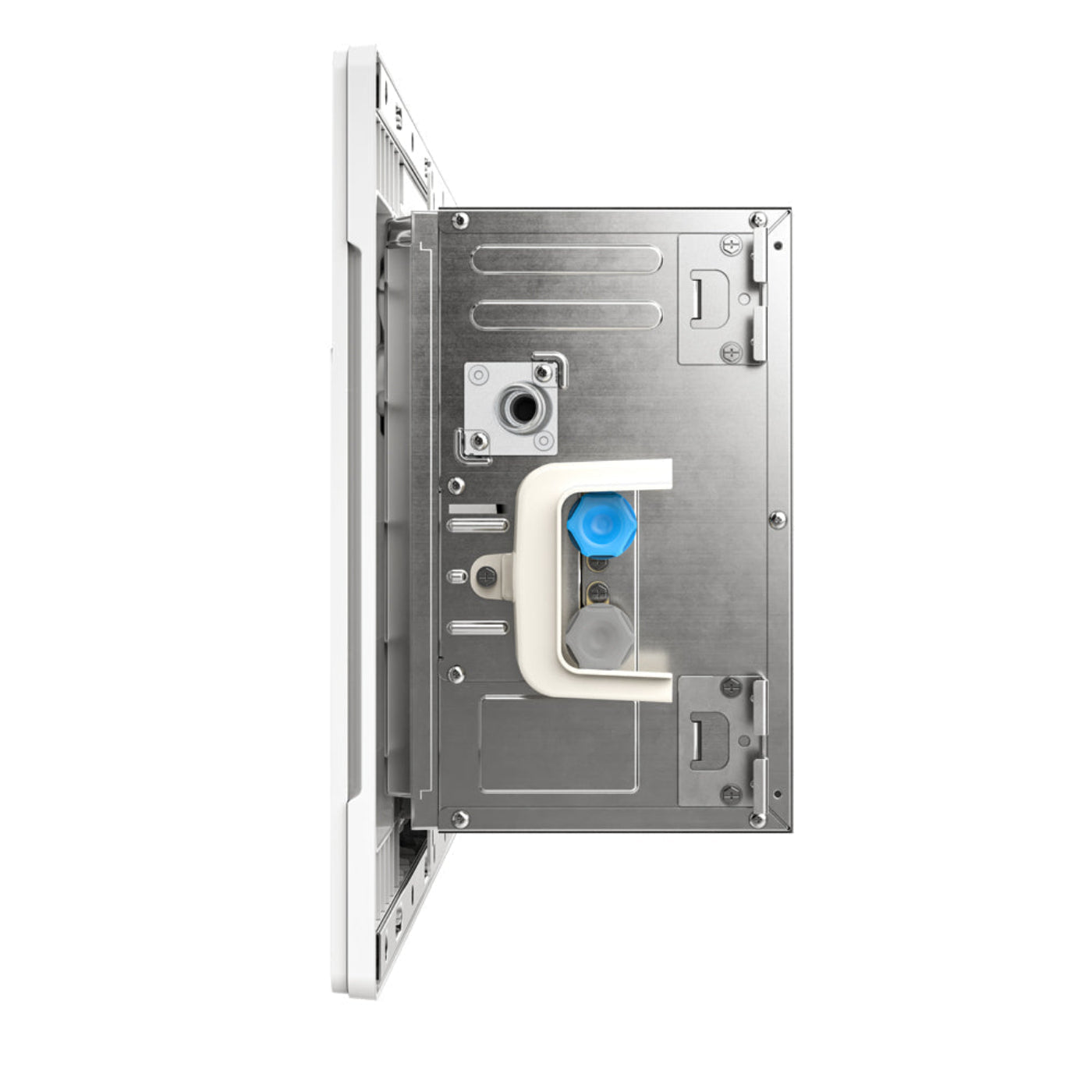

Quick Connect Technology: Pairs with a pre-charged R-454B line set, removing the need for vacuuming and ensuring eco-friendly operation.
-
Advanced Filtration: Improves indoor air quality while the Elevation function allows easy filter access for maintenance.
-
Smart Controls: Operate via wireless remote, SmartHVAC app, or voice commands using Amazon Alexa and Google Assistant.
-
Quiet Operation: Maintains comfort without disruptive noise.
What our Experts Think
-
Efficient Zone Comfort – With 9,000 BTU capacity, this ceiling cassette air handler delivers balanced cooling and heating for individual rooms or zones while keeping indoor spaces comfortable and consistent.
-
5th Gen DIY-Friendly Installation – Designed for the MRCOOL DIY 5th Gen system, the ceiling cassette offers quick-connect setup that simplifies installation for experienced DIYers and installers.
-

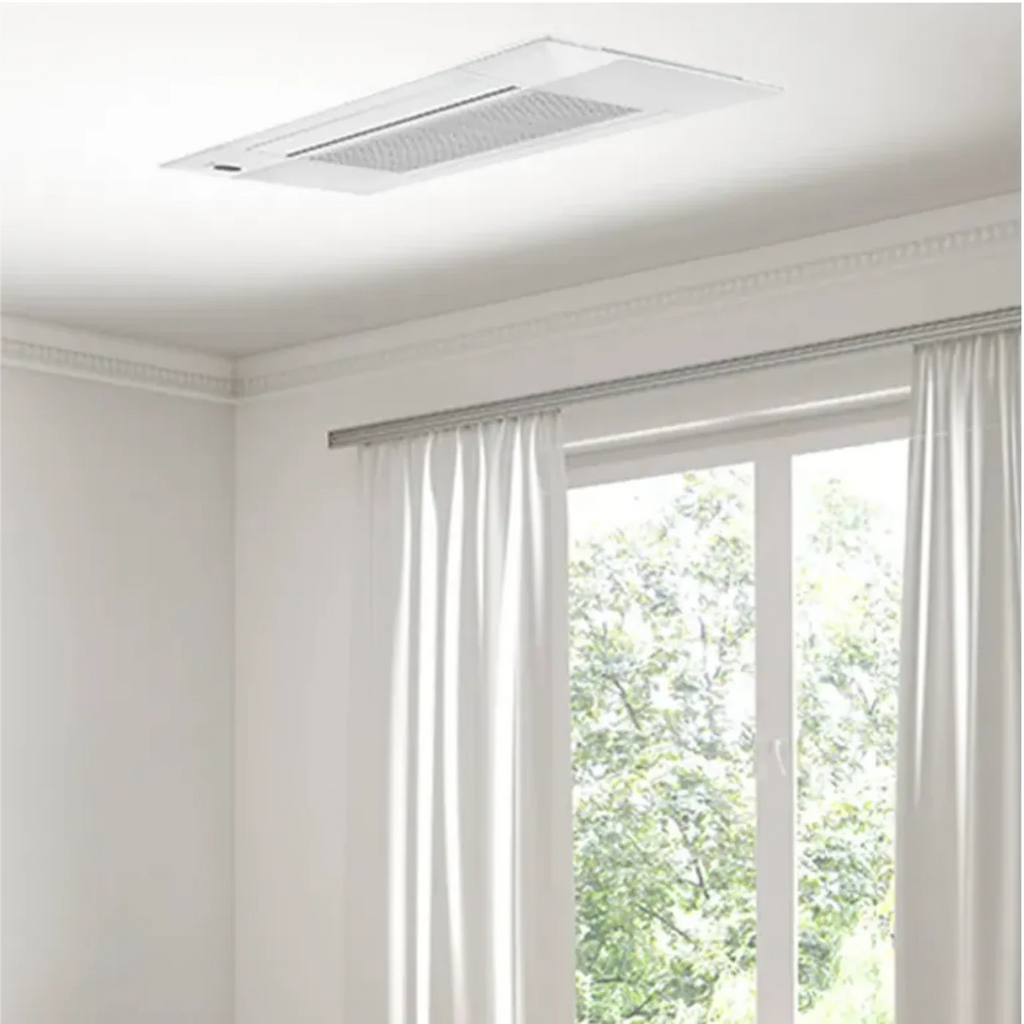

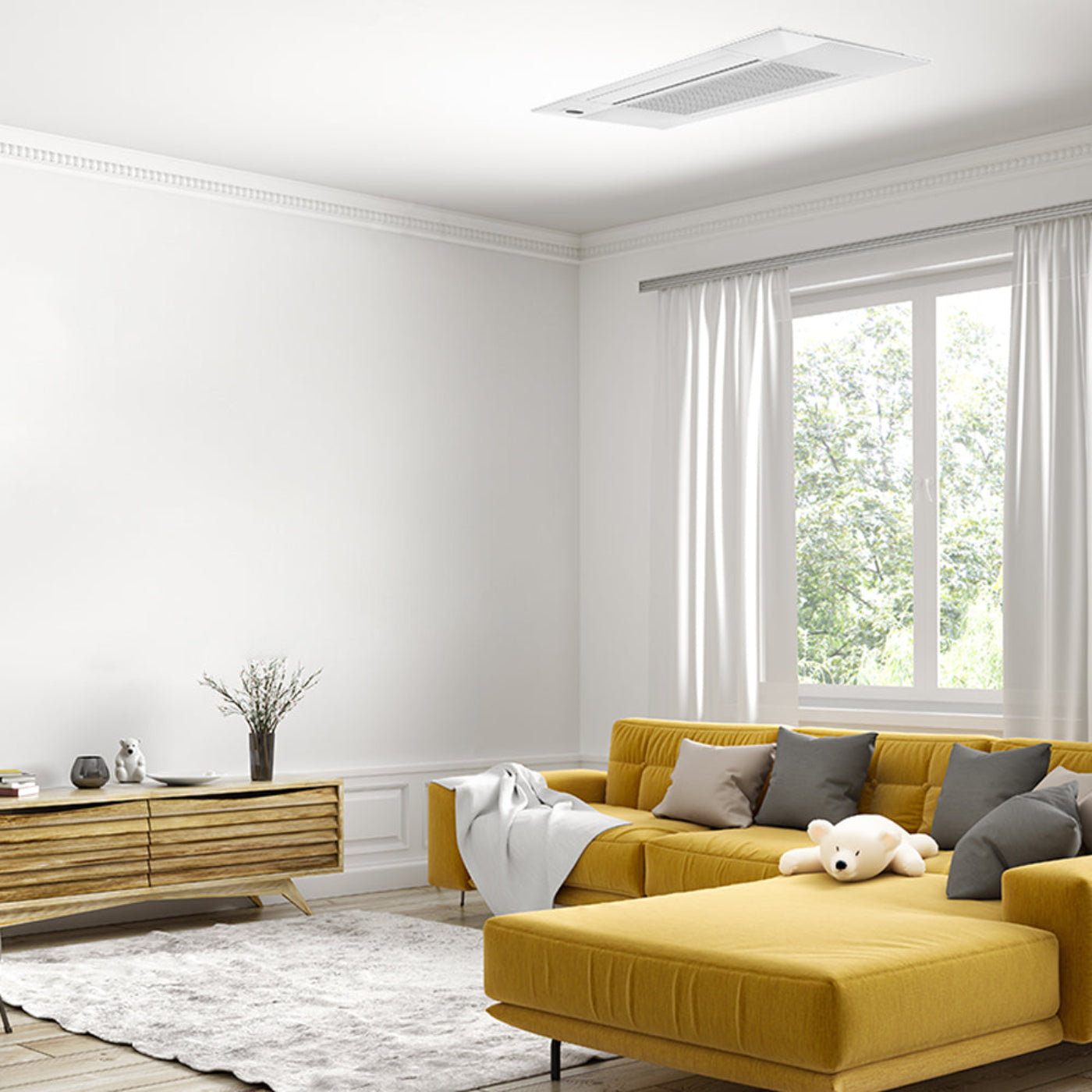

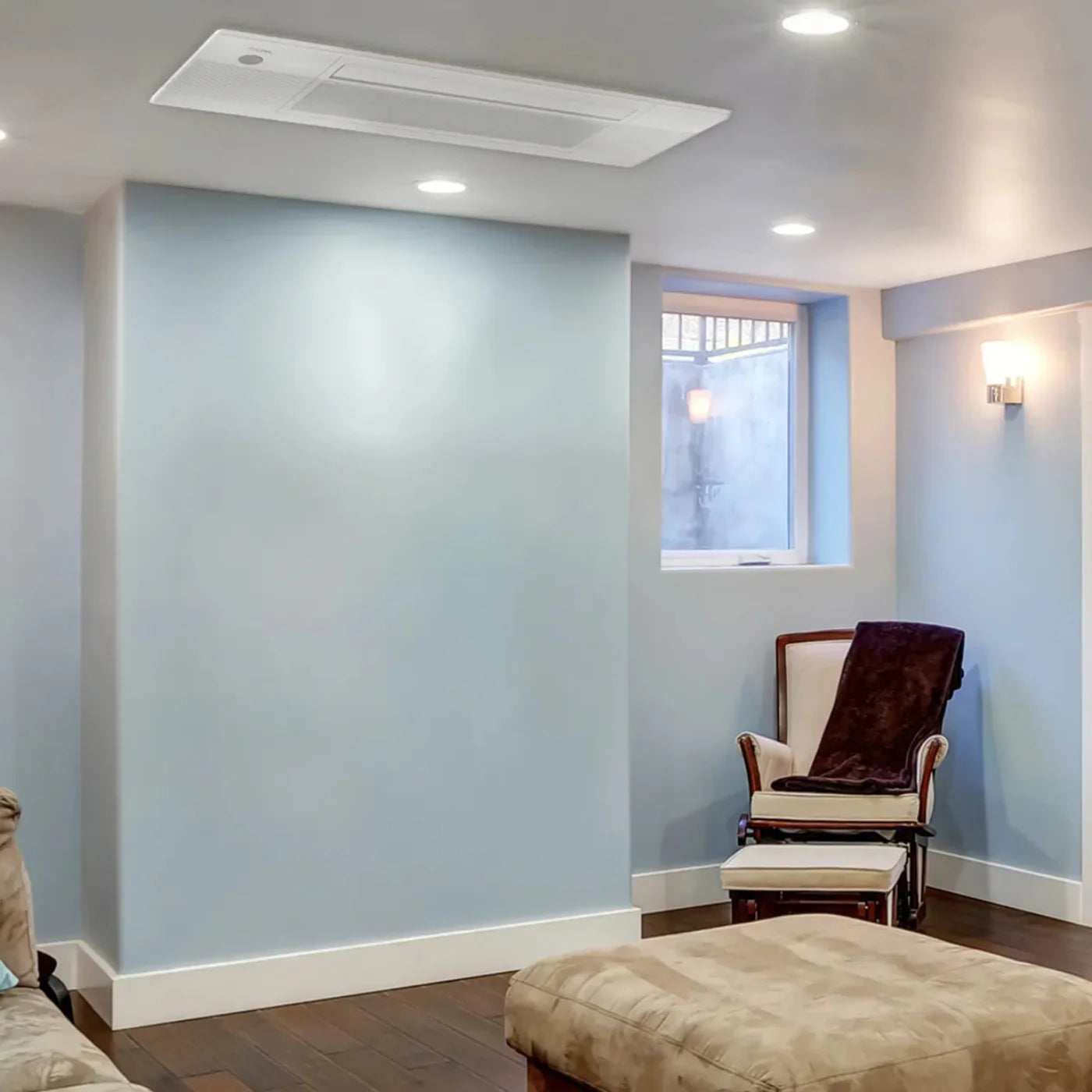

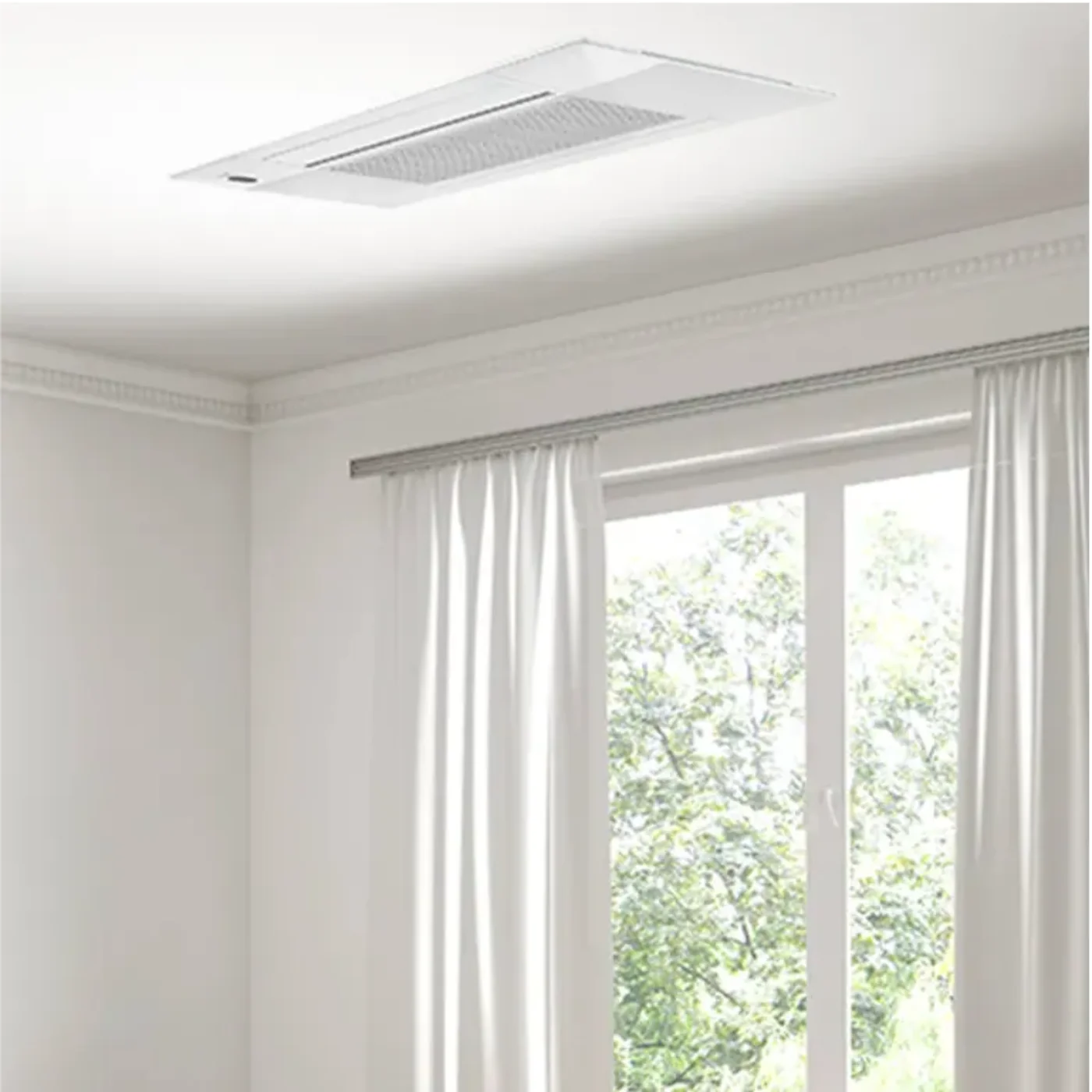

Discreet Ceiling-Mounted Design – Flush-mount ceiling configuration keeps the unit out of the way while delivering 360° airflow for even air distribution throughout the space.
-
Stable 230 V Operation – Built for a standard 230 V power supply, this handler delivers dependable performance in residential and light-commercial settings.
-
Balanced Airflow & Comfort – Ceiling cassette design helps spread conditioned air uniformly, reducing hot/cold spots and boosting overall comfort.
-
Durable & Dependable – Constructed with reliable materials to withstand regular use and provide long-lasting climate control performance.
Q&A
Q: What is the MRCOOL DIY 5th Gen 9,000 BTU Ceiling Cassette Air Handler?
A: A ceiling-mounted indoor unit for MRCOOL 5th Gen multi-zone mini split systems that provides efficient cooling and heating in a space-saving cassette design.
Q: What capacity does it offer?
A: 9,000 BTU — ideal for bedrooms, living rooms, offices, and mid-sized spaces up to about 350–400 sq ft.
Q: What’s the power requirement?
A: 230 V single-phase operation suitable for residential and light commercial use.
Q: How is installation handled?
A: DIY-friendly ceiling mount installation between standard joists with easy Quick-Connect pre-charged lines and compatible with MRCOOL DIY multi-zone condensers.
Q: What features does it include?
A: Quiet operation, balanced airflow, advanced air filtration, easy filter access, and multiple modes (cool, heat, fan).
Q: How is it controlled?
A: With the included wireless remote, SmartHVAC app control, or voice assistants where supported.
Q: Who is it best for?
A: Homeowners and DIY installers who want efficient, zoned comfort with a discrete ceiling-mounted indoor unit.
Maintenance Tips
-
Clean filters monthly: Wash or vacuum filters to maintain airflow and cooling efficiency.
-
Dust coils lightly: Gently remove dust from coils with a soft brush or cloth to prevent buildup.
-
Check fan operation: Ensure the ceiling cassette fan runs smoothly and stays free of debris.
-
Inspect connections: Periodically check electrical and refrigerant line connections; tighten if needed.
-
Clear condensate drain: Keep the drain line free of clogs to prevent water buildup or leaks.
-
Annual professional check: Schedule yearly HVAC maintenance to ensure optimal performance and system longevity.
