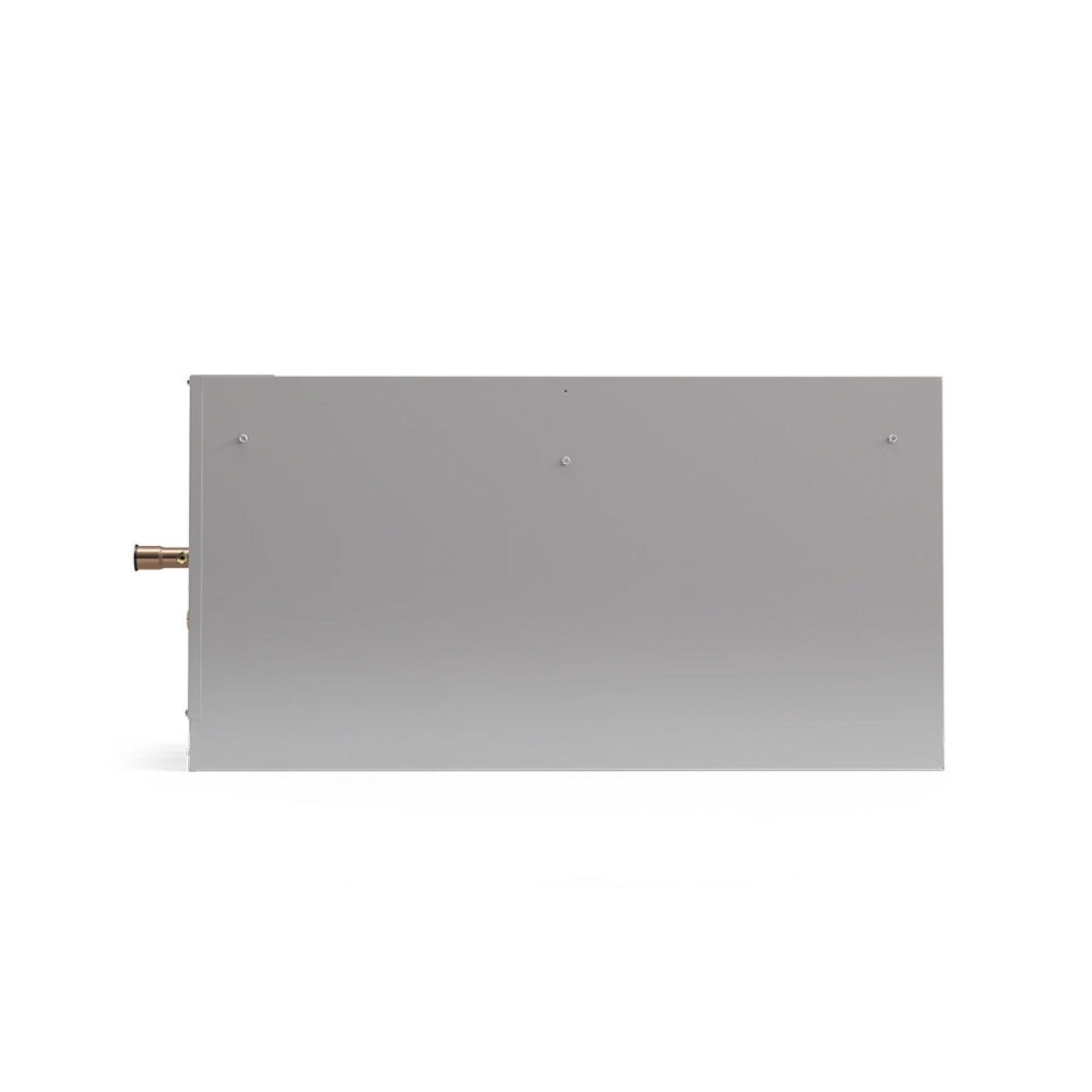

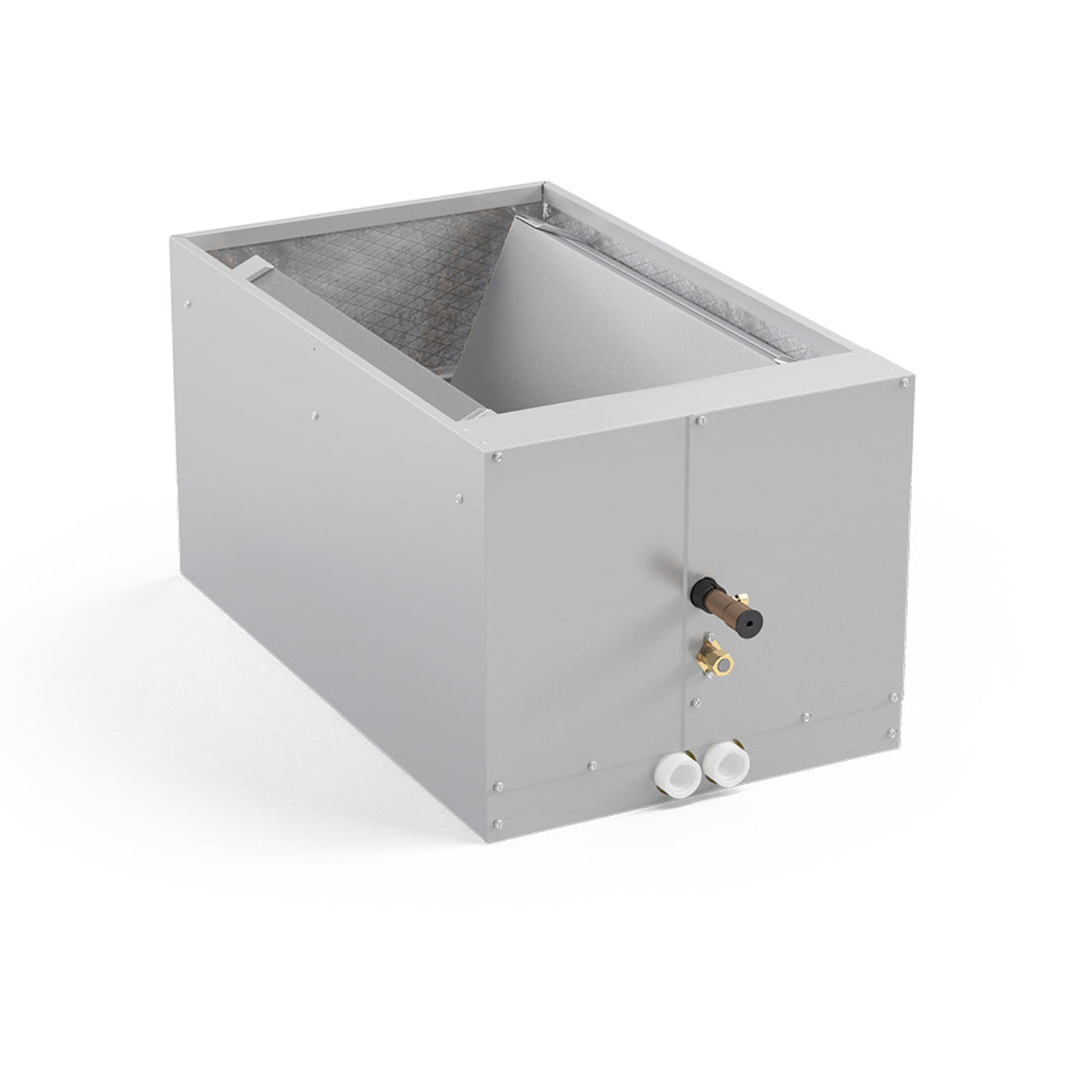

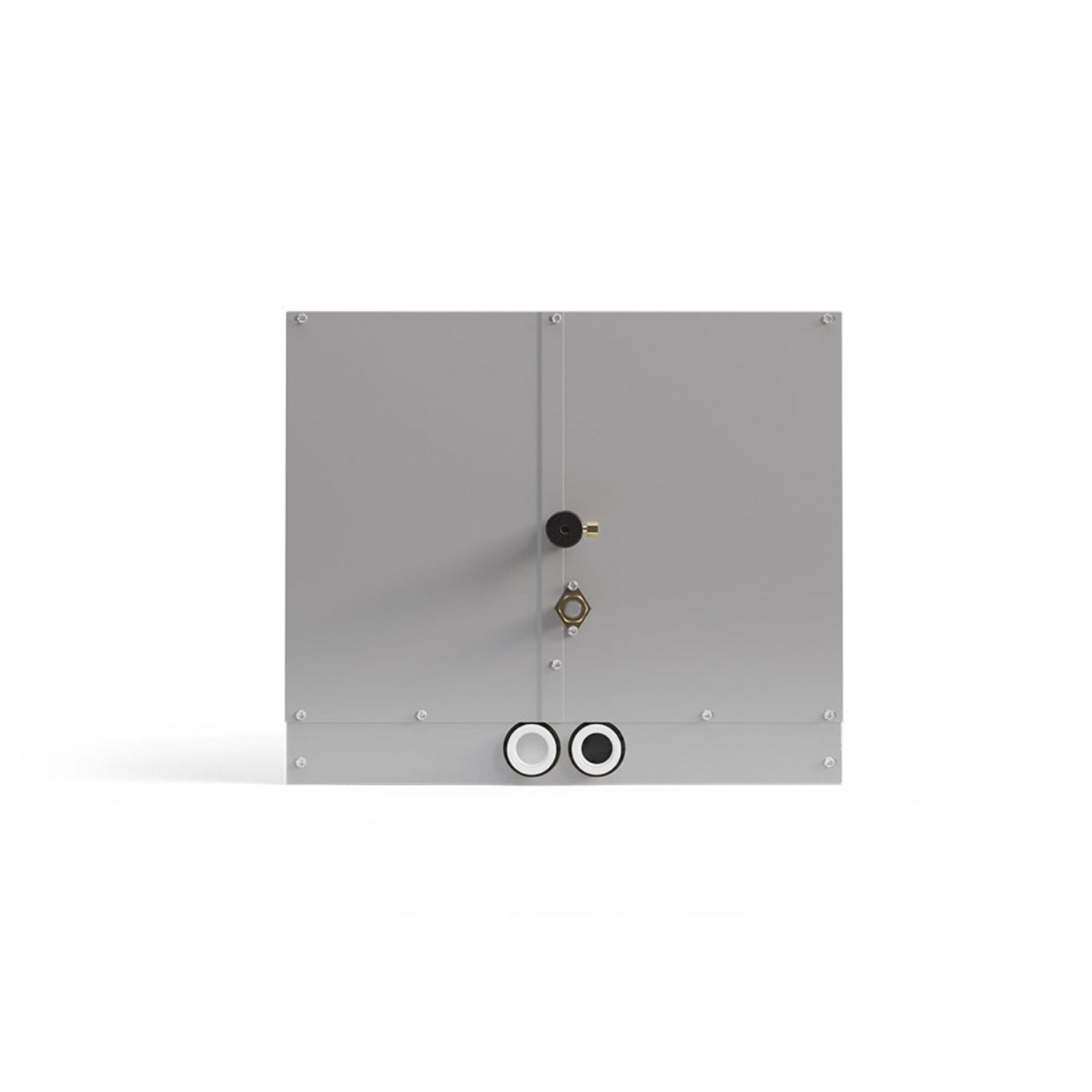

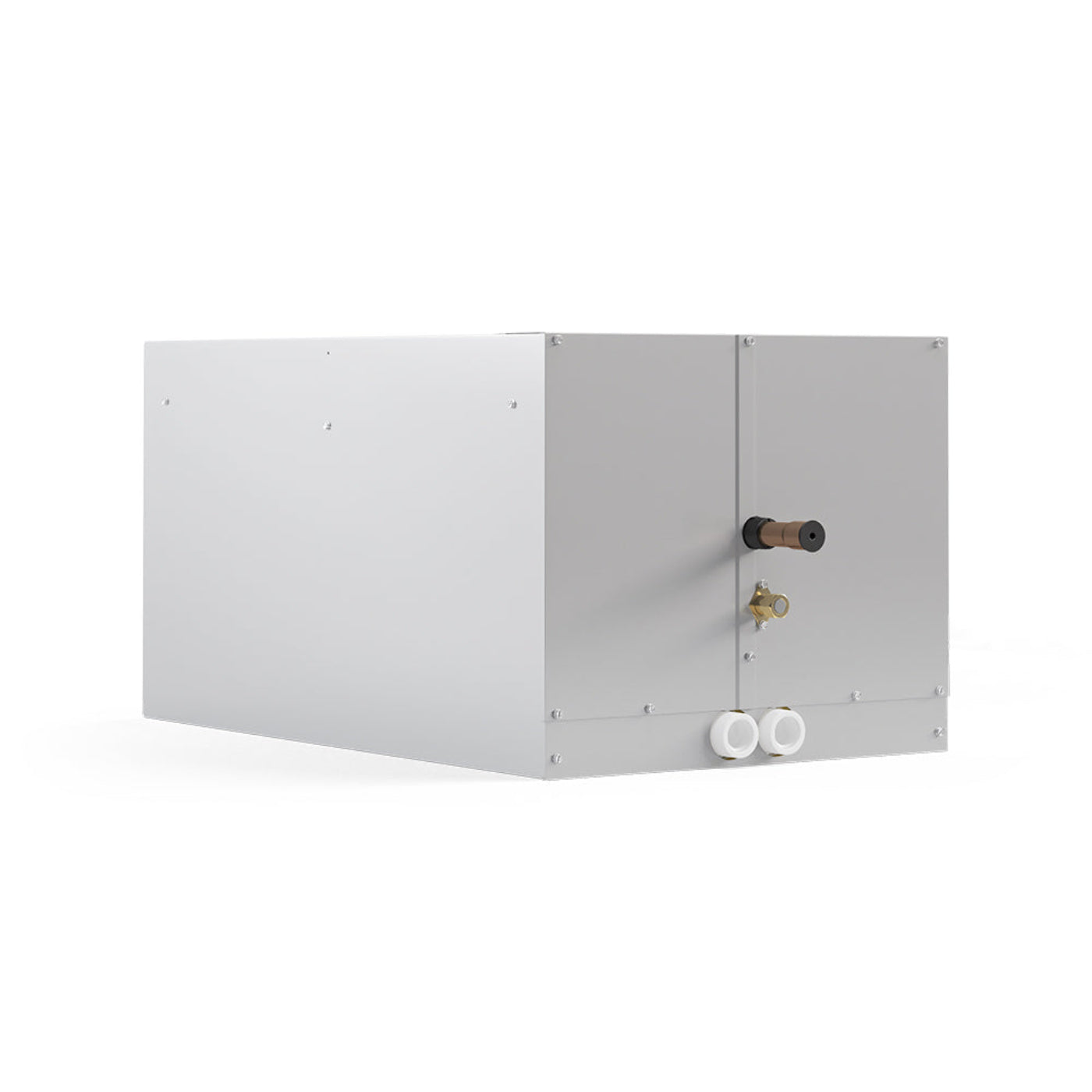

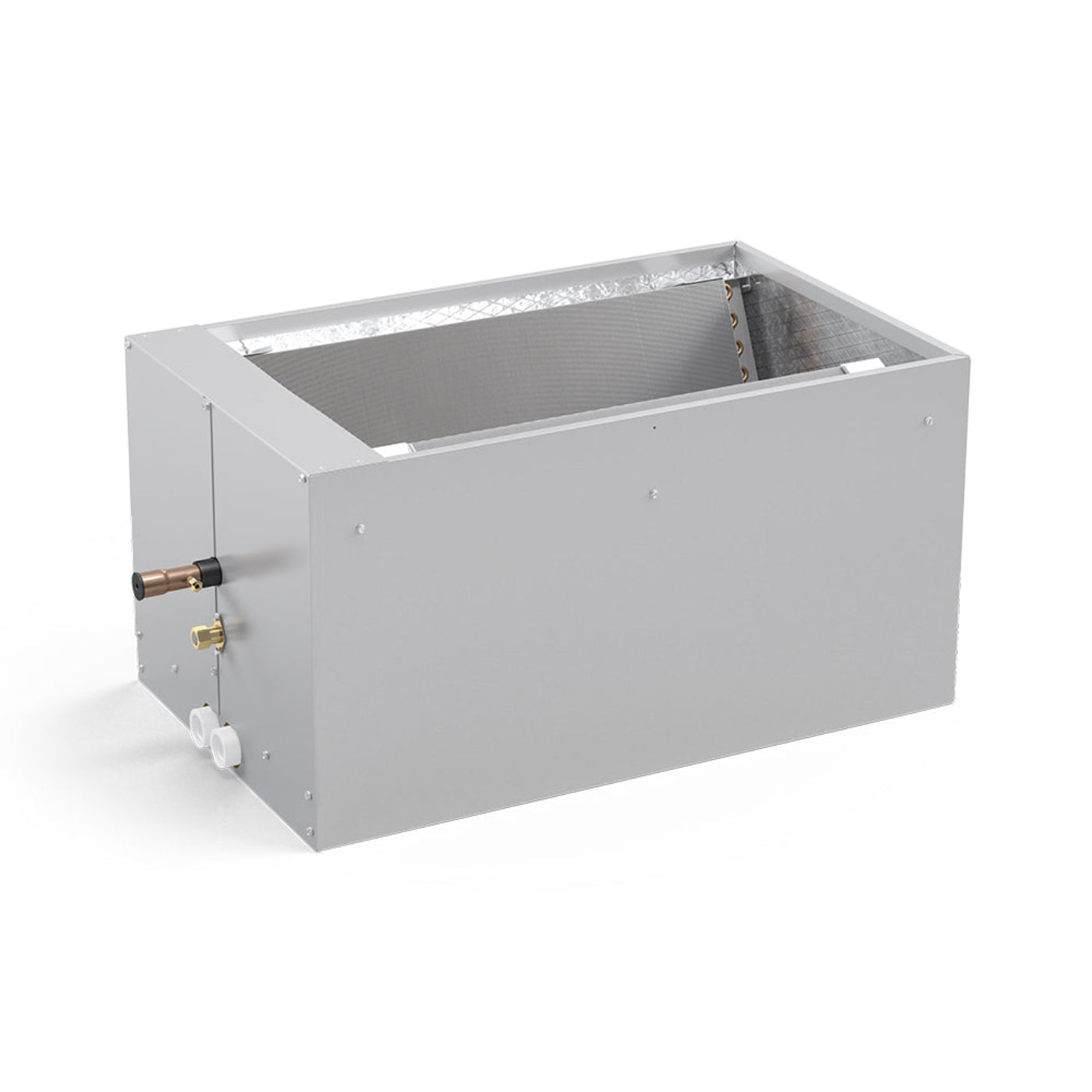

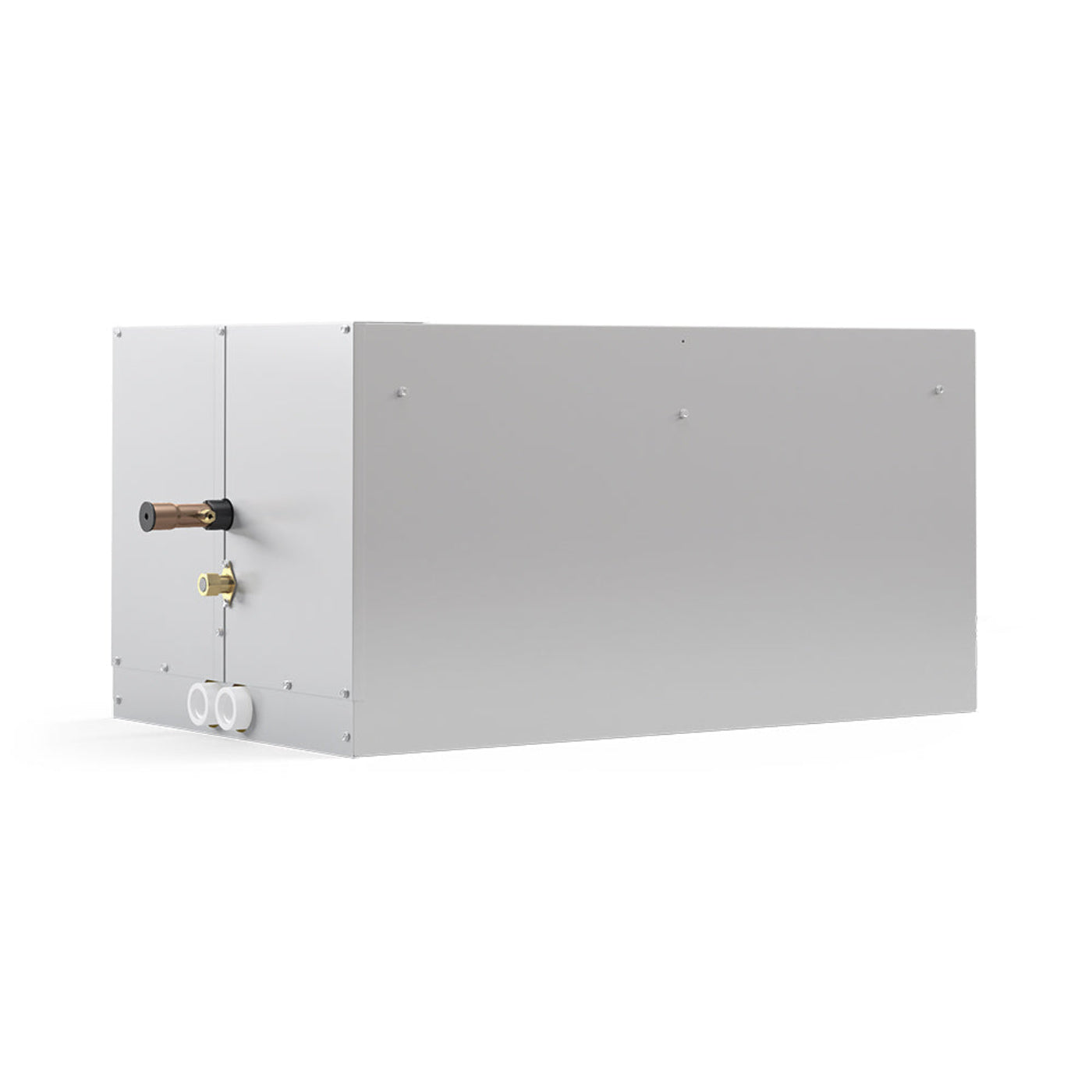

MRCOOL Signature 36K BTU, 3 Ton, 16 SEER, R410A Downflow Cased Evaporator Coil - 17.5-Inch Cabinet - MCDP3036BNPA
3 Ton BTU R410A Downflow Cased Evaporator Coil
This is a brand new 3 ton, R410A refrigerant, downflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
Features
- Interlocking door assemblies and snug line sealgrommets to minimize air leakage
- All units UL Listed and AHRI Certified
- One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
- Heavy-gauge steel constructed cabinet for optimal support of the furnace, no need for additional bracing or structure.
- Foil-face insulation for easy cleaning
- All drain pans are compatible with UV lights
- Removable Cabinet panels for easy coil service
- Superior service access to components, withtubing located at door split and foil-face insulation
- 10-Year Parts Limited Warranty
- Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
- Tubing located at door split for easy coil service or cleaning
Specifications
Dimensions |
16 1/8" D x 17 1/2" H x 26 1/8" W |
Tonnage |
3 |
Cooling Capacity |
36000 |
Color |
Gray |
Color Family |
Gray |
Refrigerant Type |
R-410A |
Drain Connection Size |
3/4 |
Lineset Included |
No |
Line Set Length |
15ft, 25ft, 35ft, 50ft |
Max Lineset Length |
50ft |
Lineset Fitting Type |
Sweat |
Liquid Line Size |
3/8 |
Suction Line Size |
7/8 |
UL Reconized |
yes |
UL Listed |
yes |
Energy Star Compliant |
no |
Energy Star Certified |
no |
AHRI Certified |
yes |
Registered Warranty |
Registered 10 Year Parts Warranty |
Base Warranty |
5 Year Parts Warranty |
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
Base Parts Warranty |
5 Year Parts Warranty |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed GAS |
Yes |
Proposition 65 Warning |
Yes |
Restricted States |
No |
Net Weight |
57 |
What our Experts Think
-
Reliable Performance – 36,000 BTU (3 Ton) capacity ensures efficient cooling support for central systems.
-
16 SEER Compatible – Matches seamlessly with MRCOOL condensers for optimized efficiency.
-
Downflow Design – Built for installations requiring vertical airflow in downflow configurations.
-
Durable Construction – R410A refrigerant ready, with a sturdy 17.5-inch cabinet for long-term reliability.
-
Professional Fit – Factory-cased coil simplifies installation and ensures a secure, professional finish.
Q&A
Q: What is the MRCOOL Signature 36K BTU Downflow Coil used for?
A: It’s a downflow cased evaporator coil designed to pair with split system air conditioners or heat pumps for efficient cooling and heating.
Q: What system size is it compatible with?
A: This coil supports 36,000 BTU (3 ton) systems and works with MRCOOL and most industry-standard condensers.
Q: What refrigerant does it use?
A: It’s pre-installed for R-410A refrigerant, ensuring efficiency and compliance with modern HVAC standards.
Q: How durable is this unit?
A: Built with a galvanized steel cabinet and corrosion-resistant finish, it’s designed for long-term reliability.
Q: What type of installation is it made for?
A: This model is specifically built for downflow applications with a 17.5-inch cabinet width.
Q: Who is this coil best for?
A: Ideal for homeowners and HVAC professionals needing a dependable, properly sized coil for a 3-ton downflow system.
Maintenance Tips
-
Filter Care: Replace or clean air filters every 1–3 months to protect the coil.
-
Coil Cleaning: Inspect and clean the evaporator coil yearly to maintain efficiency.
-
Check for Leaks: Monitor refrigerant lines for signs of leaks or insulation damage.
-
Drain Line Maintenance: Keep the condensate drain clear to avoid clogs and water damage.
-
Cabinet Care: Ensure panels are sealed tightly to prevent air leaks.
-
Professional Servicing: Schedule annual maintenance to maximize performance and system life.
