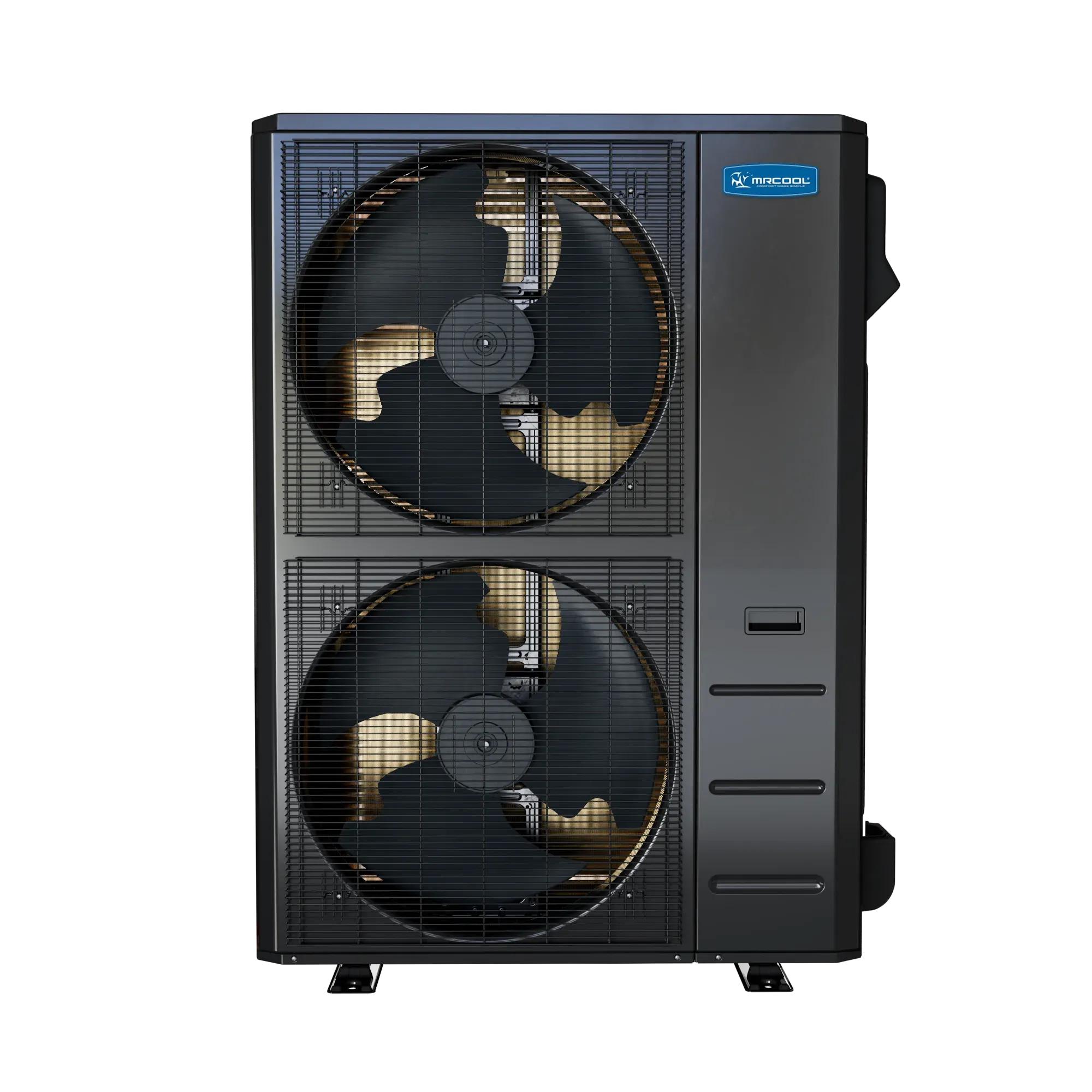

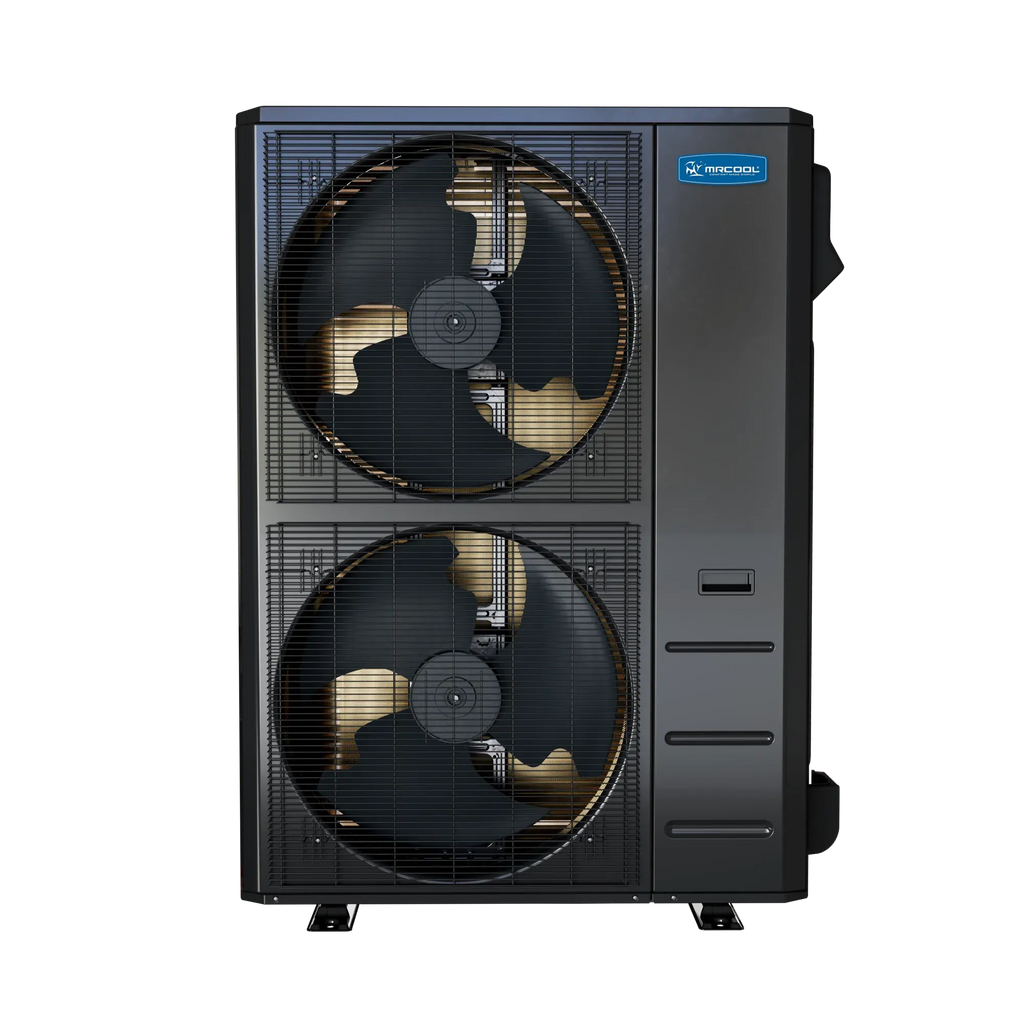

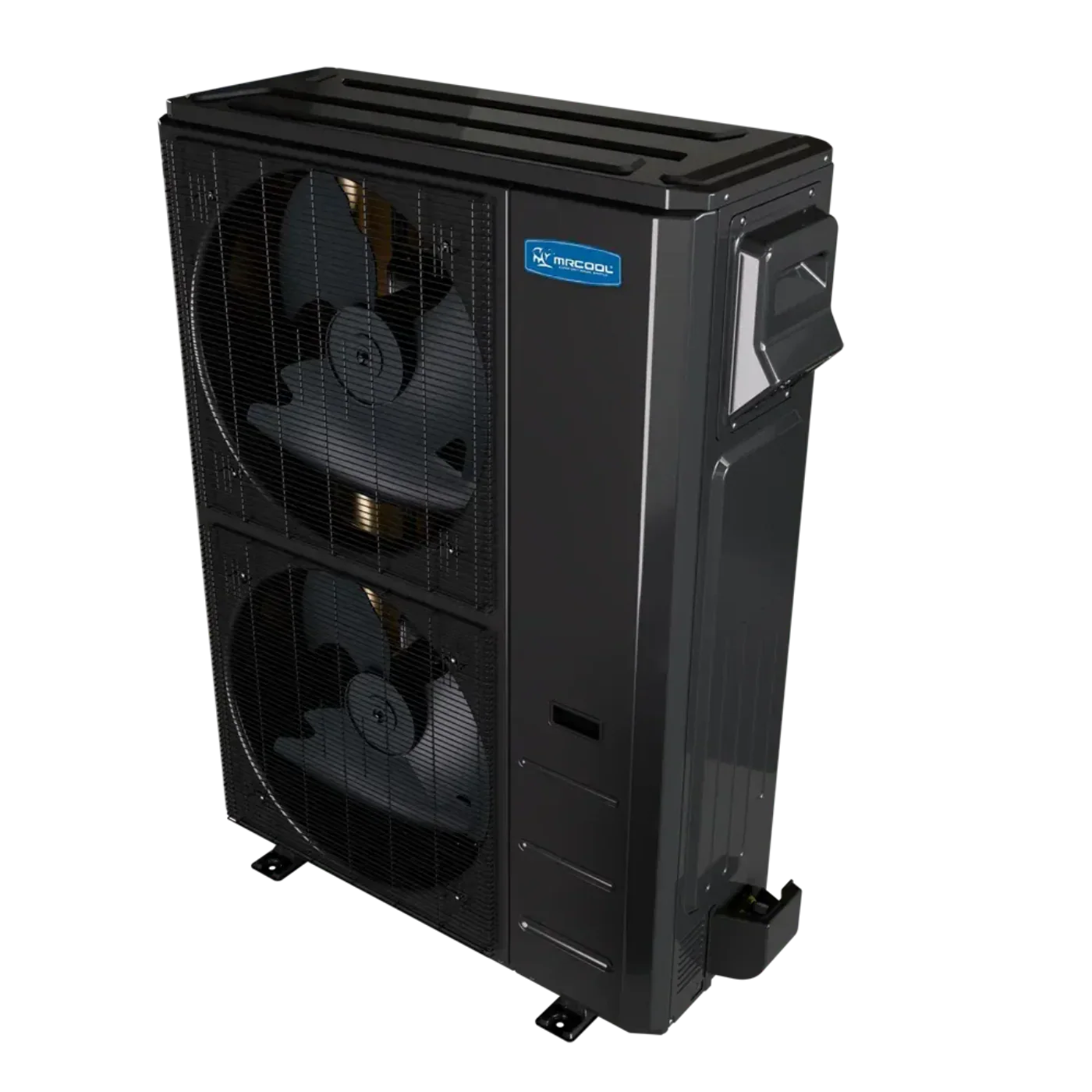

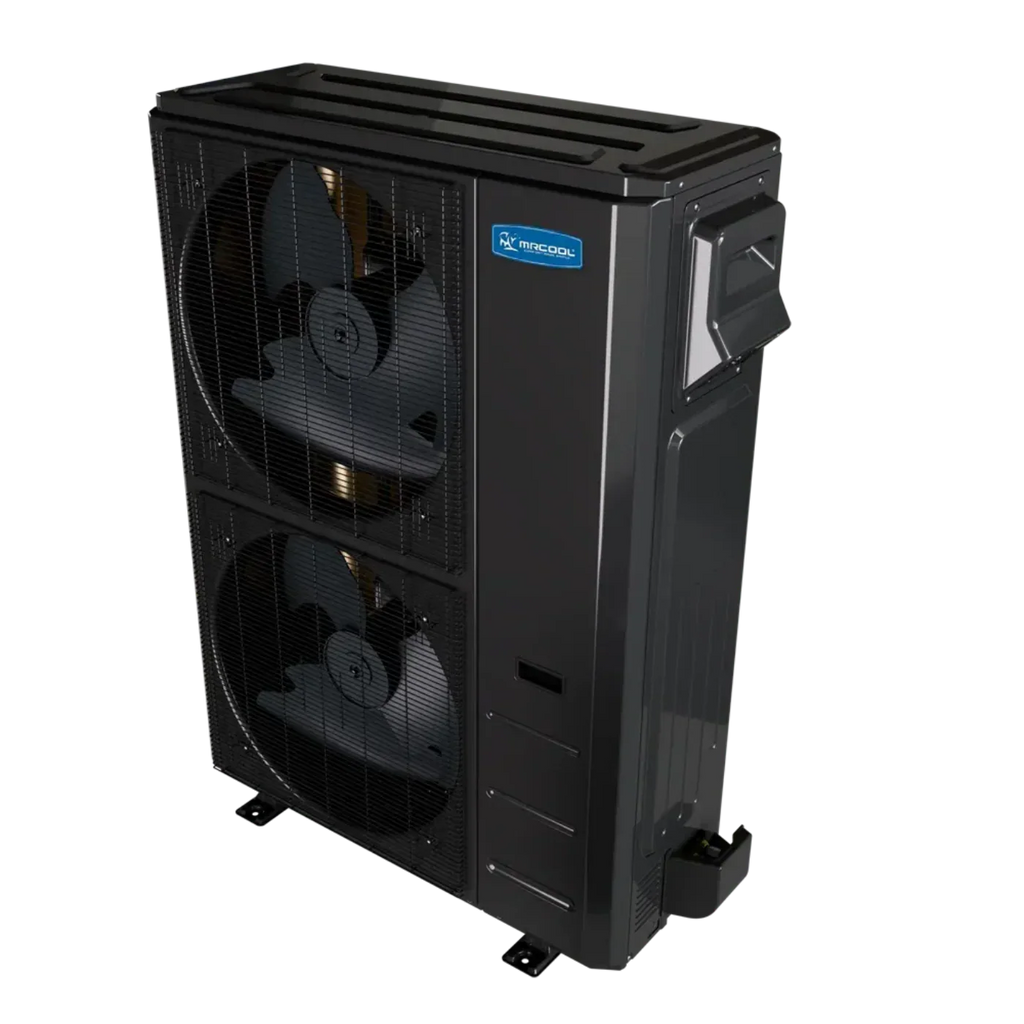

MRCOOL Universal Series 60K BTU, 5 Ton, 17.5 SEER2, DC Inverter Heat Pump Condenser - UHP18060-O
The MRCOOL® Universal® Series 60K DC Inverter Heat Pump Condenser delivers powerful, energy-efficient performance in all climates. Whether you’re facing sub-zero winter temperatures or peak summer heat, this high-capacity unit maintains strong, consistent airflow and dependable comfort throughout the year.
With an impressive 17.5 SEER2 efficiency rating, it’s designed to reduce energy usage without sacrificing performance—making it an excellent choice for large residential spaces or demanding HVAC applications. Designed with flexibility and ease in mind, installation is fast and streamlined—especially when paired with the optional MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, cutting installation time, labor costs, and the risk of error. Its compact footprint also allows for flexible placement in areas with limited outdoor clearance, making it ideal for both new builds and retrofit projects.
At the core of this system is advanced DC inverter technology, which enables the condenser to adjust its output continuously based on your home’s heating or cooling needs. This eliminates the frequent cycling common with traditional systems, resulting in quieter operation, greater energy efficiency, and less wear on components—helping extend the lifespan of the unit. Whether you’re upgrading from an outdated system or planning a new installation, the MRCOOL® Universal® Series 60K Condenser offers exceptional performance, energy savings, and dependable comfort. It’s backed by a 10-year parts warranty and a 2-year limited labor warranty for added peace of mind.
Specifications
| Net Dimensions (In) |
16.34 D x 38.39 H x38.58 W |
| Net Weight (Lbs) |
201.5 |
| SEER2 |
Up to 17.5 |
| EER2 |
Up to 12 |
| HSPF2-4 |
9.5 |
| HSPF2-5 |
7.7 |
| Tonnage |
5 |
| Cooling Capacity (Btu) |
54000 |
| Heating Capacity (Btu) |
55000 |
| Voltage (V) |
208/230 |
| Phase |
1 |
| Cycle |
60 |
| Max Fuse Breaker (A) |
40 |
| Min Circuit Ampacity (A) |
40 |
| Color |
Dark Grey |
| Refrigerant Type |
R-454B |
| Refrigerant Volume (Oz) |
183.42 |
| Decibel Rating (Dba) |
64.5 |
| Inverter |
DC |
| Max Lineset Length (Ft) |
246 |
| Liquid Line Size |
8-Mar |
| Suction Line Size |
4-Mar |
| Compressor Motor Type |
Twin-Rotary |
| Condenser Fan Motor Rpm |
1000/900/750/650 |
| Metering Device |
EXV |
| UL Listed |
Yes |
| CSA Listed |
Yes |
| ETL Listed |
Yes |
| Base Warranty |
10 Year Parts |
| Base Parts Warranty |
10 Years |
| Base Labor Warranty |
2 Year |
| Contains Electronics |
Yes |
| Contains Chemicals |
Yes |
| Contains Compressed Gas |
Yes |
| Proposition 65 Warning |
Yes |
| Gross Depth (In) |
19.49 |
| Gross Height (In) |
58.27 |
| Gross Width (In) |
43.11 |
| Gross Weight (Lbs) |
275.13 |
What our Experts Think
-
High Capacity Performance – With 60K BTU and 5 tons, this Universal Series condenser is designed for large homes or demanding applications.
-
Efficient Operation – A 17.5 SEER2 rating helps reduce energy costs while maintaining powerful heating and cooling.
-
DC Inverter Technology – Provides precise temperature control, quieter performance, and better efficiency than standard units.
-
Year-Round Comfort – Heat pump design ensures dependable cooling in hot summers and reliable heating in colder months.
-
Flexible Installation – Universal compatibility allows easier pairing with MRCOOL air handlers and simplifies system setup.
Q&A
Q: What is the capacity of this unit?
A: The MRCOOL Universal Series condenser delivers 60,000 BTU (5 Ton) capacity, perfect for cooling and heating larger homes or light commercial spaces.
Q: How efficient is it?
A: With a 17.5 SEER2 rating, it offers strong energy efficiency while providing reliable comfort year-round.
Q: Does this system heat and cool?
A: Yes — as a DC inverter heat pump, it provides both high-performance cooling and heating in one system.
Q: Is this unit inverter-driven?
A: Yes, the DC inverter technology ensures quieter operation, better temperature control, and lower energy consumption.
Q: Can it work with existing ductwork?
A: Absolutely — it is designed to pair with MRCOOL Universal air handlers and integrates with most standard ducted systems.
Q: Who should consider this condenser?
A: It’s an excellent option for those needing a 5 Ton high-efficiency central HVAC solution that balances performance, flexibility, and energy savings.
Maintenance Tips
-
Keep the outdoor condenser clear of grass, shrubs, and debris to maintain proper airflow.
-
Inspect the condenser fins regularly and gently clean them if bent or clogged with dirt.
-
Check refrigerant line insulation for wear and replace if needed to prevent energy loss.
-
Clean the surrounding area to prevent dust buildup that could impact efficiency.
-
Inspect electrical connections and ensure the unit is securely mounted.
-
Monitor the system during extreme weather conditions for any unusual noise or reduced performance.
-
Arrange for annual professional servicing to check refrigerant levels, compressor health, and inverter function for long-term reliability.
