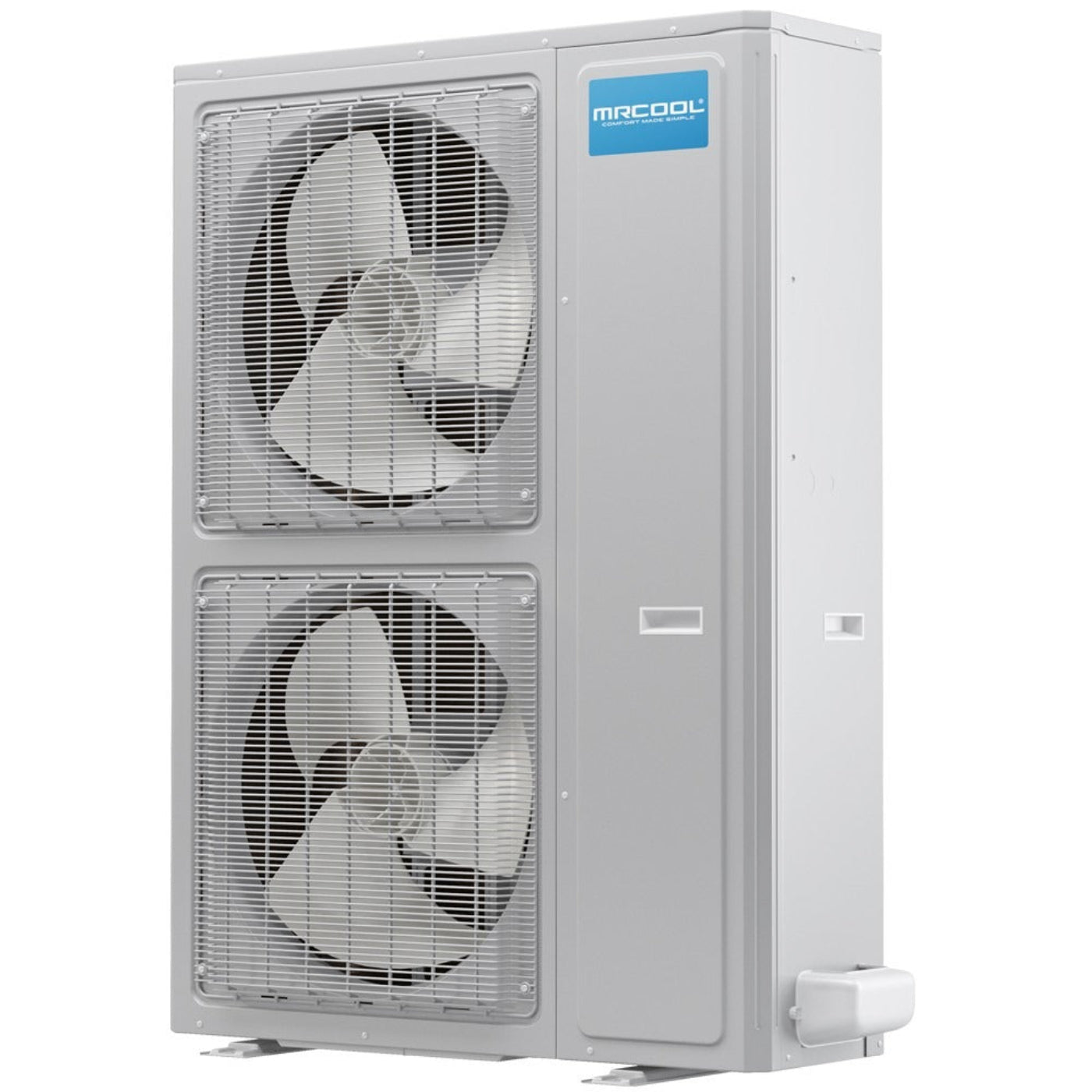

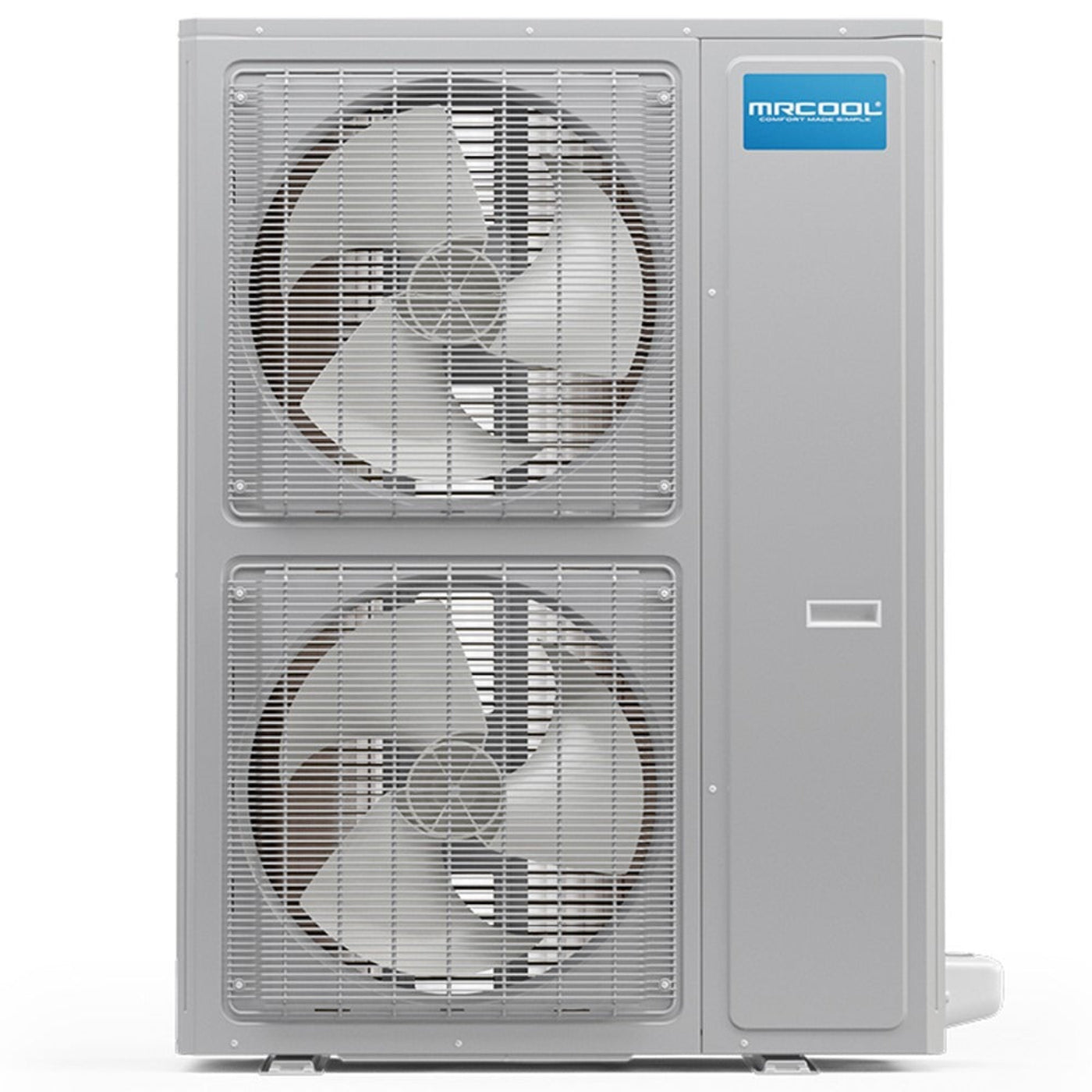

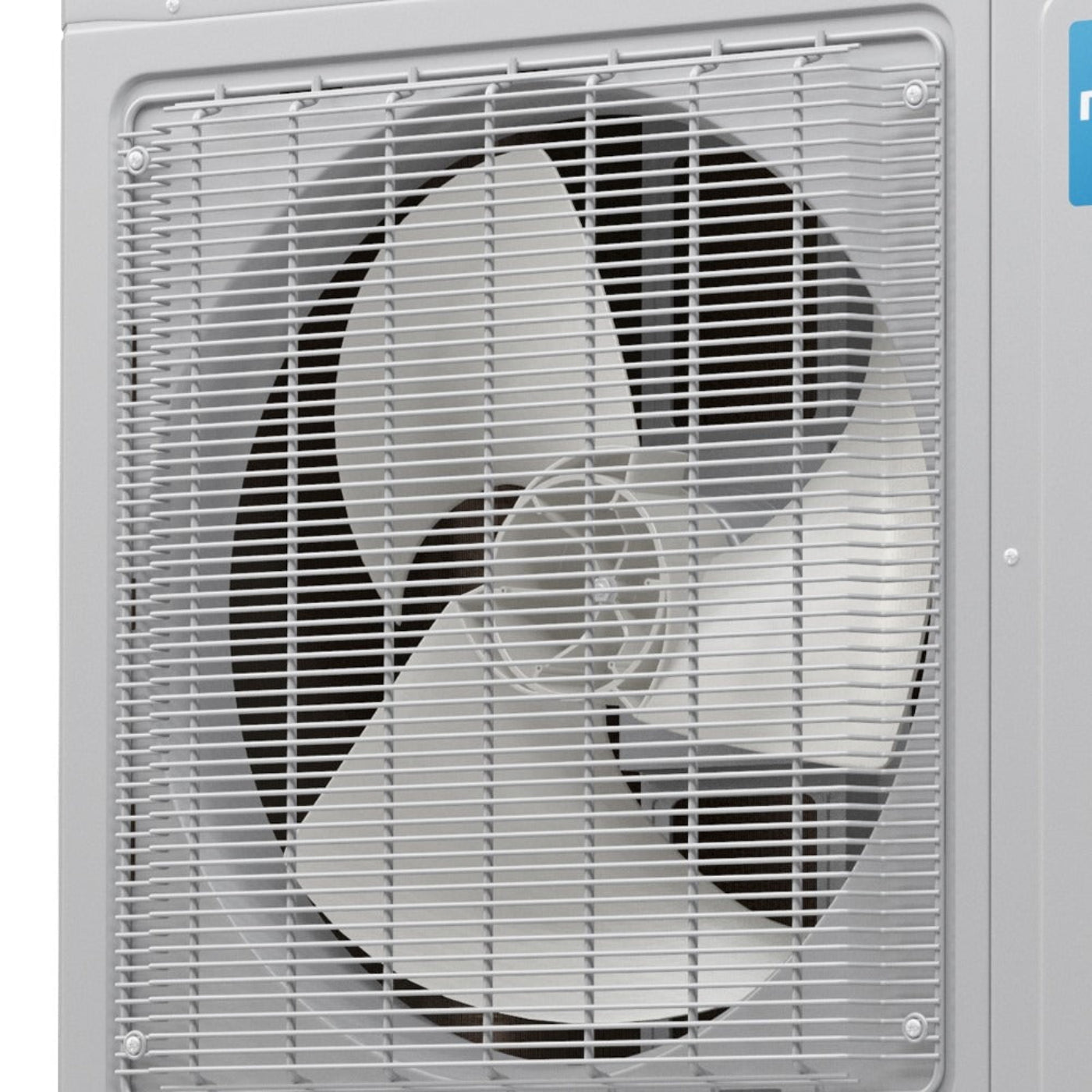

MRCOOL Universal Series 48K-60K BTU, 4-to-5 Ton, 17-to-18 SEER, DC Inverter Cooling-Only Condenser - MDUCO18048060
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.
Features
- 4 Ton 18 SEER, 5 Ton 17 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion

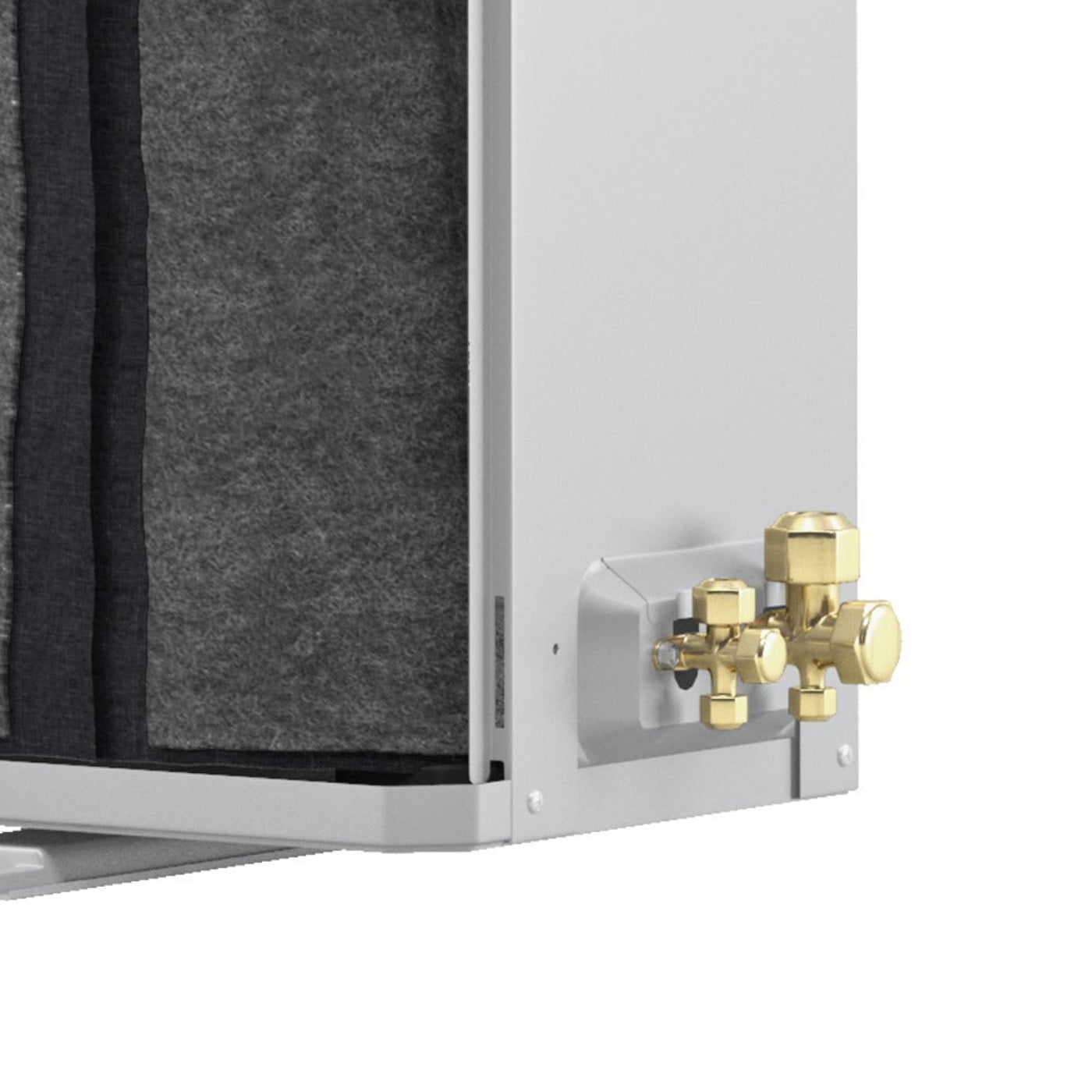

- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty
Specifications
| Dimensions |
37" L x 12.625" W x 56.375" H |
| Avg Coverage Area |
2,000 - 2,500 Sq Ft |
| Compressor |
Inverter |
| Cooling Capacity |
3.5 Ton, 4 Ton, 5 Ton |
| Electrical Phase |
1-Phase |
| Line Set Connection Type |
Quick Connect, Flared, or Sweat |
| Liquid Line Size |
3/8 inch |
| Max Overcurrent Protection |
45 amps |
| Refrigerant |
R-410a |
| Cooling Efficiency |
18 SEER |
| Series |
Universal |
| Suction Line Size |
3/4 inch |
| System Application Type |
Central Split Systems |
| Voltage |
240 |
| Warranty |
10 Year Parts |
| Weight (lbs) |
289.00 |
What our Experts Think
-
Wide Capacity Range – Supports 48,000–60,000 BTU (4–5 Ton) applications for large residential or light commercial spaces.
-
High Efficiency – 17–18 SEER DC inverter technology ensures energy savings and precise temperature control.
-
Cooling-Only Design – Ideal for hot climates where heating is not a priority.
-
Universal Fit – Compatible with MRCOOL Universal air handlers, offering flexible installation options.
-
Quiet & Reliable – Inverter compressor provides consistent comfort with low noise and long-lasting durability.
Q&A
Q: What is the MRCOOL Universal Cooling-Only Condenser designed for?
A: It’s a high-efficiency DC inverter condenser that delivers powerful cooling for large residential or light commercial spaces.
Q: How much cooling capacity does it provide?
A: With a 48K–60K BTU (4–5 ton) range, it can effectively cool areas up to 2,500–3,000 sq. ft., depending on climate and insulation.
Q: What makes this unit energy efficient?
A: Its DC inverter technology and 17–18 SEER rating ensure lower energy use, reduced costs, and consistent cooling performance.
Q: Is this system cooling-only or does it also heat?
A: This model is cooling-only, designed specifically for spaces that do not require heating.
Q: Can it be paired with MRCOOL air handlers?
A: Yes, it’s compatible with MRCOOL Universal air handlers for a flexible and efficient central cooling setup.
Q: Who is this condenser best for?
A: Ideal for homeowners and businesses in warmer climates needing a powerful, reliable, and energy-efficient cooling solution.
Maintenance Tips
-
Clear Surroundings: Keep at least 2–3 feet of space around the condenser free of plants, debris, and obstructions.
-
Coil Care: Inspect and clean condenser coils yearly to maintain efficient cooling.
-
Check Refrigerant Lines: Ensure insulation is intact and connections remain secure.
-
Fan & Motor Maintenance: Keep fan blades clean and check for unusual noise or vibration.
-
Drainage Check: Confirm proper drainage to avoid moisture buildup.
-
Power Supply: Always use correct voltage and check wiring for safety.
-
Professional Tune-Up: Schedule annual servicing to maximize efficiency and extend system life.
