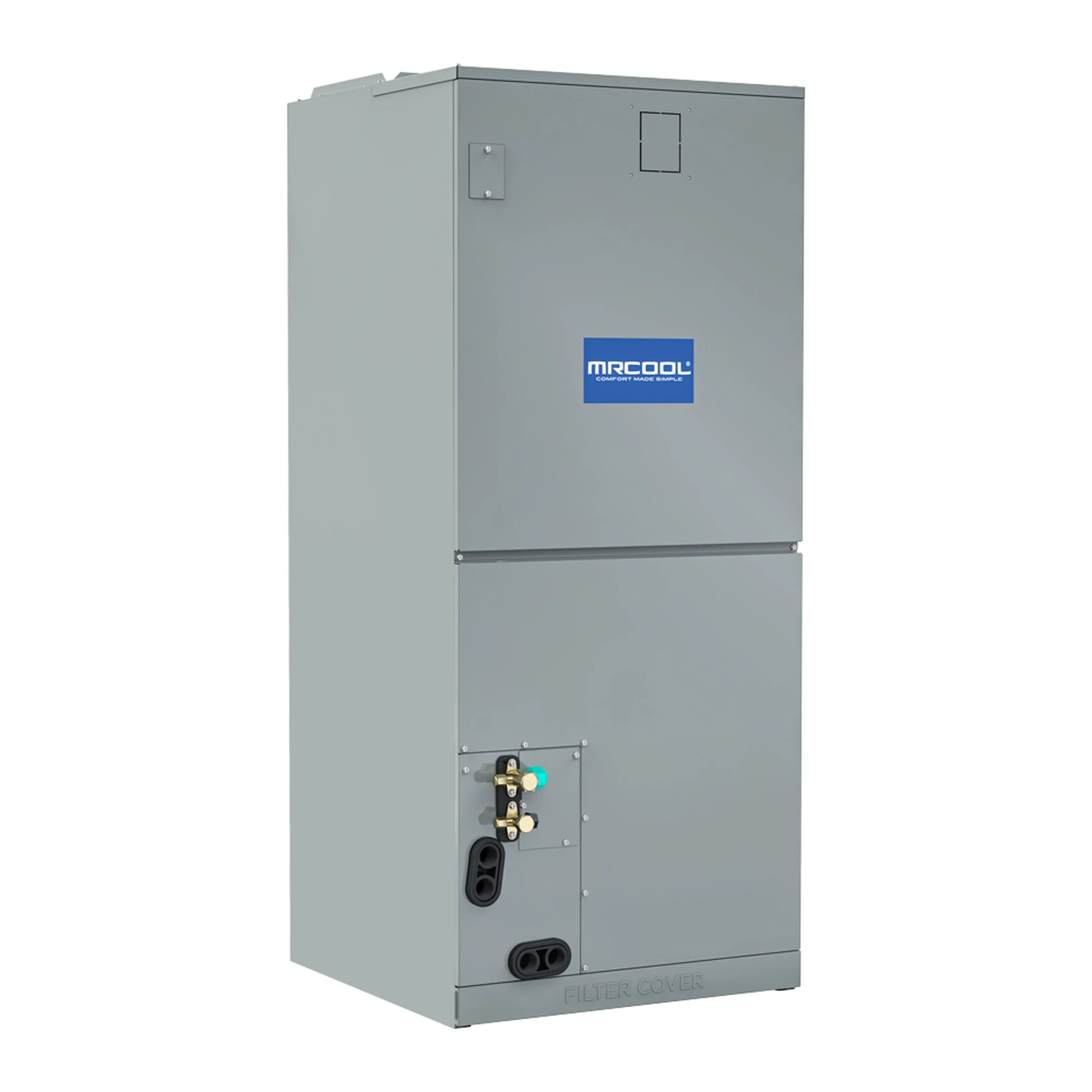

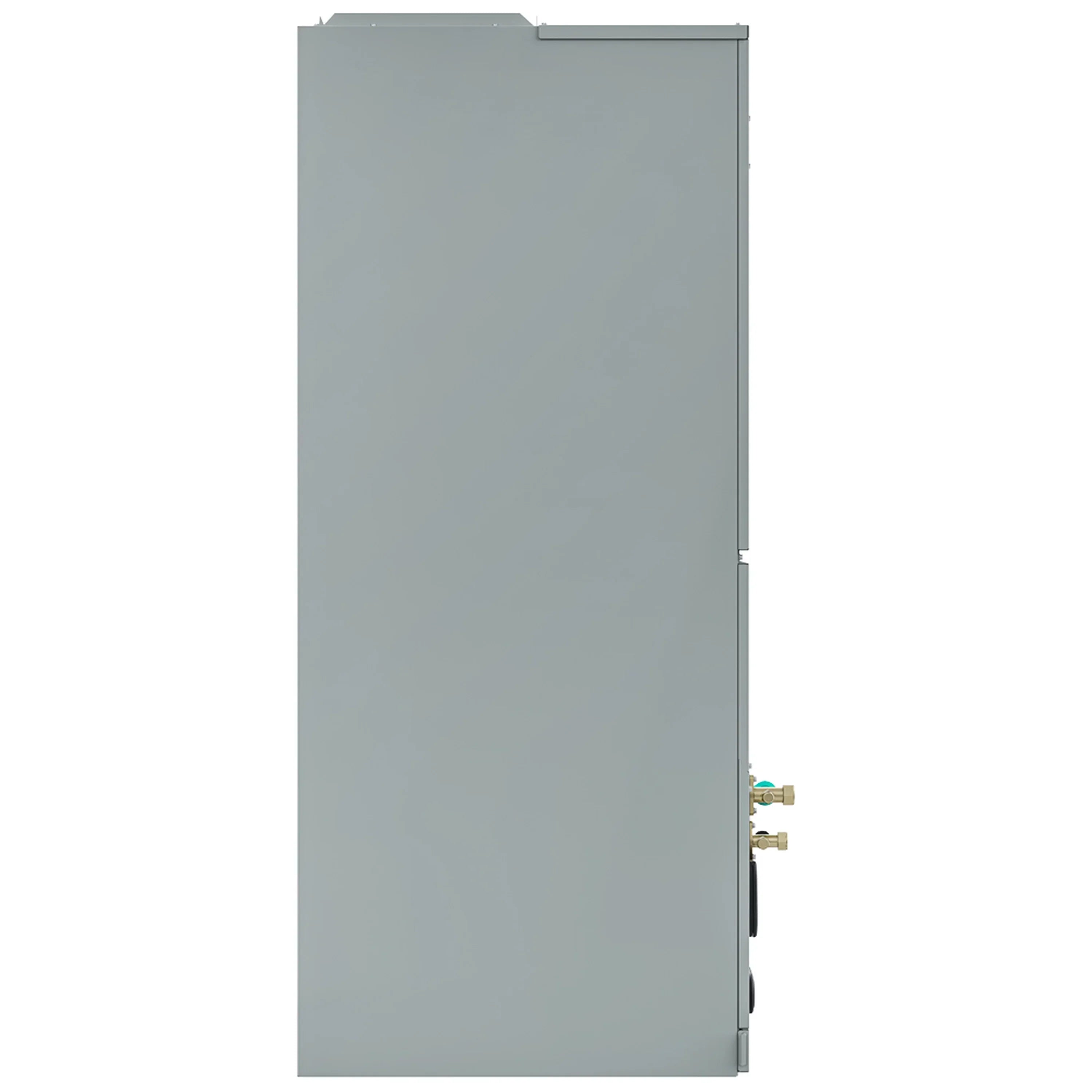

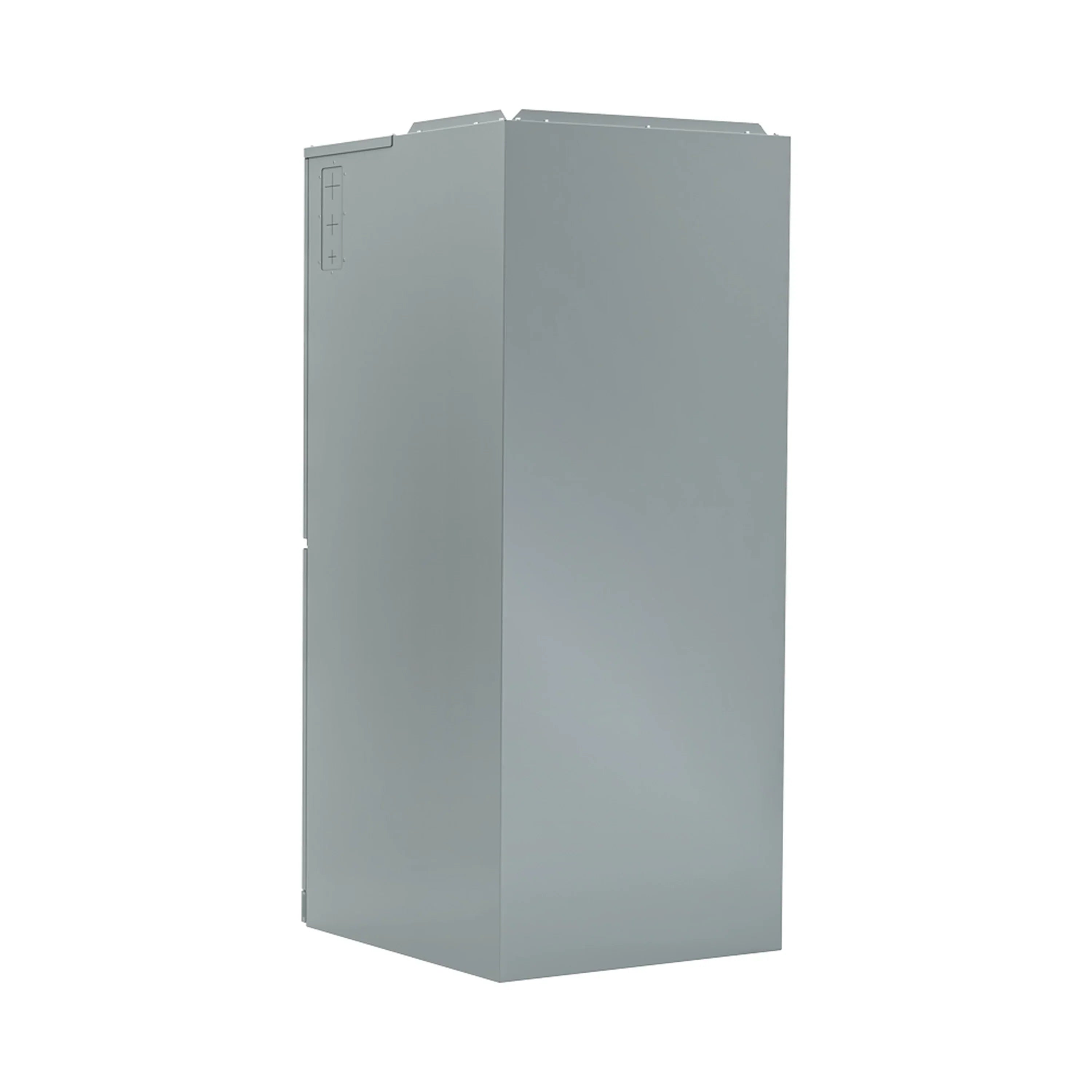

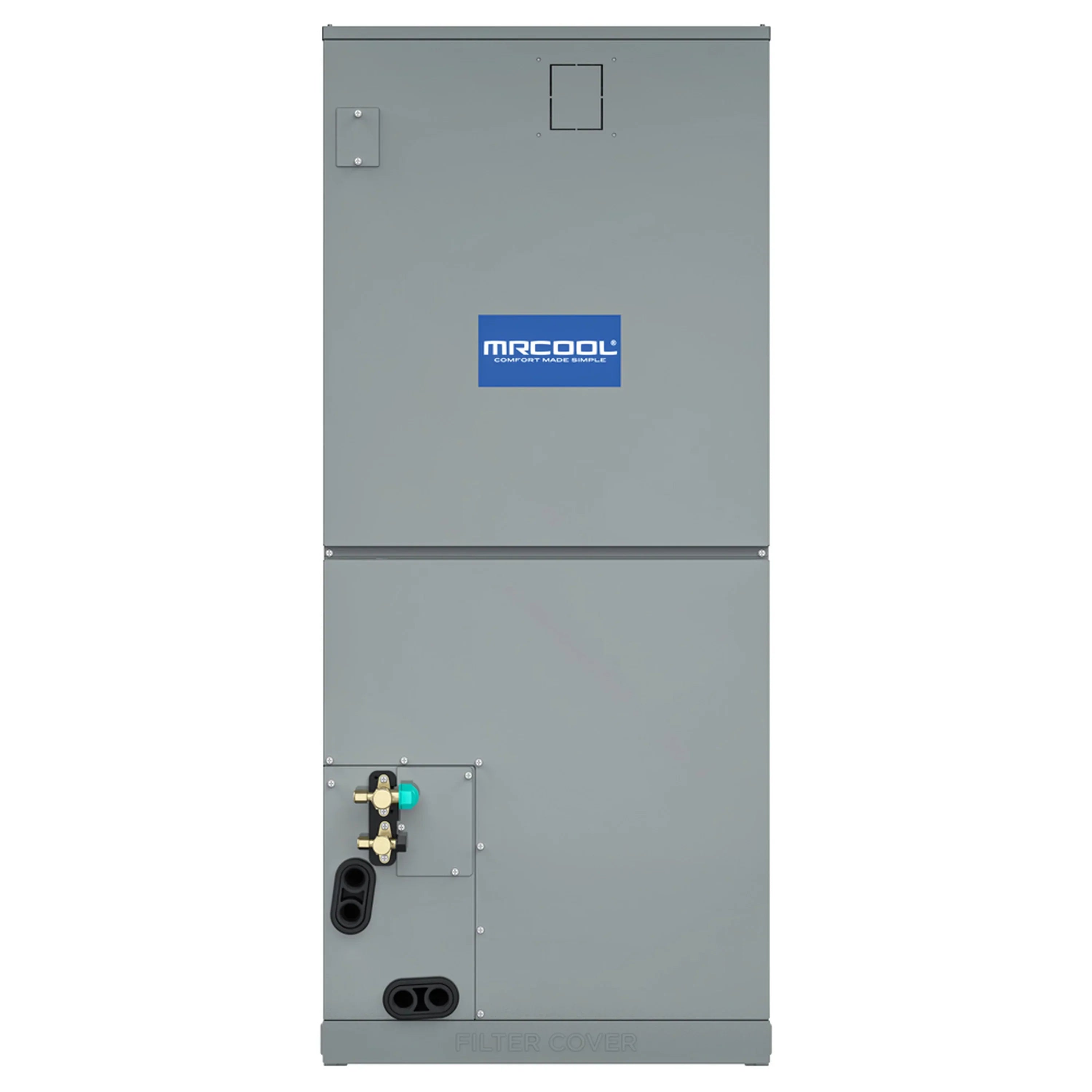

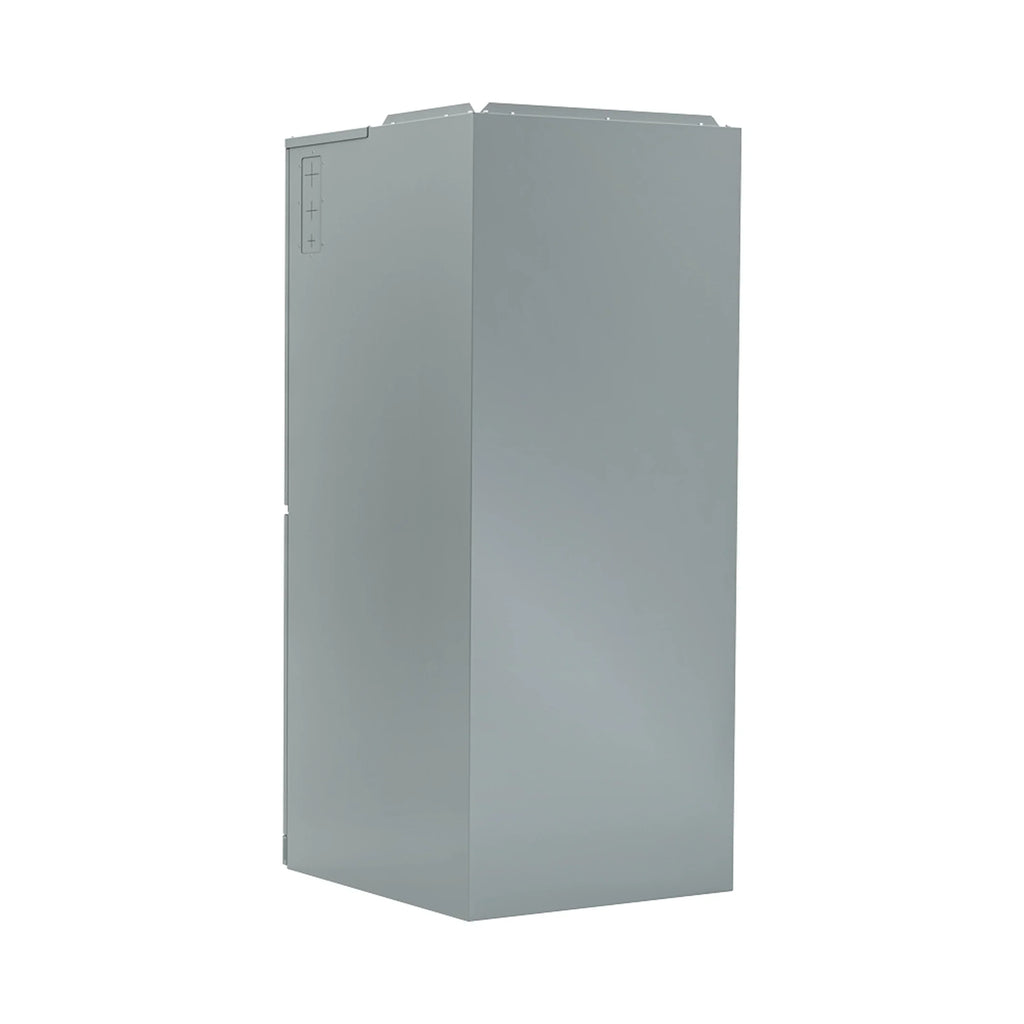

MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton Central Ducted Air Handler - MVP-18-HP-MUAH-230A00-O
The 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable option for heating and cooling your home throughout the year. With a SEER2 rating of up to 18.8, it is ideal for spaces up to 750 square feet, making it a great upgrade for older HVAC systems. The air handler is built with durability in mind, featuring a painted galvanized steel exterior that ensures long-lasting performance. Maintenance is made easier with a self-diagnostics panel that quickly identifies any issues, reducing the need for troubleshooting.

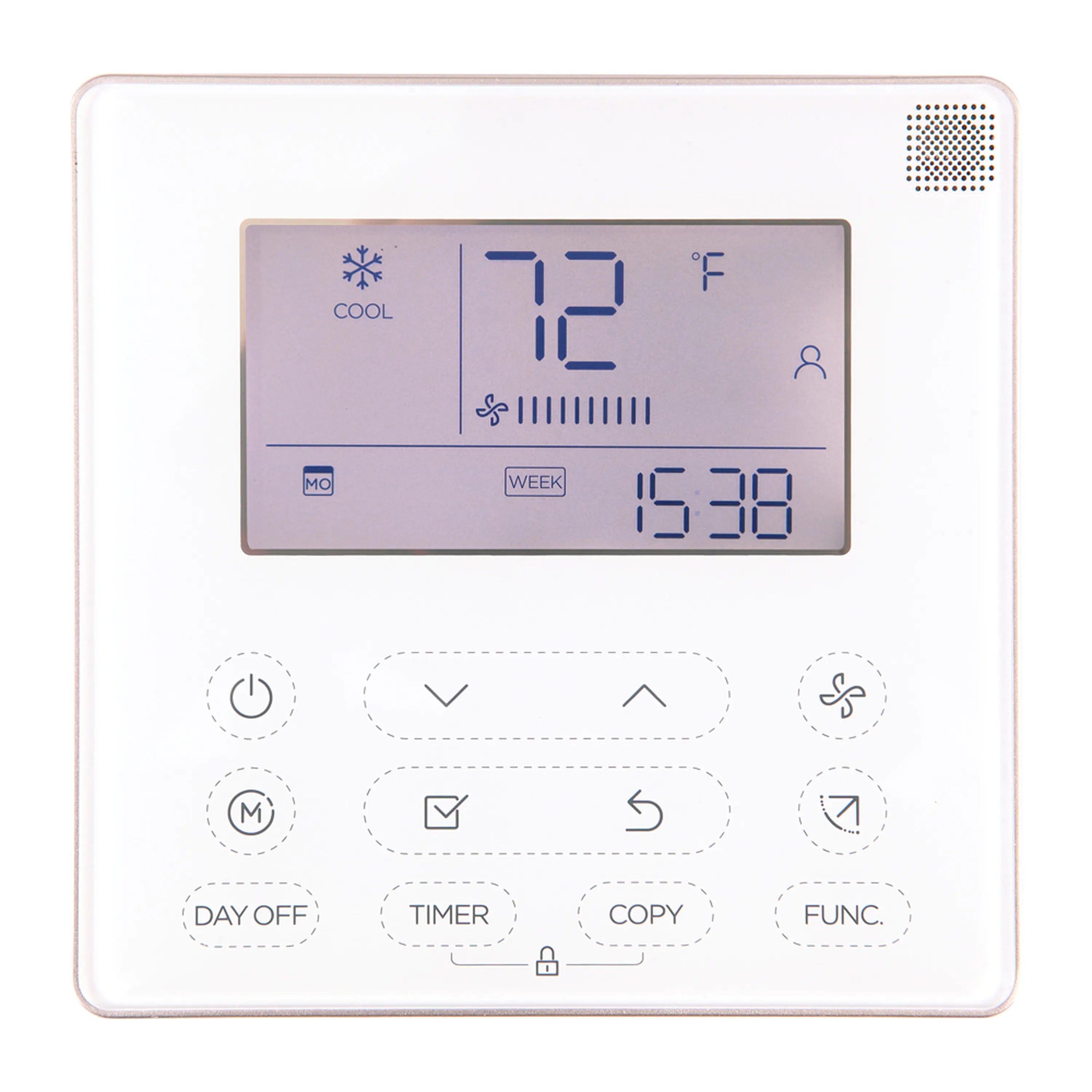

This unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations, allowing it to fit various setups. It uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining efficient performance. An optional heat kit is available for those who need additional heating. Complementing this, the MRCOOL® Smart Thermostat ensures reliable and easy-to-use temperature control, making it simple to maintain your ideal home climate. Its compatibility with the MRCOOL® SmartHVAC app allows you to conveniently adjust your settings remotely for added comfort and control. Backed by a 10-year warranty, the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for improving your home’s comfort and performance.
Specifications
Dimensions |
17.52" D x 45" H x 21.02" W |
CFM |
618.03/576.83/529.74/488.54 |
Tonnage |
1.5 |
Cooling Capacity (BTU) |
18000 |
Heating Capacity (BTU) |
18000 |
Voltage (V) |
115/208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker (A) |
15 |
Min Circuit Ampacity (A) |
5.5/4.0 |
Color |
gray |
Decibel Rating Low (DBA) |
33 |
Decibel Rating High (DBA) |
44 |
Number of Speeds |
4 |
Max Lineset Length (FT) |
98.4 ft |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
Filter Type |
Replaceable |
Filter Size |
16x20x1 |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
5kW/8kW/10kW |
Adjustable Thermostat |
Yes |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
105.82 |
Gross Depth (In) |
20.87 |
Gross Height (In) |
48.62 |
Gross Width (In) |
26.57 |
Gross Weight (Lbs) |
126.76 |
What our Experts Think
-
Right-Sized Comfort: 18,000 BTU (1.5 Ton) capacity is ideal for small to medium-sized residential spaces.
-
VersaPro 2nd Gen Upgrade: Improved design ensures reliable, efficient performance in ducted systems.
-
Perfect Match: Integrates seamlessly with MRCOOL condensers for a complete central HVAC solution.
-
Even Air Distribution: Maintains balanced airflow for consistent heating and cooling throughout the home.
-
Durability Built-In: Constructed for long-term reliability with low maintenance needs.
-
MRCOOL Innovation: Backed by a trusted brand known for DIY-friendly and professional-grade HVAC solutions.
Q&A
Q: What is the MRCOOL MVP-18-HP-MUAH-230A00-O?
A: An 18,000 BTU (1.5 Ton) VersaPro 2nd Gen central ducted air handler, built to pair with MRCOOL condensers for efficient HVAC performance.
Q: What are the key features?
A: Variable-speed blower, quiet operation, flexible multi-position installation, and compatibility with Hyper Heat and VersaPro condensers.
Q: Is it energy efficient?
A: Yes, designed for use with high-SEER2 MRCOOL condensers for consistent, efficient comfort.
Q: Does it include a heat kit?
A: No, but it supports optional electric heat kits for added heating capacity.
Q: Where is it best used?
A: Perfect for smaller homes, apartments, or spaces requiring a compact and efficient ducted air handler.
Maintenance Tips
-
Replace or clean air filters regularly to ensure proper airflow and efficiency.
-
Inspect and clean blower assembly to maintain consistent performance.
-
Check condensate drain line for clogs to prevent water buildup.
-
Inspect ductwork periodically for leaks or blockages.
-
Verify electrical connections are tight and corrosion-free.
-
Test thermostat and system controls seasonally for accuracy.
-
Schedule annual professional servicing for peak reliability.
-
Always shut off power before cleaning or performing maintenance.
