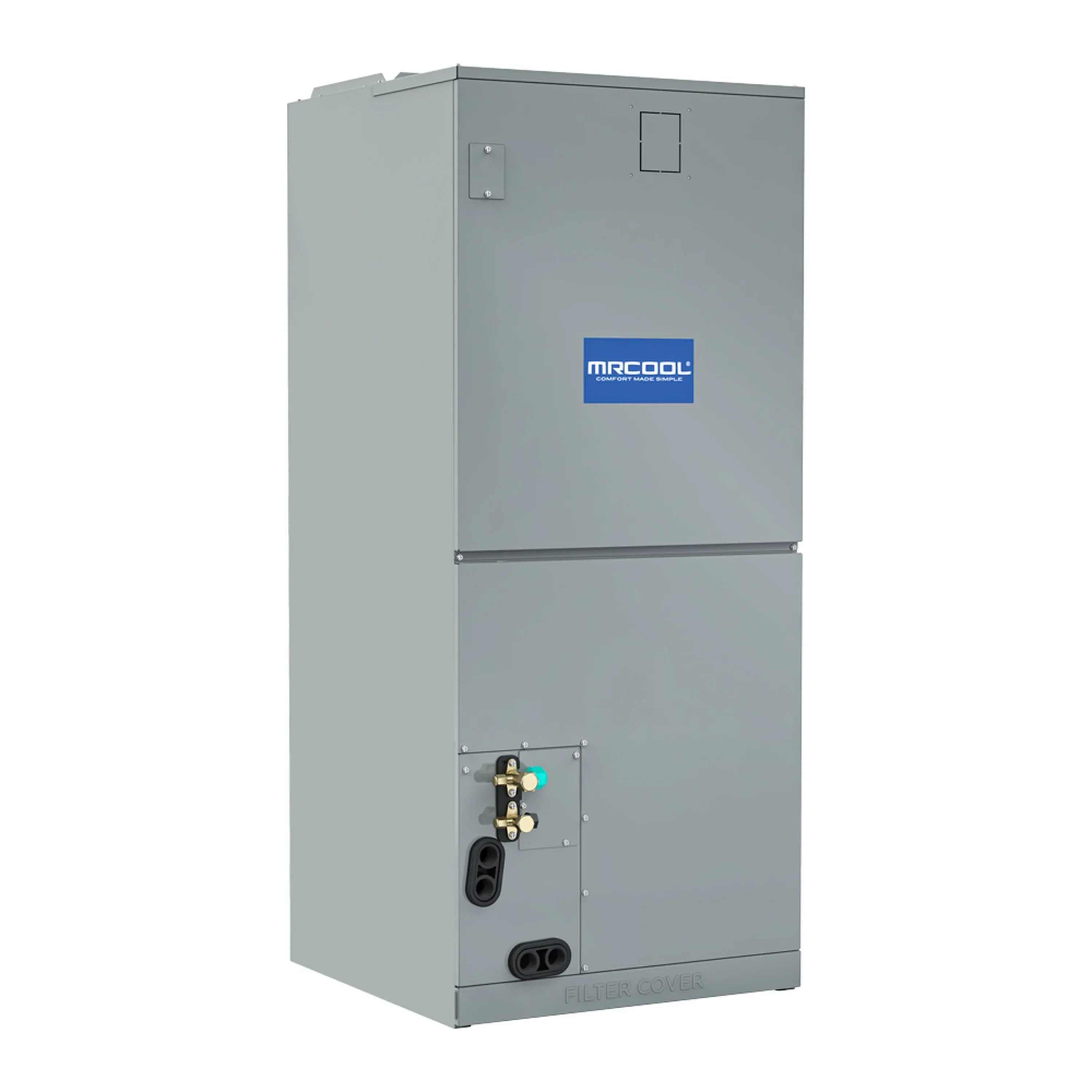

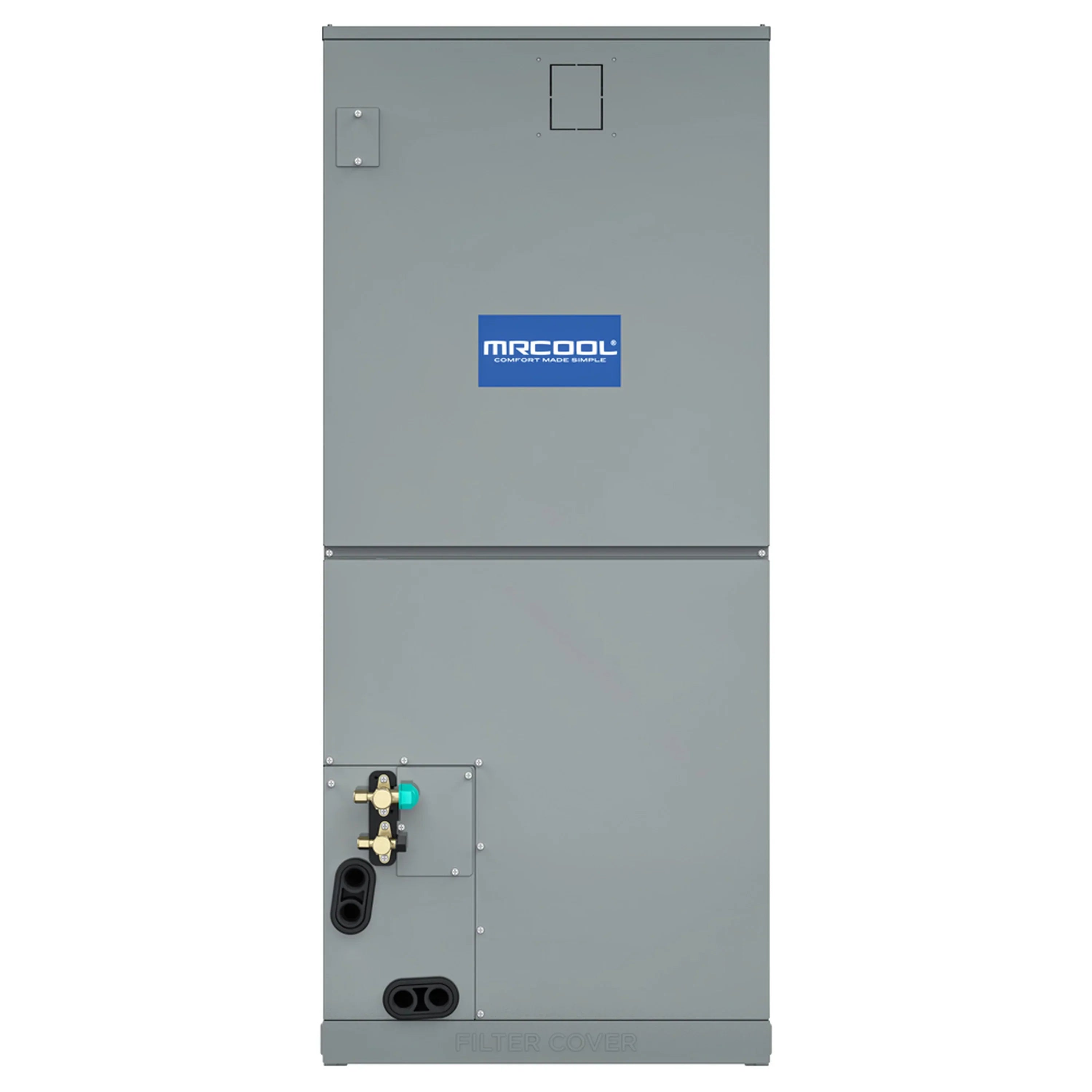

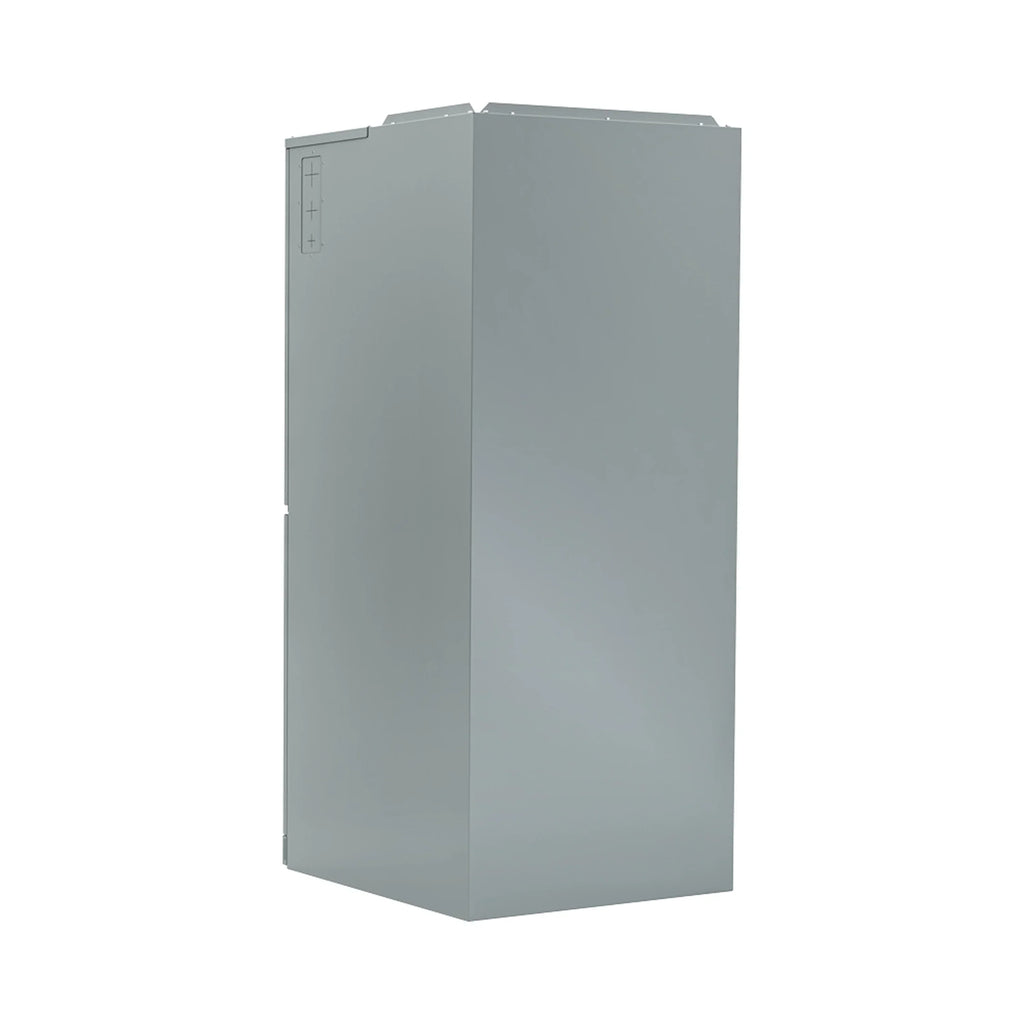

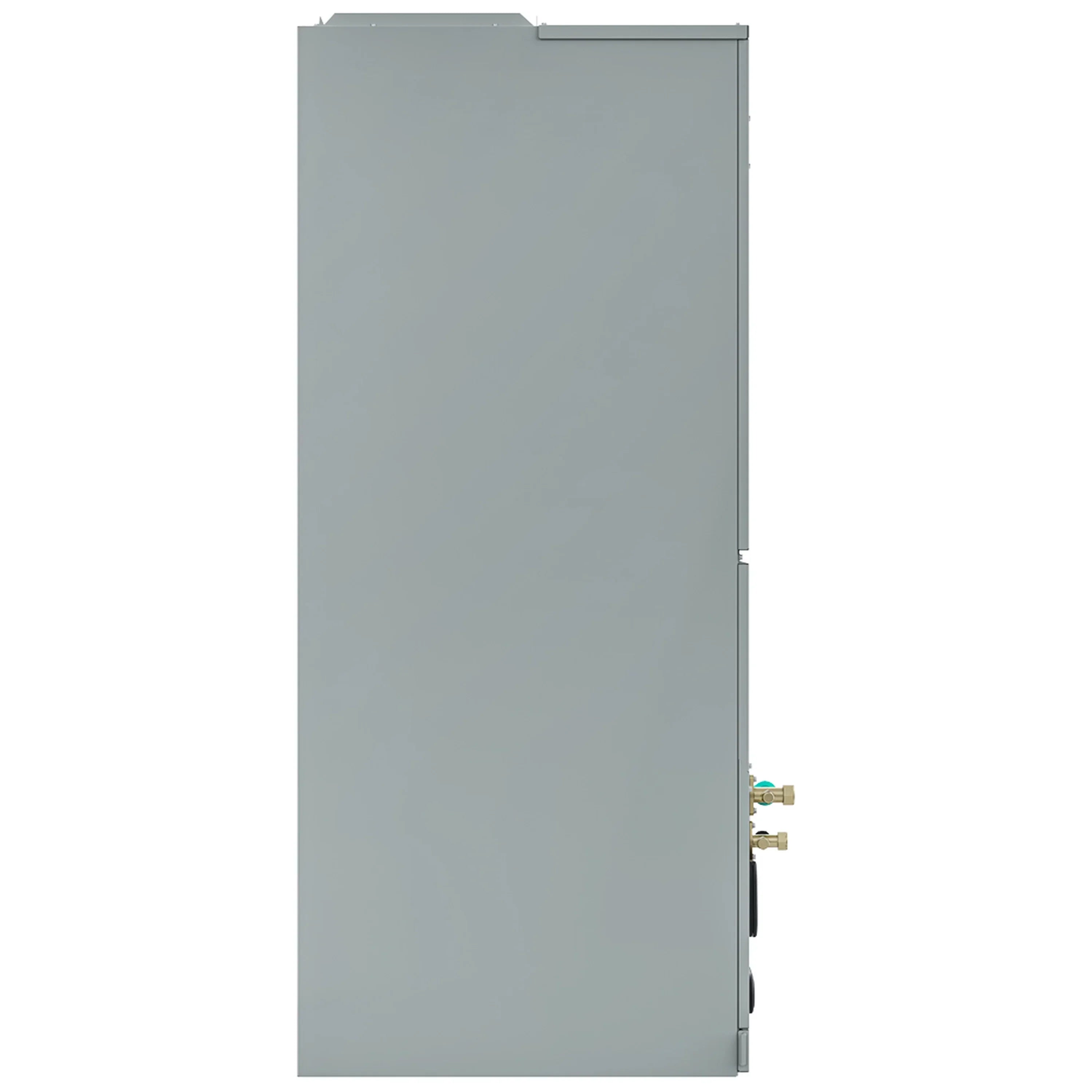

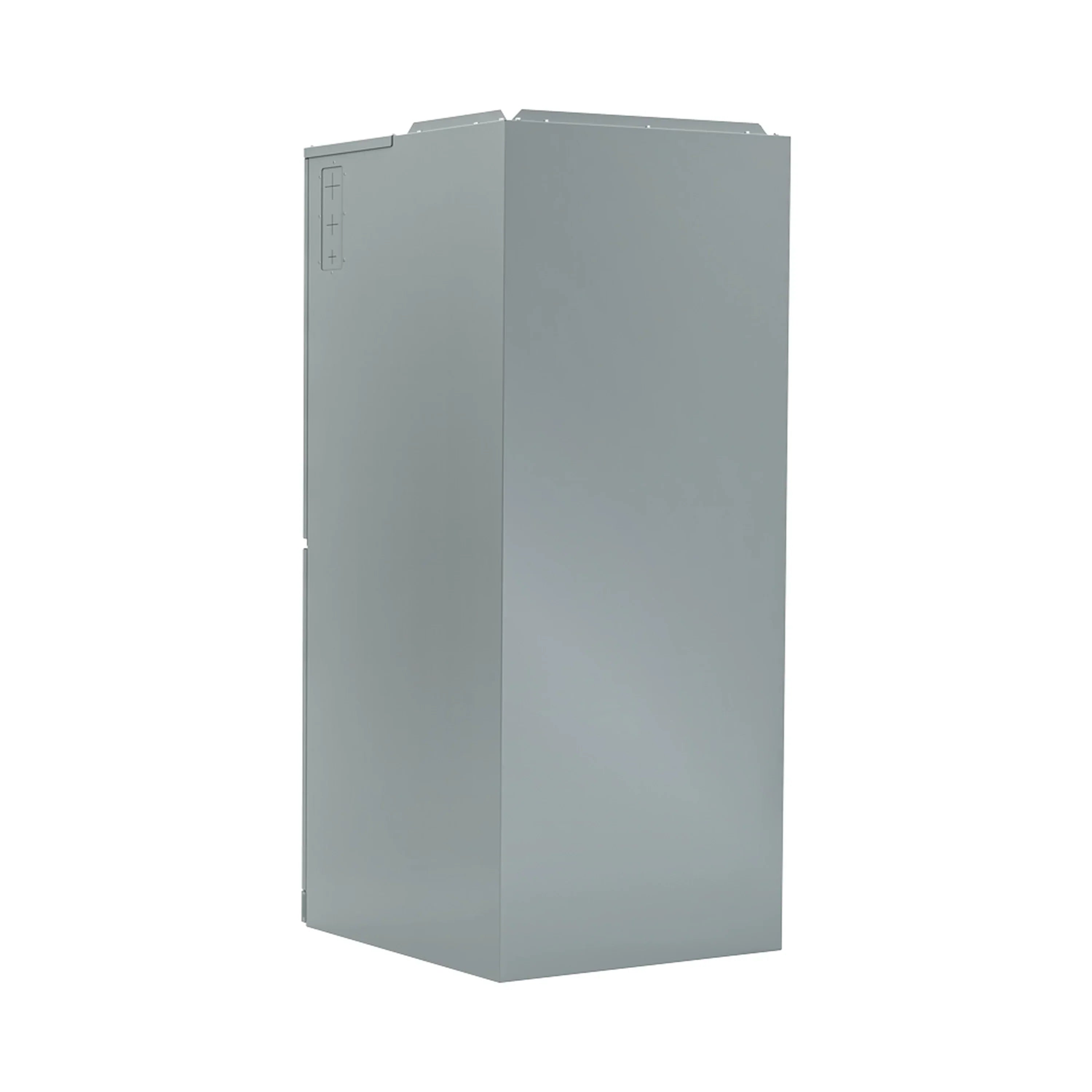

MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler - MVP-36-HP-MUAH-230A00-O
The 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a reliable and efficient solution for heating and cooling your home throughout the year. With a SEER2 rating of up to 17.4, it is designed to cover up to 1,500 square feet, making it an ideal upgrade for older HVAC systems that need improved efficiency. Built for long-term durability, this air handler features a robust painted galvanized steel exterior that withstands everyday wear. Its self-diagnostics panel simplifies maintenance by quickly identifying any issues, minimizing downtime.
This unit is designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts. It uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality.

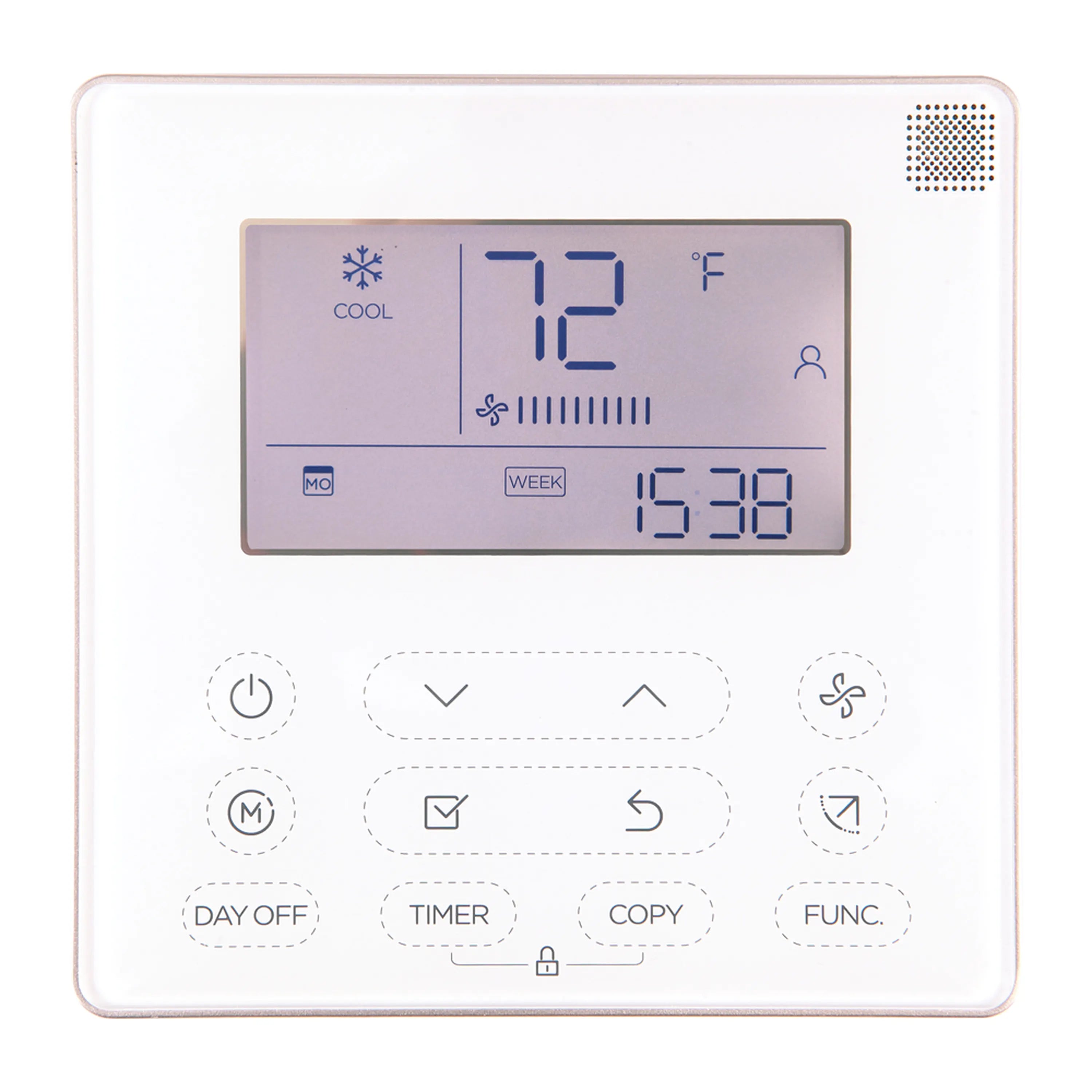

The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home, making it simple to set and adjust the temperature to your preferred comfort level. It’s also compatible with the MRCOOL® SmartHVAC app for convenient remote access. Compatible with our Central Ducted Hyper Heat system, this air handler ensures top-tier performance and comfort. Backed by a 10-year warranty, the 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a combination of performance, reliability, and convenience, providing a long-lasting and efficient solution for your home’s climate control.
Specifications
Dimensions |
21.02" D x 49.02" H x 21.02" W |
CFM |
1188.97/1083.02/971.19/865.24 |
Tonnage |
3 |
Cooling Capacity (BTU) |
36000 |
Heating Capacity (BTU) |
36000 |
Voltage (V) |
115/208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker (A) |
15 |
Min Circuit Ampacity (A) |
8.0/6.0 |
Color |
gray |
Decibel Rating Low (DBA) |
28 |
Decibel Rating High (DBA) |
48 |
Number of Speeds |
3 |
Max Lineset Length (FT) |
246 ft |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
Filter Type |
Replaceable |
Filter Size |
19x20x1 |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
5kW/8kW/10kW/15kW/20kW |
Adjustable Thermostat |
Yes |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Contains Electronics |
Yes |
| Contains Chemicals |
Yes |
Contains Compressed gas |
Yes |
Net Weight (Lbs) |
129.41 |
Gross Depth (In) |
24.41 |
Gross Height (In) |
52.56 |
Gross Width (In) |
26.57 |
Gross Weight (Lbs) |
153.88 |
What our Experts Think
-
Powerful & Efficient: With 36,000 BTU (3 Ton) capacity, the VersaPro 2nd Gen delivers strong, reliable airflow—ideal for medium to large homes.
-
Upgraded 2nd Gen Design: Improved performance, quieter operation, and more efficient airflow control compared to the previous generation.
-
Universal Fit: Designed for central ducted systems, this air handler works seamlessly in upflow, downflow, and horizontal configurations.
-
DIY-Friendly Integration: Compatible with MRCOOL DIY heat pump systems—perfect for homeowners seeking professional results with simplified installation.
-
Energy Smart: Built for energy efficiency, helping lower utility bills while maintaining year-round comfort.
-
Built to Last: Durable galvanized steel construction with corrosion-resistant coating ensures long-term reliability.
-
Smart-Home Ready: Pairs with smart thermostats and MRCOOL’s advanced control systems for easy, remote climate management.
Q&A
Q: What is the MRCOOL VersaPro 2nd Gen 48K BTU Air Handler designed for?
A: It's built for whole-home comfort, efficiently distributing heated or cooled air in ducted HVAC systems for spaces up to 2,400 sq. ft.
Q: Is this unit compatible with MRCOOL heat pumps?
A: Yes, it's designed for seamless integration with MRCOOL VersaPro heat pump systems for optimal performance.
Q: Does it support multi-speed or variable-speed airflow?
A: Yes, this air handler features a high-efficiency variable-speed ECM blower motor for improved energy savings and comfort.
Q: Can this air handler be installed in horizontal, vertical, or downflow positions?
A: Yes, it offers multi-position installation flexibility for easy adaptation to different duct layouts.
Q: Is this MRCOOL unit energy efficient?
A: Absolutely. The variable-speed motor helps reduce energy consumption while maintaining consistent temperature and humidity control.
Maintenance Tips
-
Replace or clean air filters every 30–60 days to ensure proper airflow and efficiency
-
Inspect and clear the condensate drain line monthly to prevent blockages and leaks
-
Check refrigerant levels and system pressure annually with a certified HVAC technician
-
Clean blower components and evaporator coils during yearly maintenance
-
Keep all supply and return vents free from dust and obstructions
-
Maintain at least 2–3 feet of clearance around the outdoor condenser unit
-
Schedule annual professional HVAC servicing to optimize performance and extend system life
