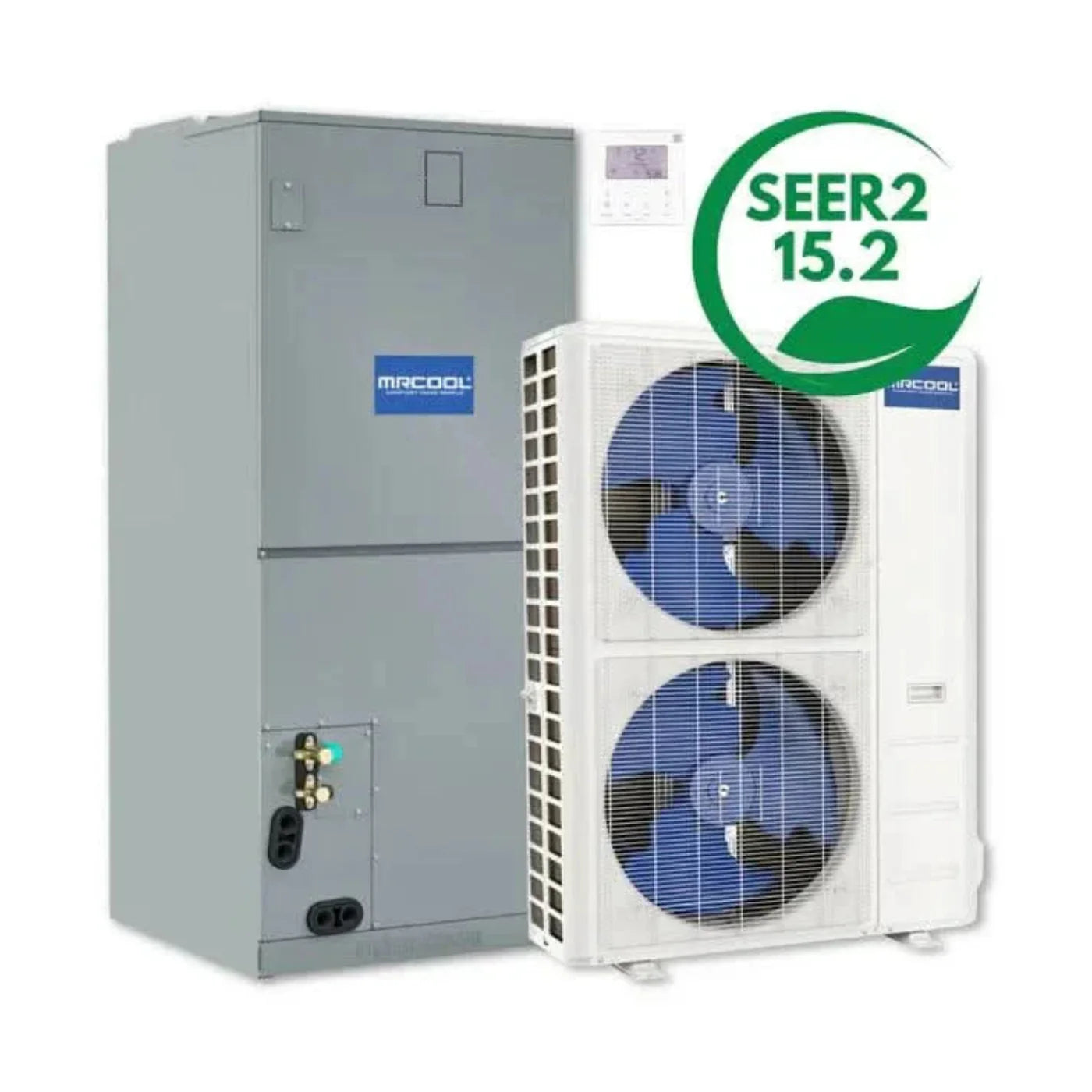

GREE MRCOOL VersaPro Series 2nd Generation 60,000 BTU 15.2 SEER2 5 Ton Central Ducted Heat Pump Split System - R454B Refrigerant - MVP-60-HP-230A00-O
Upgrade your home’s comfort system with the MRCOOL VersaPro 2nd Gen 60K BTU (5 Ton) Central Ducted Heat Pump Split System—a high-performance, energy-efficient solution built for reliable year-round heating and cooling. Designed with advanced DC inverter technology and eco-friendly R-454B refrigerant, this system can efficiently manage spaces up to 2,500 sq. ft., making it an excellent replacement for aging HVAC units or new full-home installations.
The VersaPro 2nd Gen adjusts its output dynamically using its variable-speed compressor, optimizing energy use while keeping temperatures consistent. It combines strong performance with long-term efficiency, offering dependable comfort during both hot summers and cold winters.
VersaPro condensers work seamlessly with MRCOOL’s No-Vac Quick Connect Line Sets and coupler kits, allowing faster and cleaner installation.
Note: Line sets are sold separately, giving you flexibility based on your project needs.
Features
- DIY-Friendly Installation with No-Vac Quick Connect Line Sets – Pre-charged line sets allow fast, mess-free installation without handling refrigerant (line sets sold separately).
- Smart Temperature Management – Comes with both a wireless remote and a MRCOOL Smart Thermostat for precise, customizable climate control.
- Energy-Saving Performance – Achieves 15.2 SEER2 and 8.4 HSPF4, delivering efficient comfort in every season.
- Whole-Home Comfort – Capable of conditioning up to 2,500 sq. ft., ideal for larger homes, offices, and multi-zone ducted layouts.
- Versatile Installation – Supports upflow, downflow, and horizontal configurations to accommodate different ductwork setups.
- Quiet, Intelligent Operation – DC inverter tech ensures smooth, low-noise performance; SmartHVAC app compatibility allows remote access from anywhere.
- Environmentally Conscious Refrigerant – Uses R-454B, a greener refrigerant that increases efficiency while reducing environmental impact.
- Durable, Space-Saving Build – Features a rugged painted galvanized steel cabinet and a compact side-discharge design.
- Built-In Diagnostics – Onboard self-diagnostics simplify troubleshooting and maintenance.
- Optional Heating Enhancement – Compatible with an additional heat kit for improved performance in extremely cold climates.
Specifications
| Cooling & Heating |
Cooling Capacity |
54,000 Btu/h |
| SEER2 Rating |
15.2 |
|
| EER2 Rating |
8.6 |
|
| Heating Capacity |
54,000 Btu/h |
|
| HSPF2-4 |
8.4 |
|
| HSPF2-5 |
6.8 |
|
| Sound Levels |
Indoor Sound Level (Turbo/High/Med/Low) |
56 / 52 / 49 / 34.5 dB(A) |
| Outdoor Sound Level |
65 dB(A) |
|
| Power Supply |
Indoor Power Supply |
115/208/230V ~ 60Hz, 1-phase |
| Outdoor Power Supply |
208/230V ~ 60Hz, 1-phase |
|
| Circuit Requirements |
Minimum Circuit Ampacity (Indoor) |
14.5 / 11.0 A |
| Maximum Fuse Size (Indoor) |
15 A |
|
| Minimum Circuit Ampacity (Outdoor) |
39 A |
|
| Maximum Fuse Size (Outdoor) |
40 A |
|
| Indoor Unit Dimensions |
Width × Depth × Height |
24.49 × 21.02 × 52.99 in |
| Packaging Dimensions |
26.77 × 27.95 × 56.50 in |
|
| Net / Gross Weight |
162.92 / 190.92 lbs |
|
| Outdoor Unit Dimensions |
Width × Depth × Height |
38.58 × 16.34 × 38.39 in |
| Packaging Dimensions |
45.08 × 19.68 × 42.52 in |
|
| Net / Gross Weight |
192.90 / 224.21 lbs |
|
| Airflow |
Indoor (CFM Turbo/High/Med/Low) |
1807 / 1583 / 1360 / 1136 |
| Outdoor (CFM) |
3037.1 |
|
| Refrigerant |
Type |
R-454B |
| Charge |
134.04 oz |
|
| Line Set Size |
Liquid / Gas |
3/8" – 3/4" |
What our Experts Think
-
High-Efficiency Heating & Cooling: 15.2 SEER2 rating ensures energy savings without compromising performance.
-
Powerful Capacity: 60,000 BTU / 5-ton system ideal for large homes or commercial spaces.
-
Advanced Refrigerant: Uses eco-friendly R454B for reduced environmental impact.
-
Versatile Ducted Solution: Central split system provides consistent airflow throughout the property.
-
Durable & Reliable: Built for long-term operation with minimal maintenance.
-
Smart Comfort Control: Optimized for precise temperature regulation and quiet performance.
Q&A
Q: What is the MRCOOL VersaPro MVP-60-HP-230A00-O?
A: A 5-ton central ducted heat pump split system for whole-home heating and cooling with high efficiency and reliable performance.
Q: What type of refrigerant does it use?
A: Eco-friendly R-454B refrigerant for efficient, lower-impact cooling and heating.
Q: How efficient is the system?
A: Features 15.2 SEER2 cooling efficiency and 8.4 HSPF4 heating performance to reduce energy costs.
Q: What size space can it condition?
A: Ideal for homes or spaces approximately 2,000–2,500 sq ft with 60,000 BTU capacity.
Q: What are the installation options?
A: Supports upflow, downflow, and horizontal air handler configurations with advanced DC inverter technology for quiet, efficient operation.
Q: Does it offer smart controls?
A: Yes, compatible with smart thermostats and app control for customizable comfort and remote monitoring.
Q: How quiet and durable is it?
A: Engineered for quiet operation with durable painted galvanized steel construction for long-lasting reliability.
Maintenance Tips
-
Change/clean air filters every 1–3 months to maintain airflow and efficiency
-
Keep both indoor and outdoor units clean and debris‑free
-
Clear vegetation/obstructions around the outdoor condenser for proper airflow
-
Inspect refrigerant lines and insulation for damage or wear
-
Check and tighten electrical connections periodically
-
Ensure condensate drain is clear to prevent backups and mold
-
Schedule professional HVAC tune‑ups twice a year (pre‑cooling & pre‑heating seasons)
-
Monitor system performance; address unusual noises or weak airflow promptly
-
Keep thermostat calibrated and settings optimized for efficiency
-
Verify outdoor unit is level and securely mounted
