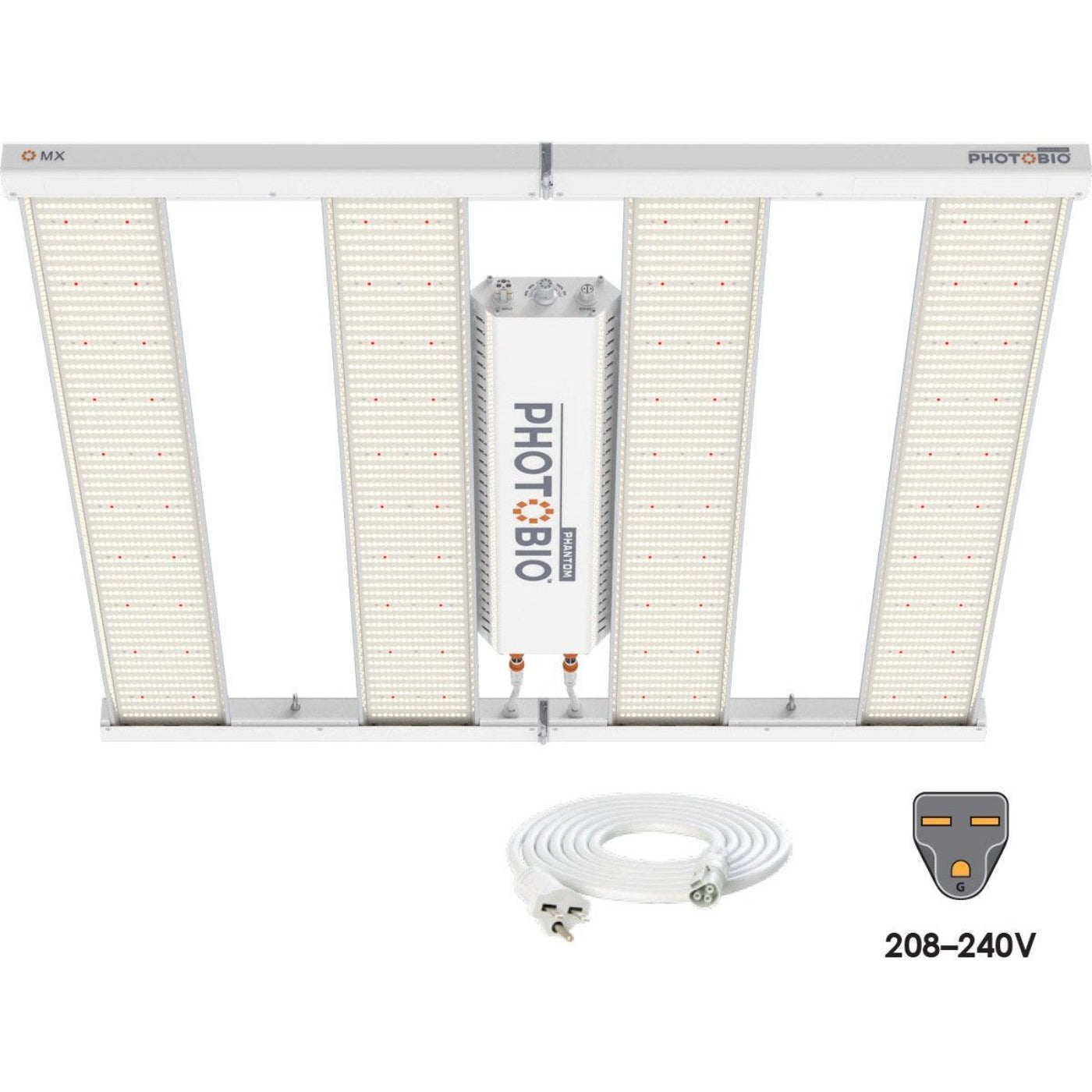

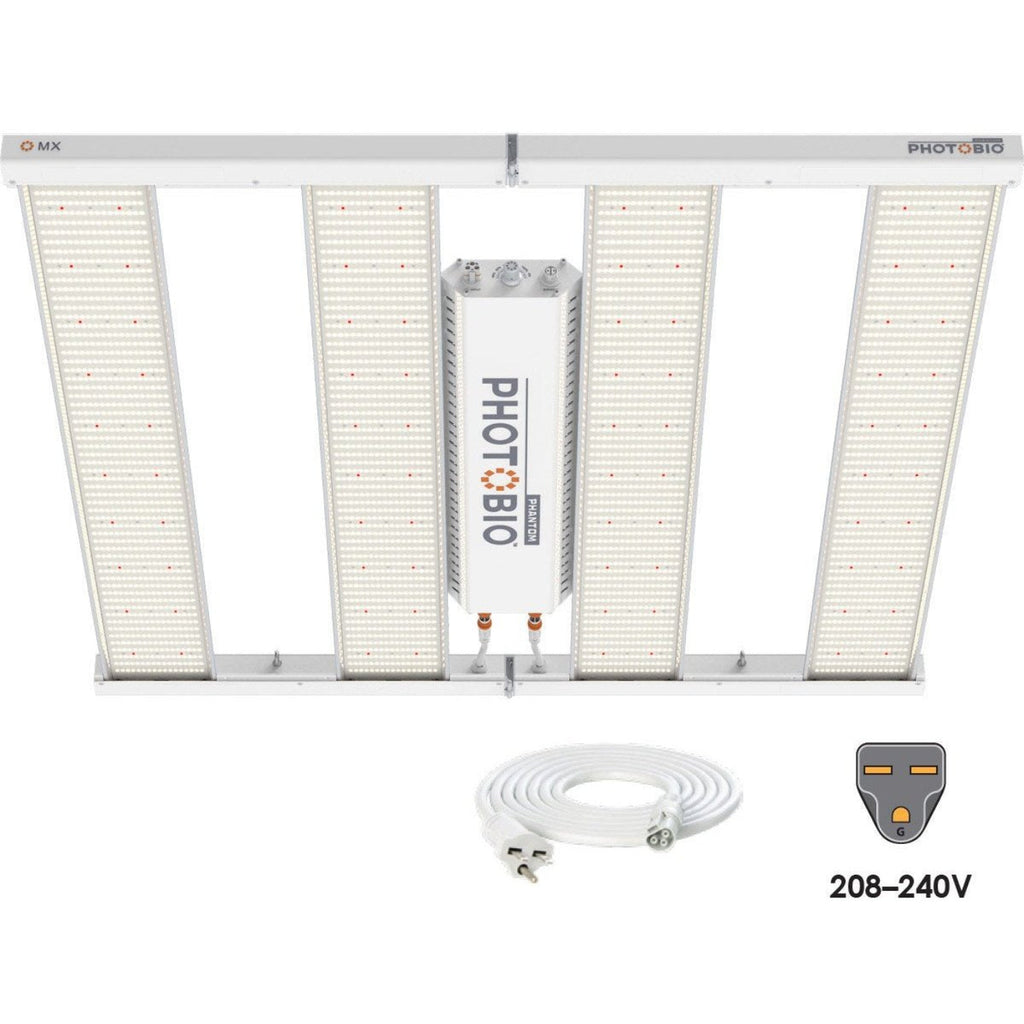

The PHOTOBIO•MX changes everything. We took a step back, evaluated all the fixtures on the market, and then set out to do things entirely different. The result is a 680W fixture delivering 15% more light to your canopy, using 35% less power than a 1000W DE fixture. Increase yields while driving down operational cost. The spectrums were developed in a private research laboratory to drive flower yield and elicit market desirable traits in short day resin producing crops.
Features

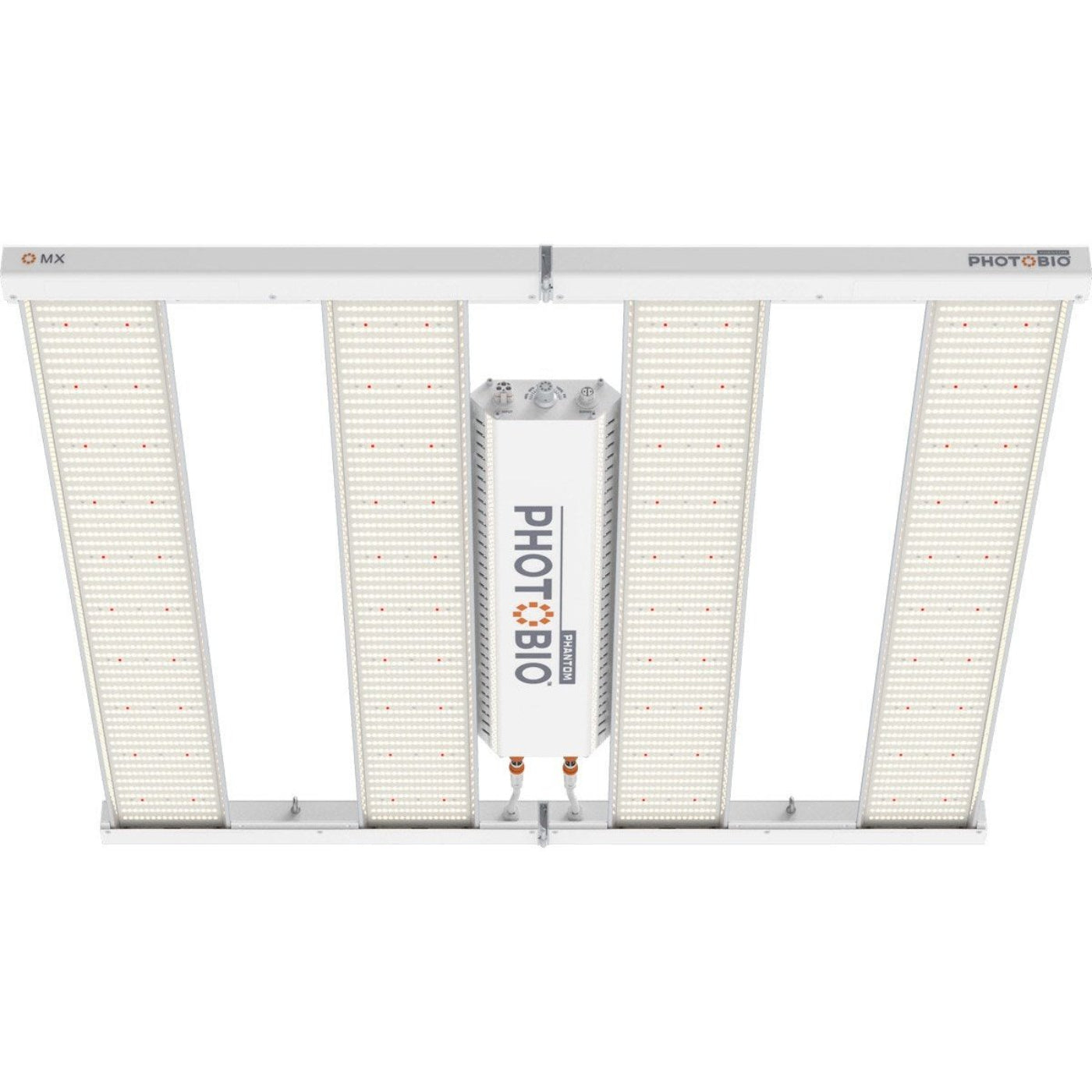

PHOTOBIO•MX abandons the bar style concept in favor of a more efficient contiguous circuit board to deliver unparalleled PPFD uniformity to the canopy. Extensive thermal modeling and testing was conducted to ensure diodes remain well below operating temperature to maintain consistent light output and yields. 0-10V PHOTO•LOC Light Output Control allows you to precisely regulate the amount of light delivered to your plant canopy when paired with the available Autopilot PX Series controller.
The iLOC Integrated Light Output Control on board dimming knob allows the grower to adjust the photon output intensity to accommodate the various stages of plant growth for optimal photosynthesis activation. With the knob adjusted to 100% using 240V, the MX uses 664W and puts out 1700 μmol/s photon flux (PPF). With the knob adjusted to 40%, the MX uses 270W and puts out 40% of the photon flux. The high efficiency S4 spectrum does not change when using the dimmer knob and still provides ideal red to blue ratio for vigorous growth and maximized flower development.

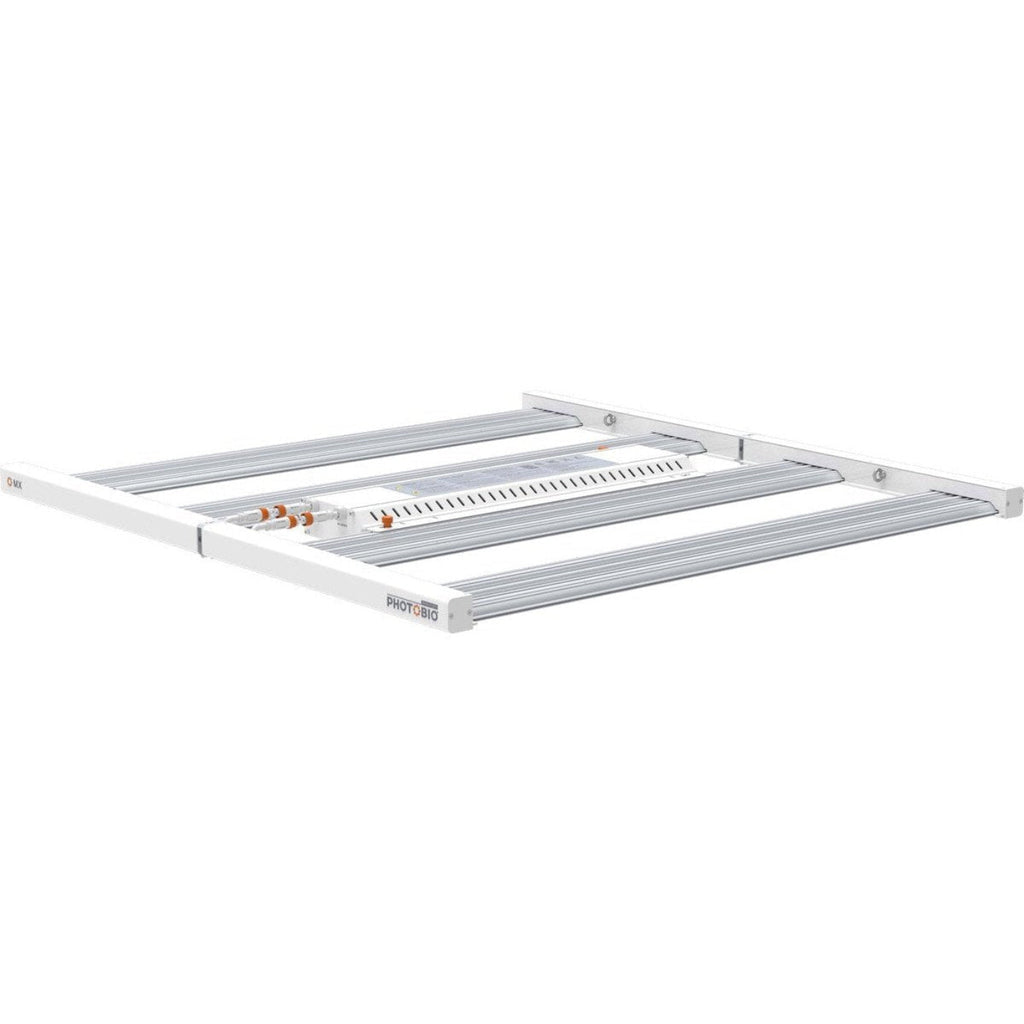

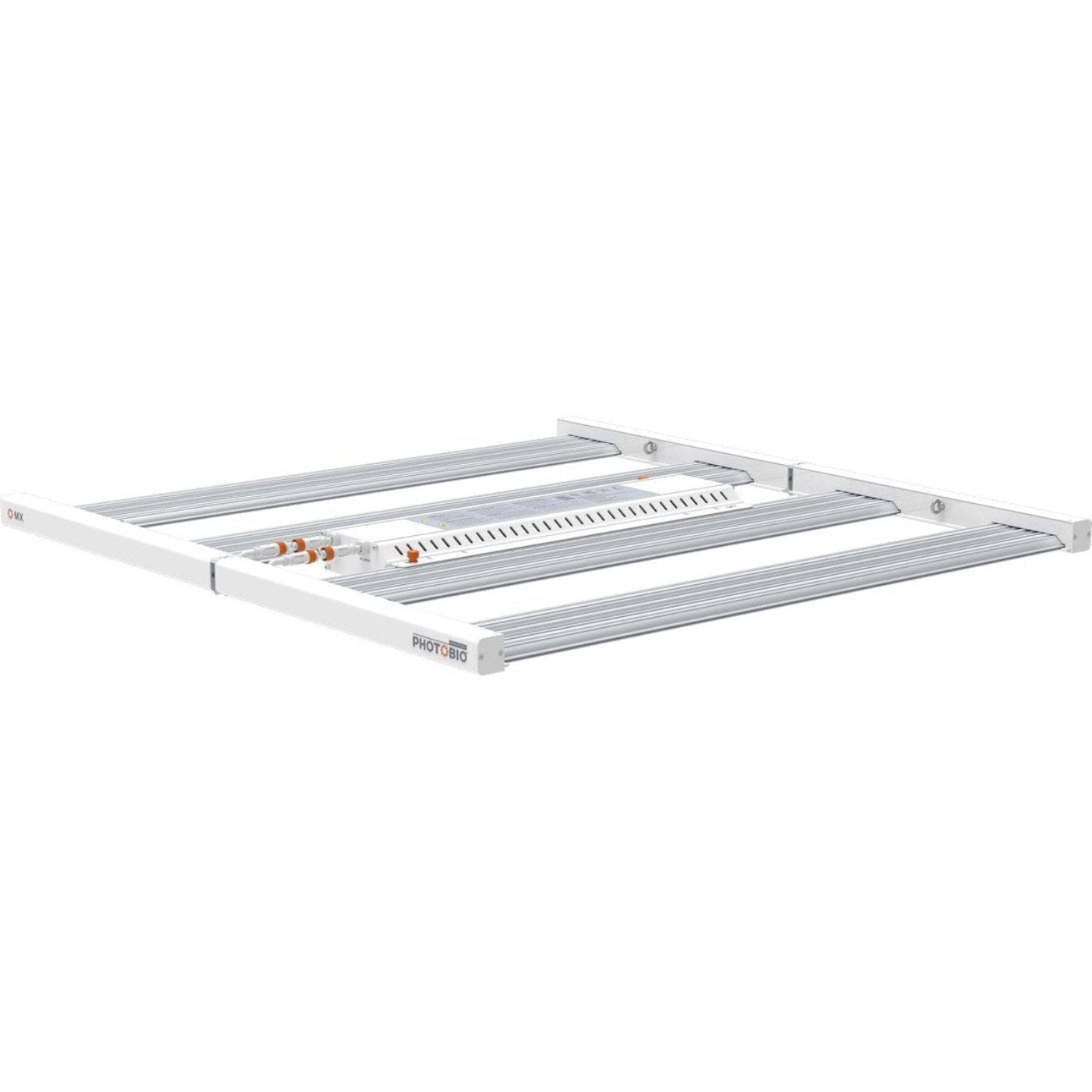

PHOTOBIO•MX’s design is multilayer rack centric, providing the ability to double or triple your canopy square footage within your existing structures footprint. The driver is mounted below the fixture to maximize vertical grow space and has the ability to be remotely mounted.
PHOTOBIO•MX is designed for the serious horticultural professional looking to increase business sustainability by reducing power consumption while simultaneously improving crop performance and yield. The PHOTOBIO•MX is also a qualified product listed with DLC, which makes the fixture eligible for energy rebates for futher cost savings while also saving significant energy while optimizing plant growth and health.
Specifications
-
1768 umol/s Photon Flux @ 277V
-
2.6 µmol/J Efficacy @ 277V
-
iLOC Integrated Light Output Control allows manual adjustment of light output
-
Settings are 40%-55%-70%-85%-100%-PX Control
-
Driver can be mounted remote
-
Robust commercial design keeps LED's running cool
-
Precisely control photon output when paired with Autopilot PX series controller (PX2 and above)
-
Slim design maximises vertical growing space with remote capable driver
-
100-277V Driver range
-
IP65 wet location rated protection against water and dust
-
Includes PHOTO•LOC signal cable
-

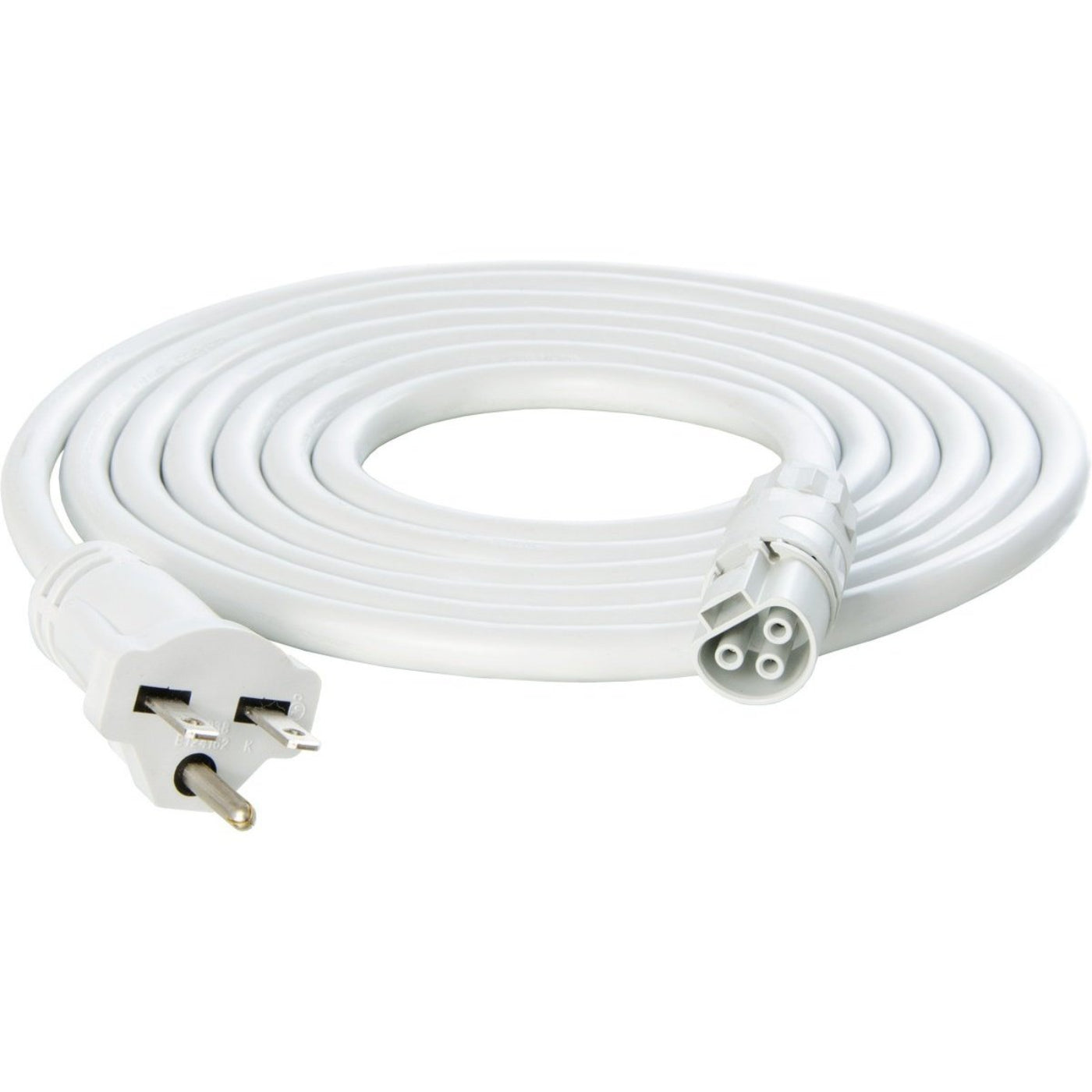

Includes a voltage specific power cable chosen by the customer
-
DLC listed (H-RR6RGRH) and qualifies for utility rebates, which play a significant role in optimising the cost effectiveness of a lighting project
What Our Experts Think
The Autopilot PHOTOBIO MX 680W LED Grow Light is a premium lighting solution for professional and large-scale growers. Here's why it stands out:
-
High Efficiency: Delivers up to 2.8 µmol/J, ensuring maximum light output with minimal energy consumption.
-
Full-Spectrum Lighting: Optimized for all growth stages, from seedling to flowering, for healthier and more productive plants.
-
Wide Coverage Area: Compact yet powerful design provides uniform light distribution over large grow spaces.
-
Advanced Heat Management: Features passive cooling technology for quiet operation and reduced heat buildup.
-
Dimming Capability: Adjustable light intensity (0-100%) for precise control over plant lighting needs.
-
Durable Build: Engineered with robust materials for long-lasting performance in high-demand environments.
-
Easy Installation: Slim, lightweight design with mounting hardware ensures quick and hassle-free setup.
Q&A
Q: What is the Autopilot PHOTOBIO MX 680W?
A: The Autopilot PHOTOBIO MX 680W is a high-performance LED grow light designed for professional indoor growers, delivering optimal light intensity and spectrum for maximum plant growth and yield.
Q: What are its key features?
A: Features include a full-spectrum light for all growth stages, high efficacy (2.85 µmol/J), even light distribution, passive cooling for silent operation, and dimmable control for customizable light output.
Q: What coverage area does it provide?
A: It offers uniform coverage for a 4' x 4' to 5' x 5' area, ideal for both vegetative and flowering stages in indoor grow setups.
Q: Who is it best suited for?
A: Ideal for commercial growers, hydroponic setups, and indoor gardening enthusiasts aiming for energy efficiency and superior plant performance.
Q: Why choose the Autopilot PHOTOBIO MX 680W?
A: It provides industry-leading energy efficiency, exceptional light quality, and reliable performance, making it a top choice for maximizing indoor plant growth
Maintenance Tips
-
Clean LED Panels: Wipe the light panels with a soft, dry microfiber cloth weekly to remove dust and debris. Avoid harsh chemicals or water.
-
Inspect Cables: Regularly check power cords and connections for damage or wear to prevent electrical issues.
-
Verify Mounting: Ensure the fixture is securely mounted, and hanging hardware is in good condition.
-
Check Cooling System: If applicable, clean any air vents or fans to ensure proper heat dissipation.
-
Monitor Light Output: Test light levels periodically with a PAR meter to ensure consistent performance.
-
Maintain Grow Space Cleanliness: Keep the surrounding area clean to minimize dust accumulation on the fixture.
-
Avoid Excess Moisture: Protect the fixture from direct water exposure to prevent damage to electrical components.
-
Update Settings: If using a controller, adjust light schedules and intensity as needed for your plant’s growth stage.
