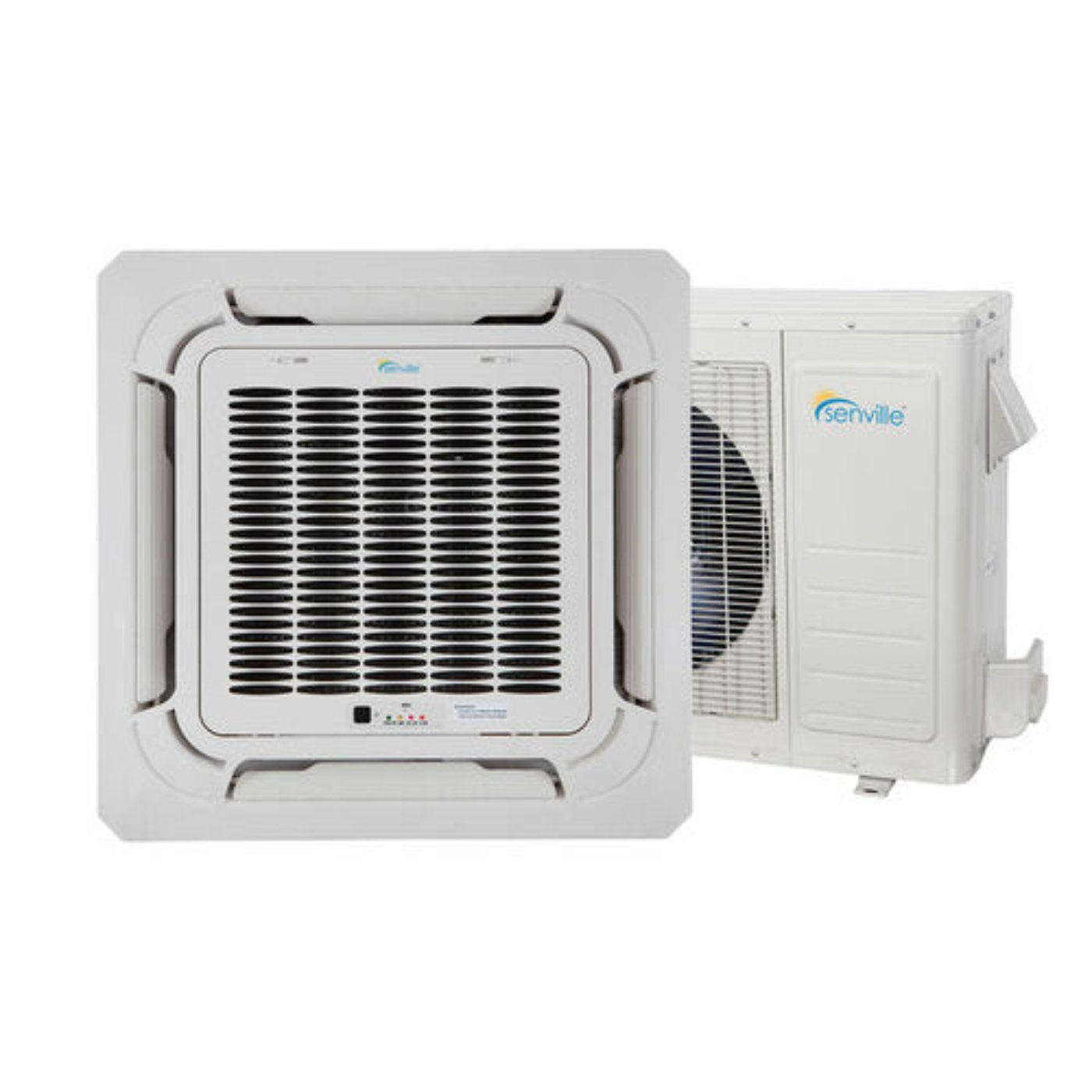

Senville 18000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/18HF/IC

Looking for a ductless air conditioning/heat pump without the traditional air handler?  Are you looking for that ceiling duct look with out the installation trouble of a traditional duct system? Check out the Senville AURA Series Ceiling Cassette air conditioner and heat pump kits.

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 20 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud offer one of the most advanced heating and cooling systems in the world. Our Ultra-Inverter Technology, allows our mini split systems to provide cooling and heating at up to -22F, with up to 75% efficiency, which means you won't experience any additional cost overages on your energy as temperatures go lower. Now available on all of our AURA Series models, your Ultra Inverter system will provide you with cooling and heating, all year round, even in the coldest climates.  Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

Features

• 20 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Silver Ion Filter (Anti-Microbial)
• Vertical Swing Function
• Built-In De-humidification Function
• Follow Me Function (Remote with Built-In Thermostat)
• Low Ambient Cooling (Up to -30C / -22F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
• ENERGY STAR Certified
• ETL Certified
• AHRI Certified (View Certificate)

Included with your Purchase

• Senville AURA Series 18,000 BTU Mini Split AC/Heat Pump
• Senville Indoor Ceiling Cassette

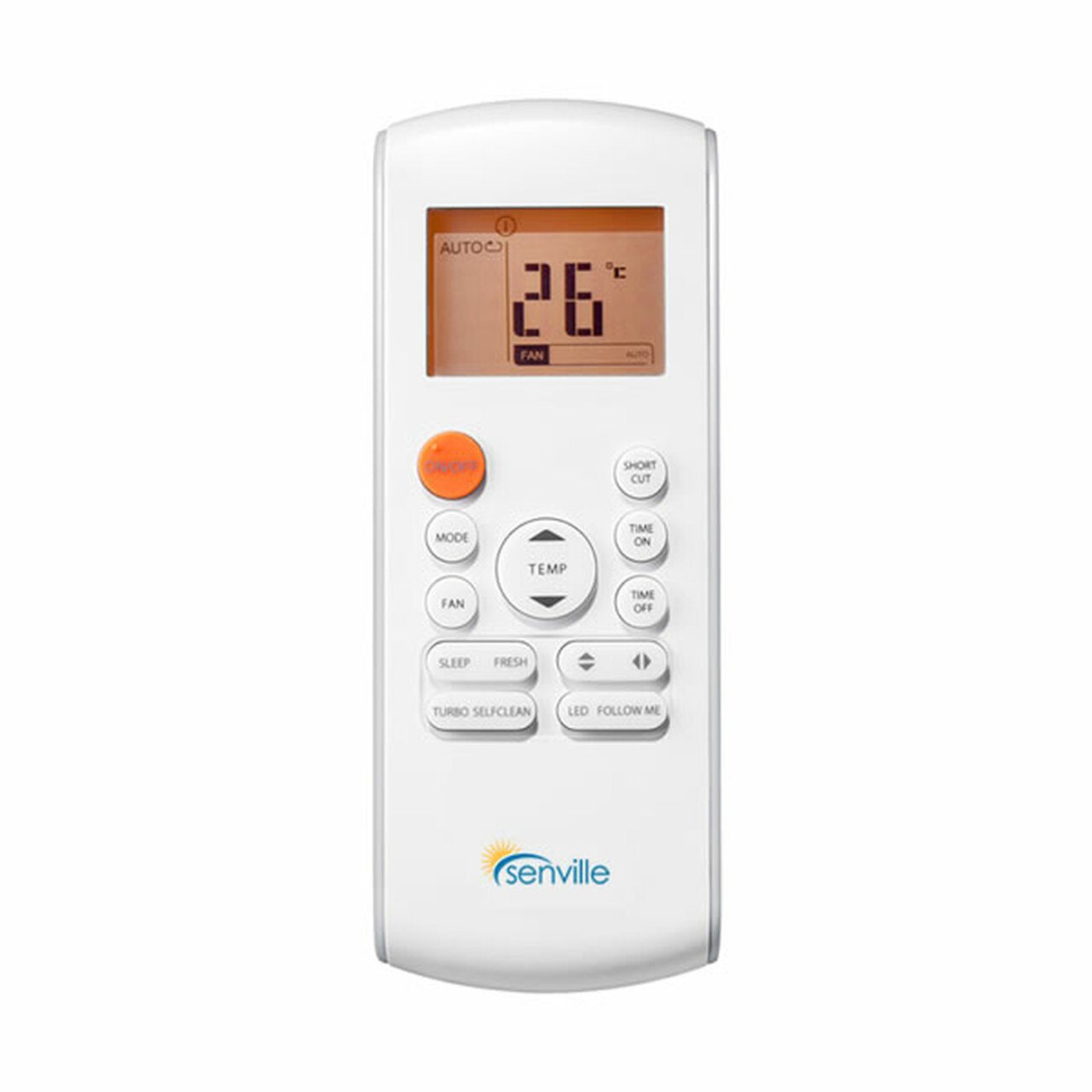

• Remote Control
• Installation Kit - 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

Warranty

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

Specifications

• Model Number:  SENA-18HF-ICQ
• Style:  Ceiling Cassette Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz):   208/230V, 1Ph, 60Hz
• Voltage Range:  187-253
• SEER:  20
• EER:  12.5
• Cooling (Range):  5600~17000
• Input (W):  1280
• Rated current  A:  8
• Heating (Range):  8700~21000
• Input (W):  1832
• Rated Current (A):  11
• HSPF4:  10.3
• HSPF5:  8.7
• COP W/W:  2.88
• Minimum Circuit Ampacity (A):  16
• Max. Fuse (A):  25
• Indoor Dimensions (WxDxH) (in.):  22.44x22.44x10.24
• Indoor Air Flow (H/M/L) CFM:  562.35/485.29/438.82
• Indoor Noise Level (H/M/L) dB:  43.5/38.5/35.5

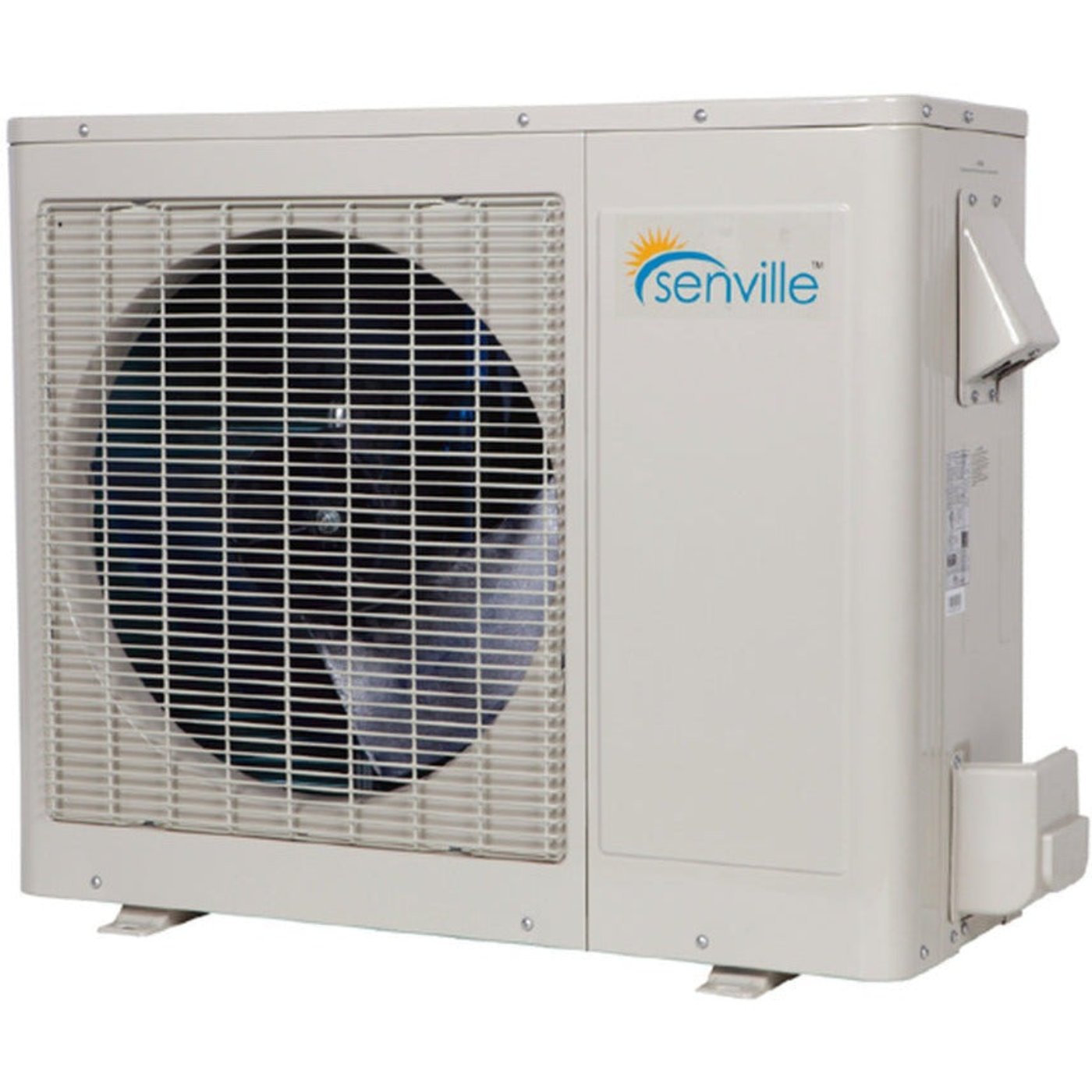

• Outdoor Dimensions (WxDxH) (in.):  35.04x13.46x26.50
• Outdoor Noise Level dB:  59
• Outdoor Air flow  (Max) CFM:  1764.7
• Refrigerant Type:  R410A / 65.2 Oz
• Refrigerant Pre-charge:  25 Ft.
• Connection Wiring:  14*4 AWG
• Thermostat Type:  Remote Control
• Warranty:  10 Years Compressor / 5 Years Parts
• Application Area (8 Ft Ceilings):  1100 sq. ft.
• Warning: California Proposition 65

Cassette Sizing and Clearance:

Downloads

Senville 18000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/18HF/IC Installation Manual

Senville 18000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/18HF/IC Cassette Installation Manual

Senville 18000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/18HF/IC Energy Guide

What Our Experts Think

• Ceiling-Mounted Comfort: The Senville 18,000 BTU Ceiling Cassette Air Conditioner with Heat Pump offers efficient cooling and heating for medium-sized spaces up to 900 sq. ft., ideal for both residential and commercial applications.
• All-Season Performance: With the ability to provide both air conditioning and heating, this unit ensures comfort year-round, adapting to seasonal temperature changes.
• Energy Efficient: Advanced inverter technology adjusts the system's output based on room demand, maximizing energy efficiency and helping to reduce utility bills.
• Quiet & Discreet Operation: The ceiling-mounted design ensures minimal noise, making it perfect for quiet environments like offices, living rooms, or bedrooms.
• Sleek & Compact Design: The unit blends seamlessly into your ceiling, saving valuable floor space and maintaining a modern, clean aesthetic in any room.

Q&A

Q: What is the Senville 18000 BTU Ceiling Cassette Air Conditioner - Heat Pump (SENA/18HF/IC)?
A: A 18000 BTU ceiling cassette mini split system that offers both cooling and heating functions, designed for efficient and discreet temperature control in smaller to medium-sized spaces.

Q: Who is this system ideal for?
A: Perfect for homeowners, offices, and commercial spaces that require space-saving, quiet, and efficient climate control, with a ceiling-mounted design to maintain a clean look.

Q: What are its key features?
A: 18000 BTU cooling and heating capacity, ceiling cassette design for hidden installation, energy-efficient inverter technology, quiet operation, and easy-to-use remote control for convenience.

Q: Why choose the Senville Ceiling Cassette Mini Split?
A: Provides reliable year-round comfort with efficient heating and cooling, while saving space and maintaining a modern, unobtrusive aesthetic for any room or business setting.

Maintenance Tips

• Clean Air Filters: Clean or replace the air filters every 2-4 weeks to maintain airflow and system efficiency. Wash or vacuum filters to remove dust and debris.
• Inspect and Clean Coils: Clean the evaporator and condenser coils at least once a year to prevent dirt buildup and ensure optimal performance.
• Clear the Condensate Drain: Check the condensate drain for clogs to avoid water backup, which could lead to mold or mildew growth.
• Inspect Refrigerant Lines: Periodically check the refrigerant lines for any signs of leaks, damage, or wear. Call a professional for repairs if needed.
• Maintain Ceiling Cassette Unit: Check the ceiling cassette unit for dust or debris buildup around the vents and ensure that there are no obstructions affecting airflow.
• Test the Remote Control and Thermostat: Ensure the remote control and thermostat are functioning correctly and replace the batteries as needed.
• Schedule Annual Professional Service: Have a technician inspect the system annually to check refrigerant levels, clean coils, and verify that the system is running efficiently.
• Protect During Off-Season: If the system will not be used for an extended period, cover the ceiling cassette unit to protect it from dust, dirt, and environmental damage.
