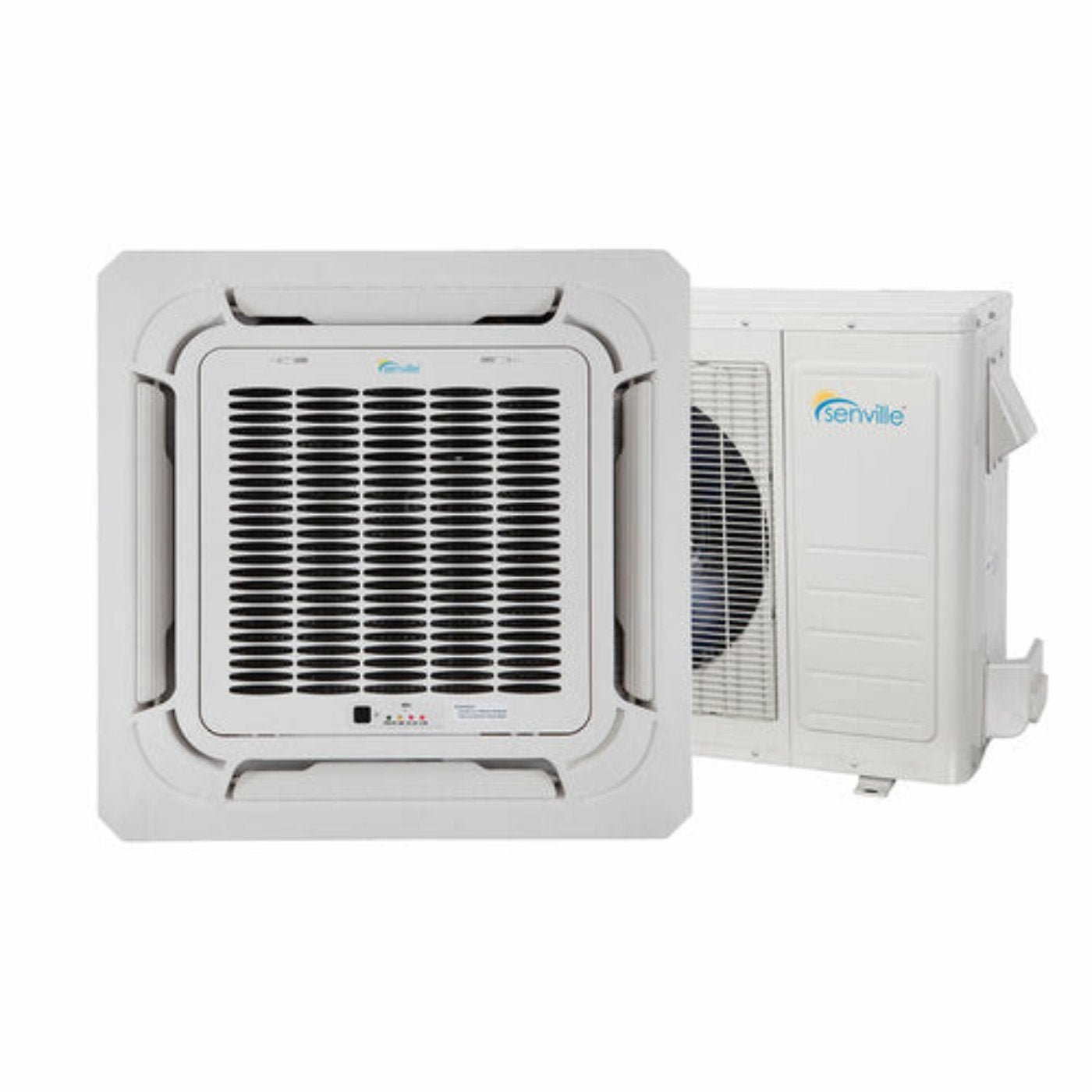

Senville 24000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/24HF/IC

Looking for a ductless air conditioning/heat pump without the traditional air handler?  Are you looking for that ceiling duct look with out the installation trouble of a traditional duct system? Check out the Senville AURA Series Ceiling Cassette air conditioner and heat pump kits.

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 20.2 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud offer one of the most advanced heating and cooling systems in the world. Our Ultra-Inverter Technology, allows our mini split systems to provide cooling and heating at up to -22F, with up to 75% efficiency, which means you won't experience any additional cost overages on your energy as temperatures go lower. Now available on all of our AURA Series models, your Ultra Inverter system will provide you with cooling and heating, all year round, even in the coldest climates.  Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

Features

• 20.2 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Silver Ion Filter (Anti-Microbial)
• Vertical Swing Function
• Built-In De-humidification Function
• Follow Me Function (Remote with Built-In Thermostat)
• Low Ambient Cooling (Up to -30C / -22F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
• ENERGY STAR Certified
• ETL Certified
• AHRI Certified (View Certificate)

Included with your Purchase

• Senville AURA Series 24,000 BTU Mini Split AC/Heat Pump
• Senville Indoor Ceiling Cassette

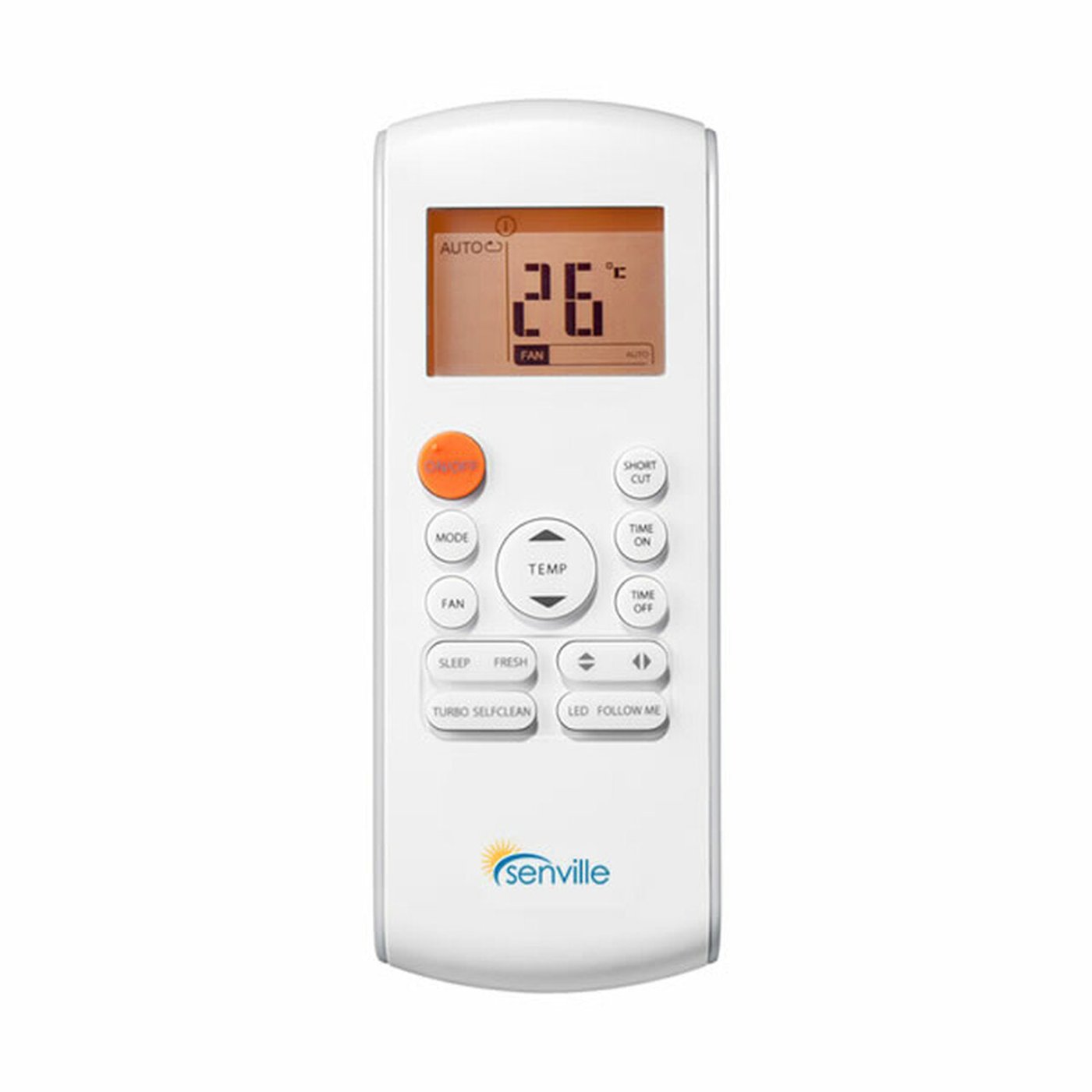

• Remote Control
• Installation Kit - 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

Manufacturer's Warranty

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

Specifications

• Model Number:  SENA-24HF-ICQ
• Style:  Ceiling Cassette Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range:  187-253
• SEER:  20.2
• EER:  11
• Cooling (Range):  8000~25000
• Input (W):  2182
• Rated current   A:  8.5
• Heating (Range):  11840~27000
• Input (W): 2093
• Rated Current (A):  9.8
• HSPF4:  11.6
• HSPF5:  9
• COP W/W:  3.5
• Minimum Circuit Ampacity (A):  25
• Max. Fuse (A):  35
• Indoor Dimensions (WxDxH) (in.):  32.68x32.68x8.07
• Indoor Air Flow (H/M/L) CFM:  705.88/635.29/547.06
• Indoor Noise Level (H/M/L) dB:  48/45.5/43
• Outdoor Dimensions (WxDxH) (in.):  37.24x16.14x31.89
• Outdoor Noise Level dB:  62
• Outdoor Air flow  (Max) CFM:  1764.7
• Refrigerant Type:  R410A / 91.7 Oz
• Refrigerant Pre-charge:  25 Ft.
• Connection Wiring:  14*4 AWG
• Thermostat Type:  Remote Control
• Warranty:  10 Years Compressor / 5 Years Parts
• Application Area (8 Ft Ceilings):  1400 sq. ft.
• Warning: California Proposition 65

Cassette Sizing and Clearance:

Downloads

Senville 24000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/24HF/IC Installation Manual

Senville 24000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/24HF/IC Cassette Installation Manual

Senville 24000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/24HF/IC Energy Guide

What Our Experts Think

• Ceiling-Mounted Comfort: The Senville 24,000 BTU Ceiling Cassette Air Conditioner with Heat Pump offers efficient cooling and heating for larger spaces, up to 1,200 sq. ft., ideal for homes or commercial environments.
• All-Season Performance: Provides both air conditioning in the summer and heating in the winter, ensuring year-round comfort and temperature control.
• Energy Efficient: Equipped with advanced inverter technology, this system adjusts its power based on demand, optimizing energy usage and reducing electricity costs.
• Quiet Operation: Designed to operate quietly, making it perfect for spaces like offices, living rooms, or bedrooms, where a peaceful environment is key.
• Sleek, Discreet Design: The ceiling cassette design allows for a compact and modern installation that blends seamlessly into your room without taking up valuable floor space.

Q&A

Q: What is the Senville 24000 BTU Ceiling Cassette Air Conditioner - Heat Pump (SENA/24HF/IC)?
A: A 24000 BTU ceiling cassette mini split system providing both cooling and heating capabilities, designed for discreet, efficient climate control in medium to large spaces.

Q: Who is this system suitable for?
A: Ideal for residential, commercial, or office spaces that need effective temperature control with minimal visible equipment, featuring a ceiling-mounted design for optimal air distribution.

Q: What are its key features?
A: 24000 BTU cooling and heating capacity, ceiling cassette design for hidden installation, energy-efficient inverter technology, quiet operation, and multi-zone control for customized comfort.

Q: Why choose the Senville Ceiling Cassette Mini Split?
A: Provides powerful and efficient climate control while maintaining a clean, modern look, making it perfect for spaces that require year-round comfort with a sleek, unobtrusive desig

Maintenance Tips

• Clean Air Filters Regularly: Clean or replace the air filters every 2-4 weeks to maintain proper airflow and efficiency. Wash or vacuum the filters to remove dust and debris.
• Check and Clean Coils: Clean the evaporator and condenser coils annually to remove dirt and prevent performance issues related to clogged coils.
• Inspect Condensate Drain: Ensure the condensate drain is clear of clogs to prevent water buildup, which could lead to mold or mildew growth.
• Inspect Refrigerant Lines: Periodically check the refrigerant lines for leaks, damage, or wear. If any issues are found, contact a professional for repairs.
• Maintain Ceiling Unit: Inspect the ceiling cassette for debris, dust, or obstructions that could affect airflow. Clean and remove any buildup around the unit.
• Test Remote Control: Check that the remote control and thermostat are working correctly. Replace batteries as needed to ensure smooth operation.
• Schedule Annual Professional Maintenance: Have a certified technician inspect the system annually to check refrigerant levels, clean coils, and perform a system-wide check.
• Protect Unit During Off-Season: If the system will be unused for an extended period, such as during winter, cover the ceiling cassette unit to protect it from dust and environmental damage.
