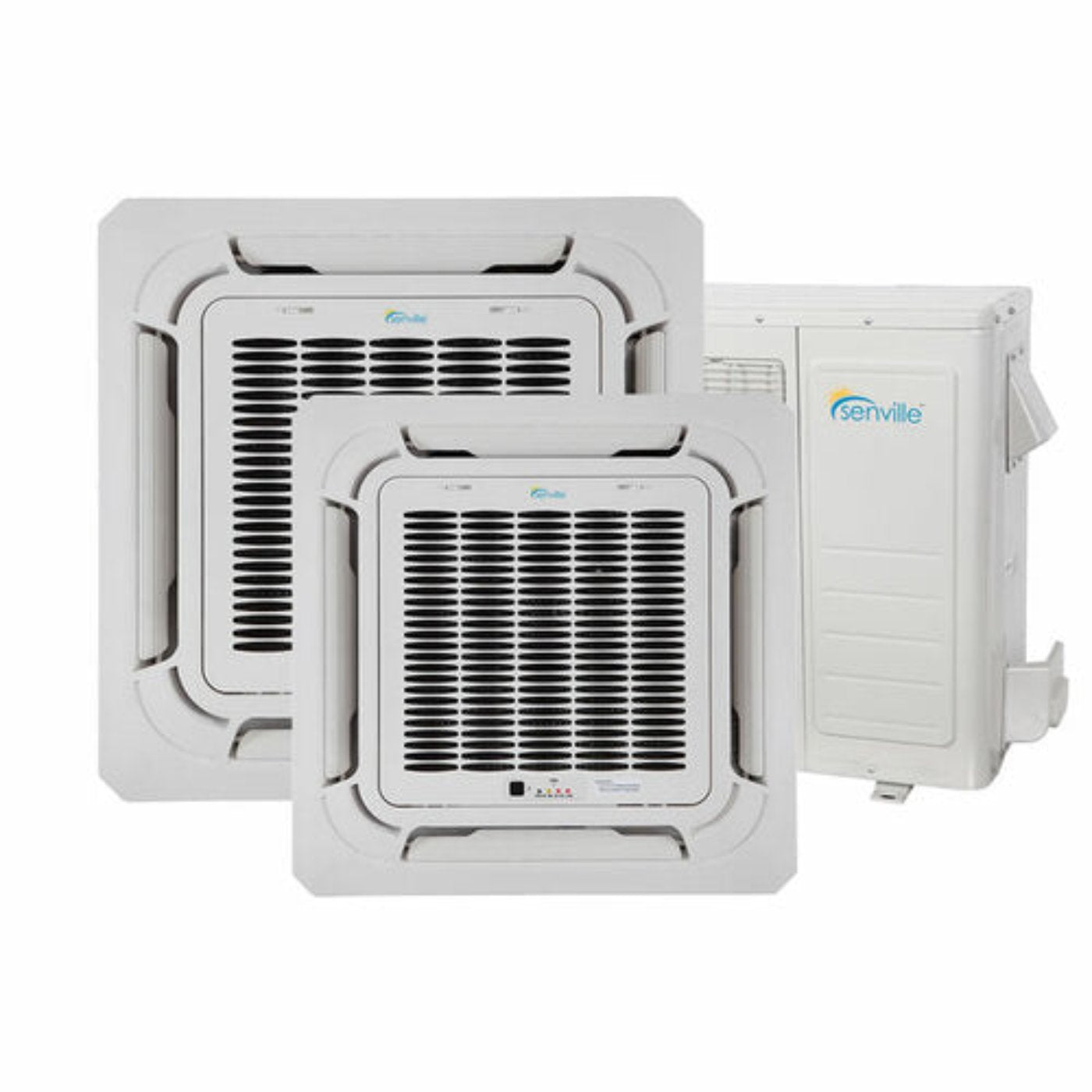

Senville 36000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/36HF/DIC

Senville 36000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/36HF/DIC

Looking for a ductless air conditioning/heat pump without the traditional air handler?  Are you looking for that ceiling duct look with out the installation trouble of a traditional duct system? Check out the Senville AURA Series Ceiling Cassette air conditioner and heat pump kits.

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 23 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud offer one of the most advanced heating and cooling systems in the world. Our Ultra-Inverter Technology, allows our mini split systems to provide cooling and heating at up to -22F, with up to 75% efficiency, which means you won't experience any additional cost overages on your energy as temperatures go lower. Now available on all of our AURA Series models, your Ultra Inverter system will provide you with cooling and heating, all year round, even in the coldest climates.  Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

Features

• 23 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Silver Ion Filter (Anti-Microbial)
• Vertical Swing Function
• Built-In De-humidification Function
• Follow Me Function (Remote with Built-In Thermostat)
• Low Ambient Cooling (Up to -30C / -22F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
• ENERGY STAR Certified
• ETL Certified
• AHRI Certified (View Certificate)

Included with your Purchase

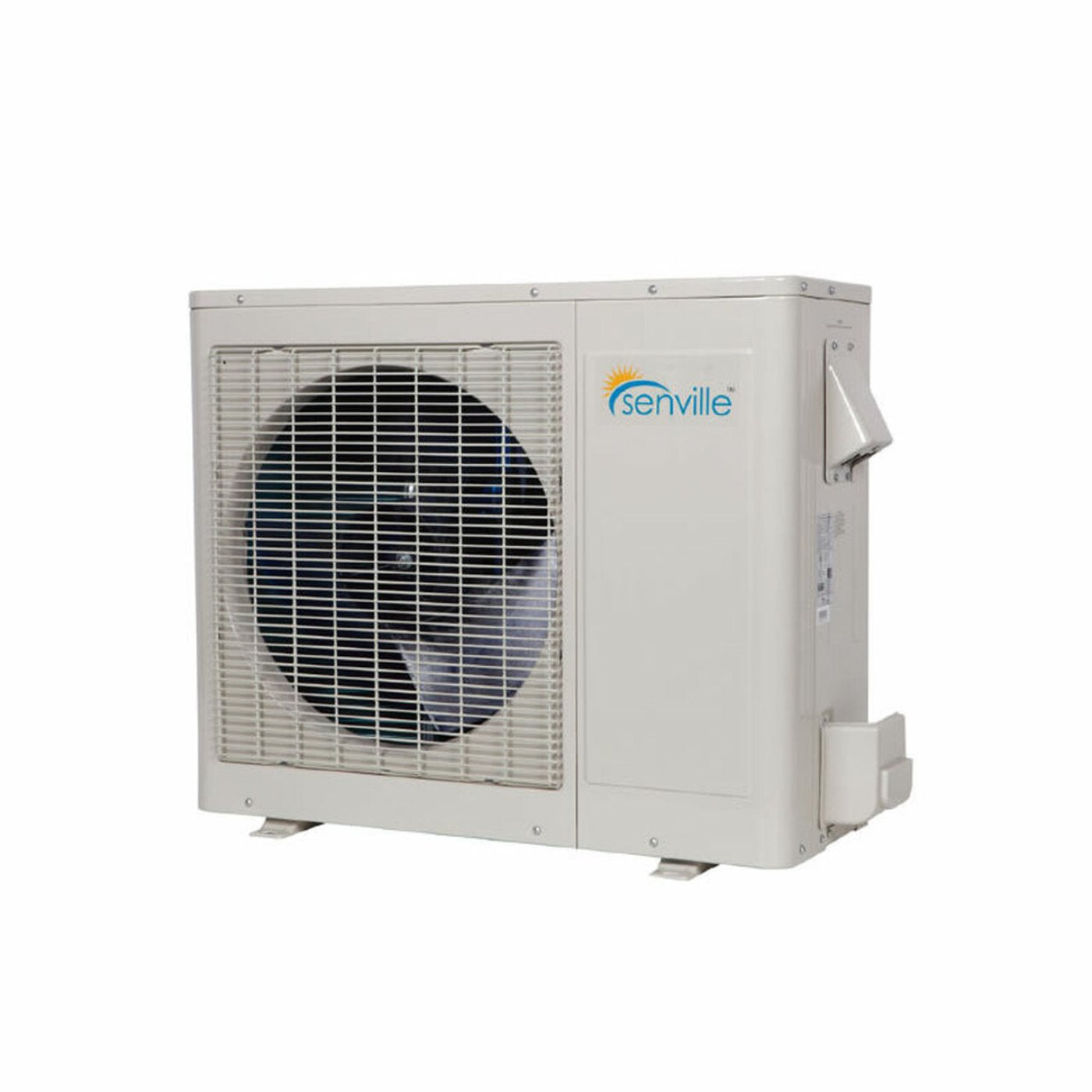

• Senville AURA Series 36,000 BTU Mini Split AC/Heat Pump
• Senville 18000 BTU Ceiling Cassettes X2

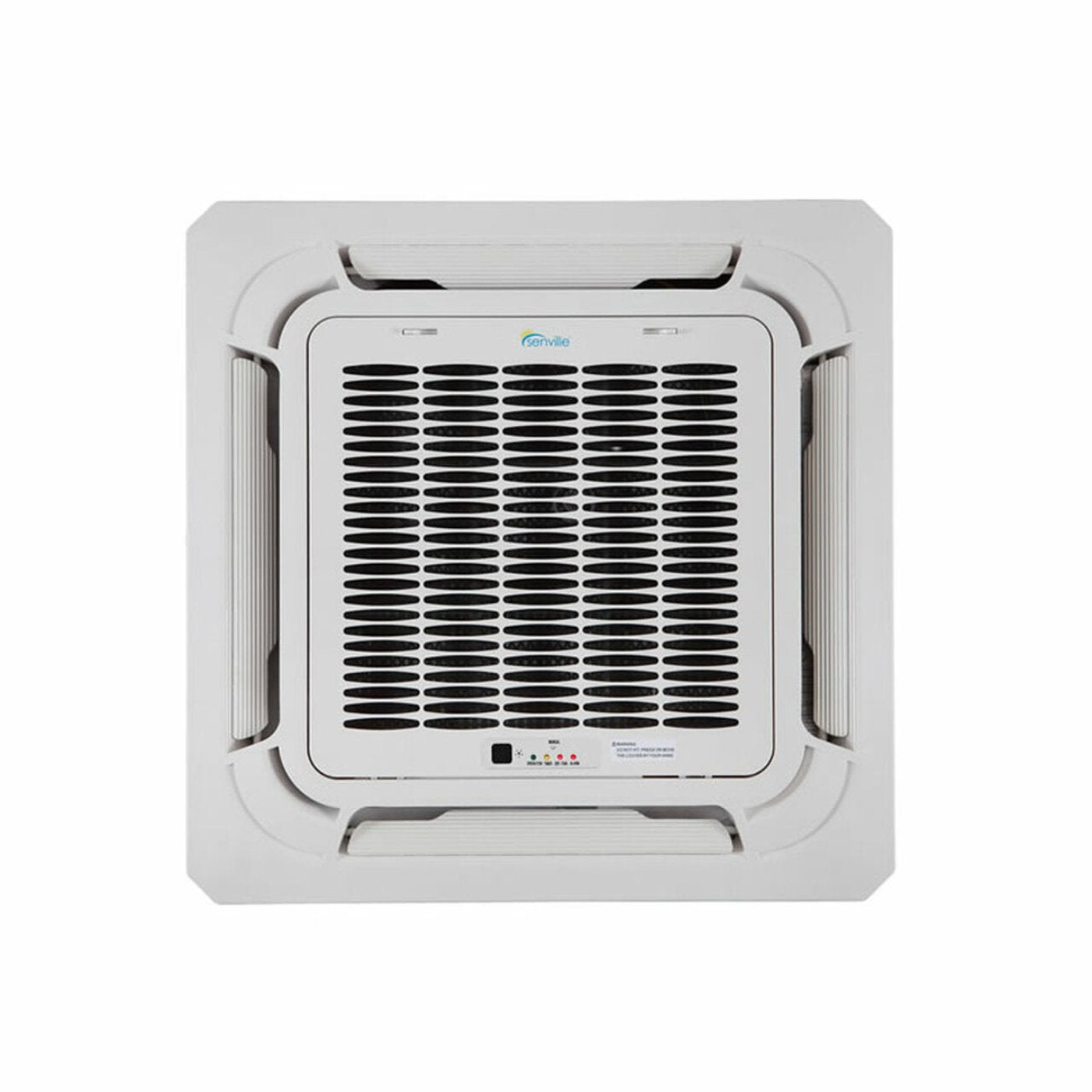

• Senville Indoor Ceiling Cassette

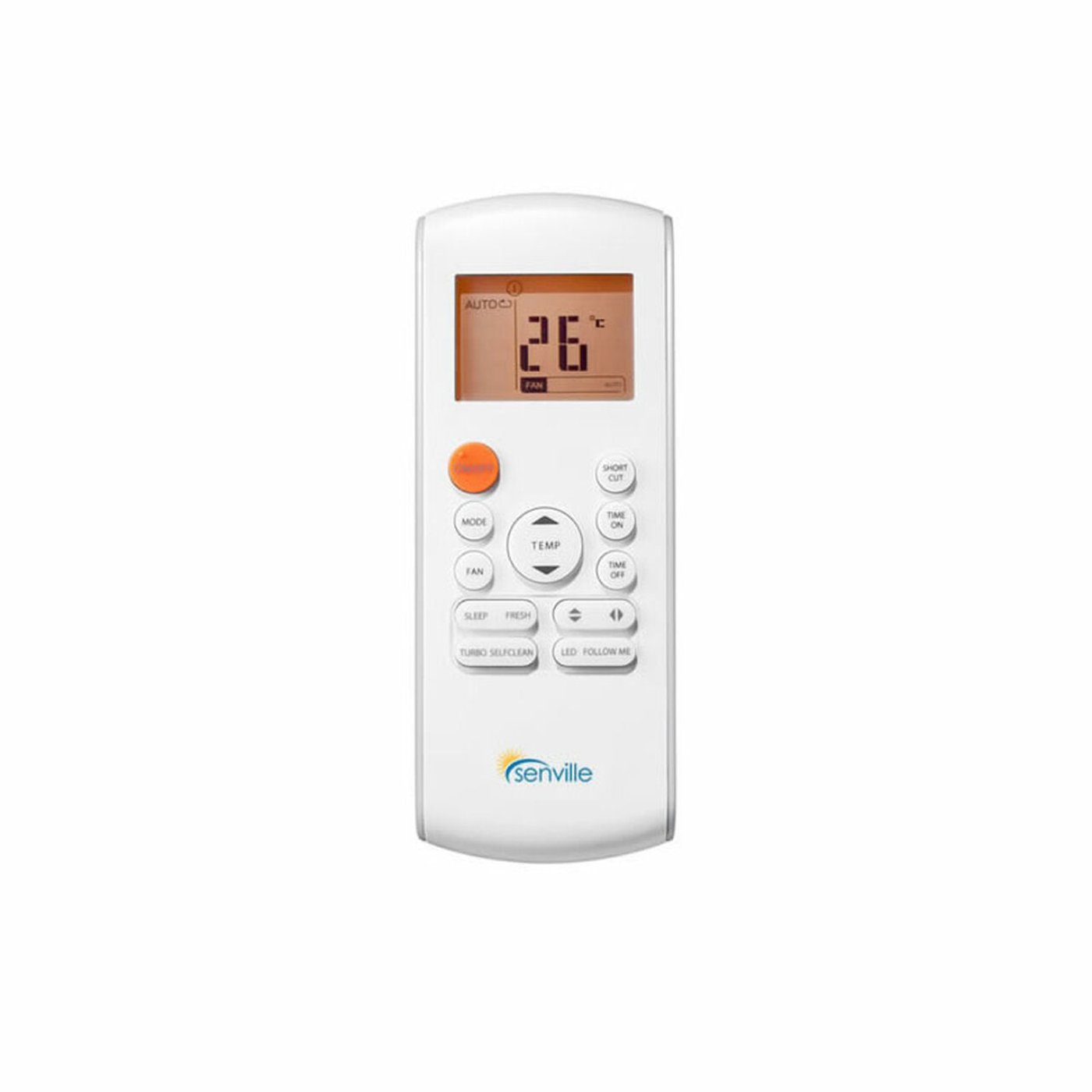

• Remote Control

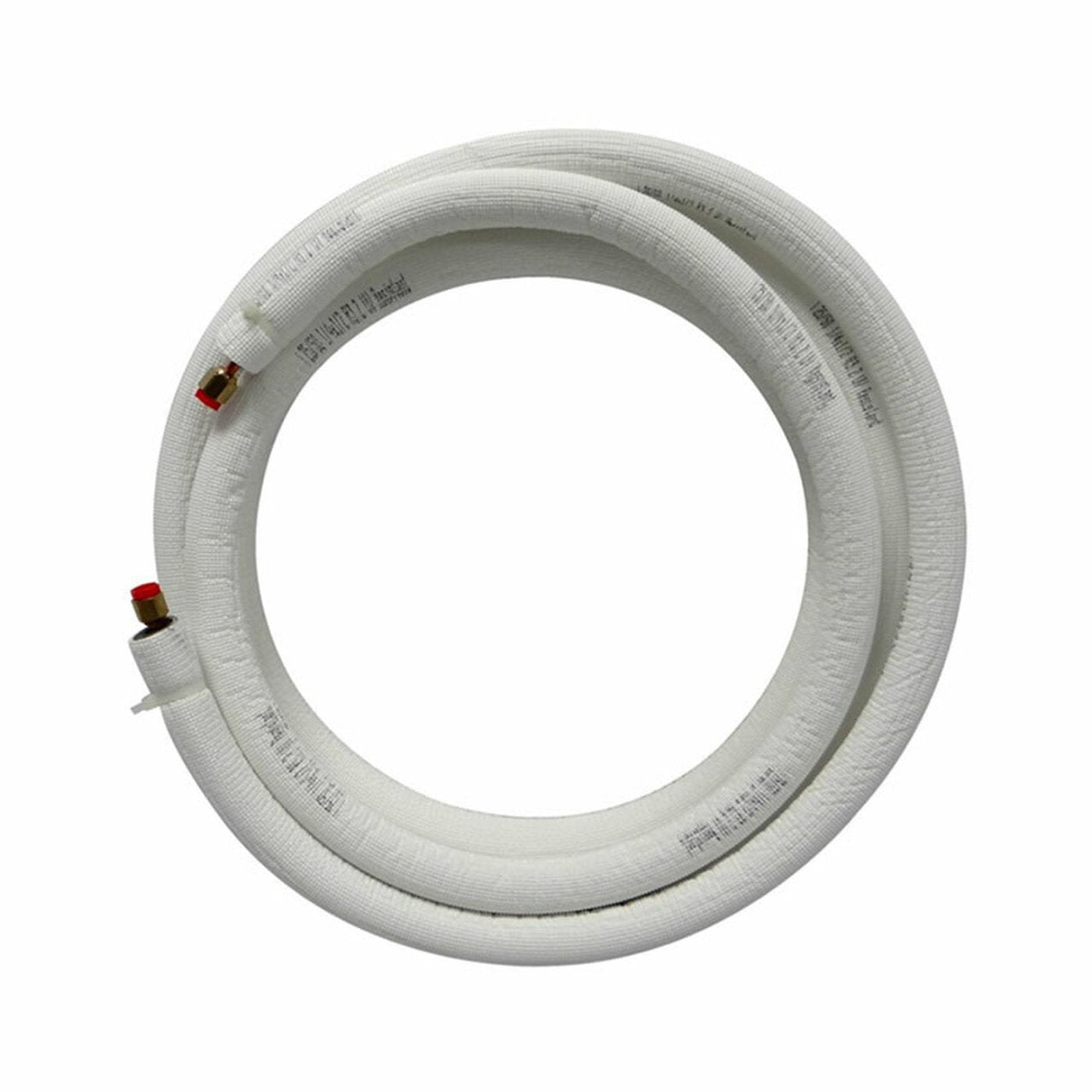

• Installation Kit - 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

Warranty

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

Specifications

• Model Number:  SENA-36HF-MOQ
• Style:  Ceiling Cassette Ductless Mini Split AC With Heat Pump
• Number of Zones:  2-4
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range:  187-253
• SEER:  23
• EER:  11.5
• Cooling (Range):  8209~40555
• Input (W):  3125
• Rated current   A:  13.6
• Heating (Range):  8008~44632
• Input (W): 3000
• Rated Current (A):  13
• HSPF4:  11.3
• HSPF5:  9.2
• COP W/W:  3.61
• Minimum Circuit Ampacity (A):  25
• Max. Fuse (A):  40
• Outdoor Dimensions (WxDxH) (in.):  37.24x16.14x31.89
• Outdoor Noise Level dB:  63
• Outdoor Air flow  (Max) CFM:  2147.06
• Refrigerant Type:  R410A / 91.7 Oz
• Refrigerant Pre-charge:  100 Ft.
• Thermostat Type:  Remote Control
• Warranty:  10 Years Compressor / 5 Years Parts
• Warning: California Proposition 65

Cassette Sizing and Clearance:

Downloads

Senville 36000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/36HF/DIC Installation Manual

Senville 36000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/36HF/DIC Cassette Installation Guide

Senville 36000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/36HF/DIC Energy Guide

What Our Experts Think

• Ceiling-Mounted Dual-Zone Comfort: The Senville 36,000 BTU Ceiling Cassette Air Conditioner with Heat Pump offers powerful cooling and heating for two zones, perfect for larger spaces or multi-room environments.
• Efficient All-Season Performance: Provides reliable air conditioning in the summer and heating during the winter, ensuring year-round comfort for spaces up to 1,800 sq. ft.
• Energy-Saving Inverter Technology: Advanced inverter technology ensures energy-efficient operation by adjusting output based on the room’s needs, helping reduce energy costs.
• Quiet & Discreet: The ceiling cassette design operates quietly and blends seamlessly into the ceiling, making it ideal for offices, commercial spaces, or living areas where noise and space are concerns.
• Sleek, Space-Saving Design: The compact, modern ceiling-mounted unit provides a clean aesthetic while maximizing floor space and ensuring comfort in your environment.

Q&A

Q: What is the Senville 36000 BTU Ceiling Cassette Air Conditioner - Heat Pump (SENA/36HF/DIC)?
A: A 36000 BTU ceiling cassette mini split system offering both cooling and heating functions, designed for efficient, discreet climate control in large spaces with multiple zones.

Q: Who is this system designed for?
A: Ideal for commercial spaces, large homes, or offices that require powerful, space-saving, and quiet heating and cooling with a ceiling-mounted installation for optimized air distribution.

Q: What are its key features?
A: 36000 BTU cooling and heating capacity, ceiling cassette design for hidden installation, energy-efficient inverter technology, multi-zone capabilities, and quiet operation.

Q: Why choose the Senville Ceiling Cassette Mini Split?
A: Provides powerful and efficient year-round comfort for larger spaces, with a discrete, modern design that saves space while ensuring consistent climate control in multiple zones.

Maintenance Tips

• Clean the Air Filters Regularly: Clean the air filters every 2-4 weeks to maintain airflow and system efficiency. Wash or vacuum the filters to remove dust and debris.
• Inspect and Clean the Coils: Clean the evaporator and condenser coils at least once a year to prevent dirt buildup and ensure optimal performance.
• Check Condensate Drain: Ensure the condensate drain is free of obstructions to prevent water backup and potential mold or mildew growth.
• Inspect Refrigerant Lines: Check the refrigerant lines for leaks, damage, or wear. If any issues are detected, call a professional for repairs.
• Clear Debris from the Ceiling Cassette: Periodically check the ceiling unit for dust or debris and remove any blockages to ensure efficient airflow.
• Test the Remote Control and Thermostat: Ensure the remote control and thermostat are working properly, and replace the batteries if needed.
• Schedule Professional Service: Have a professional technician inspect and service the system once a year to check refrigerant levels, clean coils, and evaluate system performance.
• Cover During Off-Season: If the system will not be used for an extended period (such as in the winter), cover the unit to protect it from dust and external damage.
