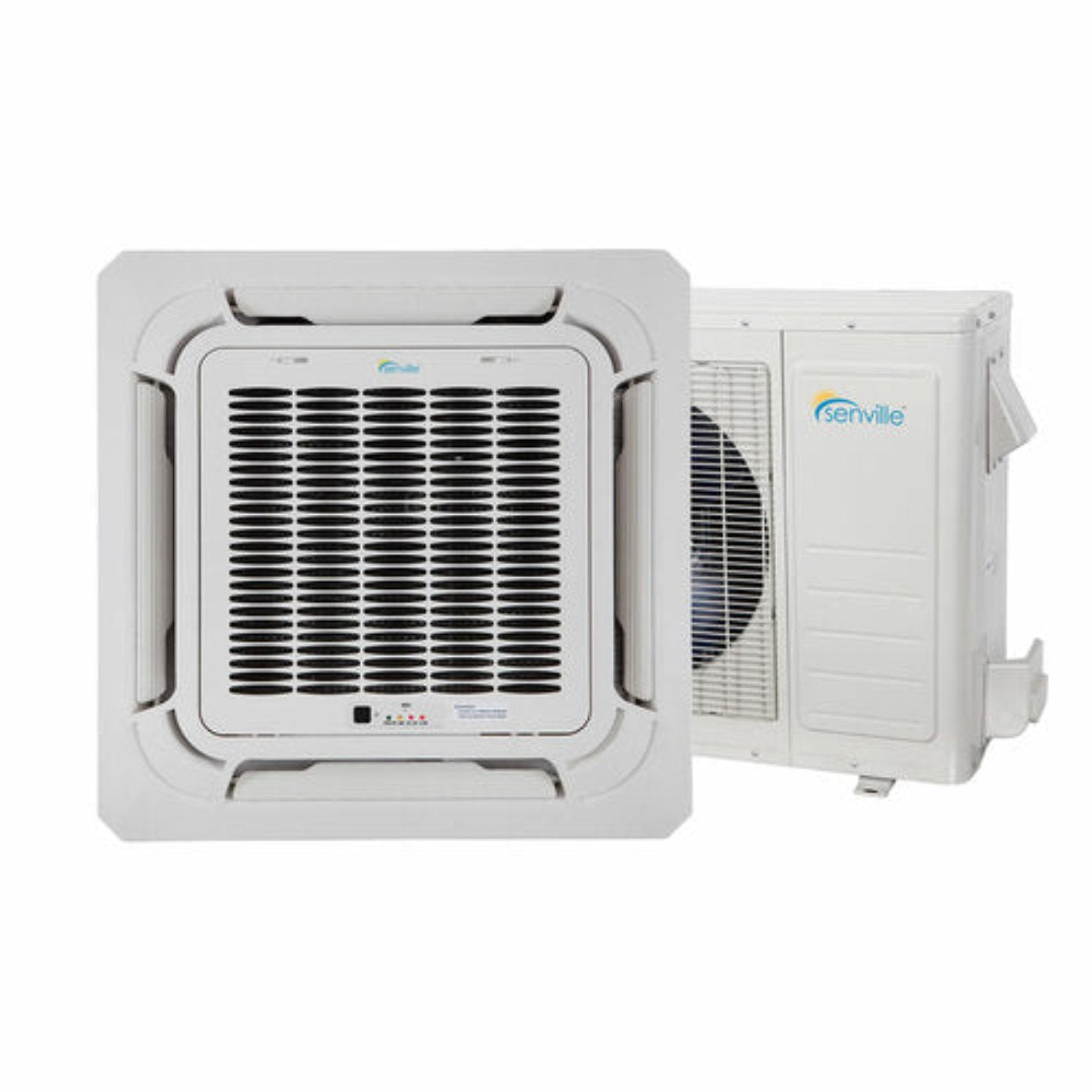

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC

Looking for a ductless air conditioning/heat pump without the traditional air handler?  Are you looking for that ceiling duct look with out the installation trouble of a traditional duct system? Check out the Senville AURA Series Ceiling Cassette air conditioner and heat pump kits.

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 20.5 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud offer one of the most advanced heating and cooling systems in the world. Our Ultra-Inverter Technology, allows our mini split systems to provide cooling and heating at up to -22F, with up to 75% efficiency, which means you won't experience any additional cost overages on your energy as temperatures go lower. Now available on all of our AURA Series models, your Ultra Inverter system will provide you with cooling and heating, all year round, even in the coldest climates.  Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

Features

• 20.5 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Silver Ion Filter (Anti-Microbial)
• Vertical Swing Function
• Built-In De-humidification Function
• Follow Me Function (Remote with Built-In Thermostat)
• Low Ambient Cooling (Up to -30C / -22F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
• ENERGY STAR Certified
• ETL Certified
• AHRI Certified (View Certificate)

Included with your Purchase

• Senville AURA Series 9,000 BTU Mini Split AC/Heat Pump
• Senville Indoor Ceiling Cassette

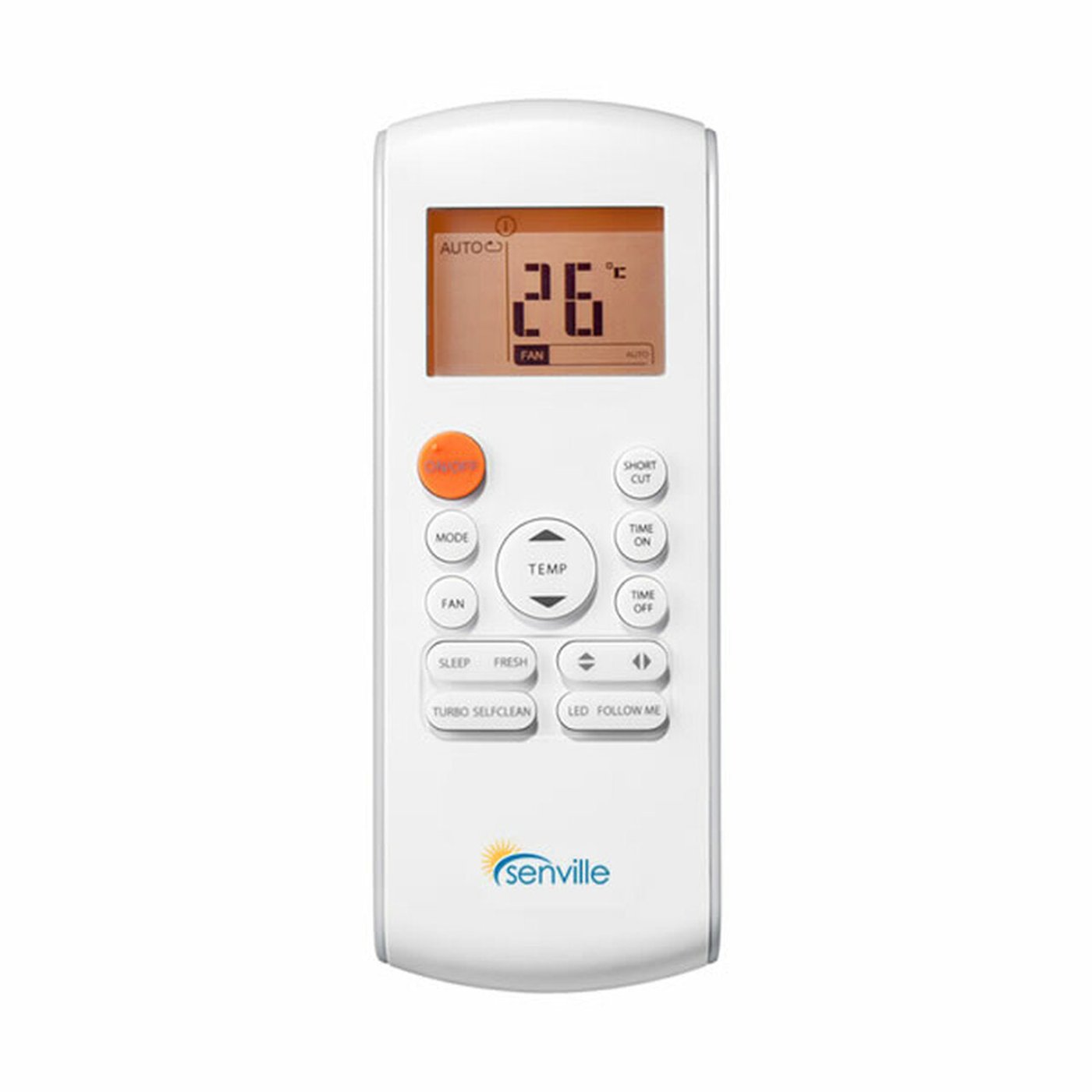

• Remote Control
• Installation Kit - 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

Warranty

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

Specifications

• Model Number:  SENA-09HF-ICQ
• Style:  Ceiling Cassette Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range:  187-253
• SEER:  20.5
• EER:  13
• Cooling (Range):  2850~11100
• Input (W):  692
• Rated current   A:  3.17
• Heating (Range):  2270~12500
• Input (W): 1000
• Rated Current (A):  4.58
• HSPF4:  10.8
• HSPF5:  9
• COP W/W:  2.93
• Minimum Circuit Ampacity (A):  15
• Max. Fuse (A):  15
• Indoor Dimensions (WxDxH) (in.):  22.44x22.44x10.24
• Indoor Air Flow (H/M/L) CFM:  352.94/305.88/270.59
• Indoor Noise Level (H/M/L) dB:  39.5/36/32.5
• Outdoor Dimensions (WxDxH) (in.):  31.69x12.99x21.81
• Outdoor Noise Level dB:  54.5
• Outdoor Air flow  (Max) CFM:  1323.5
• Refrigerant Type:  R410A / 41.62 Oz
• Refrigerant Pre-charge:  25 Ft.
• Thermostat Type:  Remote Control
• Connection Wiring:  14*4 AWG
• Warranty:  10 Years Compressor / 5 Years Parts
• Application Area (8Ft Ceilings):  400Sqft.
• Warning: California Proposition 65

Cassette Sizing and Clearance:

Downloads

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC Installation Manual

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC Cassette Installation Guide

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC Energy Guide

What Our Experts Think

• Ceiling-Mounted Comfort: The Senville 9,000 BTU Ceiling Cassette Air Conditioner with Heat Pump offers an unobtrusive, ceiling-mounted solution for cooling and heating, ideal for homes or commercial spaces with limited wall space.
• Efficient All-Season Performance: Provides both air conditioning and heating, ensuring comfort year-round while covering areas up to 450 sq. ft.
• Advanced Inverter Technology: Delivers efficient performance, adjusting output to match the room's needs, reducing energy consumption and lowering your utility bills.
• Quiet Operation: Designed to operate with minimal noise, making it perfect for environments like offices, bedrooms, or quiet living spaces.
• Sleek & Space-Saving: The ceiling cassette design allows for discreet integration into any room, providing a clean, modern look without sacrificing performance.

Q&A

Q: What is the Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump (SENA/09HF/IC)?
A: A 9000 BTU ceiling cassette mini split system that provides both cooling and heating capabilities, designed for efficient, discreet climate control in rooms with limited space.

Q: Who is this system designed for?
A: Ideal for homeowners, businesses, or offices that want a space-saving, quiet air conditioning and heating solution, with a ceiling-mounted design for optimal air distribution.

Q: What are its key features?
A: 9000 BTU cooling and heating capacity, ceiling cassette design for hidden installation, energy-efficient inverter technology, quiet operation, and easy-to-use remote control.

Q: Why choose the Senville Ceiling Cassette Mini Split?
A: Offers efficient heating and cooling in a compact and discrete design, providing year-round comfort while saving space and maintaining a clean, modern look.

Maintenance Tips

• Clean Air Filters Regularly: Clean the air filters every 2-4 weeks to maintain optimal airflow and efficiency. Wash them with water or vacuum to remove dust and debris.
• Check the Condensate Drain: Ensure the condensate drain is clear to prevent water buildup and potential mold or mildew growth.
• Clean Coils Annually: Clean the evaporator and condenser coils at least once a year to remove dirt buildup and improve system performance.
• Inspect Refrigerant Lines: Periodically check for leaks, damage, or wear in the refrigerant lines and call a professional for repairs if necessary.
• Maintain the Ceiling Unit: Keep the ceiling cassette clean and ensure it is free from dust or obstructions to maintain airflow and cooling efficiency.
• Test the Remote Control: Replace the batteries in the remote control when needed and check for proper functionality.
• Schedule Annual Professional Service: Have a professional technician check refrigerant levels, clean coils, and inspect the entire system for optimal performance.
• Protect During Off-Season: If the system won't be used for an extended period (e.g., winter months), cover the unit to protect it from dust and environmental damage.
