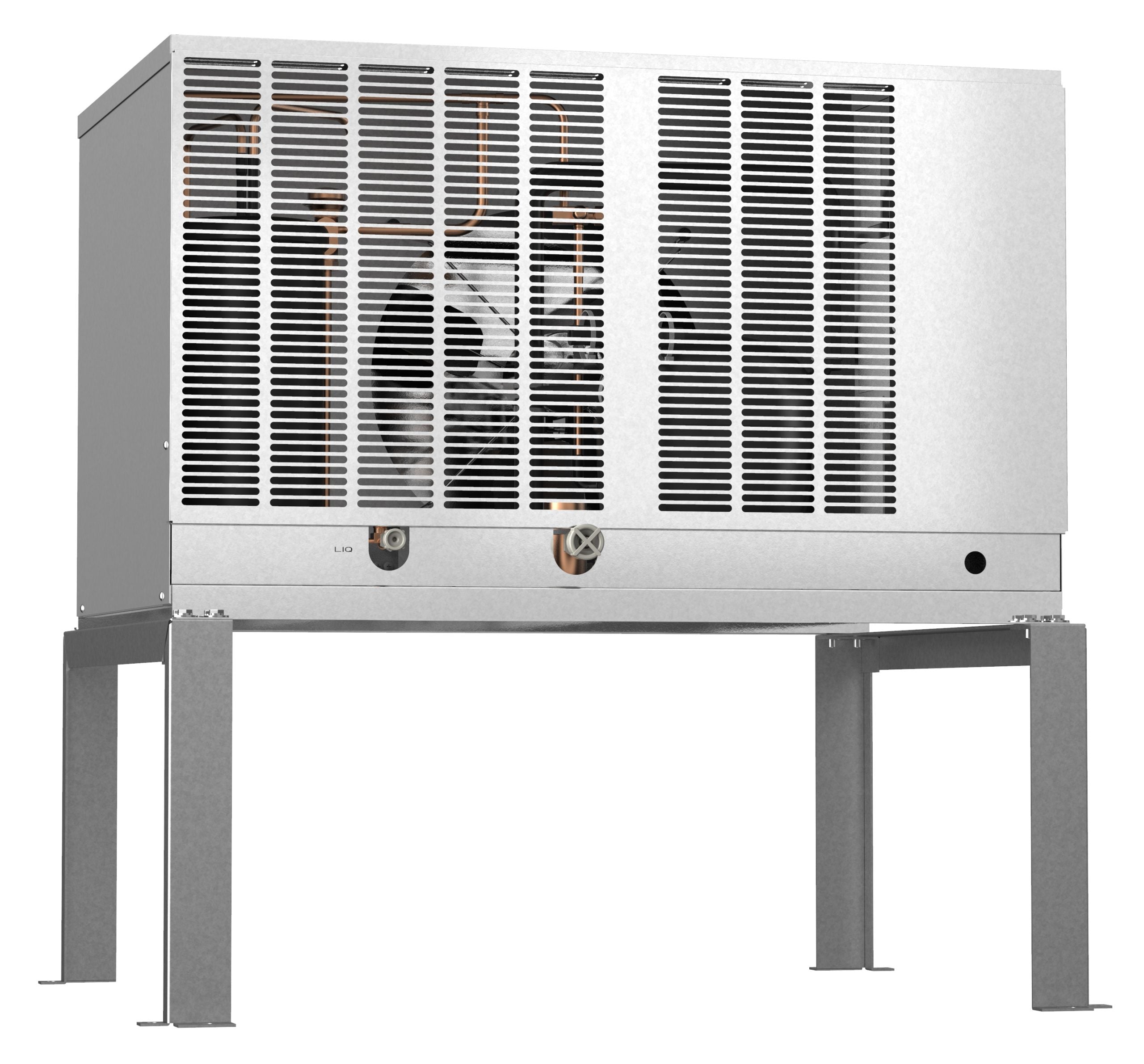

Hoshizaki SRC Series Remote Condenser | SRC-10J | Hoshizaki - SRC-10J
The SRC-10J, SRC Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Brazing & Refrigerant Required (25′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The SRC-10J Remote Condenser operates on Single Phase, 208-230v/60/1, Must be hardwired at the site (4 wire, including ground), and R-404a refrigerant (15 lbs. 14 oz. / 7200 g). Compatible icemakers, sold separately: FS-1001MLJ-C, FS-1022MLJ-C. The unit is UL Listed and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
Features
- Dimensions: 38″ W x 29″ D x 37″ H
- Remote condenser for FS-1001MLJ-C, FS-1022MLJ-C
- Quiet operation
- Weather resistant cabinet for longer life
- Must be hardwired at the site (4 wire, including ground)
- Allow 24″ clearance for best performance
- Single Phase, 208-230v/60/1, Must be hardwired at the site (4 wire, including ground)
- R-404a refrigerant (15 lbs. 14 oz. / 7200 g)
- Compatible icemakers, sold separately: FS-1001MLJ-C, FS-1022MLJ-C
- Three Years: Parts & Labor warranty on entire unit.
Specifications
| Brand |
Hoshizaki |
| Model Number |
SRC-10J |
| Weight |
200 lbs |
| Width |
35.75" |
| Depth |
23.5" |
| Height |
37" |
| Voltage |
208/230 |
| Phase |
1 |
| Part & Accessory Type |
remote condenser unit |
What our Experts Think
-
Reduced Noise & Heat: Moves heat and sound outside the building, ideal for quiet indoor environments.
-
Built for Outdoors: Weather-resistant construction ensures reliable performance in harsh conditions.
-
Flexible Installation: Compatible with 25′, 35′, and 55′ brazed refrigerant line sets for versatile setups.
-
Reliable Pairing: Designed to work seamlessly with select Hoshizaki remote ice machines (e.g., FS-1001MLJ-C, FS-1022MLJ-C).
-
High Ambient Range: Operates efficiently from -4°F to 122°F, suitable for varying climates.
Q&A
Q: What is the Hoshizaki SRC-10J?
A: The SRC-10J is a remote, air-cooled condenser designed for outdoor installation. It reduces noise and heat in the ice production area by relocating the condenser away from the ice maker.
Q: Which ice machines are compatible with the SRC-10J?
A: It is typically paired with Hoshizaki models like the FS-1001MLJ-C and FS-1022MLJ-C.
Q: What are the dimensions and electrical specs?
A:
-
Dimensions: 38″ W × 29″ D × 37″ H
-
Voltage: 208–230V / 1 Phase / 60Hz
-
Refrigerant: R-404A (approx. 15 lbs 14 oz)
-
Ambient range: –4°F to 122°F
Q: What are the key benefits of using a remote condenser?
A:
-
Reduces heat and noise in the kitchen
-
Enhances cooling efficiency
-
Weather-resistant for outdoor use
-
Increases the longevity of the ice machine
Q: Are there specific installation requirements?
A:
-
Must be hardwired (4-wire including ground)
-
Allow 24″ of clearance for airflow
-
Should not exceed 33 ft above or 10 ft below the ice machine
Maintenance Tips
-
Clean condenser coils monthly — use a soft brush or vacuum to remove dust and debris for optimal heat exchange.
-
Inspect fan blades and motor regularly — ensure no obstruction, secure mounts, and smooth rotation.
-
Check refrigerant system annually — verify levels, inspect for leaks, and replace the drier when servicing open refrigeration lines.
-
Maintain 24″ clearance front and rear — essential for proper airflow and service access.
-
Tighten electrical connections — prevent loose wiring, arcing, or voltage drops in high-load circuits.
-
Schedule professional servicing yearly — for deep cleaning, system diagnostics, and warranty compliance.
-
Monitor performance changes — increased noise, vibration, or lower cooling output may signal component wear or refrigerant issues.
