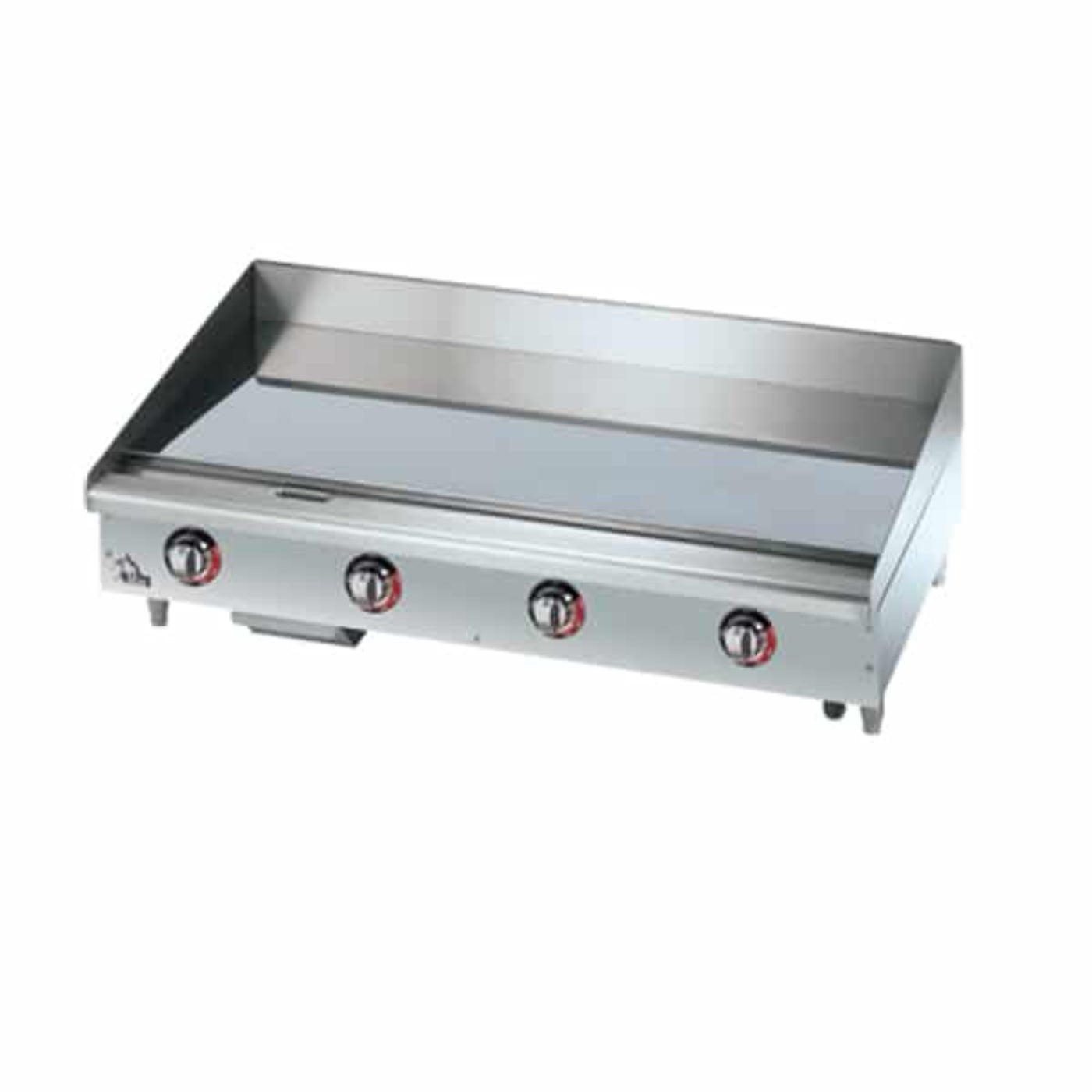

Star 8G-548CHSF Star-Max®Electric Snap-Action Griddles Chrome Plate 208V - 8G-548CHSF
The Star 548CHSF Electric Griddle is a powerful and efficient appliance designed for high-volume cooking in commercial kitchens. With its expansive 48-inch width, it is equipped with four 12-inch sections, each featuring individual heating elements. This innovative design ensures even heat distribution across the entire chrome-plated griddle plate.
The griddle offers precise temperature control, with a wide range from 150 to 450 degrees Fahrenheit. A snap-action thermostat, embedded just 3⁄16 inch into the plate, provides accurate temperature measurement, allowing for consistent cooking results.
Durability is a hallmark of this unit, thanks to its 1-inch plate thickness, which enables it to withstand the rigors of repeated heating and cooling without warping. The tapered splash guards effectively contain grease and food splatter, directing them into the 3.5-inch-wide trough and a 4.5-quart grease drawer for easy disposal and cleanup.
What our Experts Think
-
Precision Snap‑Action Thermostat Control – Embedded just 3⁄16″ into the plate for rapid response, allowing a temperature range of 150 °F to 450 °F.
-
High‑Performance Cooking Surface – 48″ wide, 1″ thick chrome-plated steel plate ensures even heat distribution and excellent retention.
-
Heavy‑Duty Construction & Finish – Welded steel frame with stainless steel front and top, plus a cool-to-touch bullnose front for durability and safety.
-
Efficient Grease & Cleaning Management – Spatula-wide 3¼″ grease trough, grease chute, and 4½‑quart stainless steel grease drawer simplify maintenance.
-
Commercial‑Grade Power Configuration – Operates on 208/240 V single- or three-phase power, supporting high-output cooking demands.
-
Ideal for High‑Throughput Kitchens – 48″ width and robust features make it perfect for busy commercial kitchens needing large, reliable cooking surfaces.
-
Bottom Line – The Star-Max® 8G‑548CHSF offers precise temperature control, durable chrome construction, and commercial-grade performance—ideal for high-volume foodservice operations.
Q&A
Q: What are the cooking surface dimensions and plate specification?
A: 48″ wide by approximately 20¾″ deep with a 1″‑thick chrome‑plated steel plate for even heat distribution and heavy-duty use.
Q: What temperature control and heating features does it have?
A: Snap-action thermostats near the cooking surface, adjustable from 150 °F to 450 °F, with 4,000‑watt heating elements per 12″ of width.
Q: What voltage and power requirements apply?
A: Operates on 208/240 V, single- or three-phase, drawing up to 12–16 kW depending on configuration.
Q: What construction and cleanup features are included?
A: Welded steel frame, stainless steel front and top panels, 4½″ high splash guard, spatula-wide grease trough, and 4½‑quart removable stainless steel grease drawer.
Q: What certifications and warranty does this griddle have?
A: cULus listed, UL EPH Classified, CSA approved; 2-year parts and labor warranty.
Q: What commercial environments is it suitable for?
A: High-volume kitchens—restaurants, diners, cafeterias—needing a wide flat-top surface with precise temperature control for multi-item cooking.
Q: What makes the chrome plate special?
A: Non-porous surface reduces taste transfer, reflects heat for energy efficiency, and simplifies cleaning.
Maintenance Tips
-
Scrape the chrome griddle plate daily while warm and empty the grease drawer or trough.
-
Clean with soft cloths and non-abrasive cleaners; avoid steel wool or harsh scouring that could damage the chrome.
-
Check for even heat across the plate (150–450 °F snap-action thermostat) and address any hot/cold spots by inspecting thermostat contact and heating elements.
-
Keep the unit level and maintain proper clearance and ventilation; ensure splash guards and grease chutes remain unobstructed.
-
Schedule periodic professional service to inspect heating elements, thermostats, wiring, and use only genuine parts to maintain warranty.
