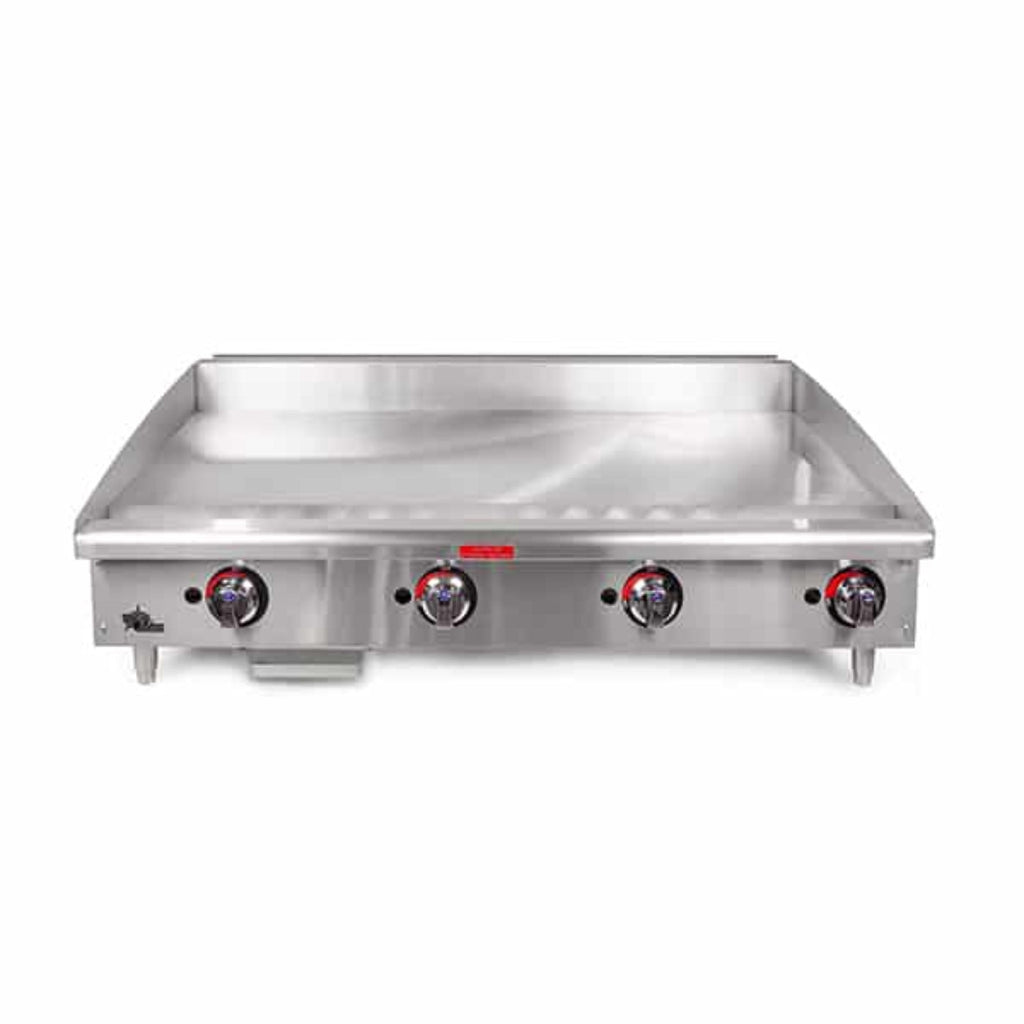

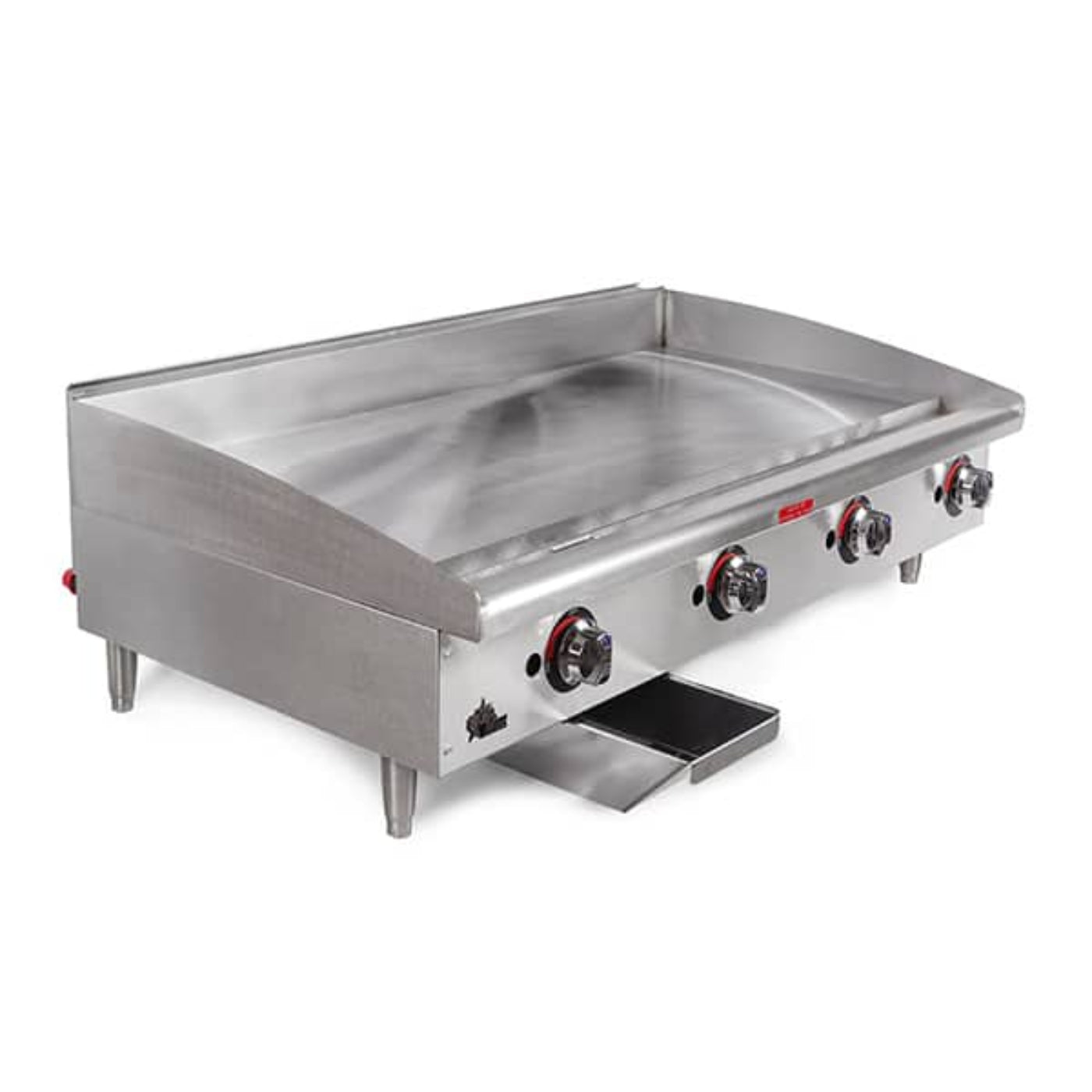

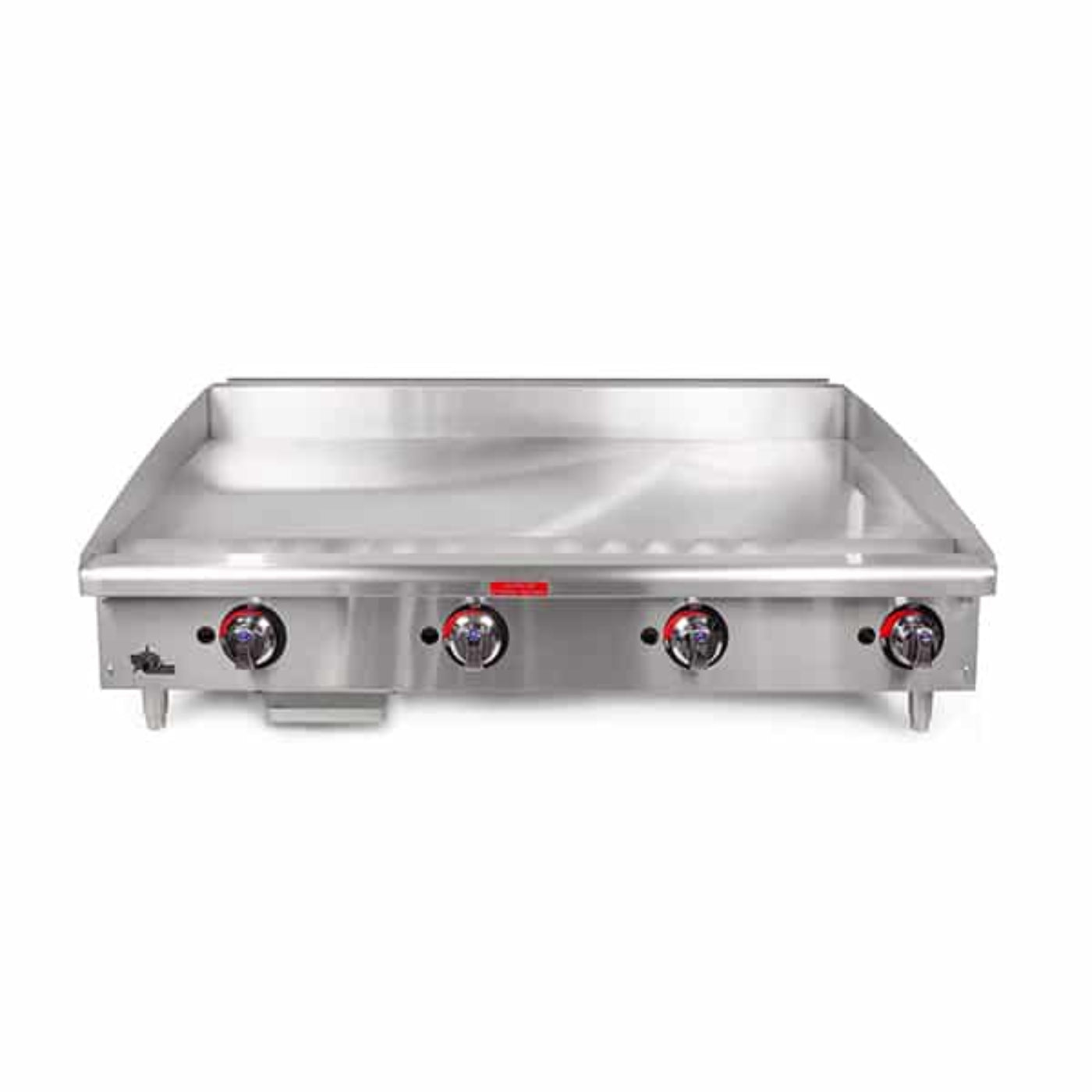

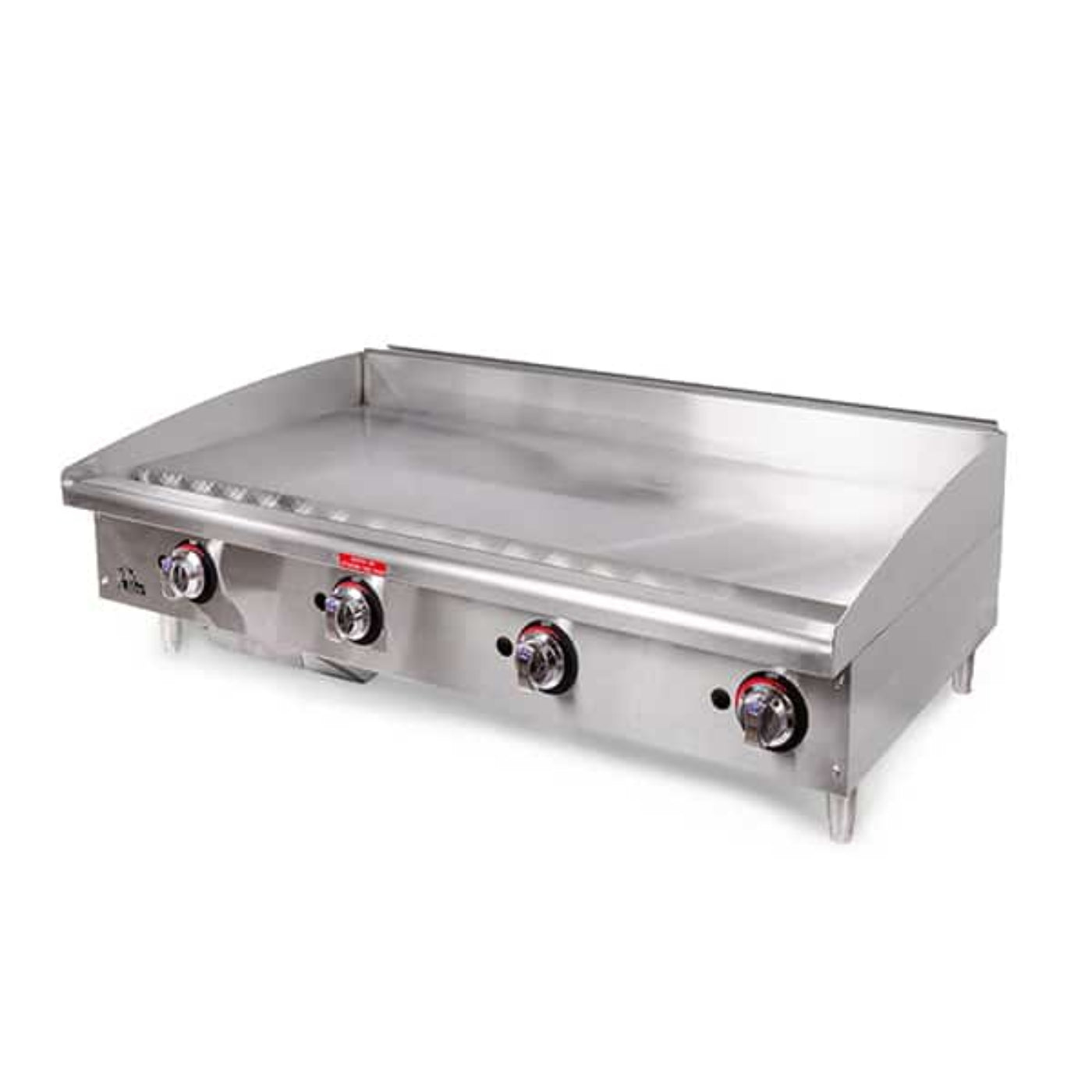

Star 8G-648TCHSF Star-Max® 113,200 BTU 48" Gas Griddle Thermostatic Chrome - 8G-648TCHSF
The Star 648TCHSF Star-Max® 48" Gas Griddle is a heavy-duty cooking appliance designed for commercial use. It boasts a powerful 28,300 BTU burner per every 12 inches of width, offering exceptional heat output and control. The thermostatic controls provide precise temperature management, ensuring consistent cooking results. This griddle is designed for natural gas operation, delivering efficient and cost-effective performance. With a 48-inch overall width, it offers a spacious cooking area to handle high-volume demands.
The griddle plate is made of durable and heat-conductive chrome material with a 1-inch thickness, ensuring even heat distribution and excellent heat retention. It comes with a 2-year parts and labor warranty, providing peace of mind for your investment. This griddle is part of the Star-Max® series, known for its quality and reliability in commercial kitchens. The cooking area measures 48 inches in width and 21 inches in depth, with control spacing set at 12 inches.
What our Experts Think
-
Precision Thermostatic Control – Embedded modulating thermostats every 12″ sit just 3/16″ from the cooking surface, allowing adjustment from 150 °F to 450 °F for even cooking.
-
High-Capacity Output for Volume Cooking – 113,200 BTU across a 48″ width handles high-volume food service efficiently.
-
Premium Chrome Plate Construction – 1″‑thick chrome-plated cooking surface provides excellent heat retention, resists sticking, and is easy to clean.
-
Durable Commercial-Grade Build – Welded steel frame with stainless steel front and side panels, adjustable 4″ legs, and a cool-to-touch bullnose front enhance safety and longevity.
-
Streamlined Maintenance – Wrap-around splash guard, spatula-wide front grease trough, and 4½‑quart grease drawer simplify cleaning between shifts.
-
Ideal for Mid to Large-Scale Kitchen Lines – 48″ width delivers significant capacity without the footprint of a full-line griddle bank, perfect for restaurants, hotels, or high-volume cafés.
-
Bottom Line – The Star-Max® 8G‑648TCHSF combines precise thermal control, high-output performance, and durable construction, making it a reliable 48″ commercial gas griddle for busy kitchens.
Q&A
Q: What are the cooking surface dimensions and plate specification?
A: 48″ wide by 21″ deep with a 1″‑thick chrome-plated steel griddle plate for even heat distribution and durability.
Q: What is the total BTU output and burner configuration?
A: 113,200 BTU total, with four U-shaped steel burners delivering 28,300 BTU per 12″ of width.
Q: What temperature control does it provide?
A: Embedded thermostats every 12″ of cooking surface, adjustable from 150 °F to 450 °F for precise cooking.
Q: What materials and cleanup features are included?
A: Stainless steel front panel, wrap-around splash guard, 3¼″ grease trough, and 4½‑quart removable grease drawer for easy cleaning.
Q: What gas types and installation options are supported?
A: Configured for natural gas with field-convertible LP kit; ¾″ NPT gas connection; approved for installation near combustible surfaces.
Q: What certifications and warranty coverage does it have?
A: cULus and UL EPH Classified; 2-year parts & labor warranty with extended coverage on the chrome plate.
Q: What commercial environments is this griddle suitable for?
A: Ideal for high-volume kitchens, diners, and cafeterias where a large flat-top surface and consistent temperature zones are needed.
Q: What makes the chrome plate finish special?
A: Non-porous surface resists taste transfer, reflects heat for faster recovery, and simplifies cleaning.
Maintenance Tips
-
Scrape the 1″‑thick chrome plate after each use while still warm to remove food residue; empty and clean the front grease trough and stainless‑steel drawer.
-
Use only soft cloths and non‑abrasive cleaners on the chrome surface — avoid steel wool, harsh chemical scours or abrasive pads.
-
Check the embedded thermostats (positioned every 12″) for even heat across the 48″ surface; if hot/cold zones appear, verify thermostat/plate contact and burner air shutters.
-
Keep the unit level, maintain required clearance around it, and ensure ventilation openings and splash guards remain unobstructed to prevent overheating or damage.
-
Schedule periodic professional servicing to inspect burners, orifices, pilots, and conversion kit (NG ↔ LP) and always use genuine manufacturer parts to preserve warranty coverage and long‑term performance.
