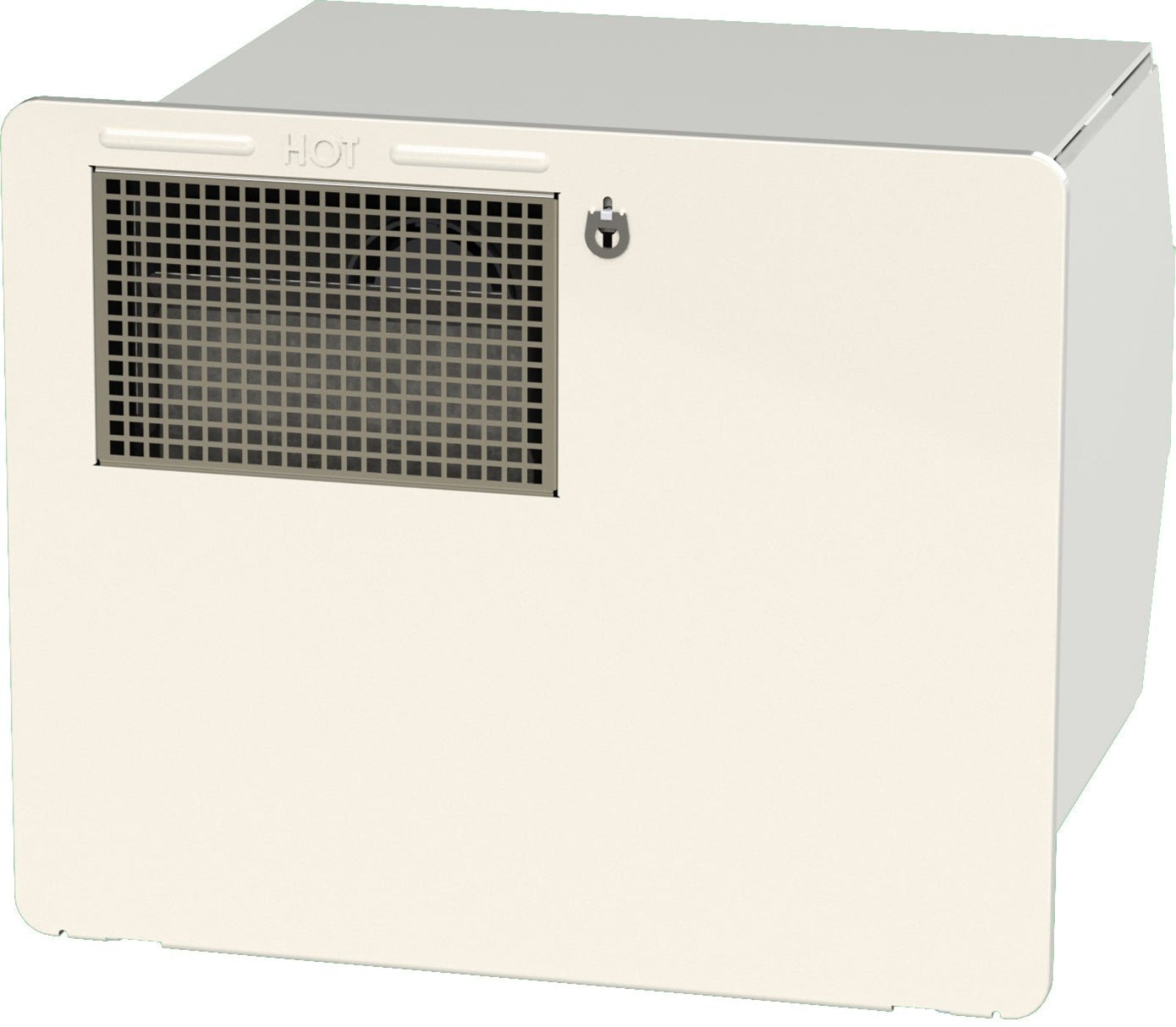

Suburban Model Number SAW6DEL Water Heater Gas-Electric - S6U5322A
The Suburban Advantage line of RV water heaters includes high recovery gas, gas/electric combination, gas/electric/motor aid and tankless, continuous models with sizes and features to match the requirements of almost any RV. Tank capacities include 4, 6, 10, 12 and 16 gallon models and tankless models provide up to 60,000 BTUH of endless hot water. Quality, efficiency, features, service, and selection - for more than 30 years, these have been the gold standard of Suburban water heaters. Take ADVANTAGE of Suburban’s expertise and reliability with longer lasting residential style tank and tankless water heaters.
Porcelain-Lined Steel Tank: Built Just Like Longer Lasting Residential Tank Water Heaters
Anode Rod: Protects Against Tank Corrosion And Doubles As A Drain
Optional Electric Element: Take Advantage Of Campsite Or Generator Power To Heat Water
Industry Exclusive Flue Tube Baffles: Slows Combustion Process To Transfer More Heat To Water In Tank
Replaces Aluminum Tank RV Water Heaters
Repositionable Module Board Provides Installation Flexibility
Specifications
| Type: LP Gas |
Part No. |
| Model: SW6D |
3509A |
| Capacity: 6 Gallon |
Air Conditioners/Window A/C |
| Ignition Type: Direct Spark Ignition |
KEYSTN |
| Wattage Rating: Not Applicable |
White |
| BTU Level: 12000 BTU |
Y |
| Width: 12-11/16 Inch |
192487238769 |
| Height: 12-11/16 Inch |
CN-China |
| Depth: 19-3/16 Inch |
Indoor Noise Level dBA (Hi/Med/Lo): 61/57/54 |
What our Experts Think
-
Dual‑Power Flexibility: Combines LP gas (10,000 BTU) with a 1440 W electric element, letting you heat water via propane, shore power, or both for faster recovery — perfect for varied RV setups.
-
Fast Recovery & Efficiency: Gas alone delivers strong heat output, while electric adds convenience at campgrounds; using both together significantly boosts hot water recovery.
-
Rugged Construction: Porcelain‑lined steel tank with a replaceable anode rod resists corrosion for long service life — an advantage over aluminum tanks.
-
Modern Ignition: Direct Spark Ignition (DSI) eliminates the need for a standing pilot light, improving reliability and safety in mobile environments.
-
Installation‑Friendly Design: Repositionable module board and industry‑exclusive flue tube baffles maximize heat transfer and make retrofit/replacement straightforward in standard 6‑gallon cutouts.
Q&A
Q: What is the Suburban SAW6DEL (S6U5322A) Water Heater?
A: A versatile 6‑gallon RV/ camper water heater that runs on both LP gas and electric power with Direct Spark Ignition (DSI) for dependable hot water on the road.
Q: What fuel and power sources does it use?
A: Propane (LP) gas with 10,000 BTU input and a 1,440 W electric heating element — letting you heat water using campsite electric hookups or a generator.
Q: What are its main features?
A: Porcelain‑lined steel tank for durability, a replaceable anode rod to prevent corrosion, industry‑exclusive flue tube baffles to maximize heat transfer, and a repositionable module board for flexible installation.
Q: What are the dimensions?
A: Approx. 12‑1/2″ H × 16‑1/8″ W × 17‑5/8″ D overall; professional installation recommended.
Q: Is an access door or switches included?
A: No — access door, on/off switch and indicator light are typically sold separately.
Q: Does it replace older models?
A: Yes — directly replaces many older aluminum tank RV water heaters (Atwood/Dometic “DE” models) with improved performance and durability.
Q: Who should consider this water heater?
A: RV, trailer and motorhome owners who want a compact, efficient dual‑fuel water heater with both propane and electric heating options.
Maintenance Tips
-
Annual Flush & Drain: Drain and flush the tank every 6–12 months to remove sediment and maintain heating efficiency.
-
Inspect Anode Rod: Check the anode rod regularly and replace it when significantly corroded to prevent tank rust and extend service life; it also doubles as the drain plug.
-
Clean Burner & Vent: Keep the burner area, vent openings, and combustion chamber clear of dirt, debris, and insect nests to ensure proper airflow and safe flame operation.
-
Check Electrical Components: Inspect the electric heating element, wiring, and thermostat for signs of wear or damage; tighten connections and replace faulty parts.
-
Test Pressure Relief Valve: Lift and release the pressure‑temperature relief valve annually to confirm it opens freely and reseals properly, preventing overpressure issues.
-
Gas & Power Safety: Always turn off LP gas and electric power before performing any maintenance; use soapy water to test gas connections for leaks.
-
Professional Service: Schedule a yearly inspection by a qualified RV technician to check direct spark ignition, controls, and gas safety systems.
