VAAST BIKES Road Bike R/1 700C Force AXS - Road-Bike-AXS-XS
The R/1 Force offers super smooth, more productive eTap shifting, an integrated aero cockpit, and refined geometry, plus the unmatched qualities only a VAAST Super Magnesium frame can deliver, resulting in a seriously formidable tarmac machine.
The aero-inspired Model R/1 Road optimizes technology and design for pavement - where speed, aerodynamics, weight and agility make all the difference.
With a weight and performance level other non-ferrous metal frames can’t quite achieve, the 1250g Allite Super Magnesium™ frame is meticulously crafted with progressive geometry that results in the perfect fit no matter the rider. Utilizing VAAST V-Fit parameters for comfort and control, the head tube and seat tube angles are carefully chosen to place the rider in an optimal, confident position and ensure proper trail for neutral steering geometry.
While the R/1 adopts the use of VAAST’s proprietary V-Fit technology like its award-winning A/1 predecessor, unlike the A/1, the R/1 tube profiles re-imagine Super Magnesium capabilities resulting in a 30% aerodynamic performance gain over conventional round tube frames.
Additionally, clearances are ample enough to fit up to 30mm tires, or to allow fenders to be fitted with conventional 25/28mm tires. All of this, combined with carbon wheel sets, and the proprietary carbon fork and seatpost, rounds up to a complete package for a ride worthy of getting lost in the wind for countless miles.
Features
- Light, aerodynamic, fast - the all new VAAST Model R/1.
Specifications
| Frame Weight |
1250g |
| Fork |
VAAST Road full-carbon disc, up to 30mm tire clearance |
| Tires |
Vittoria Corsa, 700 x 25mm with Ultralight tubes |
| Max Tire Clearance |
30mm |
| Rims |
VAAST Aero Carbon 45mm, Tubeless Ready |
| Rotors |
SRAM Paceline 160mm |
| Crank |
SRAM Carbon Force DUB, 12-speed, 46/33t |
| Cassette |
SRAM CS XG 1270, 12-speed, 10-33t |
| Shifters |
SRAM Force eTAP AXS |
| Rear Derailleur (RD) |
SRAM Force eTAP AXS |
| Front Derailleur (FD) |
SRAM Force eTAP AXS |
| Chain |
SRAM Force 12-speed |
| Brakes |
SRAM Force eTAP, hydraulic disc |
| Bottom Bracket |
SRAM DUB T47 |
| Front Hub |
Sealed cartridge bearing, 12 x 100mm thru axle, Centerlock, 24H |
| Rear Hub |
Sealed cartridge bearing, XDR 12-speed, 12 x 142mm thru axle, Centerlock, 24H |
| Spokes |
Bladed Double butted stainless |
| Axles |
VAAST M12 with Removable lever |
| Handlebar |
VAAST Integrated Pro Carbon |
| Stem |
VAAST Integrated Pro Carbon |
| Grips / Tape |
VAAST Anti Slip |
| Seat Post |
VAAST Carbon fiber (300mm for sizes 49/52, 350mm for 54/56/58/60) |
| Saddle |
ProLogo Scratch M5 PAS with Tirox rails |
What our Experts Think
-

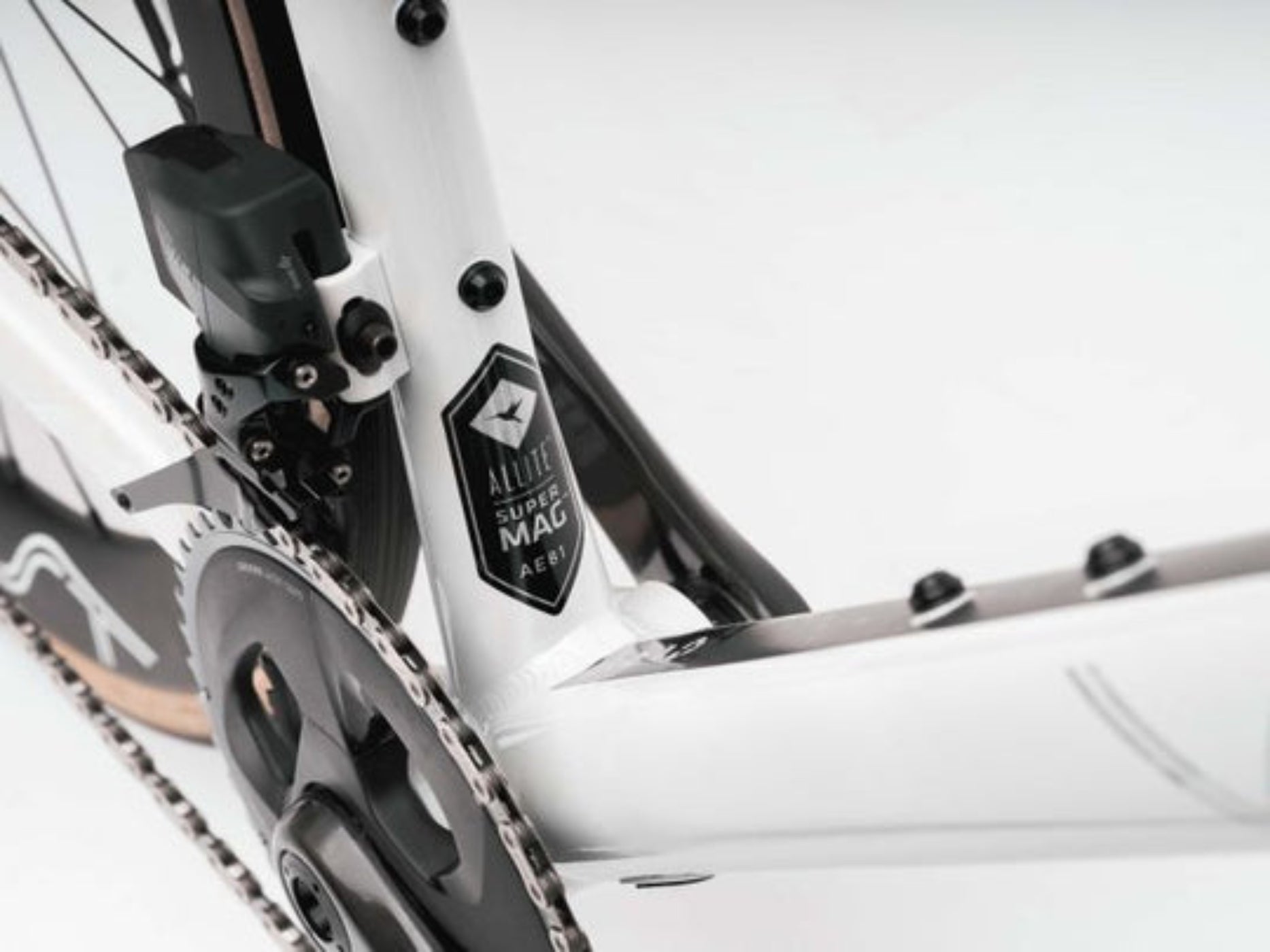

Lightweight Magnesium Frame: Crafted from AE81 SuperMag, offering a balance between strength and weight.
-
Advanced Drivetrain: Equipped with SRAM Force eTap AXS 12-speed components for precise electronic shifting
-
Aerodynamic Design: Features VAAST's aero-inspired geometry and integrated carbon cockpit for reduced drag
-
High-Performance Wheels: Comes with VAAST Aero Carbon 45mm tubeless-ready rims and Vittoria Corsa 700 x 25mm tires.
-
Hydraulic Disc Brakes: Ensures consistent stopping power in various conditions.
-
Comfort-Oriented Components: Includes ProLogo Scratch M5 PAS saddle and VAAST carbon fiber seatpost for enhanced comfort.
-
Versatile Tire Clearance: Accommodates up to 30mm tires or allows for fenders with standard 25/28mm tires.
Q&A
Q: What is the VAAST R/1 700C Force AXS?
A high-performance road bike featuring a lightweight magnesium frame and SRAM Force eTap AXS wireless electronic shifting system, designed for speed and agility on paved roads.
Q: What are the ?
The magnesium frame offers a balance of lightness and strength, while the eTap AXS system provides precise and reliable shifting. The aerodynamic design enhances speed and efficiency, making it suitable for competitive road cycling.
Q: Who is it for?
Ideal for experienced road cyclists seeking a lightweight, high-performance bike for racing or fast-paced training.
Q: Is it easy to maintain?
Yes, the wireless eTap AXS system reduces cable clutter, and the threaded bottom bracket simplifies maintenance.
Maintenance Tips
-
Battery Management:
-
Charge batteries using SRAM-branded chargers; a full charge takes approximately one hour and lasts for about 60 hours of riding.
-
Monitor battery status via the LED indicators on the derailleur and controller:
-
Green: >25% charge remaining
-
Red: 10–25% charge remaining
-
Flashing Red: <10% charge remaining
-
Drivetrain Care:
-
Replace the chain when wear reaches 0.8% to prevent excessive wear on the cassette and chainrings.
-
Use approved tools to measure chain wear and ensure timely replacement.
-
Clean drivetrain components regularly to maintain performance.
-
Brake Maintenance:
-
Check brake pads and rotors every few rides.
-
Replace brake pads if the total thickness of pad and backing is thinner than 3mm.
-
Replace rotors when they measure 1.55mm thick or less.
-
Perform brake bed-in procedures to ensure optimal braking performance
-
Firmware Updates:
-
Regularly check and update the firmware of your AXS components using the AXS App to ensure optimal performance and access to new features.
-
General Tips:
-
Avoid handling brake pads and rotors with bare hands to prevent contamination.
-
Use isopropyl alcohol to clean braking surfaces.
-
Ensure all components are securely fastened and in good condition before each ride
