VENTAHOOD 42" Wall Mounted Designer Series Range Hood - JCH142A1

VENTAHOOD 42" Wall Mounted Designer Series Range Hood - JCH142A1

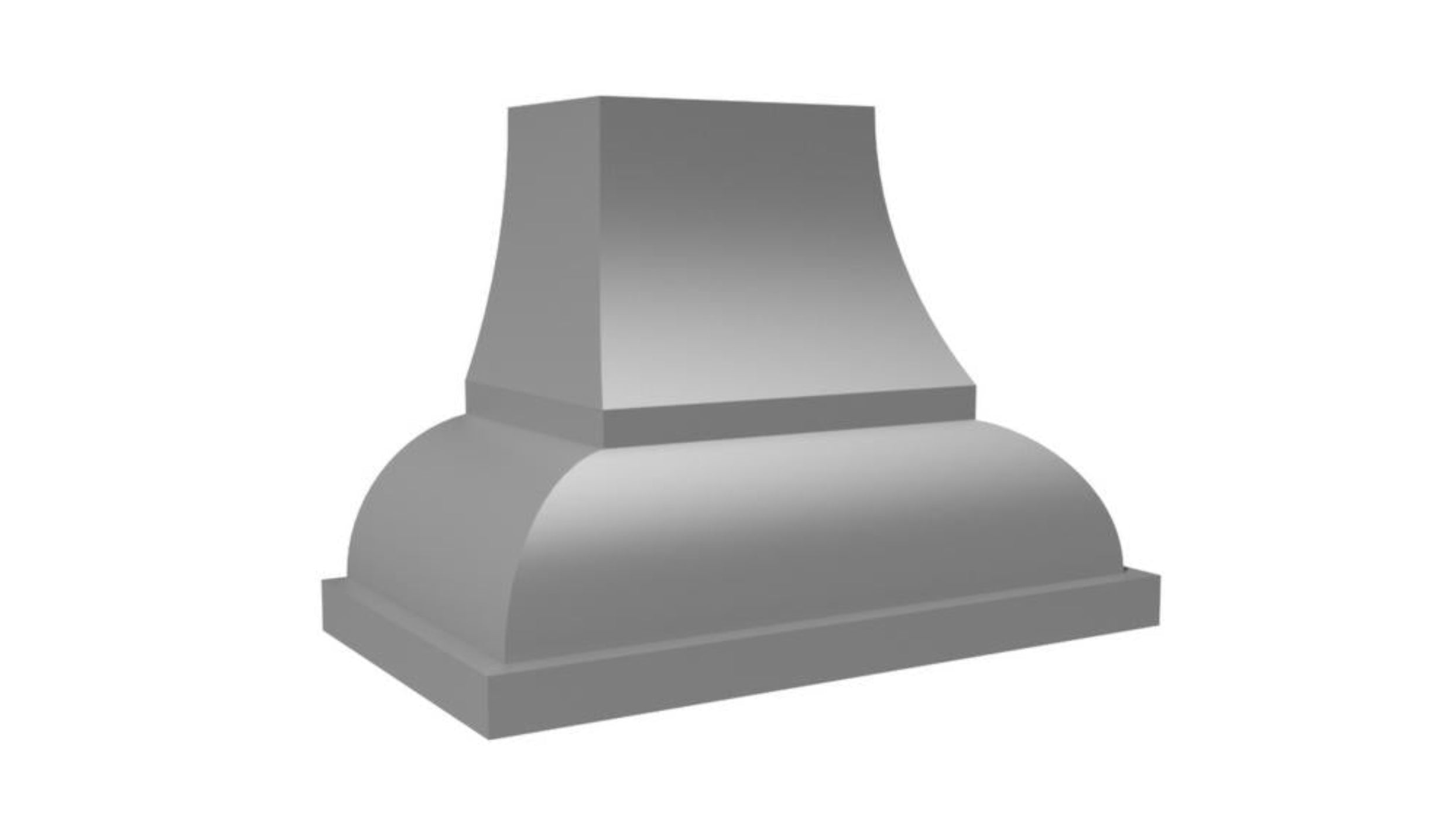

Two part compound curve with offset lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.

What our Experts Think

• Designed for Moderate Ventilation (300 CFM): This 42″ Designer Series wall‑mount hood uses a B100 single Magic Lung blower with ~300 CFM and ~450 equivalent CFM — ideal for everyday home cooking and effective basic smoke/odor removal when properly ducted.

• Full Coverage Across Standard Ranges: At 42″ wide × 24″ deep, it delivers broad capture for most cooktops, improving airflow and reducing lingering odors — a key performance factor pros look for.

• Elegant Designer Styling: Two‑part compound curves and offset lip contours give a refined visual appeal that enhances both modern and classic kitchen styles.

• Enhanced Lighting & Controls: Triple halogen lighting with dual‑switch dimming ensures excellent task lighting and adjustable ambiance over the cooktop.

• Pro Installation Advice: Experts recommend mounting approximately 30″ above the cooktop with a 6″ minimum duct for optimal capture performance, quieter operation, and efficient airflow.

Q&A

Q2: How strong is the ventilation (CFM)?
A: Rated at 300 CFM airflow with a Magic Lung® blower — effective for typical cooking smoke, steam, and odors.

Q3: What are the core dimensions and installation recommendations?
A: Approx. 42″ W × 24″ D × 12″ H with recommended mounting height ~30″ above the cooktop for optimal capture.

Q4: How many lights and lighting features are included?
A: Includes 3 integrated lights with dual switches (often with a dimming option) to illuminate the cooking area.

Q5: What duct size does it require?
A: Designed for a 6″ round duct — suitable for standard ducted installations.

Q6: What is the noise level?
A: Around 5.4 sones at full power — typical for 300‑CFM residential range hoods.

Q7: Does this hood offer safety or smart features?
A: Includes SensaSource automatic heat sensor and the Magic Lung® blower system for reliable ventilation performance.

Q8: Can this hood be used in damp or outdoor settings?
A: Yes — Vent‑A‑Hood products like this are suitable for damp locations (e.g., covered patios) when installed on a GFCI‑protected circuit.

Q9: What finishes are available?
A: Available in finishes such as stainless steel, painted, or custom metal finishes to match kitchen décor.

Q10: Who is this range hood ideal for?
A: Ideal for homeowners looking for stylish, effective ducted ventilation with a 42″ wall‑mount designer aesthetic for everyday cooking.

Maintenance Tips

• Clean metal grease filters every 4–6 weeks to maintain strong airflow and efficient smoke removal
• Wipe stainless steel exterior weekly with a soft cloth and mild cleaner, following the grain
• Deep‑clean interior and fan area quarterly to prevent grease buildup and odors
• Avoid abrasive scrubbers or harsh chemicals that can scratch or dull the finish
• Replace lights promptly to ensure optimal cooktop visibility
• Inspect ductwork annually to maintain peak ventilation performance
