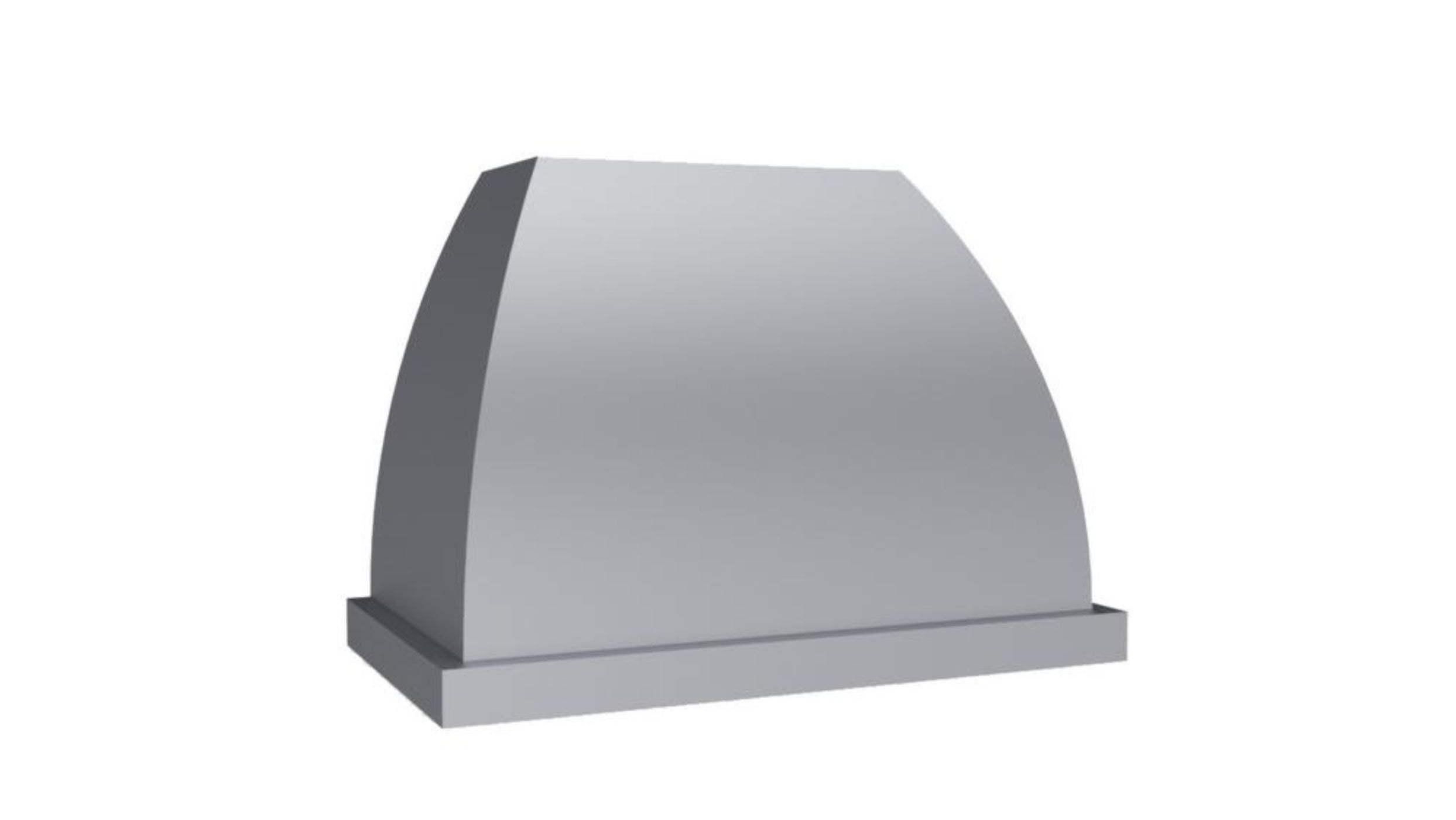

VENTAHOOD 48" Wall Mounted Designer Series Range Hood - JCH348C2
Convex curve with lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.
What our Experts Think
-
Powerful ducted ventilation — built‑for performance with a 900 CFM internal blower, ideal for handling smoke, steam and heavy cooking in mid‑to‑large kitchens. Recommended 10″ round ducting and ~30″ above the cooktop for best airflow performance.
-
Magic Lung filter‑less design — patented centrifugal blower maximizes airflow and grease handling without traditional mesh/baffle filters.
-
Quiet yet effective — noise around 6.3 sones at high speed balances strong extraction with manageable sound in busy kitchens.
-
Contemporary Designer Series styling — clean, wall‑mounted silhouette with trim and optional finish choices elevates modern kitchen décor.
-
Integrated lighting — three halogen/LED lights with dual‑level control brighten the cooking surface for better visibility.
-
Built‑to‑last construction — stainless steel or custom finish options with solid build quality suitable for indoor and covered outdoor (GFCI protected) installation.
-
Smart heat sensing — SensaSource heat‑adaptive control automatically adjusts blower speed as cooktop heat increases, improving real‑world ventilation responsiveness.
Q&A
Q: What type of range hood is the Ventahood JCH348C2?
A: The Ventahood 48″ Wall Mounted Designer Series Range Hood – JCH348C2 is a ducted, wall‑mounted kitchen hood with premium Designer Series styling and strong ventilation performance.
Q: How powerful is its ventilation?
A: It delivers 900 CFM airflow using an internal Magic Lung blower configuration, effectively removing smoke, grease, and cooking odors.
Q: What are the hood’s dimensions?
A: Width: 48″ • Height: 30″ • Depth: 24″ — sized for larger cooktops and ranges.
Q: How many lights and what noise level does it have?
A: Includes 3 built‑in lights (typically LED) and operates around 6.3 sones at high speed.
Q: What ducting and installation guidance applies?
A: Requires a 10″ round duct (minimum) and the recommended mounting height is about 30″ above the cooktop for optimal performance.
Q: What design and safety features does it offer?
A: It features a patented filterless Magic Lung blower design that’s easier to clean and inherently fire‑safe, plus SensaSource heat detection to adjust fan speed with cooking heat.
Q: Is this hood suitable for outdoor/damp locations?
A: Yes — like other Ventahood models, it’s suitable for covered outdoor/damp locations when installed on a GFCI‑protected circuit.
Q: Are heat lamps included?
A: No — heat lamps are not available on this model. LED or halogen cooktop lighting is provided instead.
Maintenance Tips
-
Exterior Cleaning Weekly – Wipe the stainless‑steel exterior with warm, soapy water and a soft cloth; avoid abrasive cleaners, steel wool, or harsh chemicals to protect the finish.
-
Interior Grease Wipe‑Down – Periodically clean the interior canopy and grease collection areas with a mild degreaser or dish soap to prevent buildup that can reduce airflow and performance.
-
Magic Lung Blower Care – Clean the Magic Lung blower housing and removable shields regularly with warm, soapy water. This filterless centrifugal blower design captures grease internally and is easier to maintain than traditional filters. Maintaining a clean blower helps preserve strong suction and quiet operation.
-
Light Bulb Maintenance – Turn off power and let bulbs cool before replacing; wipe light covers to maintain good illumination over the cooktop.
-
Annual Duct & Fan Check – Inspect ductwork and the blower area at least once a year for grease or obstructions; clear debris to preserve performance and reduce fire risk.
-
Post‑Cooking Ventilation – Run the hood for a few extra minutes after cooking to help clear steam, smoke, and airborne grease before cleaning.
-
Professional Service When Needed – If airflow weakens significantly or unusual noises occur, have a qualified technician inspect and service internal components.
