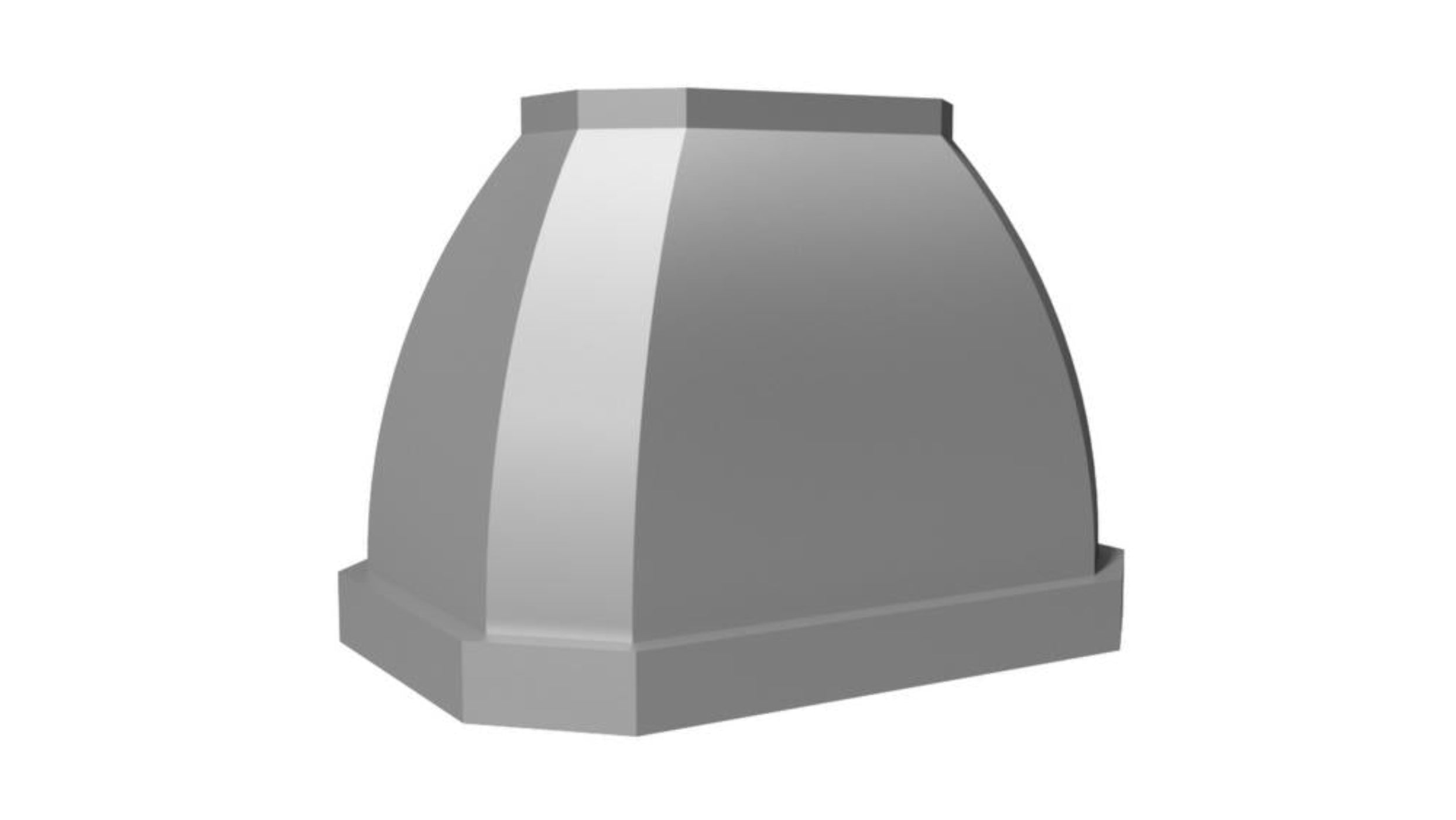

VENTAHOOD 54" Island Designer Series Range Hood - JCIH454C1
Convex with tapered clipped corners and offset lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, polished brass, polished copper, hammered copper, antiqued copper, or antiqued hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.
What our Experts Think
-
Built for open kitchens — 54″ island design delivers wide coverage and effective capture of smoke, steam, and odors above island cooktops. Recommended mounting height is ~30″ above cooking surface for optimal performance.
-
Strong ducted ventilation — ~1100 CFM airflow with Magic Lung cluster blower offers reliable extraction for everyday and heavy cooking, with up to ~1800 equivalent CFM at zero static pressure.
-
Contemporary Designer Series styling — compound curve canopy with offset lip and clipped corner details enhances modern kitchen aesthetics in stainless steel finish.
-
Integrated lighting — four built‑in lights illuminate the cooktop for better visibility and cooking precision.
-
Balanced noise level — operating around ~6.4 sones at high speed, balancing strong airflow with comfortable sound levels in active kitchens.
-
Solid construction & maintenance — stainless‑steel body with proven Magic Lung centrifugal design simplifies cleaning by reducing filter maintenance.
-
Ducted installation ready — designed for use with 12″ round ducting to efficiently exhaust air outdoors.
Q&A
Q: What type of range hood is the Ventahood JCIH454C1?
A: It’s a 54″ island‑mounted ducted Designer Series range hood designed to deliver strong ventilation and premium styling for kitchens with island cooktops.
Q: How powerful is its ventilation performance?
A: This model offers around 1100 CFM airflow with a T400 island cluster blower — effective at removing smoke, grease, and odors during heavy cooking.
Q: What are the key dimensions?
A: Width: 54″ • Depth: 30″ • Height: 30″; recommended mounting height is about 30″ above the cooktop for best capture.
Q: What lighting does it include?
A: It includes 4 built‑in lights to illuminate the cooking surface.
Q: What is the recommended duct size?
A: Requires a 12″ round duct (113 sq. in. minimum) for optimal airflow.
Q: What noise level and electrical specs should I know?
A: Noise level is around 6.4 sones, and the blower runs on standard 115 V / 7.5 A power.
Q: What finish and style options are available?
A: Available in stainless steel (finish can vary by retailer) with a contemporary island design.
Q: Can this hood be used outdoors?
A: Yes — Ventahood’s Magic Lung products are suitable for use in covered outdoor/damp locations when installed on a GFCI‑protected circuit.
Maintenance Tips
-
Weekly Exterior Cleaning – Wipe the stainless‑steel surface with warm, soapy water and a soft cloth; avoid steel wool and harsh abrasives to protect the finish.
-
Interior Grease Wipe‑Down – Periodically clean the interior canopy and grease collection areas with a mild degreaser or dish soap to remove cooking oils that can reduce airflow and performance.
-
Magic Lung Blower Care – This island Designer Series model uses a Magic Lung blower system with internal grease capture (no traditional filters); clean the blower housing and removable shields regularly with warm, soapy water to maintain strong suction and quieter operation.
-
Light Bulb Maintenance – Turn off power and let bulbs cool before replacing; wipe light covers to maintain good illumination over the cooktop.
-
Annual Duct & Fan Inspection – Inspect the blower area and ductwork at least once a year for grease or obstructions; clear debris to preserve performance and reduce fire risk.
-
Post‑Cooking Ventilation – After heavy cooking, run the hood a few extra minutes to help clear lingering steam, smoke, and airborne grease before cleaning.
-
Professional Service When Needed – If suction weakens significantly or unusual noises occur, have a qualified technician inspect and service internal components
