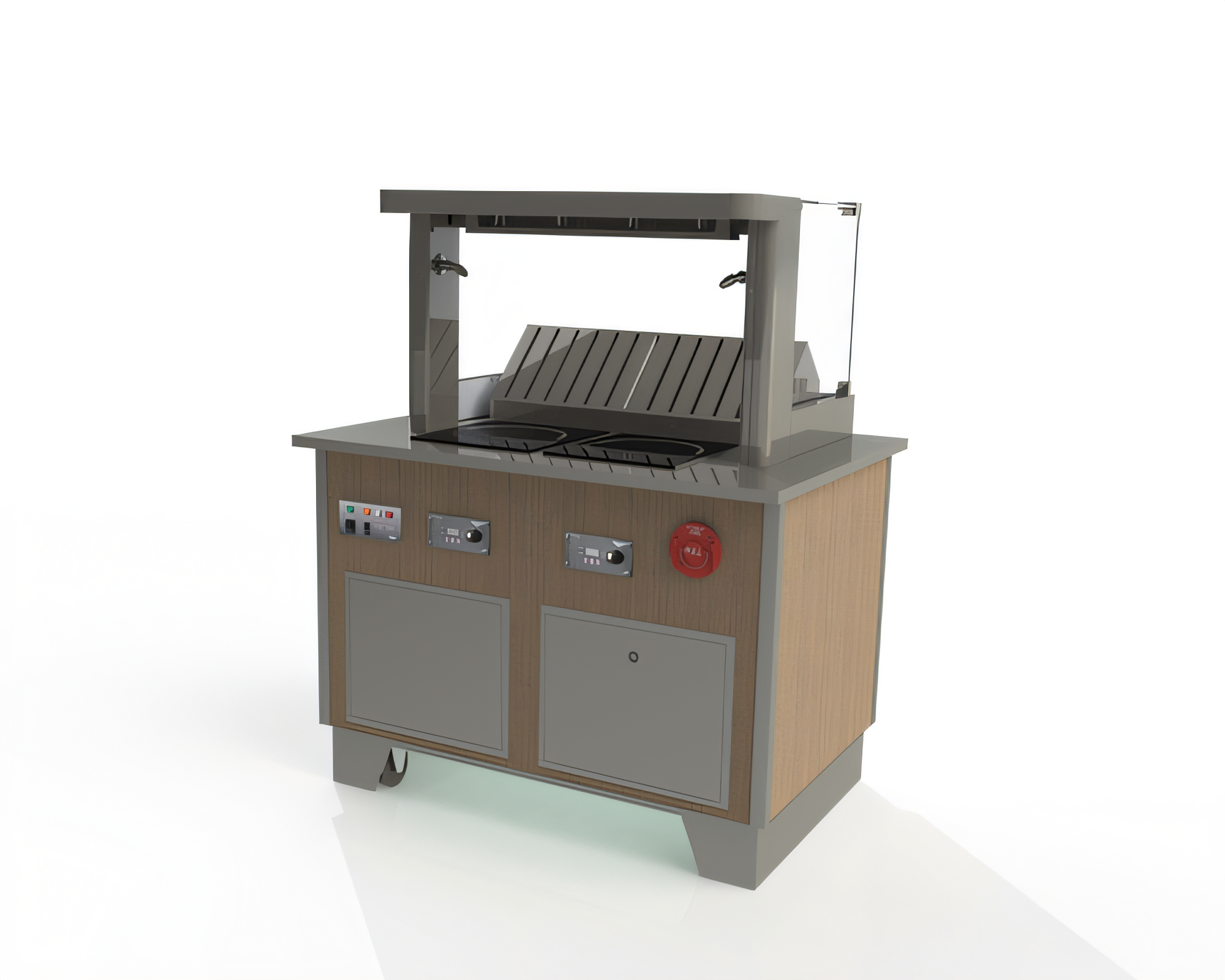

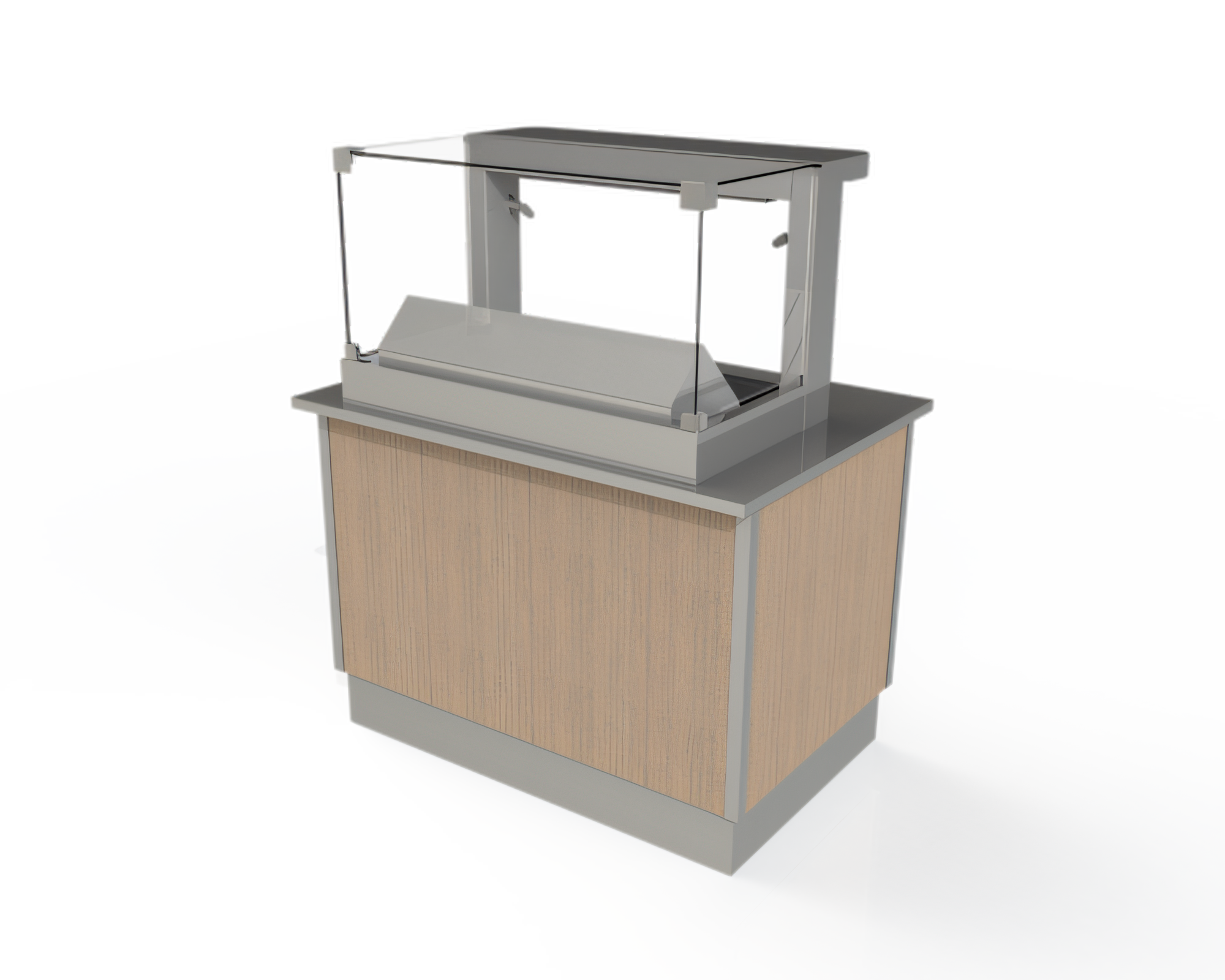

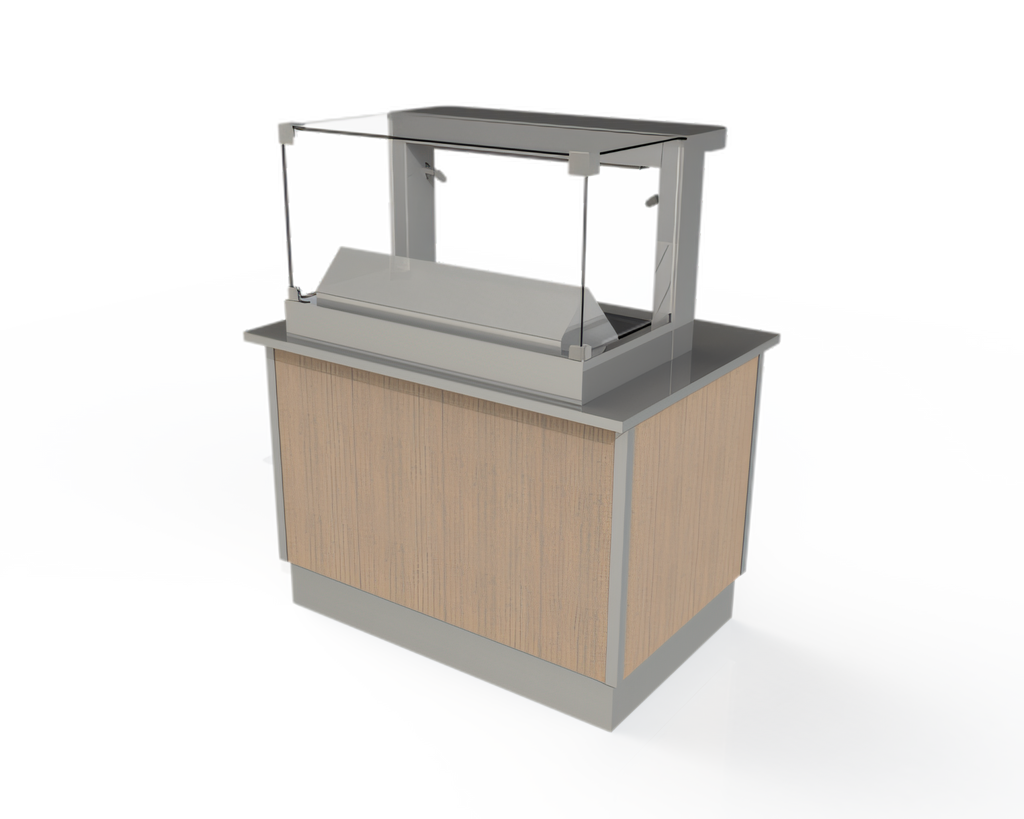

Vollrath 69722S-1-SR 4-Series Signature Server Induction-Based Warming Equipment - 69722S-1-SR
Ventless mobile cooking station with 22" curved breath guard, induction hob & integrated ANSUL R-102 fire suppression
Create a true “chef-to-guest” experience anywhere in the dining room. Built on Vollrath’s heavy-duty 4-Series base, the Signature Server combines a high-efficiency Mirage induction range with a self-contained downdraft recirculating hood and factory-installed fire suppression—no dedicated hood, duct or make-up air required. Simply roll it in, plug it into a standard 120 V outlet and start cooking.
Features
- Ventless design tested to UL 710B (KNKG) – emissions < 5 mg/m³
- Integrated ANSUL R-102 system protects the cooking zone and breath guard
- 1 × 59501 Mirage drop-in induction hob — 86 % efficient, 1 %–100 % power control, 180-minute timer
- 22" (55.9 cm) tempered curved glass breath guard meets NSF 2 requirements
- Downdraft module includes (2) grease & (2) carbon/particulate filters for fast swap-out service
- Stainless kickplates, 5" swivel/locking casters and adjustable leveling legs included
- Made-to-order in Sheboygan, WI — typically ships in 8–10 weeks
- 4-Series stainless-steel base with operator-side access panel
- Factory-installed ANSUL R-102 fire suppression piping & detection (charge/commissioning by local dealer)
- Downdraft recirculating ventilation module with 6 ft power cord
- Mirage 59501 drop-in induction range (NEMA 5-15P)
- Rectangle poly cutting board for the non-induction side
- Front, left & right stainless toe kicks (field assembly)
- (4) 5" casters with adjustable legs
- UL 710B ventless, UL 197, UL-Sanitation
- NSF/ANSI 4
- EPA Method 202 (Section 59 of UL 710B)
- Meets NFPA 96 requirements
- FCC Part 18 compliant
Specifications
| Overall Dimensions (W × D × H) |
47" × 34" × 56" (base 34" + breath guard 22") |
| Cooking Technology |
1 × Mirage® 59501 induction hob, 1,800 W, 120 V, NEMA 5-15P |
| Ventilation System |
Recirculating downdraft; 2 × UL 1046 grease filters & 2 × carbon/particulate filters |
| Fire Suppression |
ANSUL R-102 pre-piped (field charge & commissioning required) |
| Mobility |
4 × 5" swivel casters (front two locking) + adjustable legs |
| Power Cord |
6 ft, factory installed |
| Origin |
Made in USA – FOB Sheboygan, WI |
What our Experts Think
-
Top-tier induction heating: The Vollrath 69722S-1-SR uses advanced 4-Series induction technology to deliver fast, even warming—ideal for buffet lines and high-turnover catering setups.
-
Energy-efficient & safe: By focusing heat precisely on the serving pans, it reduces energy waste, minimizes risk of burning or drying food, and maintains safe holding temperatures consistently.
-
Built for heavy-duty use: Stainless-steel construction and robust internal components ensure this unit withstands frequent use over time — a smart choice for bustling kitchens and banquet operations.
-
Smooth operation & control: The unit’s responsive heat controls and stable output make it easy for staff to manage buffet service without constant oversight.
-
Professional presentation & reliability: Its signature design blends well in front-of-house settings, supporting clean, appealing buffet displays while delivering reliable performance day after day.
Q&A
Q: What is the Vollrath 69722S-1-SR 4-Series Signature Server?
A: A premium induction-based front-of-house cooking and warming station featuring built-in ventilation, fire suppression, and a high-end presentation design.
Q: What makes this model unique?
A: It includes a downdraft recirculating vent system (no hood required), an integrated fire-suppression system, and a sleek curved glass food shield—ideal for live cooking and action stations.
Q: What type of induction unit is included?
A: A Mirage® drop-in induction range offering fast, even heating, precise control, pan detection, and energy-efficient performance.
Q: Where is this unit best used?
A: Hotels, banquet halls, cafeterias, and catering setups that need a mobile, hoodless cooking solution that still delivers professional performance and presentation.
Q: What are the general size and power needs?
A: The unit is designed as a compact serving station with standard 120-volt plug-and-play operation, making installation simple and flexible.
Q: Why choose this over a standard warmer?
A: It enables real cooking and finishing on the service line while maintaining safety, ventilation control, mobility, and an elevated guest-facing appearance—boosting both efficiency and customer experience.
Maintenance Tips
-
Wipe surfaces after each use with a soft cloth and mild, non-abrasive cleaner to maintain the stainless-steel finish.
-
Keep the induction platform clear of spills and debris to ensure accurate heating and prevent sensor issues.
-
Inspect power cables and connectors regularly to maintain safe, consistent performance.
-
Allow full cool-down before cleaning internal and external components to prevent thermal damage.
-
Avoid abrasive pads or harsh chemicals that can scratch or weaken the unit’s surface.
-
Clean ventilation areas monthly to prevent dust buildup and maintain efficient temperature control.
-
Check for control or software updates (if applicable) to keep the unit operating at peak efficiency
