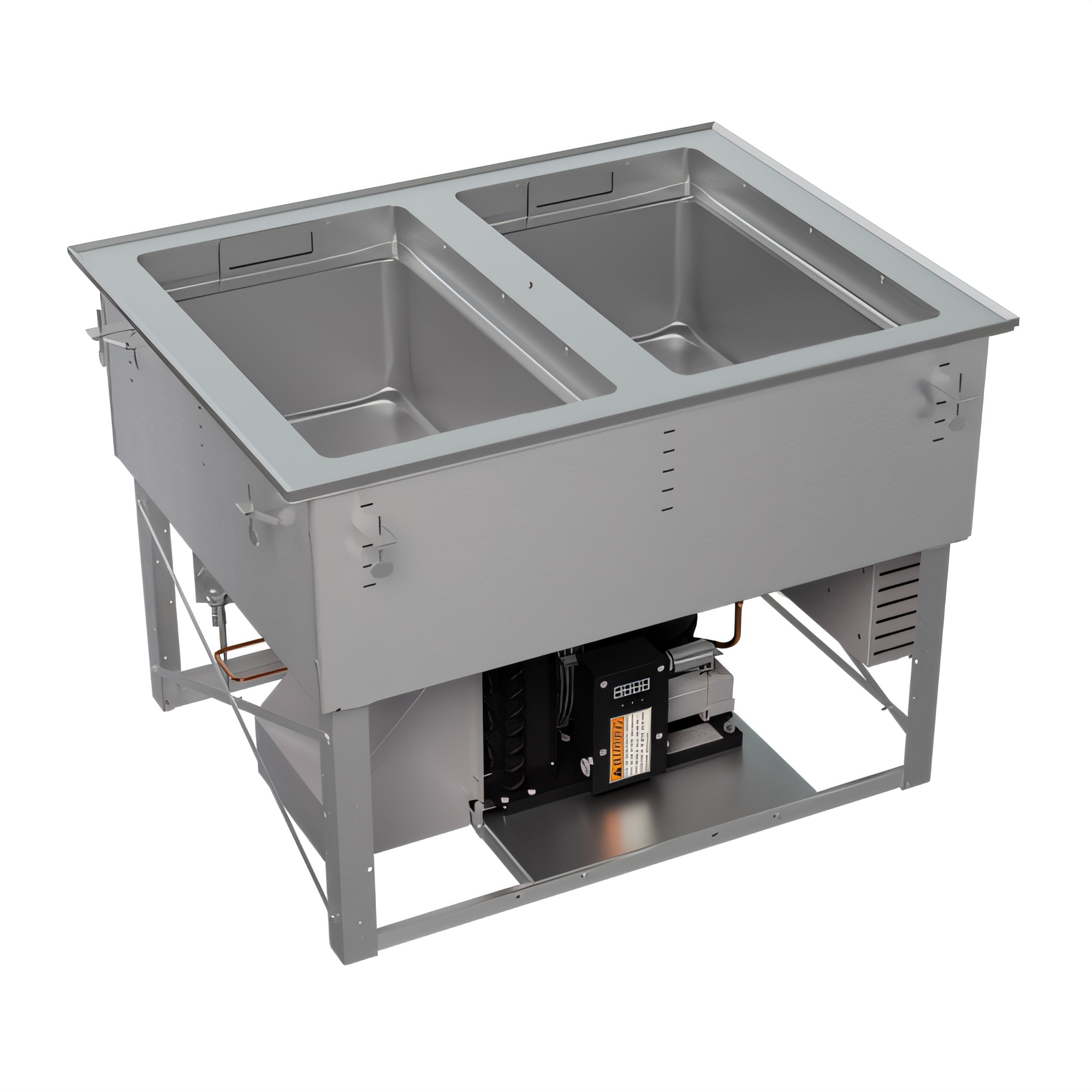

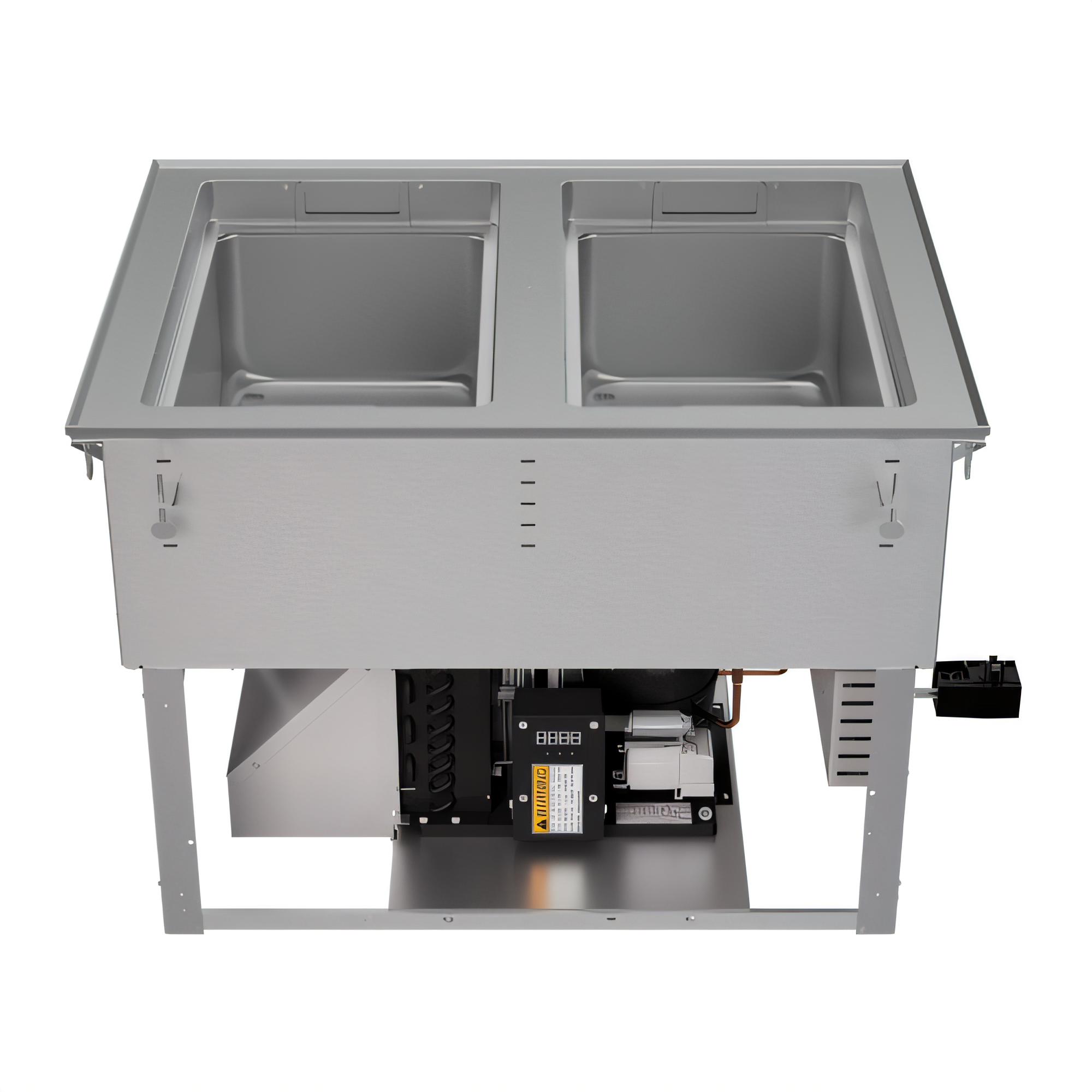

Vollrath FC-HCF-02120-AD-FF Steam Tables & Food Wells - FC-HCF-02120-AD-FF
Auto-Drain • Flat Flange • 120 V Plug-and-Play
One drop-in that does it all—switch each well from hot to cold to frozen at the touch of a button and keep your menu flexible without changing equipment.
Features
- True tri-mode performance – each well independently holds food Hot, Cold or Frozen.
- Auto-Drain technology removes water automatically when you move from hot to cold, saving labor and time.
- Sleek flat flange sits flush with the counter for a clean, modern installation.
- 18-gauge, 300-series stainless steel top, wells and user interface stand up to commercial abuse.
- 4 ft (1.2 m) tethered control panel mounts where it’s easiest for your staff.
- Self-contained 1/4 HP refrigeration uses eco-friendly R290 hydrocarbon refrigerant.
- Foamed-in-place insulation plus a 2″ stepped cold-wall recess maintain NSF temperatures while saving energy.
- Ships ready to install – mounting clips, ¾″ integral drain and 6 ft cord with NEMA 5-15P plug included.
- Made in the USA and UL certified for safety and sanitation.
- Tap a well number to cycle through OFF → HOT → COLD → FROZEN.
- Rotary knob provides precise temperature adjustment in HOT mode.
- Back-lit display remembers last-used settings after power-down.
Specifications
| Model |
FC-HCF-02120-AD-FF |
| Configuration |
2-well, auto-drain, flat flange |
| Operating Modes |
Hot / Cold / Frozen (independent per well) |
| Pan Depth |
Up to 6" (15.2 cm) |
| Overall Dimensions (W × D × H) |
33.9" × 26.0" × 24.4" (86.1 × 66.0 × 62.0 cm) |
| Counter Cut-out (W × D) |
33 1⁄16" × 25 ¼" (84 × 64.1 cm) |
| Compressor |
¼ HP, self-contained |
| Refrigerant |
R290 (100 g charge) |
| Electrical |
120 V / 60 Hz / 1-ph, 10.3 A, 1,250 W, NEMA 5-15P |
| Heater Watts (per well) |
625 W |
| Peak Heat Rejection |
2,800 BTUH (Cold) / 4,300 BTUH (Hot) |
| Drain |
¾" integral auto-drain (no shut-off required) |
What our Experts Think
-
Three-mode versatility: Independently run each well as hot, cold, or frozen, giving operators maximum flexibility for rotating menus, seasonal dishes, or mixed buffet setups.
-
Drop-in, space-saving design: Fits neatly into counters while preserving valuable front-of-house space — ideal for cafeterias, hotels, and catering lines.
-
Reliable food safety: Electronic temperature controls help hold food at precise, compliant temperatures, reducing food-safety risks during service.
-
Heavy-duty construction: All-stainless design and self-contained refrigeration system deliver long-term durability and easier daily cleaning.
-
Fast changeovers: Switch temperature modes quickly without extra equipment — perfect for operators needing a single unit that does it all.
-
Operational efficiency: Environmentally friendly refrigerant and energy-smart controls support lower operating costs across busy service hours.
Q&A
Q: What is the Vollrath FC-HCF-02120-AD-FF?
A: A commercial drop-in steam table and food well designed to hold food hot, cold, or frozen for high-volume serving environments.
Q: Where is it commonly used?
A: Ideal for restaurants, cafeterias, hotels, catering lines, and buffet service where reliable food holding is essential.
Q: What pan sizes does it support?
A: Designed for standard full-size and fractional food pans up to 6 inches deep to handle entrées, sides, soups, and chilled items.
Q: How does it maintain food quality?
A: Independent wells deliver precise temperature control with excellent insulation for consistent hot, cold, or frozen holding.
Q: Why choose this model?
A: Durable stainless-steel construction, energy-efficient performance, quick cleaning, and versatile temperature modes make it suitable for daily commercial use.
Q: Is it easy to install and maintain?
A: Yes — its drop-in design, integrated drain, and smooth surfaces streamline setup, cleaning, and long-term upkeep.
Maintenance Tips
-
Daily Cleaning: Drain and wipe food wells with warm water and mild detergent to prevent residue, corrosion, and clogged drains.
-
Avoid Abrasives: Use non-scratch pads to protect stainless steel surfaces and maintain a clean, professional appearance.
-
Check Water Levels: Maintain proper water level during operation for consistent heating and to prevent element damage.
-
Descale Regularly: If using hard water, descale wells periodically to ensure efficient heat transfer and longer equipment life.
-
Inspect Gaskets & Seals: Replace worn parts promptly to prevent leaks and maintain food-safe performance.
-
Keep Controls Dry: Protect electrical components from spills and ensure the unit is completely dry before powering on.
