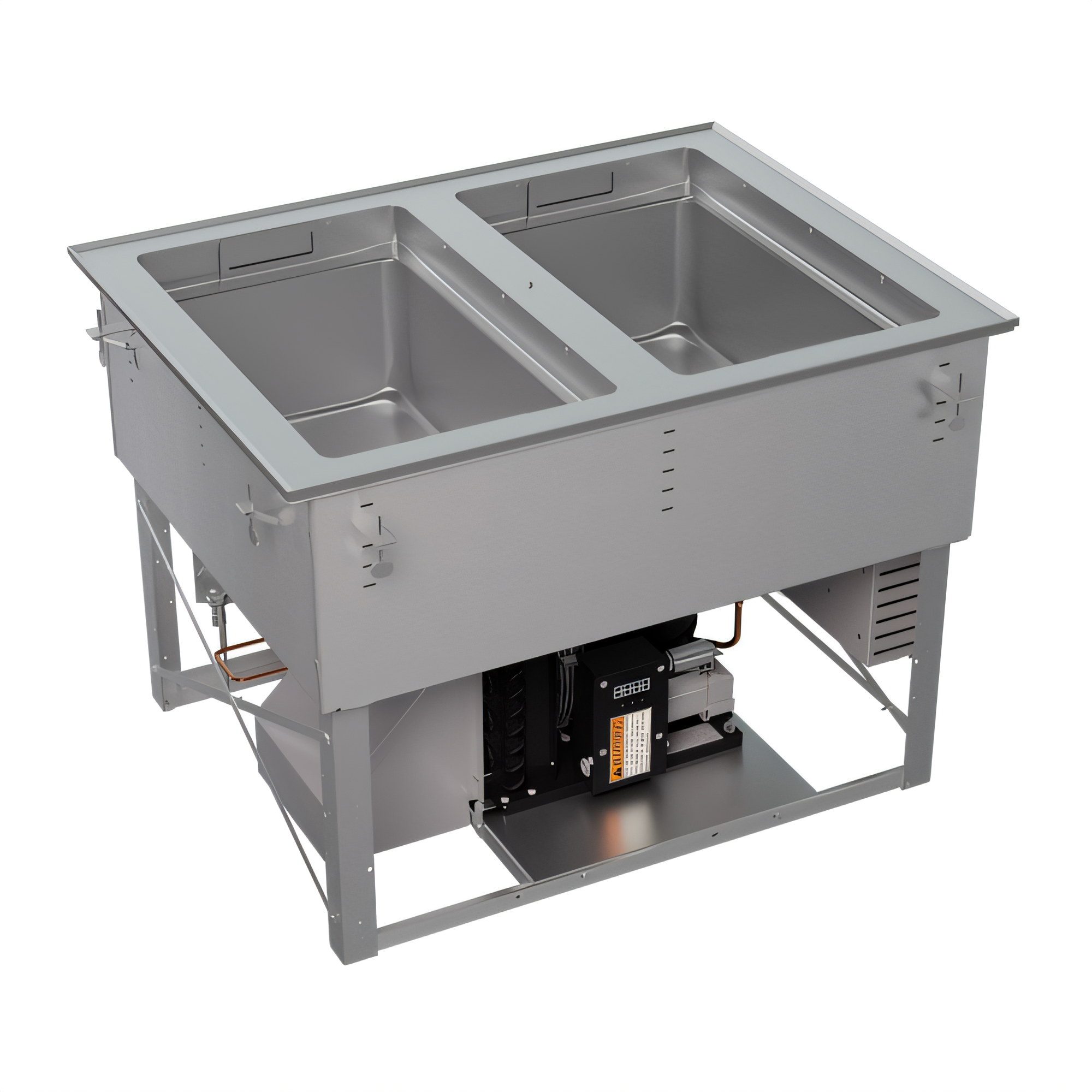

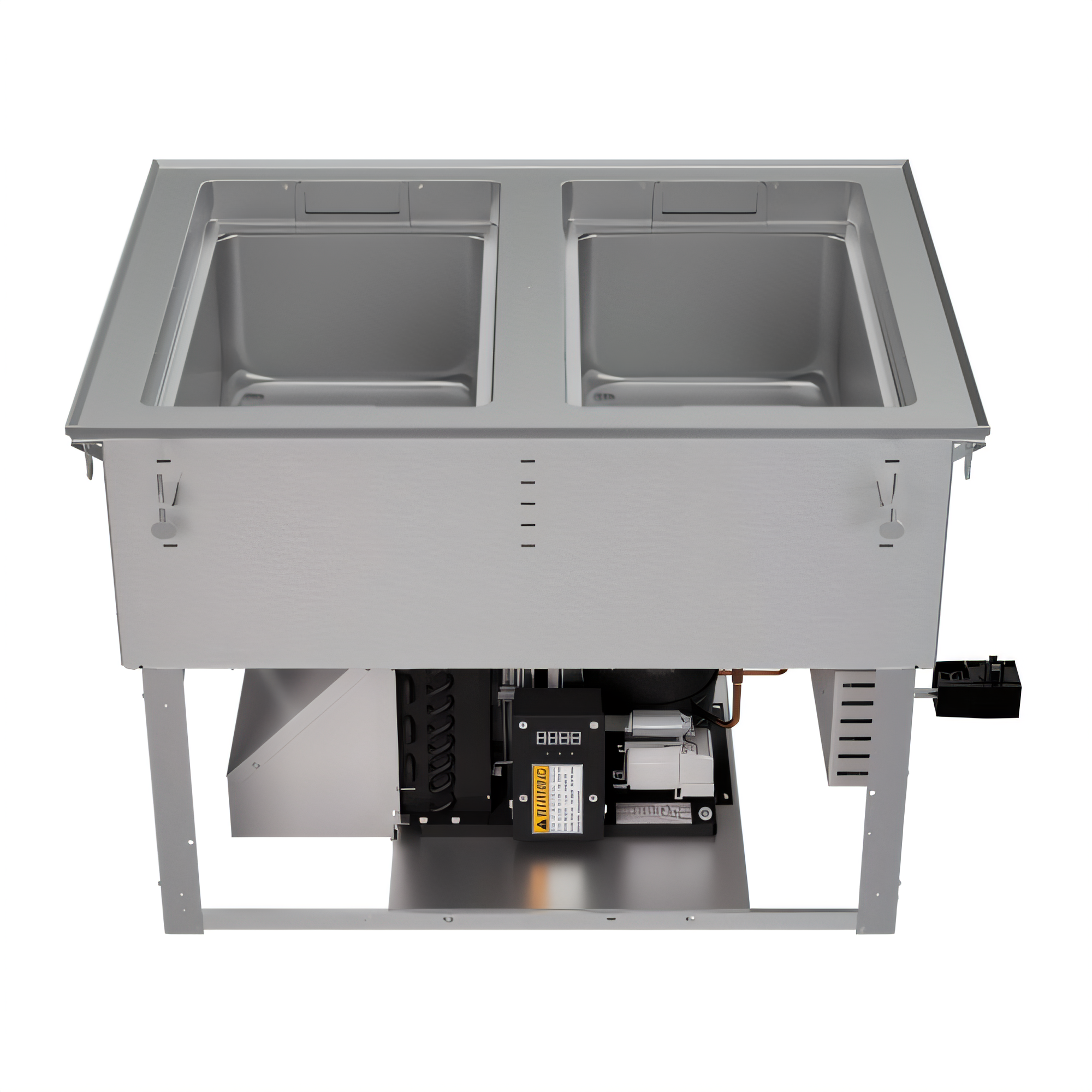

Vollrath FC-HCF-02120-FF Steam Tables & Food Wells - FC-HCF-02120-FF
Switch instantly between steaming, chilling or freezing – all in one sleek module
Designed for high-volume foodservice operations that refuse to compromise on versatility, this 2-well Vollrath drop-in lets you run each well in HOT, COLD or FROZEN mode with independent electronic controls. From piping-hot soups to ice-cold salads—or even scoopable ice-cream—you can serve it all, side-by-side, in a single footprint.
Features
- True three-mode flexibility – each well toggles between HOT, COLD or FROZEN at the touch of a button.
- Accepts full-size or fractional pans up to 6″ (15.2 cm) deep; 2″ stepped recess forms a cold-air blanket for NSF compliance.
- Rugged 18-gauge, 300-series stainless-steel top, wells and user interface for years of commercial use.
- Flat flange delivers a clean, flush-mount look and simplifies gasket sealing.
- Intuitive touch/knob control panel ships with a 4′ (1.2 m) cable for surface, recessed or remote mounting.
- High-efficiency, foamed-in-place insulation plus cold-wall coil design shorten pull-down times and save energy.
- Eco-friendly R290 hydrocarbon refrigerant, ¼ HP self-contained compressor—no remote condensing unit required.
- ¾″ integral drain (manual) for easy water removal after HOT operation.
- Includes mounting clips for counters up to 3″ (7.6 cm) thick and a 6′ (1.8 m) cord with NEMA 5-15P plug—just drop-in, plug and play.
- Made in the USA, UL Listed/NSF 8 compliant and backed by a 2-year Vollrath warranty.
Specifications
| Model |
FC-HCF-02120-FF |
| Number of Wells / Modes |
2 independent wells – HOT, COLD, FROZEN |
| Overall Dimensions (W × D × H) |
33.9″ × 26.0″ × 24.4″ (86.1 × 66.0 × 62.0 cm) |
| Counter Cut-Out (W × D) |
33 ¹⁄₁₆″ × 25 ¼″ (84 × 64.1 cm), ⅞″ (2.2 cm) radius corners |
| Pan Capacity |
Full-size or fractional pans, up to 6″ deep (use adapter bars for fractional) |
| Compressor |
¼ HP, self-contained |
| Refrigerant |
R290, 100 g charge |
| Peak Heat Rejection |
2,800 BTUH (COLD) / 4,300 BTUH (HOT) |
| Heater Wattage per Well |
625 W |
| Electrical |
120 V / 60 Hz / 1-ph, 1,250 W, 10.3 A, NEMA 5-15P |
What our Experts Think
-
All-in-one flexibility: Two independent wells, each adjustable to hot, cold, or frozen mode — ideal for buffets, salad bars, or mixed-service lines.
-
Commercial-grade build & hygiene: Made with 18-gauge, 300‑series stainless steel, foam insulation, and energy-efficient R290 refrigeration for durability and easy cleaning.
-
Versatile pan compatibility: Accepts full-size or fractional pans up to 6″ deep, perfect for entrées, sides, salads, or desserts.
-
Simple install & operation: Drop-in design fits standard counters up to ~3″ thick, plugs into 120 V outlets, with intuitive controls for staff.
-
Efficient food safety & maintenance: Cold-wall recess maintains safe cold/frozen temperatures, and built-in drain simplifies switching between hot and cold modes.
Q&A
Q: What is the Vollrath FC-HCF-02120-FF?
A: It’s a 2-well drop-in food well unit designed for hot, cold, or frozen food-holding, ideal for buffets, cafeterias, or food-service counters needing flexible temperature control.
Q: What temperature modes does it support?
A: Each well can be independently set to Hot, Cold, or Frozen, providing versatile food-holding options in one unit.
Q: What kinds of pans does it accept?
A: Compatible with standard full-size or fractional steam-table pans up to 6 inches deep.
Q: How is it built and installed?
A: Made from 18-gauge, 300-series stainless steel with a flat-flange drop-in design for clean countertop integration. It includes mounting clips for counters up to 3″ thick.
Q: Where is this unit best used?
A: Ideal for buffet lines, cafeterias, hotel or banquet service, and any setting needing a flexible, compact countertop food well for hot, chilled, or frozen items.
Maintenance Tips
-
Drain and clean all wells after each service — use warm water and a mild, food‑safe detergent to remove food residue.
-
Descale regularly, especially if your water supply is hard, to avoid mineral buildup on heating elements and maintain efficiency.
-
Wipe exterior stainless‑steel surfaces with a soft cloth and mild, non‑abrasive cleaner; dry thoroughly after cleaning to prevent water spots or corrosion.
-
Unplug and allow unit to cool before cleaning to protect internal heating and electrical components.
-
Avoid abrasive pads or harsh chemicals as they can scratch or damage surfaces.
-
Inspect and clean drain valves, seals, and gaskets periodically to prevent leaks or malfunction.
