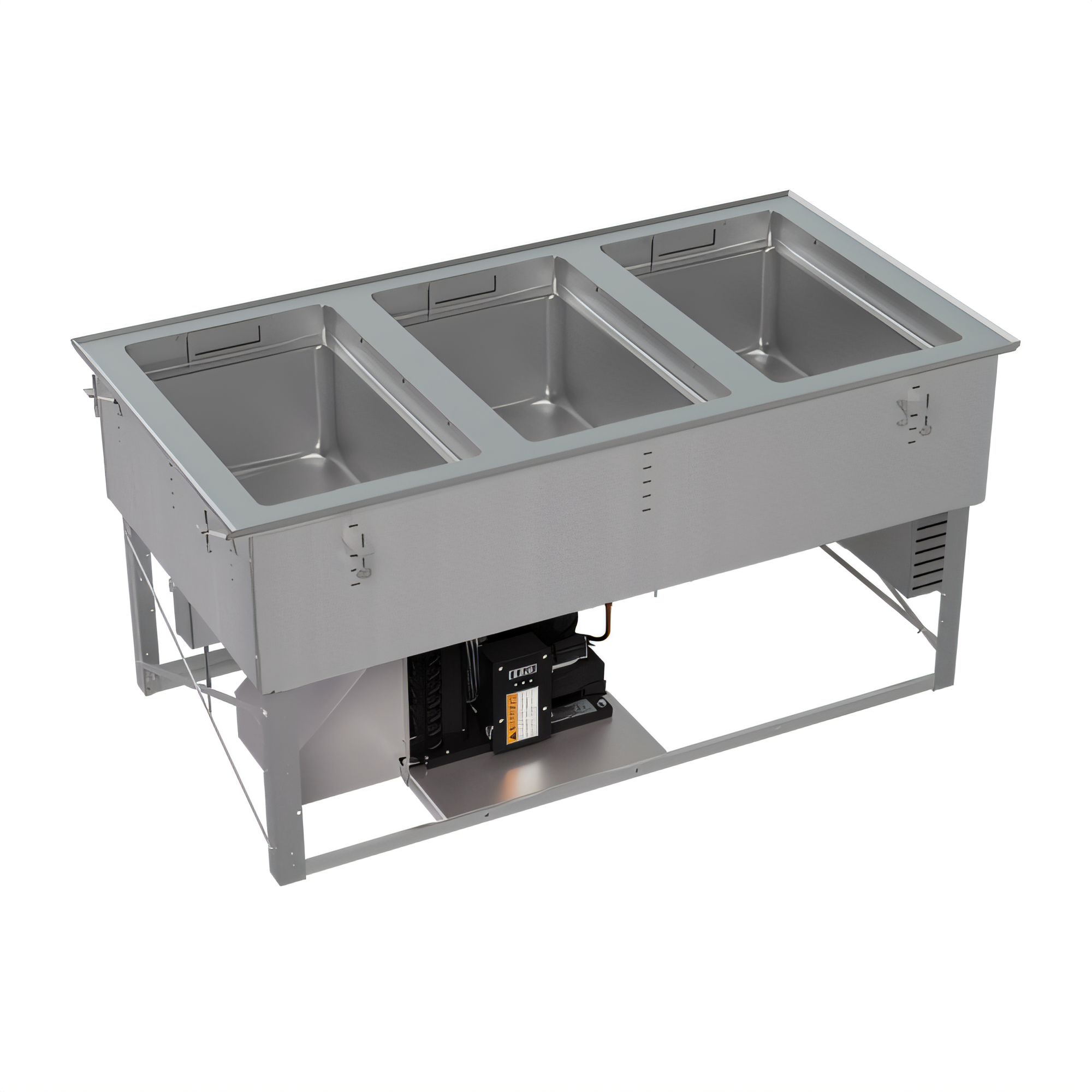

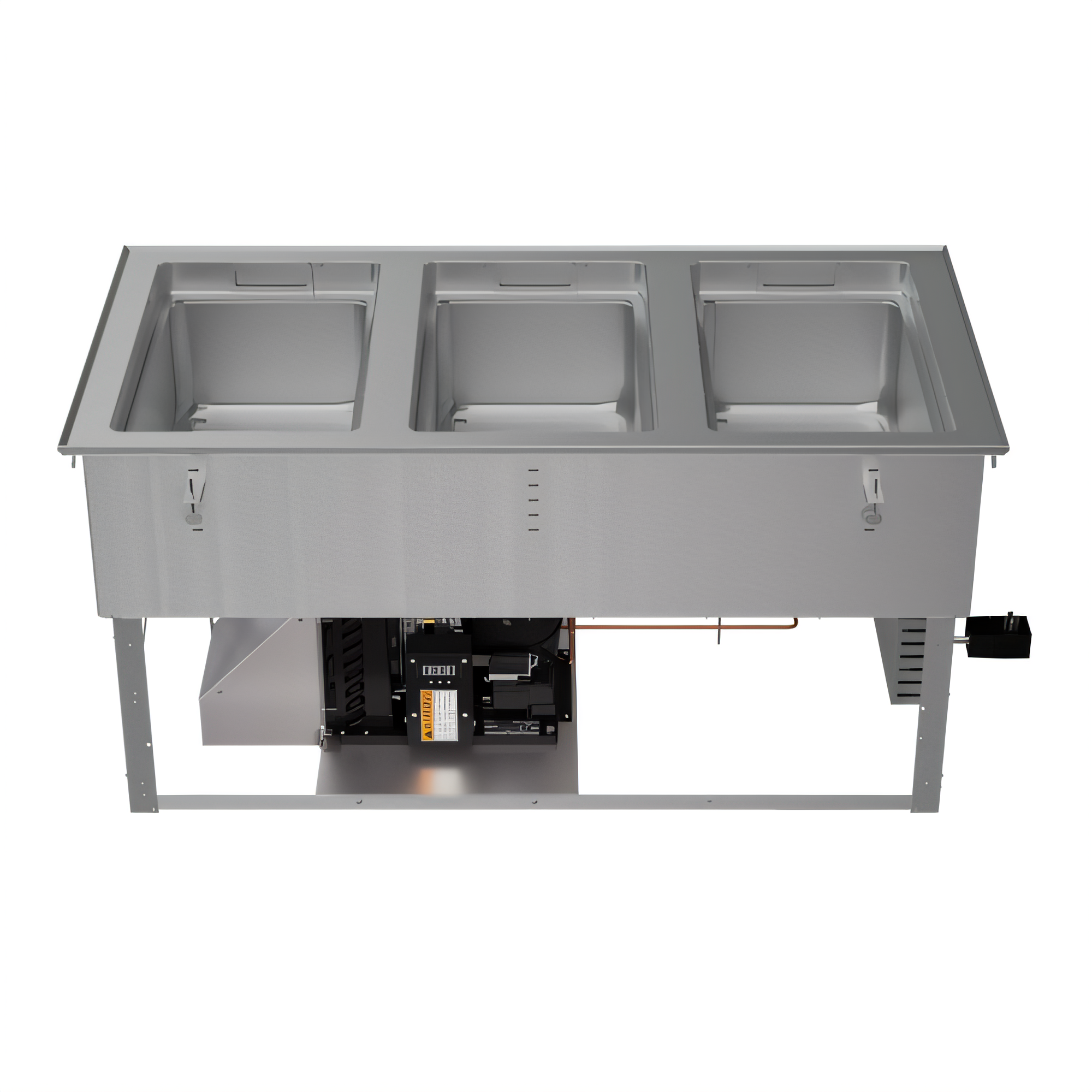

Vollrath FC-HCF-03120-AD-FF Steam Tables & Food Wells - FC-HCF-03120-AD-FF
One drop-in, three service modes. The Vollrath FC-HCF-03120-AD-FF switches instantly between hot holding, chilled merchandising, or rock-solid frozen storage – all in a single, self-contained unit built to handle the rush of commercial foodservice.
Features
-
Triple-mode versatility – each of the three wells operates independently in HOT, COLD, or FROZEN mode.
-
Auto-Drain convenience – integrated ¾ in. drain automatically removes water when switching from hot to cold operation.
-
Flush, clean install – flat 18-ga 300-series stainless flange sits level with the countertop for a seamless look.
-
Smart electronic interface – intuitive touch/knob control, 4 ft (1.2 m) detachable lead for remote mounting.
-
Built for real-world duty – wells, top, and user interface are all heavy-gauge stainless steel for maximum durability.
-
Eco-forward refrigeration – R290 hydrocarbon refrigerant delivers high efficiency with ultra-low GWP.
-
Plug-and-play power – ships with 6 ft cord and NEMA 5-20P plug; no remote compressor or plumbing kits needed.
-
Made in the USA – engineered and manufactured in Sheboygan, Wisconsin; backed by a 2-year Vollrath warranty.
- Buffet & salad bars that rotate menus throughout the day
- QSR lines needing rapid change-over from breakfast to lunch
- C-stores and cafeterias wanting frozen desserts beside hot entrées
- Ghost-kitchen pass-throughs requiring flexible holding options
Specifications
| Model |
FC-HCF-03120-AD-FF |
| Capacity |
3 full-size food pans (or fractional pans with adapter bars) up to 6" (15.2 cm) deep |
| Overall Dimensions (W × D × H) |
49.8" × 26.0" × 24.4" (126.5 × 66.0 × 62.0 cm) |
| Countertop Cut-out (W × D) |
49" × 25 ¼", ⅞" corner radius |
| Compressor |
¼ HP, self-contained |
| Refrigeration |
R290 Hydrocarbon, 130 g charge |
| Performance |
2,800 BTUH (cold) / 6,400 BTUH (hot) |
| Electrical |
120 V / 60 Hz / 1-ph, 1,875 W, 15.5 A, NEMA 5-20P |
| Drain |
¾" (1.9 cm) integral auto-drain |
What our Experts Think
-
Triple-mode flexibility: Each of the three wells operates independently, keeping hot dishes, chilled salads, or frozen desserts at optimal serving temperatures.
-
Durable commercial-grade construction: Made from 18-gauge 300-series stainless steel to withstand heavy use in busy foodservice environments.
-
NSF-compliant cold-air refrigeration: Cold/frozen wells use a 2-inch cold-wall recess to maintain safe temperatures and proper food preservation.
-
Installation-friendly drop-in design: Flat-flange top and standard cutout footprint allow clean installation into counters up to 3″ thick.
-
Simplified operation and maintenance: Integrated auto-drain reduces manual draining tasks, and the unit is plug-and-play for easy setup.
Q&A
Q: What is the FC‑HCF‑03120‑AD‑FF designed for?
A: It’s a heavy-duty drop-in steam table and food-well unit built for commercial kitchens, buffet stations, or catering setups that require flexible hot, cold, or frozen food holding.
Q: How many wells does it have and what holding modes are available?
A: It has three wells, each of which can operate independently in hot, cold, or frozen mode, providing versatility for varied food-service needs.
Q: What kinds of food pans can it accommodate?
A: It accepts full-size and fractional food pans up to 6 inches deep, suitable for standard buffet or service pans.
Q: What materials and construction quality does it offer?
A: Constructed from 18-gauge 300-series stainless steel, with foam-in-place insulation and refrigeration coils around the wells for efficient thermal performance.
Q: What installation or operational convenience features does it include?
A: Features an integral ¾-inch drain, mounts into counters up to 3 inches thick, plugs into a standard 120 V outlet, and is self-contained for simple setup.
Q: What are the unit’s dimensions and power requirements?
A: Dimensions are approximately 49.8" (W) × 26" (D) × 24.4" (H). It draws about 15.5 amps, with roughly 625 watts per well when heating.
Maintenance Tips
-
Clean daily with warm, soapy water to remove food residue and prevent buildup.
-
Wipe and sanitize surfaces after each use to maintain hygiene and prevent cross-contamination.
-
Check water levels regularly in wells to ensure even heating and prevent damage to heating elements.
-
Descale periodically based on water hardness to maintain heating efficiency.
-
Inspect electrical and heating components routinely for safe operation.
-
Avoid abrasive cleaners or scrubbers that can damage stainless steel surfaces.
-
Schedule professional maintenance as recommended to prolong equipment lifespan
