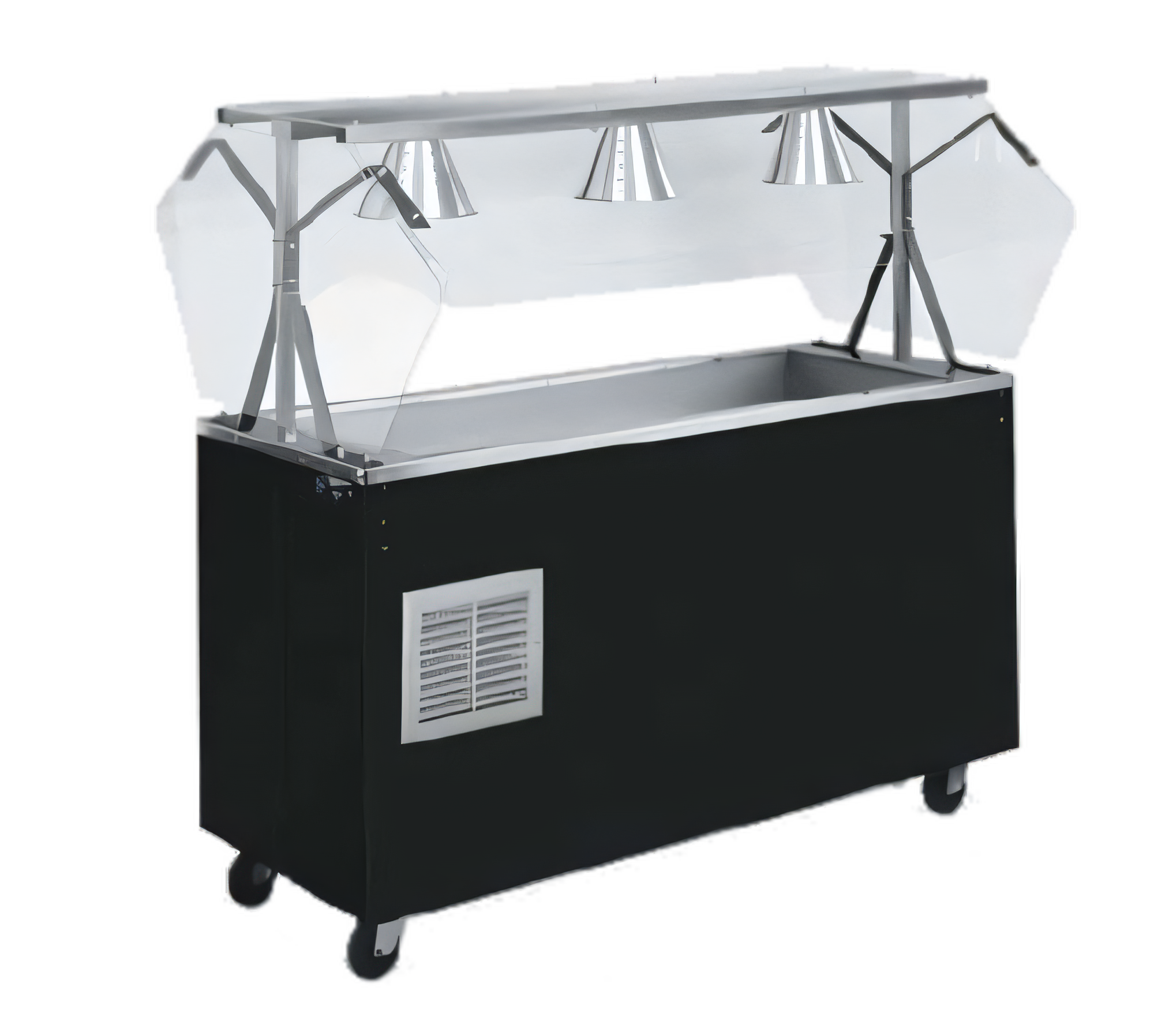

Vollrath R3871760 2-Series Affordable Portable Serving Counters - R3871760
Model R3871760 • Black wrapper • Made in USA
Roll in perfectly chilled salads, fruits and desserts wherever they’re needed. The Vollrath 2-Series Affordable Portable refrigerated station keeps four full-size pans cold, brightly lit and protected behind a crystal-clear NSF 2 buffet breath guard—all on a compact, easy-to-move footprint.
Features
- 4-pan mechanically refrigerated well (6" deep) uses eco-friendly R290 refrigerant.
- Factory-installed buffet breath guard (12" clearance) in fully enclosed clear acrylic—NSF 2 certified for self-service lines.
- Integrated light fixtures showcase product (40 W max per socket, bulbs sold separately).
- Open storage base keeps backup product, utensils or cleaners close at hand.
- Durable 20-ga vinyl-clad carbon-steel exterior with 18-ga stainless work surface.
- Foamed-in-place polyurethane insulation and 1" drain for fast, sanitary clean-up.
- 8 ft cord with NEMA 5-15P plug—standard 120 V/1-phase outlet, no hard-wiring.
- Four swivel casters (front two locking) for quick set-up and rock-solid stability.
- UL & NSF listed; compressor backed by an extra 4-year warranty (total 5 years).
- Built to order in Wisconsin—ships in about 15 working days from order entry.
Specifications
| an Capacity |
4 full-size 12" × 20" pans, 6" deep |
| Overall Dimensions |
60" W × 39 ½" D × 35" H (152.4 × 100.3 × 88.9 cm) |
| Clearance Required |
3" (7.6 cm) minimum in front of vents |
| Compressor |
1/3 HP, R290 (55 g charge), 4,800 BTU/h heat rejection |
| Electrical |
120 V / 60 Hz / 1-ph, 6.5 A, NEMA 5-15P plug |
| Drain |
1" (2.54 cm) integral with garden-hose adapter |
| Construction |
20-ga vinyl-clad carbon-steel wrapper; 18-ga stainless top |
| Mobility |
4 casters (4"), 2 locking |
What our Experts Think
-
Dependable cold-holding performance: The built-in refrigeration and insulated stainless-steel well maintain safe, consistent temperatures for salads, fruits, desserts, and other chilled items.
-
Ample capacity: Holds four full-size pans in a 6" deep well — ideal for busy buffets, cafeterias, or continuous-service operations.
-
Front-of-house ready: Clear enclosed breath guard with overhead lighting provides strong food visibility while maintaining hygiene standards.
-
Smooth service flow: Open-storage base keeps extra pans and supplies accessible for quick refills during peak times.
-
Easy mobility and cleanup: Locking swivel casters allow flexible positioning, while the integrated drain makes end-of-day cleaning fast and simple.
Q&A
Q: What is the R3871760 used for?
A: It’s a portable serving counter designed for cold food presentation in cafeterias, schools, and buffets.
Q: How many pans can it hold?
A: It supports four full-size 12" × 20" pans up to 6" deep.
Q: What type of cooling does it have?
A: A mechanically refrigerated cold well that maintains safe, consistent cold temperatures for extended service.
Q: Is it mobile?
A: Yes — it includes heavy-duty locking casters for easy transport and secure placement.
Q: What is the construction quality?
A: Features a stainless-steel top, durable vinyl-clad exterior, and an NSF protective breath guard.
Q: Does it offer storage?
A: Yes, it includes open base storage for utensils, pans, or backup items.
Q: What electrical setup is required?
A: Standard 120V, 60 Hz operation with a plug-and-play design.
Maintenance Tips
-
Clean daily with warm, soapy water to remove food spills and prevent residue buildup.
-
Sanitize all surfaces regularly to maintain hygiene and avoid cross-contamination.
-
Inspect casters, hinges, and hardware periodically to ensure smooth, safe mobility.
-
Wipe stainless-steel areas after use to preserve appearance and reduce corrosion.
-
Avoid abrasive cleaners or pads that can scratch or damage finishes.
-
Check structural components for loosened parts or wear to ensure durability.
-
Schedule routine professional maintenance to extend equipment life and performance.
