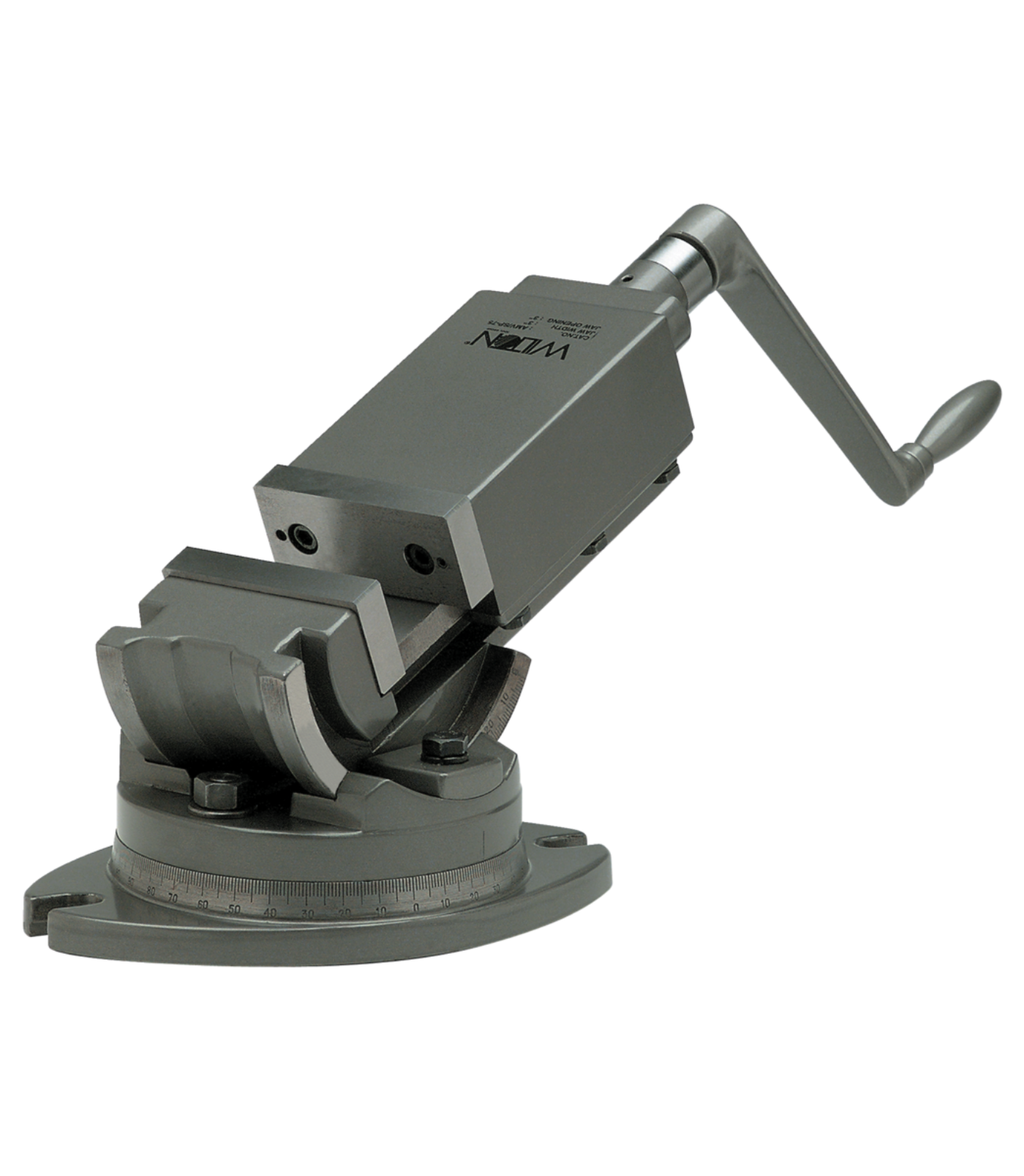

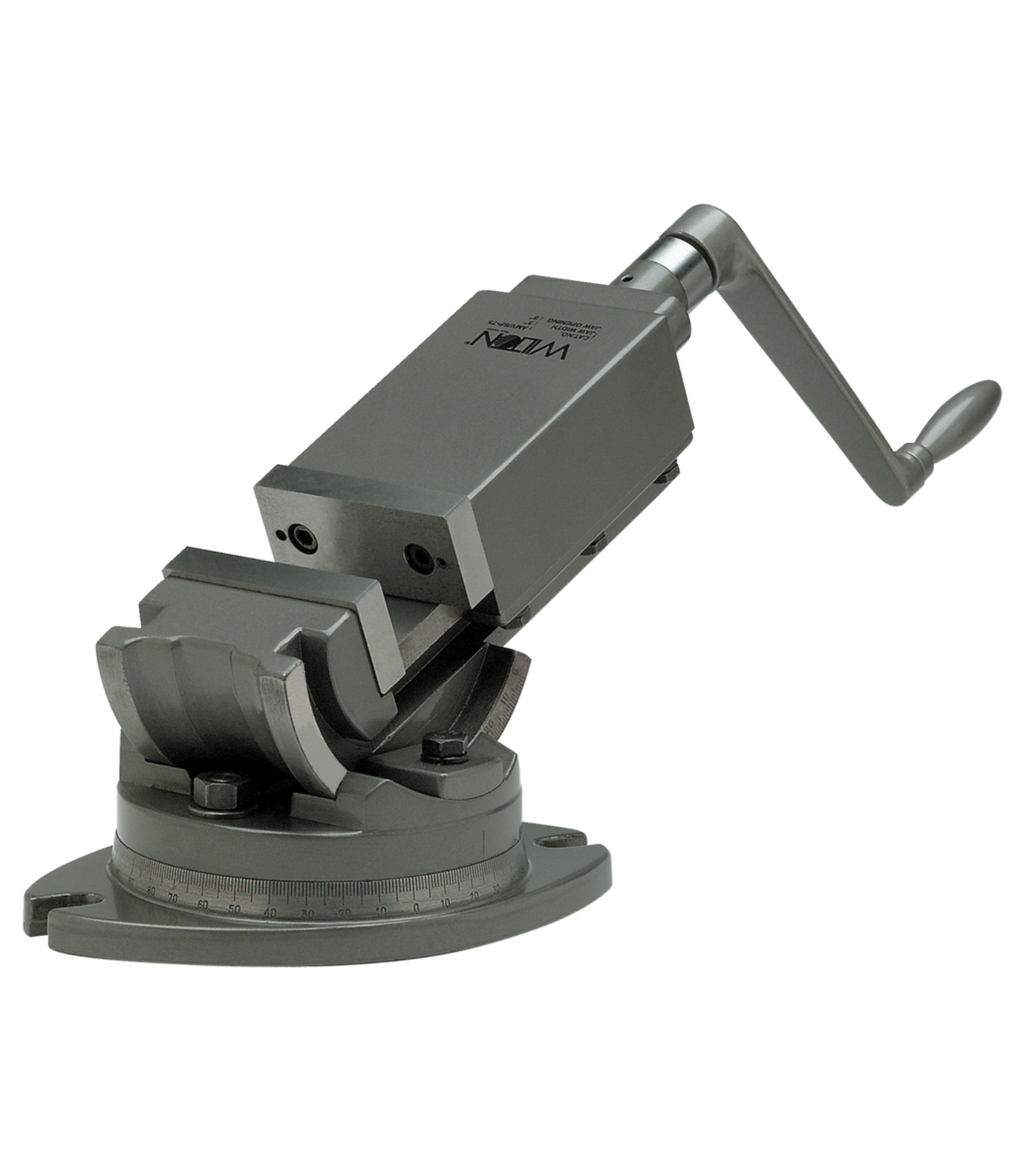

    WILTON 3" 2-Axis Precision Angular Vise - WL9-11704

    Wilton's line of 2 Axis Machine Vises are perfect for applications that require machining on an angle. These high precision vises are constructed of close grained, high tensile alloy castings. All boast 90 degree vertical and 180 degree horizontal indexing, 360 degree swivel base, and 90 degree

    Features
    • 180 deg Horizontal indexing.
    • 360° swivel base.
    • 90° vertical and 180° horizontal indexing.
    • All ground surfaces made to close tolerances.
    • Bases have keyways and bolt slots for machine mounting.
    • Hardness of jaws is 55 ± 3 HRC.
    • Jaw plates hardened and ground.
    • Perfect vise for applications where the workpiece requires machining on an angle.
    • Perfectly indexed for angular work.
    • Relief in the clamp seat ensures complete surface contact providing firm locking at any angle.
    Specifications
    Jaw Depth 1-5/16"
    Jaw Width 3"
    What our Experts Think
    • Precision Angle Machining: The WILTON 3″ 2‑Axis Precision Angular Vise – WL9‑11704 is engineered for machining at precise angles, with 90° vertical indexing, 180° horizontal indexing, a 360° swivel base, and a 90° tilting range — perfect for milling, drilling, grinding, shaping, and jig boring at non‑standard angles.

    • Accurate, Durable Construction: Made from close‑grained, high‑tensile alloy castings with hardened and ground jaw plates (≈ 55 ± 3 HRC) and all ground surfaces to close tolerances, this vise holds workpieces securely while maintaining repeatable precision.

    • Firm Lock at Any Angle: Relief in the clamp seat ensures complete surface contact and secure clamping during angled operations — helping avoid movement under load.

    • Smooth Workpiece Positioning: The 360° swivel base with keyways/bolt slots lets you orient and lock the vise easily on machine tables, reducing setup time and improving workflow.

    • Ergonomic Handling: All‑steel handle with spring‑loaded ball provides comfortable, controlled adjustments for repetitive setups.

    • Balanced Size & Capacity: With a 3″ jaw width, up to 3″ opening, and 1‑5/16″ jaw depth, this vise delivers versatile capacity for medium workpieces without taking up excessive table space.

    Q&A

    Q: What is this precision angular vise used for?
    A: It holds workpieces securely while allowing precise 2‑axis angle adjustments for drilling, milling, and machining.

    Q: What does 2‑axis capability mean?
    A: The vise tilts on two planes, enabling flexible positioning and accurate angular alignment.

    Q: What is the jaw width of this vise?
    A: It has a 3‑inch jaw width for firm and stable clamping of small to medium parts.

    Q: Is this vise suitable for professional precision work?
    A: Yes, it is designed for machinists, toolmakers, and precision engineering applications.

    Q: What material is the vise made from?
    A: It is constructed from durable, heavy‑duty metal for reliable, long‑lasting performance.

    Q: Can it be mounted on a machine table?
    A: Yes, it is designed for secure mounting on drill presses, milling machines, and workbenches.

    Maintenance Tips
    • Clean jaws, slides, and angular surfaces after each use to remove debris.

    • Lightly lubricate lead screws and swivel/tilt mechanisms for smooth operation.

    • Keep all surfaces dry to prevent rust and maintain precision.

    • Avoid overtightening to protect alignment and accuracy.

    • Store in a dry area; apply light rust protection if unused for long periods.
