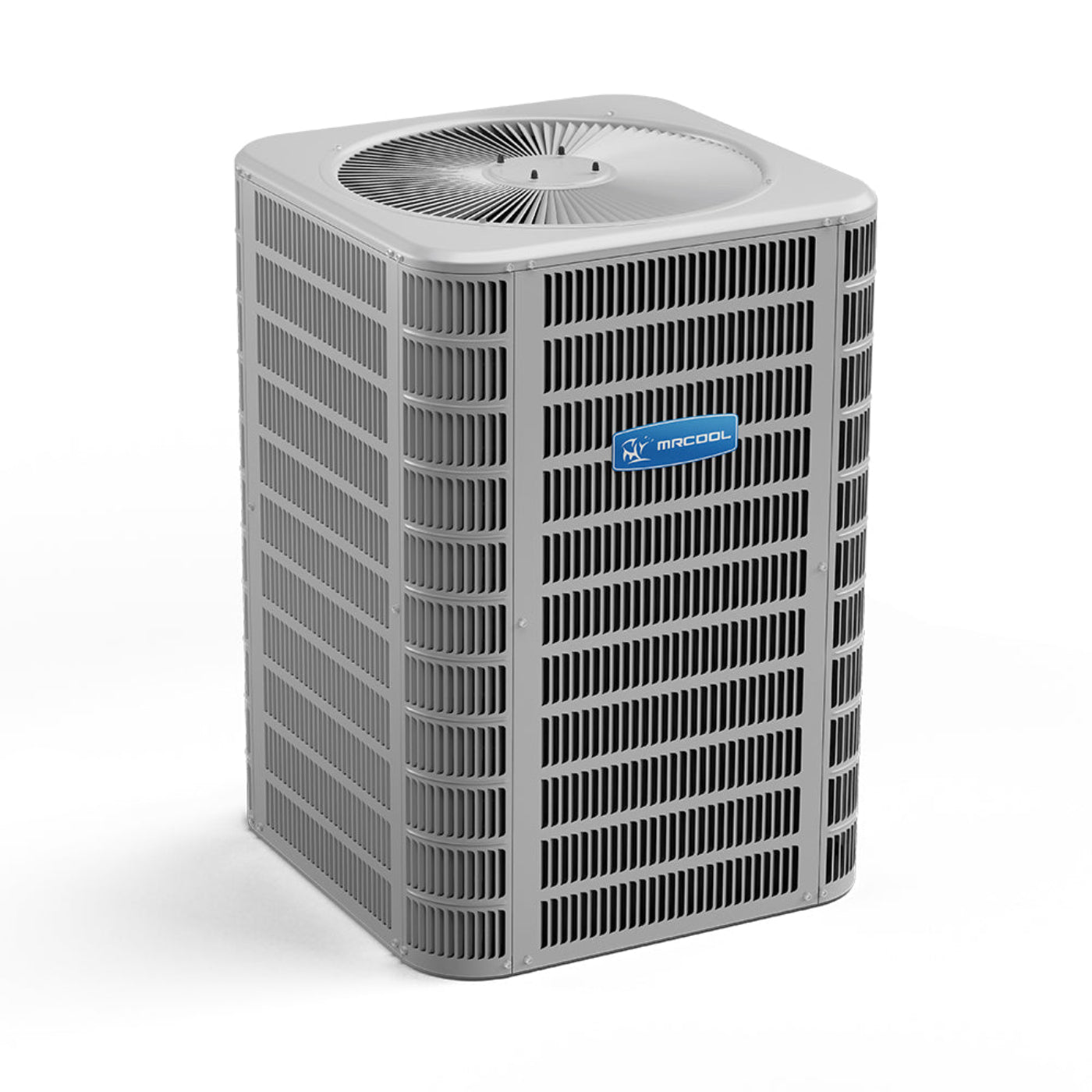

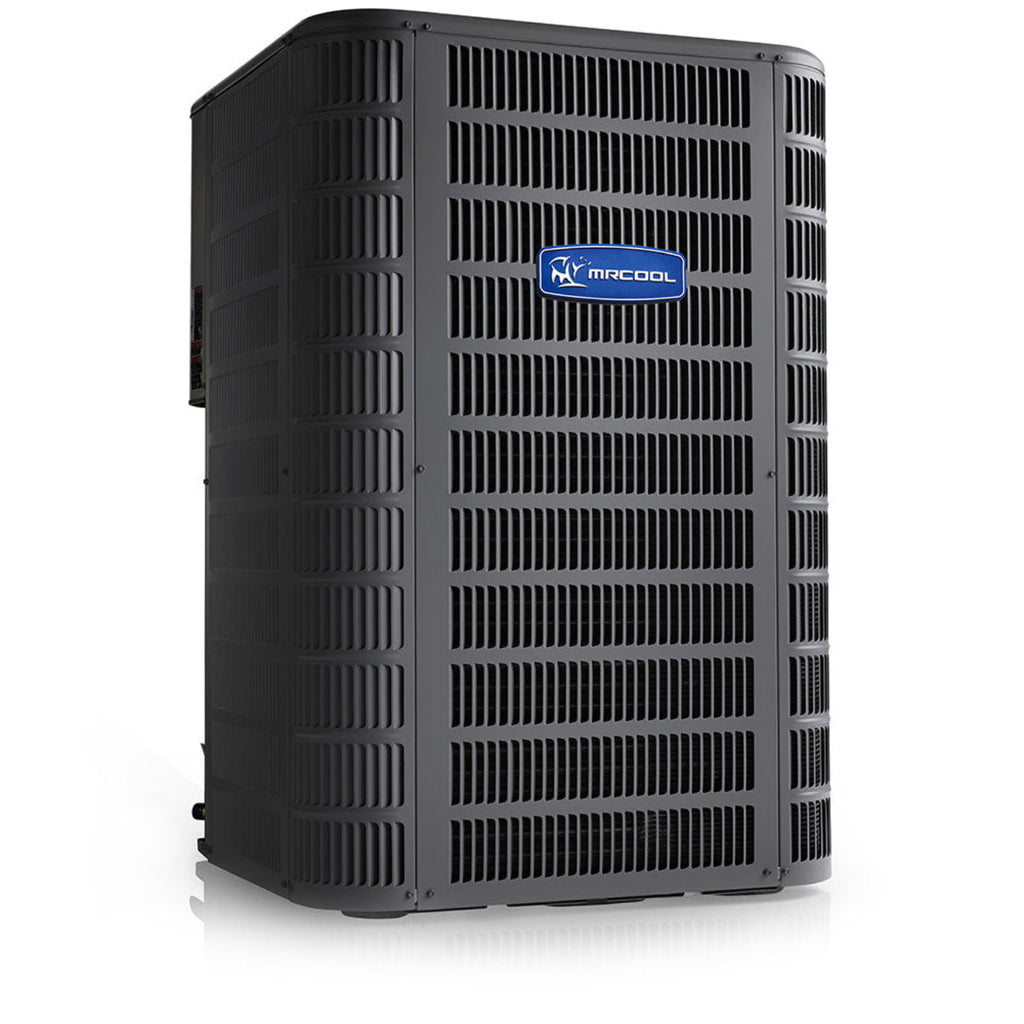

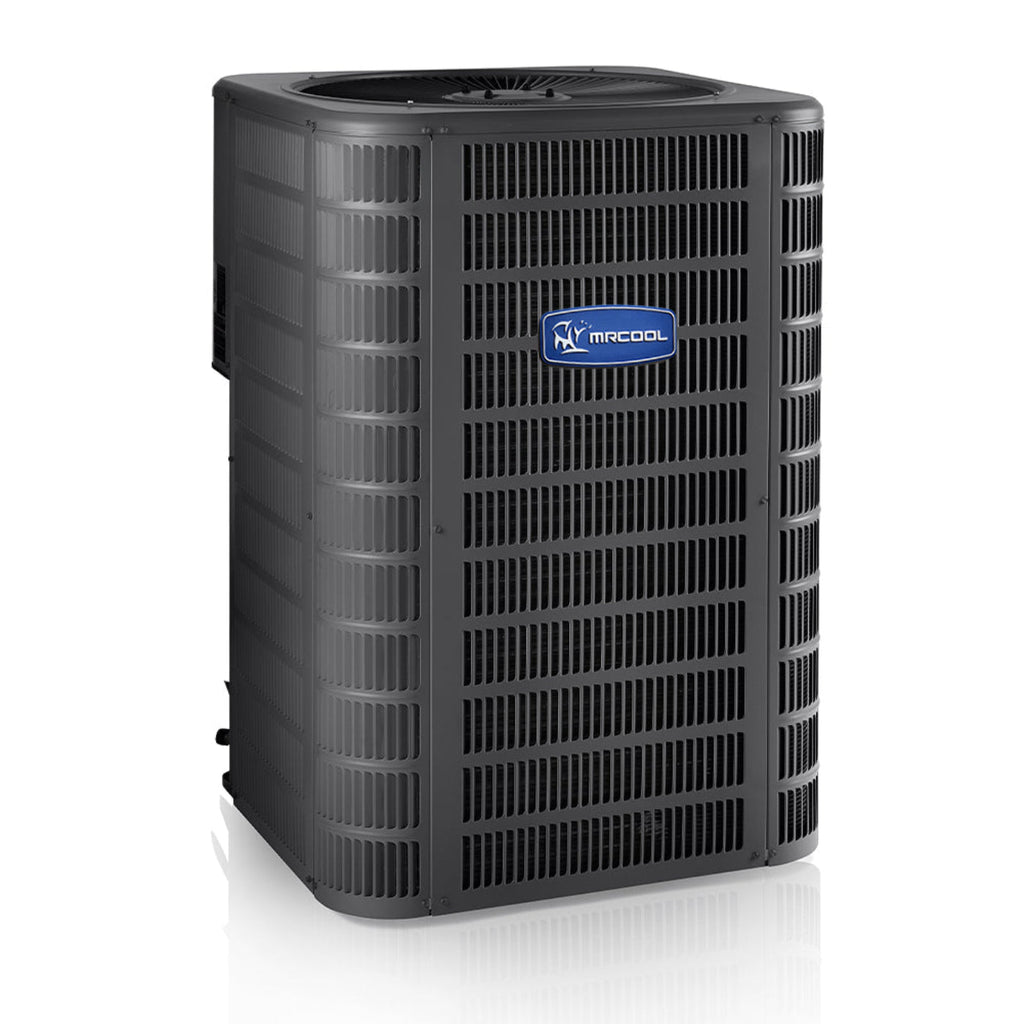

MRCOOL 3 Ton 16 SEER Split System Air Conditioner Condenser, - MAC16036A

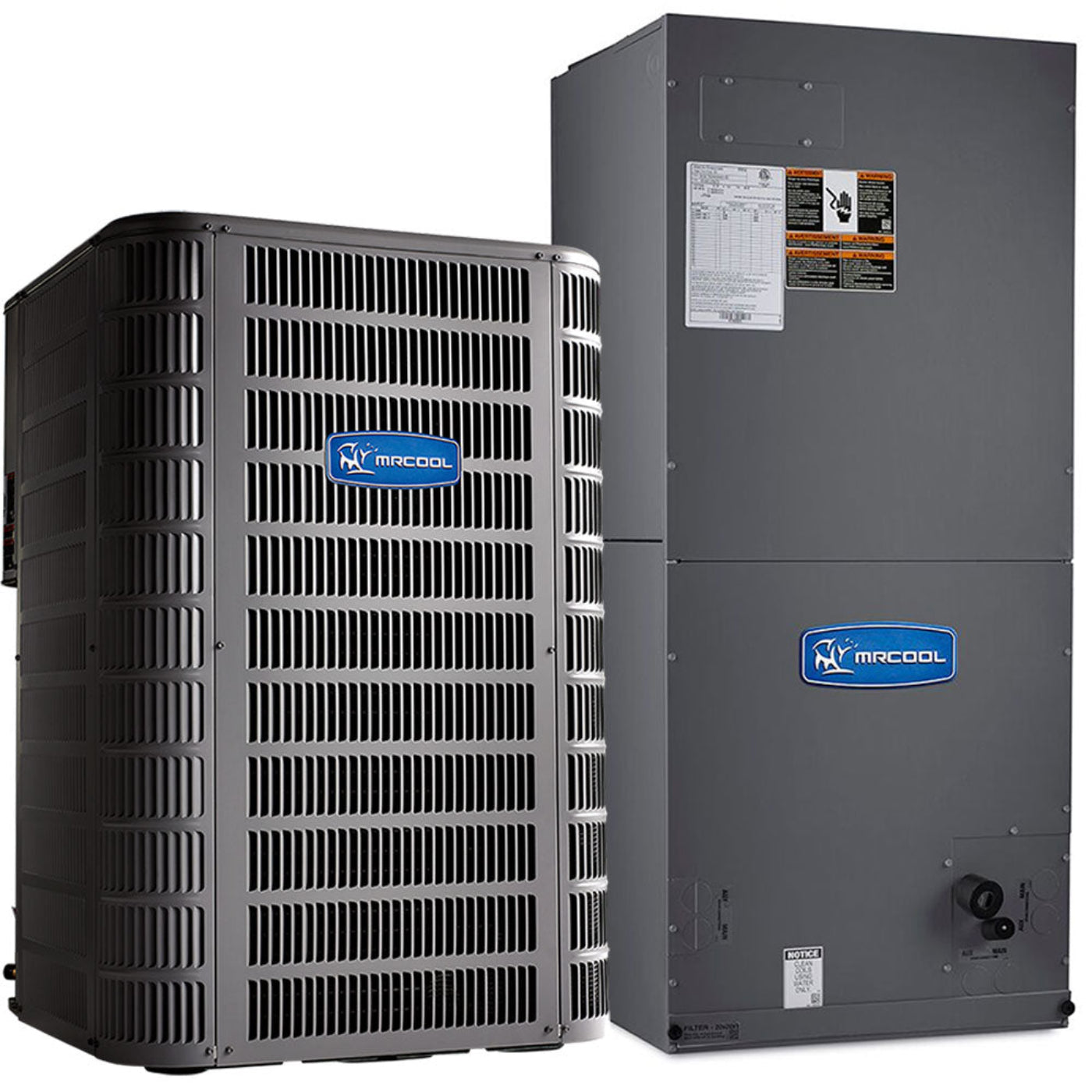

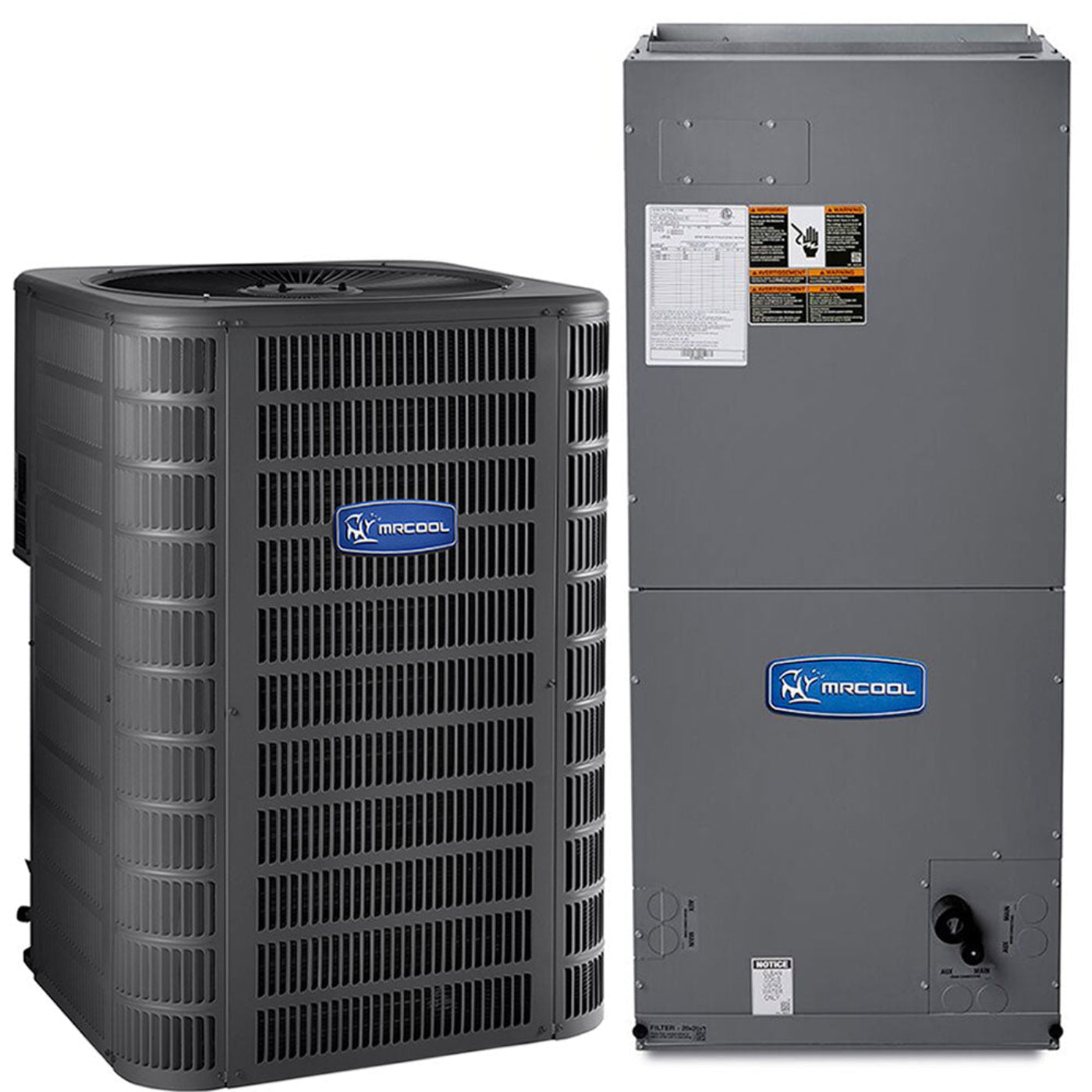

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 3 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).
Features
-
CoolGuard total corrosion protection technology designed coil

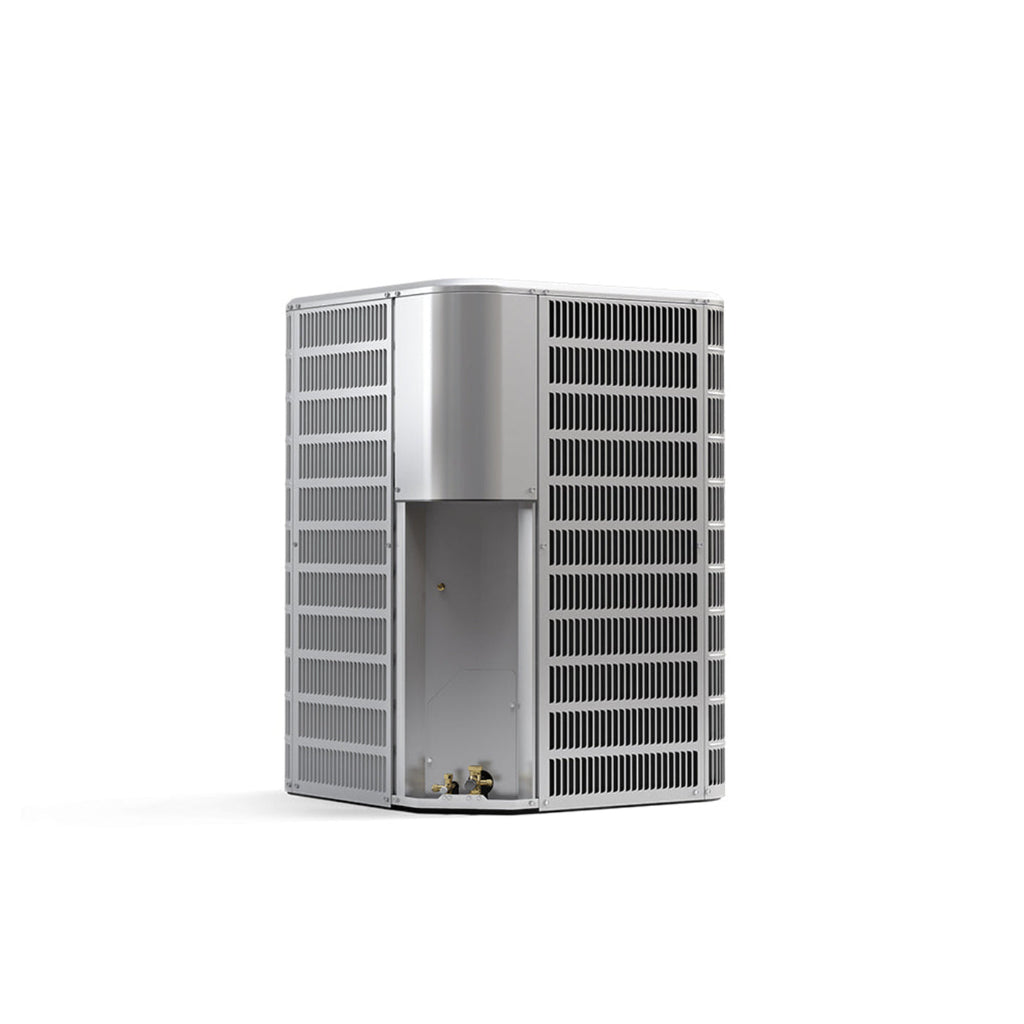

- Corner-mounted controls for easy service

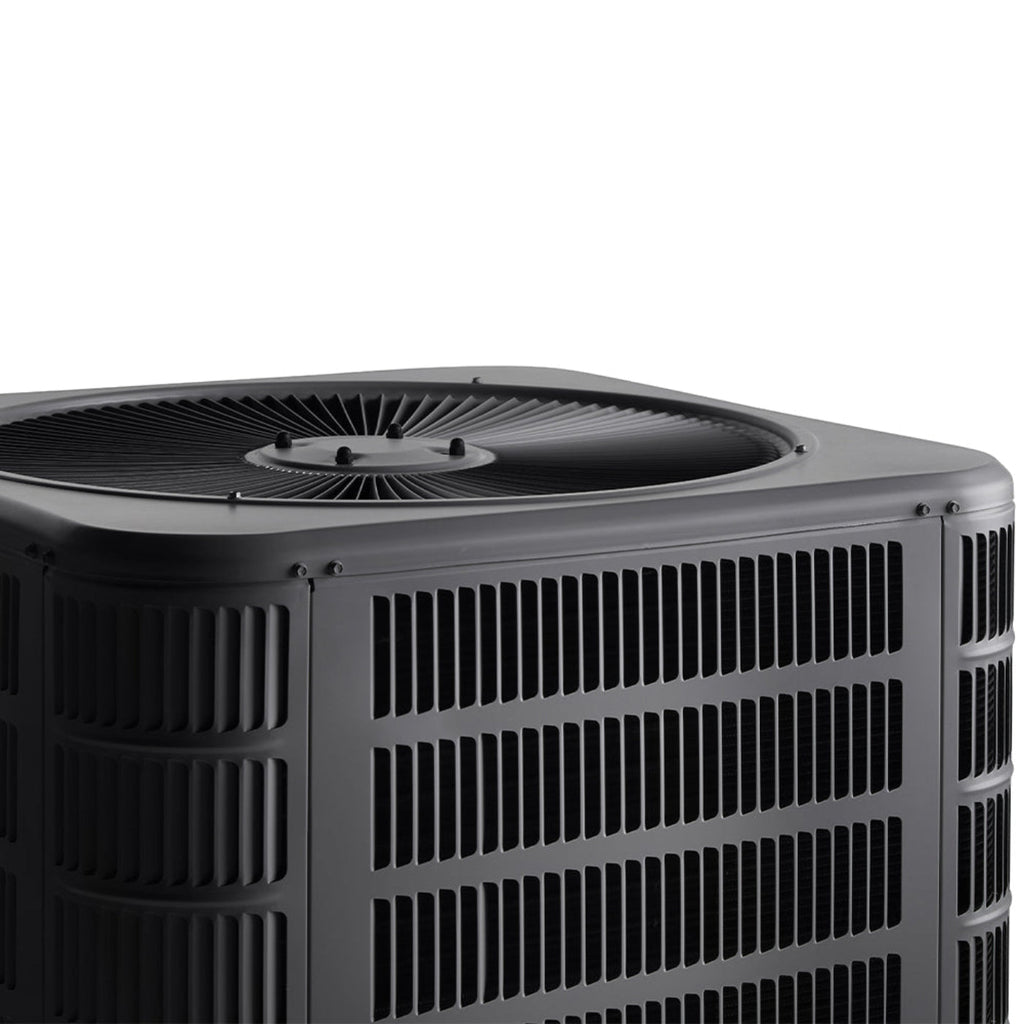

- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set

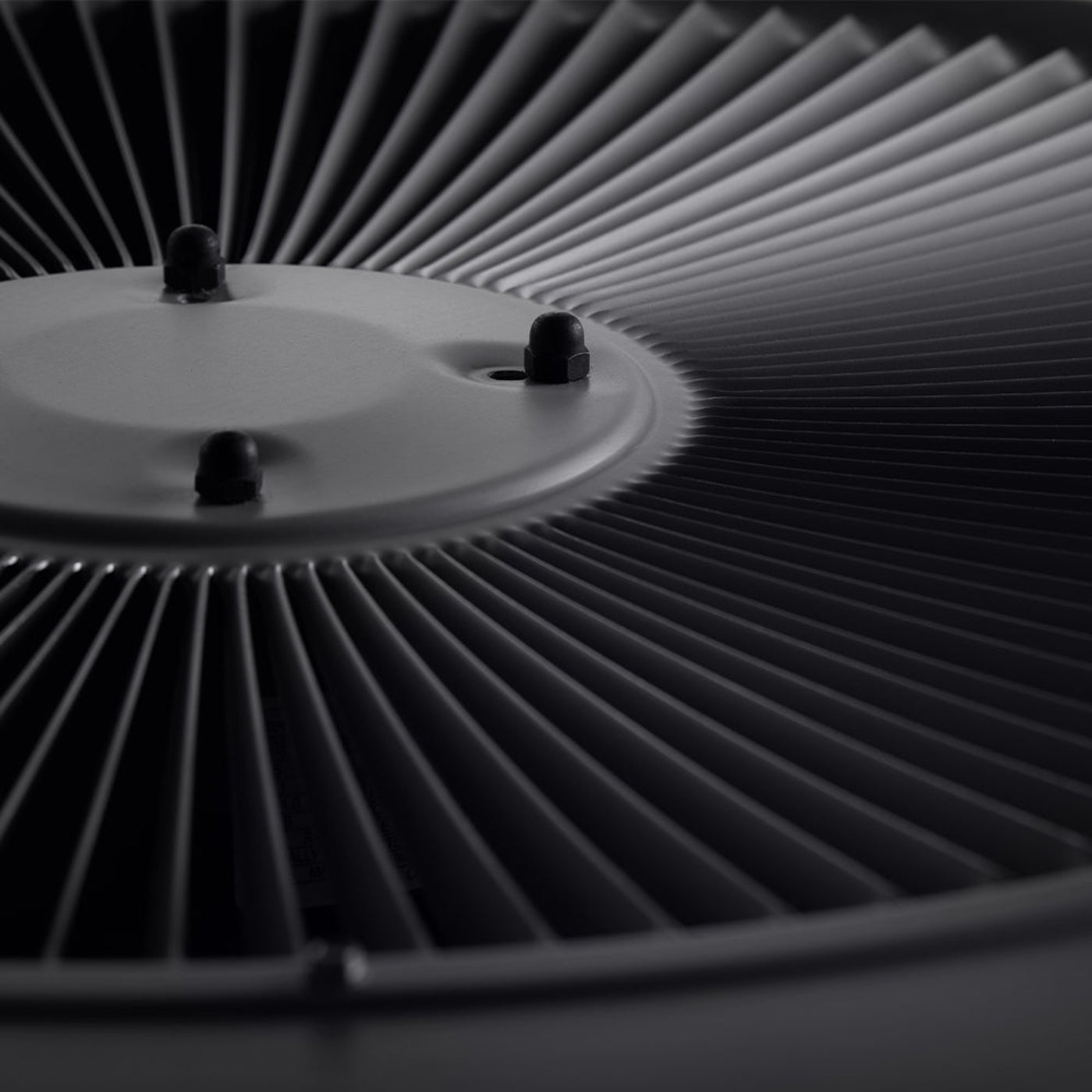

- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- Internally protected against high temperature motor overload conditions
Specifications
| Product Dimensions |
28.25"W x
37"D x
28.25"H |
| Product Weight |
181 lbs |
| Unit Type |
Split System AC Condensers |
| SEER |
up to 16
|
| Max SEER |
16 |
| EER |
12.2 |
| CFM |
1110-1275 |
| Tonnage |
3 |
| Cooling Capacity |
33000-34000 |
| Phase |
1 |
| Cycle |
60 |
| Stage |
Single |
| Max Fuse Breaker |
30 A |
| Min Circuit Ampacity |
18 |
| Color |
Gray |
| Rated Load |
13.6 |
| Max Coverage Area |
1500 |
| Refrigerant Type |
R-410A |
| Refrigerant Volume |
113 |
| Decibel Rating |
76 |
| Min Ambient Cool |
(-20F)
|
| Line Set Length |
15ft, 25ft, 35ft, 50ft |
Max
Line Set Length |
50ft
|
| Line Set Fitting Type |
Sweat |
| Liquid Line Size |
3/8 in |
| Suction Line Size |
7/8 |
| Compressor Motor Type |
Scroll |
| Condenser Fan Motor Type |
Direct Drive |
| Condenser Fan Motor HP |
1/6 |
| Condenser Fan Motor RPM |
825 |
| Metering Device |
TXV |
| Auxiliary Heater |
Yes |
| Auxiliary Heater Sizes |
7.5kw, 10kw, 15kw |
What our Experts Think
-
Efficient Cooling Performance – 3‑ton condenser with 16 SEER provides reliable, energy-efficient cooling for mid-sized homes.
-
Durable Construction – Corrosion-resistant CoolGuard™ coil and robust cabinet ensure long-term outdoor reliability.
-
Energy-Saving Design – High SEER rating helps reduce utility costs while maintaining steady airflow.
-
Quiet Operation – Optimized fan design minimizes noise for smoother, more comfortable operation.
-
Service-Friendly Features – Accessible controls and pressure switch design make maintenance and repairs easier.
Q&A
Q: What is the MRCOOL MAC16036A?
A: A 3 ton (36,000 BTU) outdoor split system air conditioner condenser providing efficient residential cooling. It is a cooling-only unit, not a heat pump.
Q: How energy efficient is it?
A: Supports up to 16 SEER, helping reduce energy usage and lower utility costs.
Q: What refrigerant does it use?
A: Uses R‑410A refrigerant, pre‑charged for convenience and safe operation.
Q: What are its key features?
A: Includes corrosion-resistant coil, metal louvered construction, high-pressure safety switch, and lanced fins for efficient heat transfer and durability.
Q: Is it easy to service?
A: Yes — corner-mounted controls and accessible pressure switches make maintenance and repair straightforward.
Maintenance Tips
-
Keep condenser clean: Remove leaves, dirt, and debris around and inside the unit regularly.
-
Straighten and clean fins: Use gentle brushing or a fin comb to maintain airflow and heat transfer.
-
Inspect fan and motor: Check for buildup or wear; clean blades and ensure smooth operation.
-
Check electrical connections yearly: Ensure tight, corrosion‑free wiring for reliable performance.
-
Monitor performance: Watch for reduced cooling, unusual noise, or frost and address issues quickly.
-
Annual professional tune‑up: Have a technician check refrigerant, capacitors, and overall condenser health.
