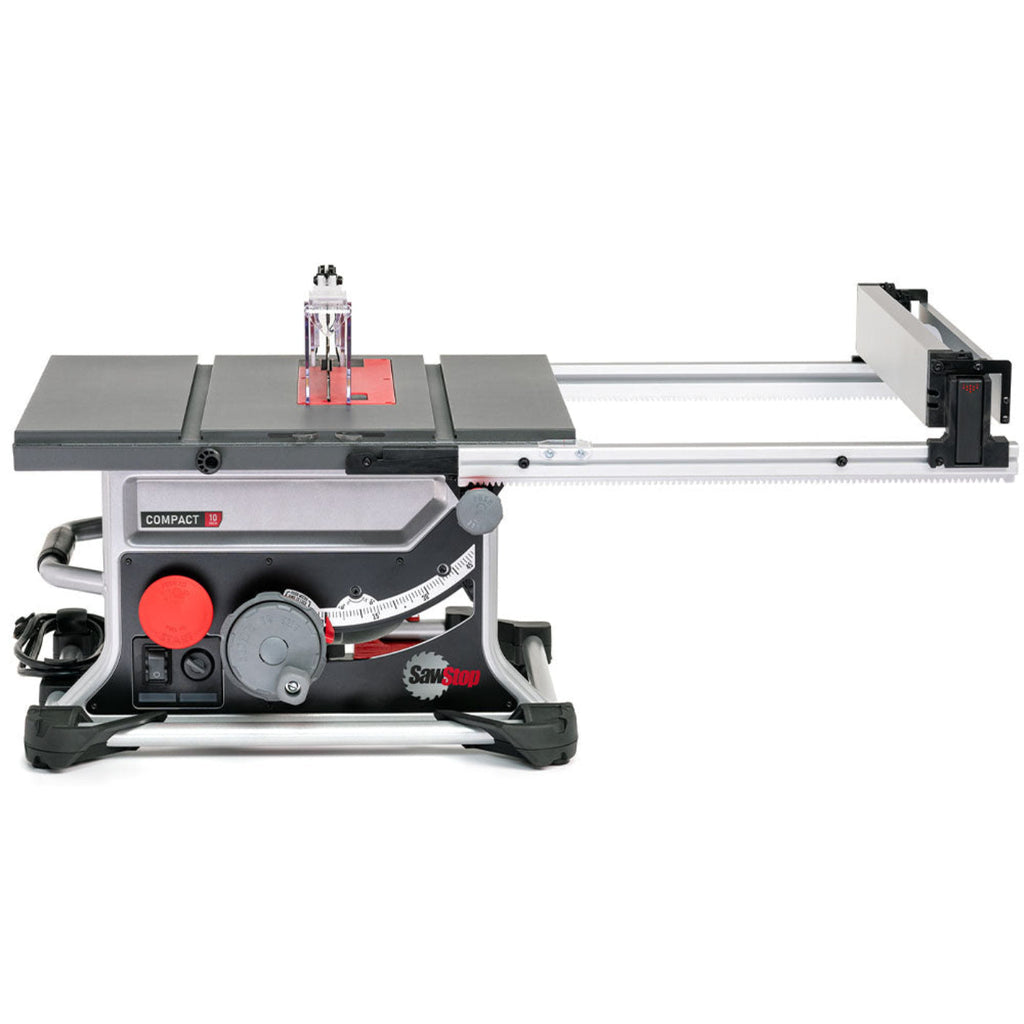

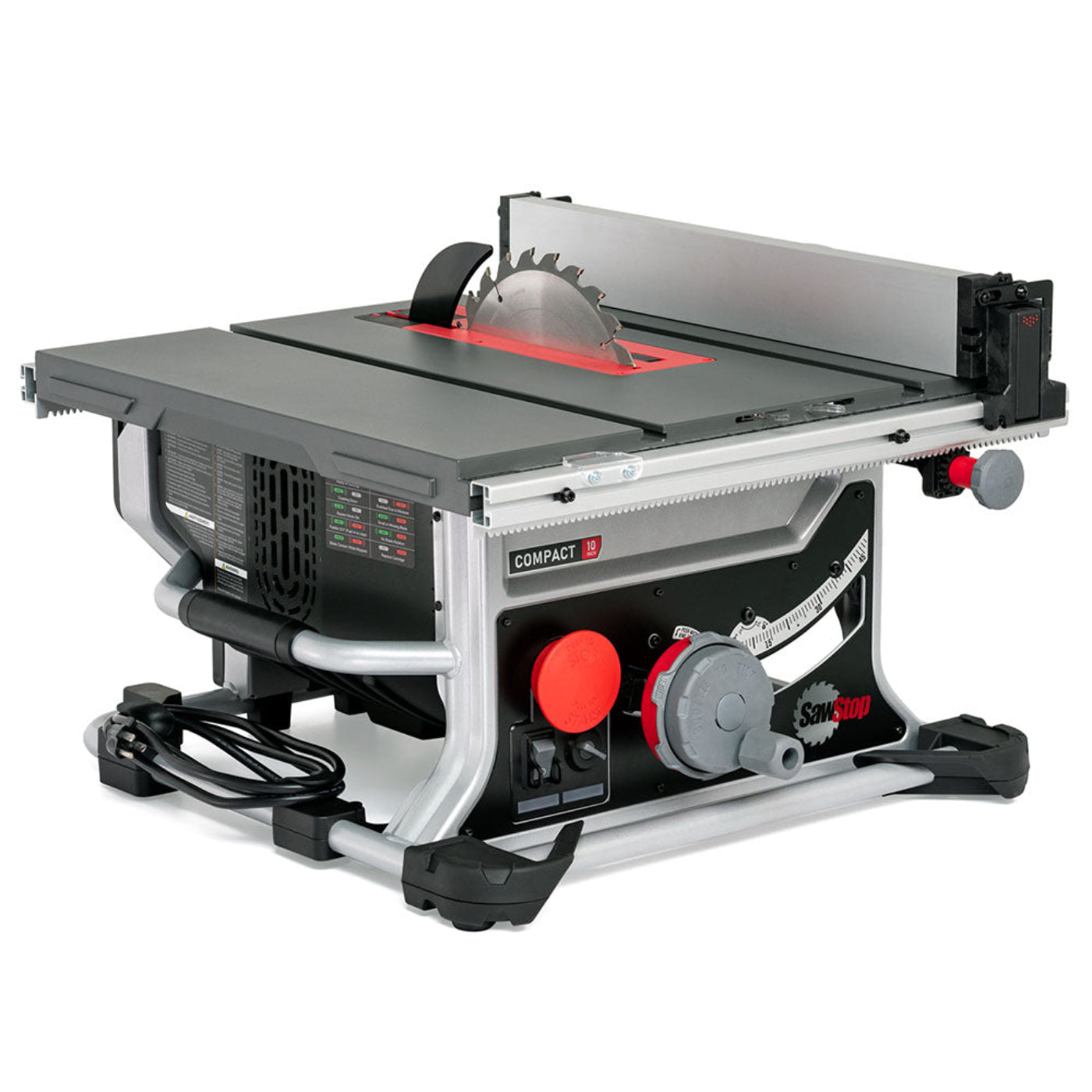

SawStop Compact Table Saw - CTS-120A60
The SawStop Compact Table Saw features SawStop's patented safety system with the mobility you need to work from anywhere — at home or on the job site. With a 10" blade and durable construction, you'll have the power and accuracy you need anywhere you go.
The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly. Need to cut wet wood? Simply use the safety bypass feature so that you do not set off your brake!
The rack and pinion fence is easy to adjust or remove and is always square. The fence has a built-in high and low shelf to support all types of cuts and has a max rip capacity of 24.5". Small parts and thin rips can be made from the low fence and when the fence is extended beyond 12", the low fence can also be dropped down to act as a material support shelf for thin materials.

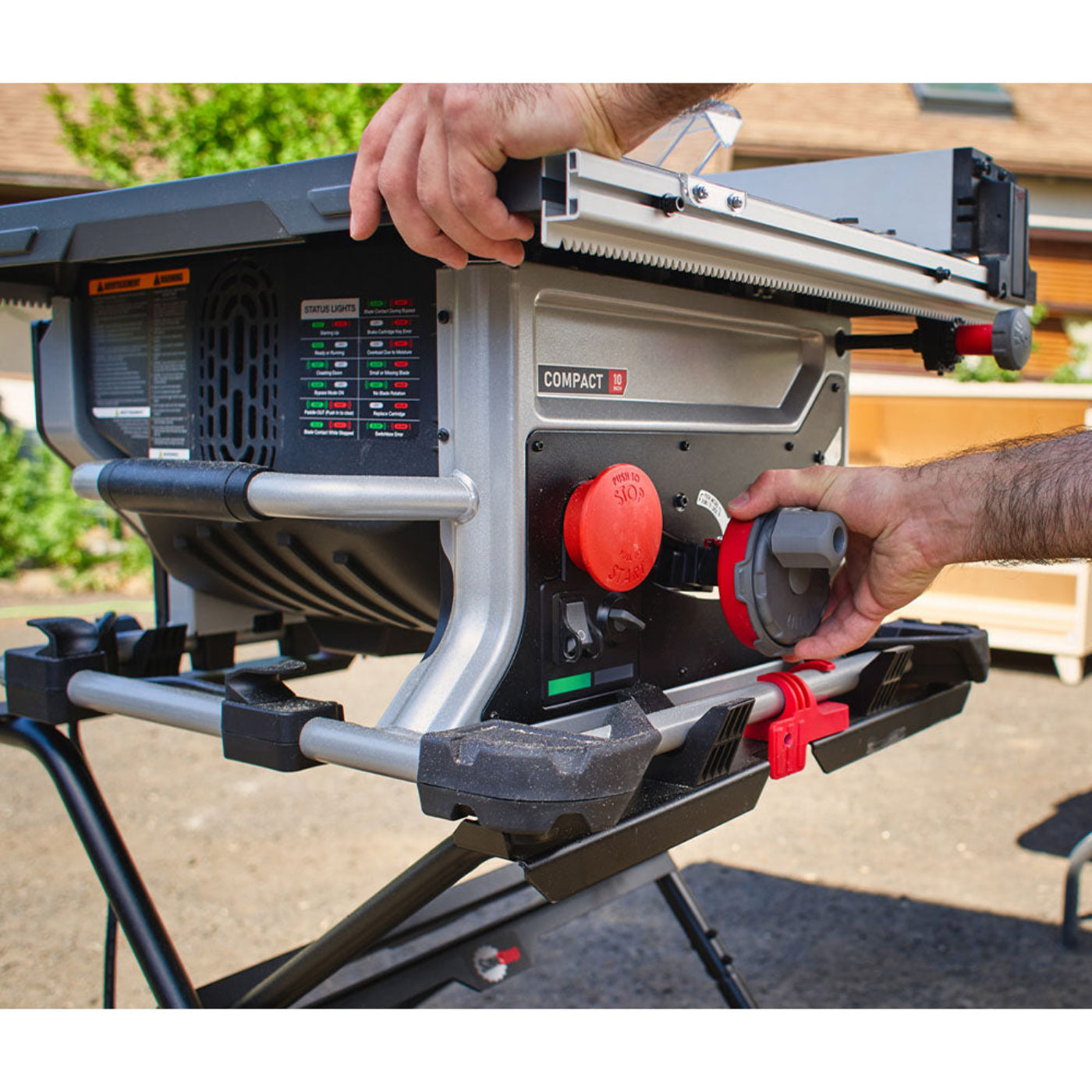

With the quick-tilt bevel, you can quickly and easily tilt the blade to your ideal angle. Adjust your bevel setting from a centrally located knob and further fine-tune in 1° increments with the micro tilt-adjust feature. Dust collection for the CTS is built on an internal shroud that directs dust out of the back of the saw through a 2.5" dust collection port. For additional collection capabilities, simply connect a shop vac with a 2.5" hose to collect dust and keep a your jobsite or shop clean.

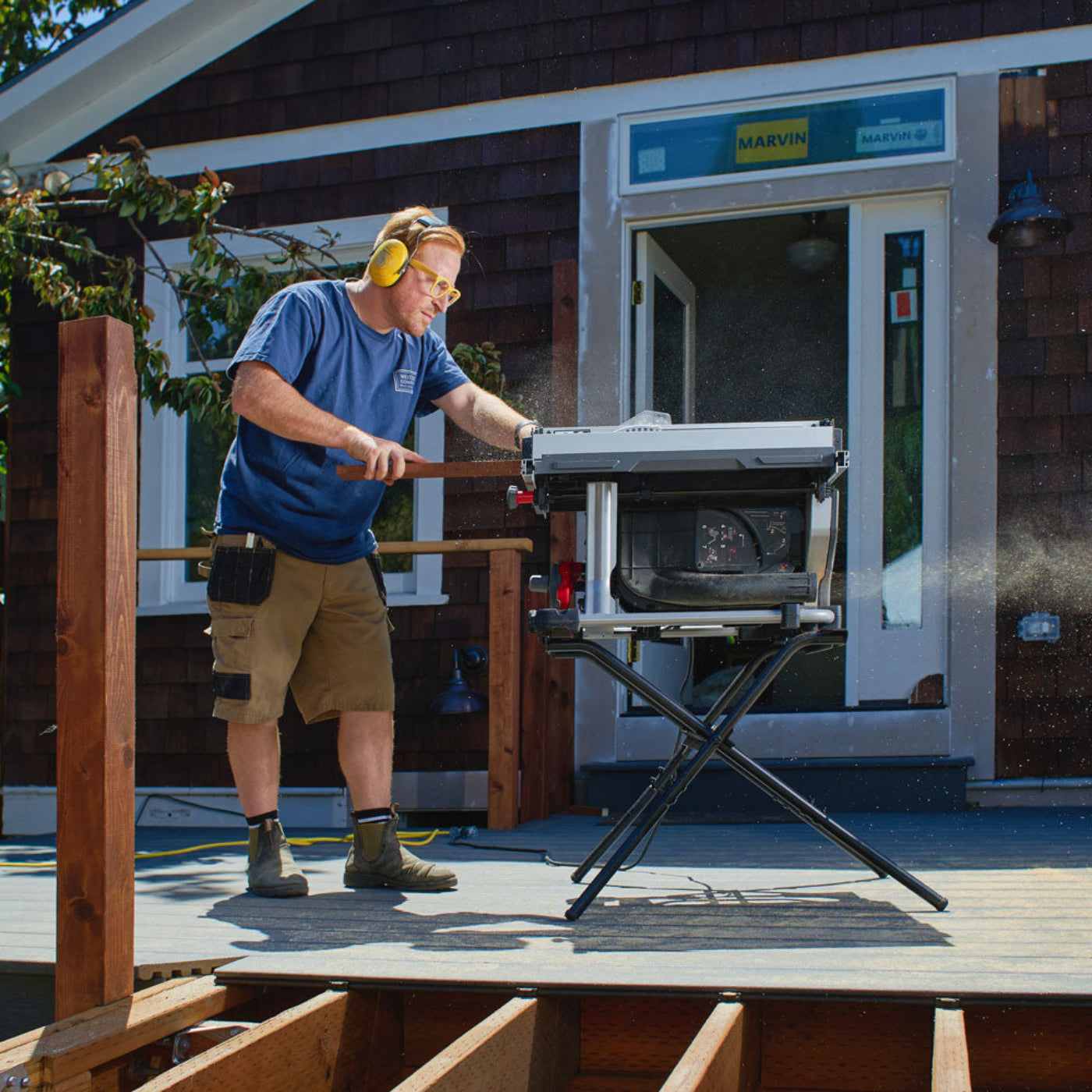

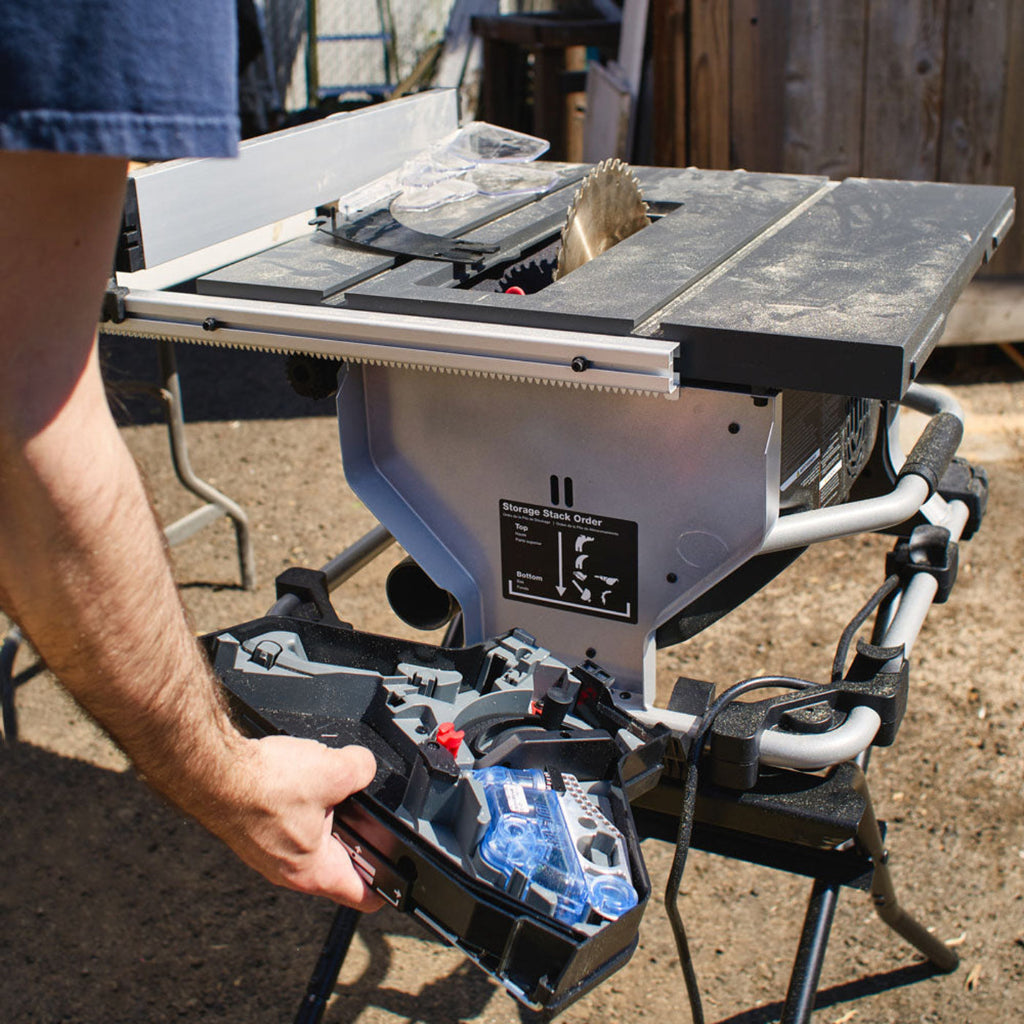

Stay organized with the on-board storage compartment that is mounted to the back of the saw. The wrenches, blade guard and riving knife have a home on the saw so you spend less time searching for your needed tools and parts. Weighing just 68 lbs., the CTS has two easy ways to carry it from the truck to the jobsite. Grab it by the handle and carry it like a suitcase, or grab it two-handed at the grips on each side of the table.
Features
- Patented SawStop Safety System stops on contact with skin
- Exclusive micro-adjust feature allows you to get the most precise cutting angles possible on the jobsite
- Solid Hi-Low Rack & Pinion Fence ensures accurate cuts while supporting wide rips up to 24-1/2"
- Rigid tube structure and rubber feet provide a durable, stable cutting experience
- On-saw storage compartment so you have all the tools you need close at hand
- Standard width miter slot
- 2-Year Warranty with saw registration
Specifications
| Motor: 120 VAC 60 Hz, Universal |
| Amperage: 15A |
| No Load RPM: 4,000 |
| Blade: 10" |
| Max. Depth of Cut, Blade at 0°: 3-1/8" (79.5 mm) |
| Max. Depth of Cut, Blade at 45°: 2-1/8" (54 mm) |
| Max. Rip Capacity, Right of Blade: 24-1/2" (648 mm) |
| Max. Rip Capacity, Left of Blade: 9-1/2" (241 mm) |
| Table Surface (W x D): 23" x 22-5/8" |
| Overall Footprint (H x W x D): 14-1/4" x 23-1/2" x 27" |
| Weight: 68 lbs. |
| Dust Port: 2-1/2" |

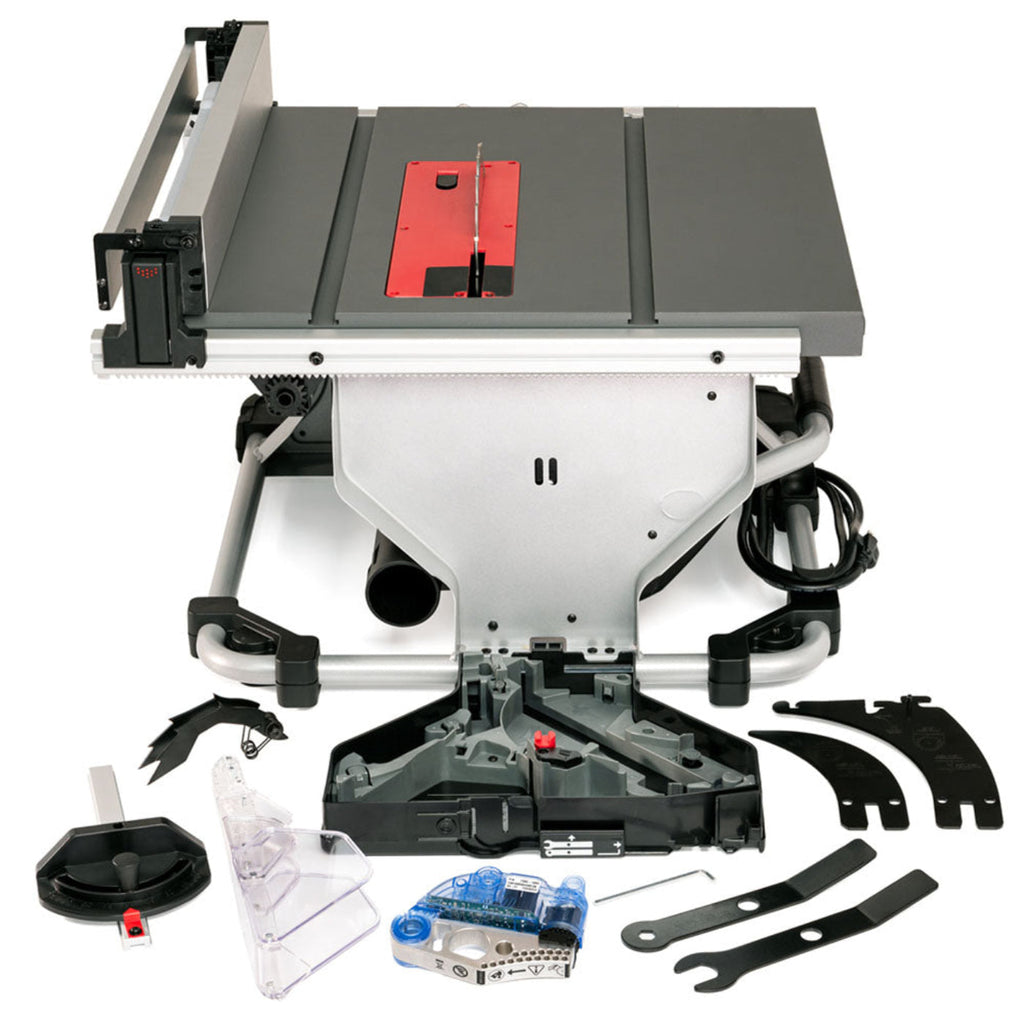

Includes
- (1) Compact Table Saw
- (1) Miter Gauge
- (1) Brake Cartridge (installed)
- (1) 3 mm Hex Key
- (2) Blade Wrenches
- (1) Riving Knife (Installed)
- (1) Blade Guard with Spreader & Anti-Kickback Pawls
- (1) 10" 24-Tooth Ripping Blade (Installed)
- (1) Push Stick
- (1) Table Saw Insert (Installed)
What Our Experts Think
-
Compact yet powerful table saw ideal for small shops
-
Precision fence and miter gauge for accurate cuts
-
Rugged build delivers dependable performance
-
Easy setup and mobility for versatile use
-
Great balance of size, power, and value
Q&A
-
Q: What size workspace is this suited for?
A: Perfect for small to mid-size workshops.
-
Q: Is it portable?
A: Yes, designed for shop flexibility.
-
Q: Does it include a fence system?
A: Yes, precise fence included.
-
Q: Is it good for hobbyists and pros?
A: Yes, ideal for both.
Maintenance Tips
-
Keep table surface clean and waxed
-
Check blade alignment regularly
-
Clean dust ports frequently
-
Inspect fence calibration periodically
-
Tighten hardware as needed
